DeskPi Mini Cube for CM5/CM4

A compact enclosure for Raspberry Pi CM4/CM5 with integrated cooling, dual-HDMI, dual-USB, gigabit Ethernet, M.2 NVMe SSD support and GPIO access!

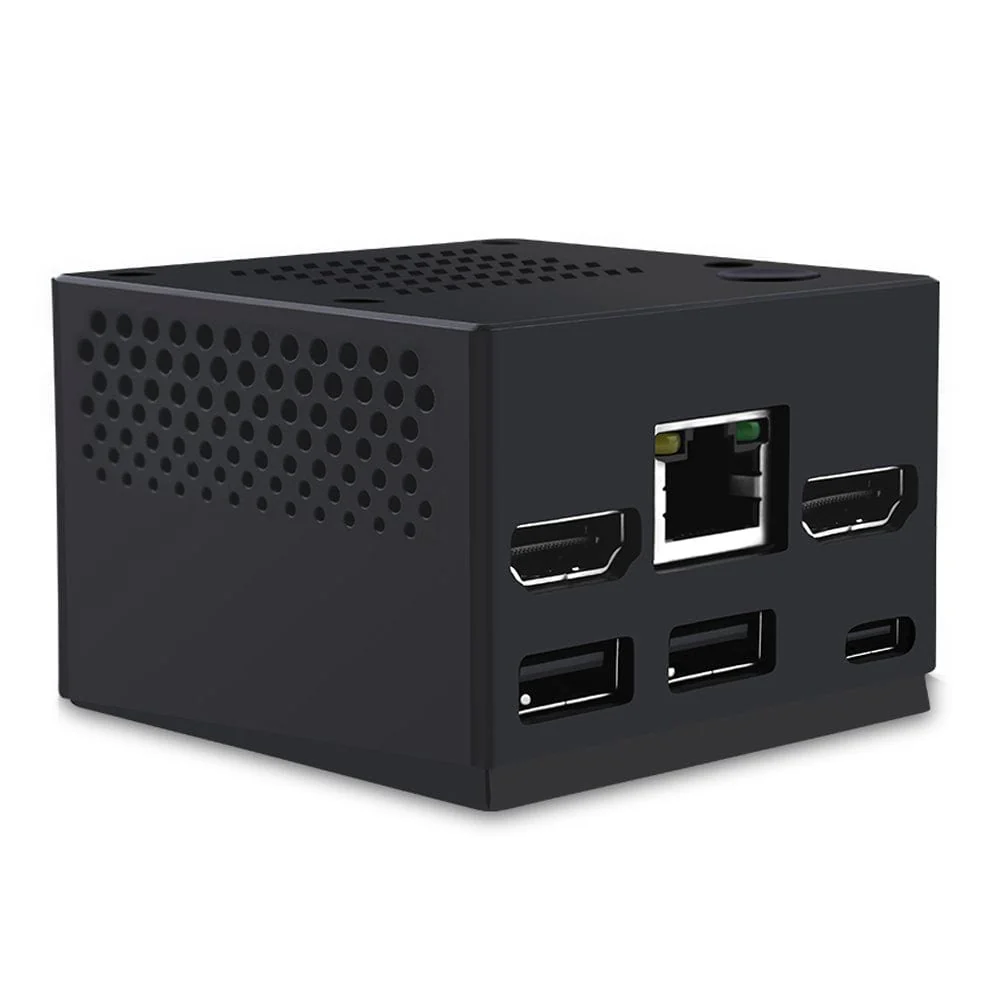

The DeskPi Mini Cube is a compact case designed for the Raspberry Pi Compute Module 4 (CM4) and Compute Module 5 (CM5).

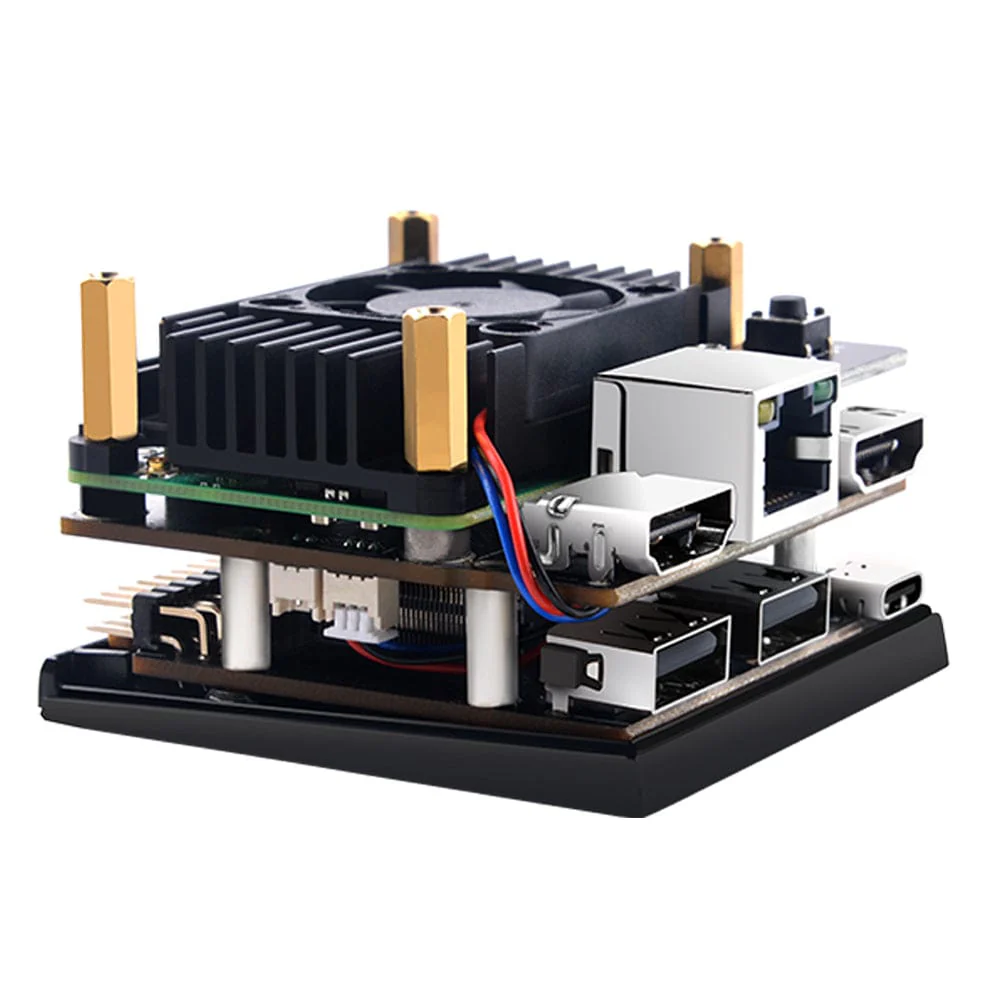

The case integrates a mini aluminium alloy heatsink with a PWM-controlled fan for effective cooling. The internal adapter boards offer dual full-size HDMI ports, dual USB 2.0 OTG ports (requiring dwc2 overlay configuration), a Gigabit Ethernet port, and a M.2 PCIe slot supporting 2242 M.2 NVMe SSDs.

Additional features include a 40-pin GPIO breakout, a DIP switch for boot mode configuration, and an onboard PCF85063 I2C RTC module. Power is supplied via a 5V USB-C port (power supply not included).

Raspberry Pi CM4/CM5, SSD, and USB-C power supply not included.

Features

• Compact design
• Integrated aluminium alloy heatsink and PWM fan
• Dual full-size HDMI ports
• Two USB 2.0 OTG ports (dwc2 overlay configuration required)
• Gigabit Ethernet port
• PCIe slot supporting M.2 NVMe SSDs (M-Key 2242)
  • Please note that the Raspberry Pi SSD is the shorter 2230 format - it will still fit in the slot/case, but will not be supported mechanically.
• MicroSD slot
• 40-pin GPIO breakout

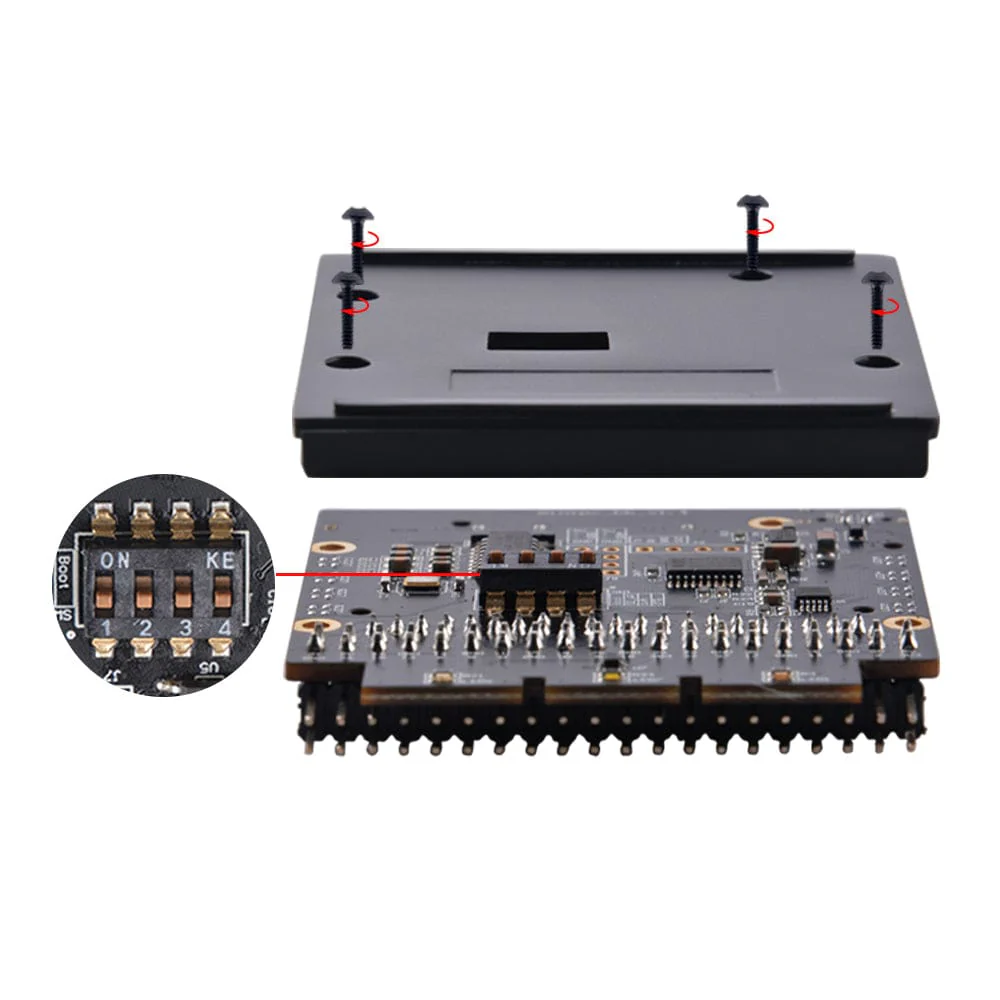

• DIP switch for boot mode configuration
• Onboard PCF85063 I2C RTC module
• 5V USB-C power input

Specifications

• Compatibility:
  • Raspberry Pi Compute Module 4 (CM4)
  • Raspberry Pi Compute Module 5 (CM5)
• Cooling: Aluminium alloy heatsink with silent PWM-controlled fan

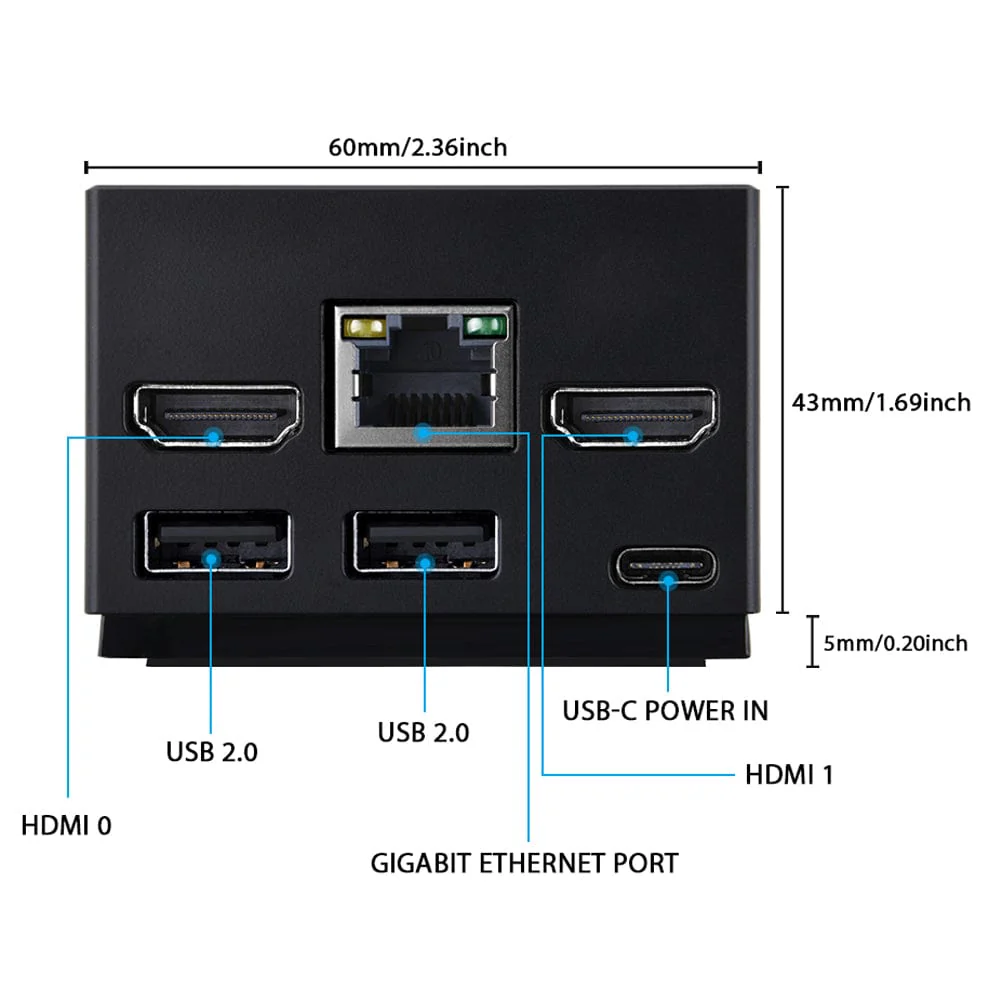

• Ports:
  • 2x Full-size HDMI
  • 2x USB 2.0 OTG (dwc2 overlay configuration required)
  • 1x Gigabit Ethernet
  • 1x PCIe slot for M.2 NVMe SSDs (M-Key 2242)
• GPIO: 40-pin breakout
• RTC: Onboard PCF85063 I2C module
• Power: 5V USB-C input

Resources

• DeskPi Mini Cube Wiki

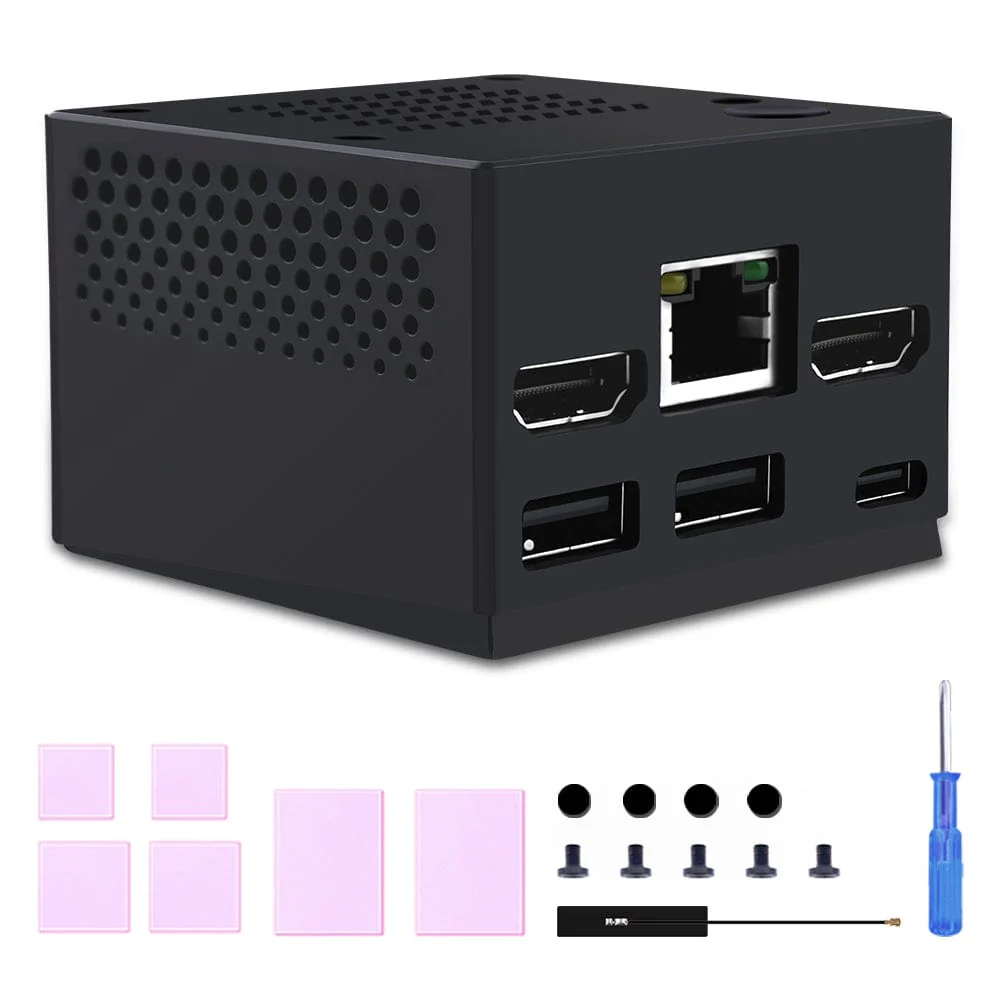

Package Contents

• 1x DeskPi Mini Cube case
• 1x Internal Adhesive Antenna (IPEX1)
• 4x Soft feet
• 1x Mini screwdriver
• 1x Thermal pads and fixing set
• 1x Aluminium alloy heatsink with silent PWM fan
• 1x PCIe adapter for M.2 NVMe SSD (M-Key 2242)

Raspberry Pi CM4/CM5, SSD, and USB-C power supply not included.
