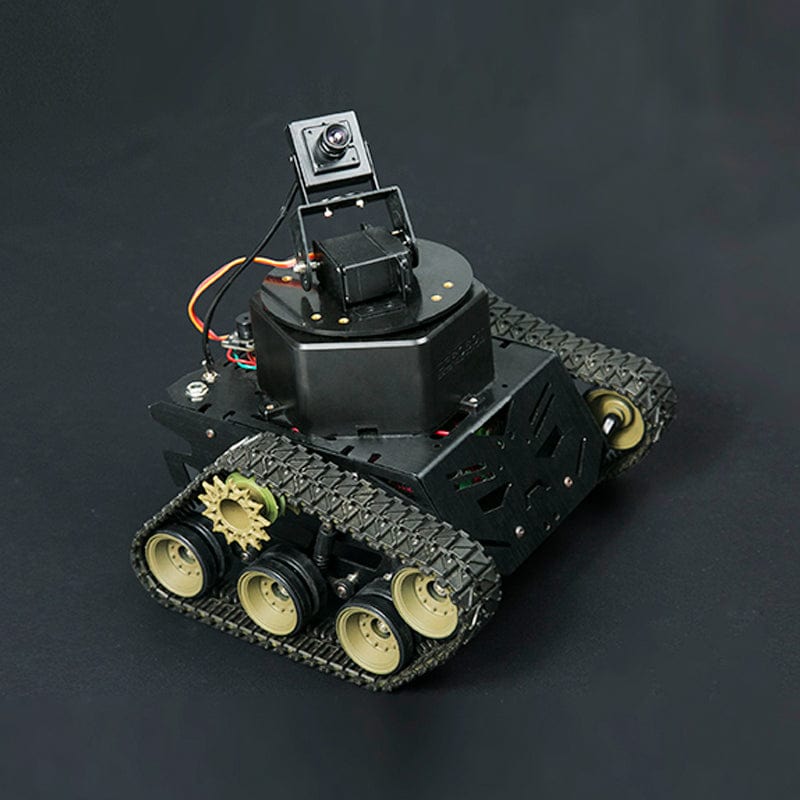

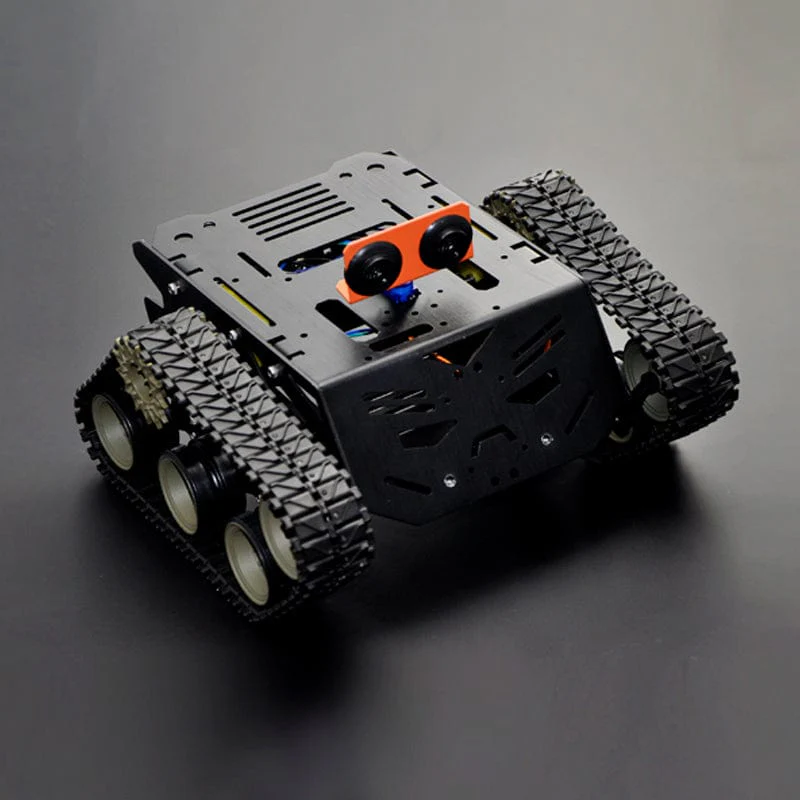

Devastator Tank Mobile Robot Platform (Metal DC Gear Motor)

Let's build a tank! This robot's suspension system allows for easy travel over tricky terrain. It balances the robot's weight and reduces vibrations during movement.

It is equipped with dual brushed DC geared motors, an easy wiring layout, and simple control logic. It can be used with compatible controllers such as Raspberry Pi, Arduino, and ESP32.

There are many mounting holes, letting you install various sensors, actuators, controllers, and video transmission systems inside and outside the robot. This lets it perform more tasks, including long-distance control, object grasping and transportation, harsh environment detection, and real-time outdoor monitoring.

With upgraded metal brushed DC reduction motors, the platform's payload capacity can now handle up to 3 kg. This lets it have a six-degree-of-freedom robotic arm and larger capacity batteries. Additionally, the platform can be equipped with devices such as laser radar, depth cameras, and high-definition cameras.

Specifications

• Rated Voltage: 6V
• Operating Voltage Range: 2~7.5V
• Gear reduction ratio: 45:1
• D output shaft diameter: 4 mm
• No-load speed: 133 RPM @ 6V
• No-load current: 0.13 A
• Locked-rotor torque: 4.5 kg.cm
• Locked-rotor current: 2.3A
• Load Capacity: 3kg
• Assembled Dimensions (L x W x H): 225 x 220 x 108 mm
• Net Weight: 1.3kg

Resources

• Product Wiki

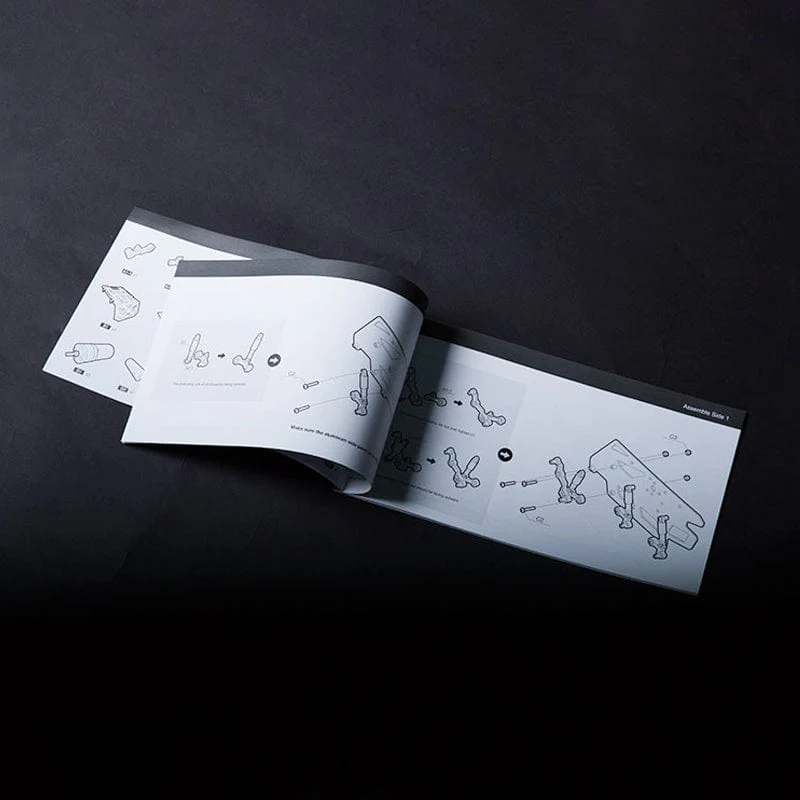

• Instruction Manual

• Example Code

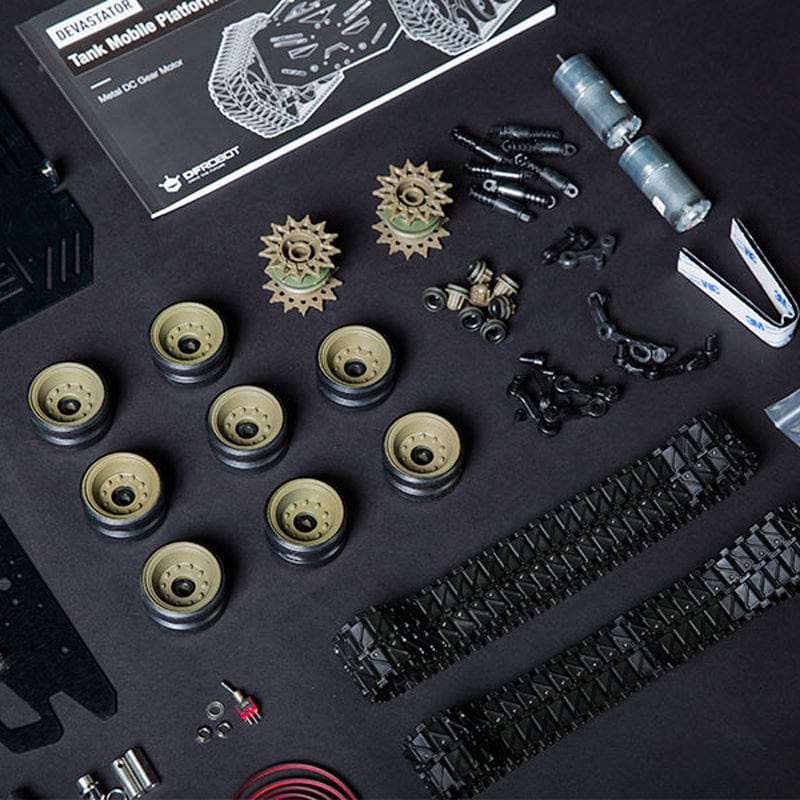

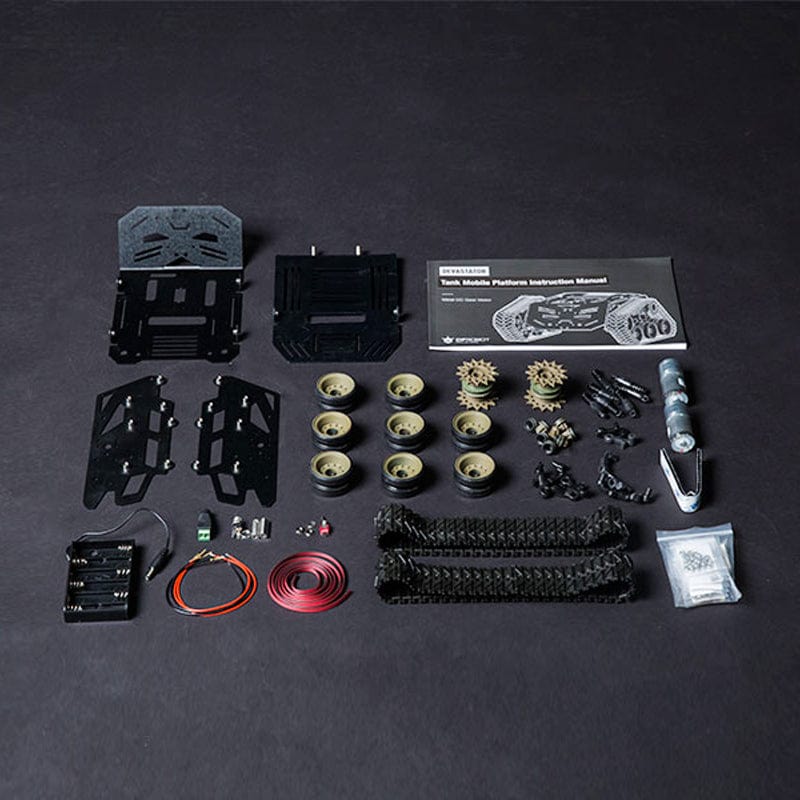

Package Contents

• 1x Devastator Tank Mobile Robot
