$19.61
Gravity: DF05BB Tilt/Pan Kit (5kg)—
$19.61
The Story
This DF05BB Pan and Tilt assembly for horizontal surface mount. Made using two DFRobot servo brackets. Perfect for your small remote piloted robot! Includes hardware and two DF05 ball bearing servos.
Specifications
- Working Voltage: 4.8-6V
- Working current: 0.1-0.8 A
- Torque: 4.8kg-cm @ 4.8V ; 5.5kg-cm @6V
- Average speed: 60 rpm
- Rotation range: 0- 120
- Working Temperature: 0°C~55°C
- Size: 41 x 20 x 38mm
- Weight: 48g
Resources
- Assembly guide
Package Contents
- 2x DF05BB Standard Servo
- 1x Aluminum multifunction bracket
- 1x Aluminum U-shape bracket
- 1x Bearing cup
- 1x High-quality sets of screw nuts
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This DF05BB Pan and Tilt assembly for horizontal surface mount. Made using two DFRobot servo brackets. Perfect for your small remote piloted robot! Includes hardware and two DF05 ball bearing servos.
Specifications
- Working Voltage: 4.8-6V
- Working current: 0.1-0.8 A
- Torque: 4.8kg-cm @ 4.8V ; 5.5kg-cm @6V
- Average speed: 60 rpm
- Rotation range: 0- 120
- Working Temperature: 0°C~55°C
- Size: 41 x 20 x 38mm
- Weight: 48g
Resources
- Assembly guide

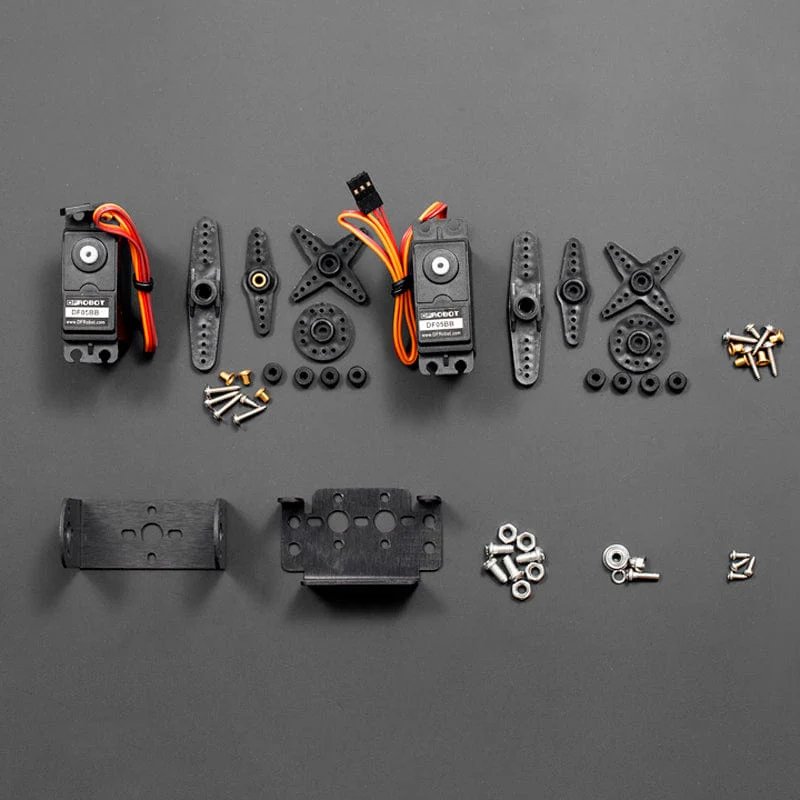

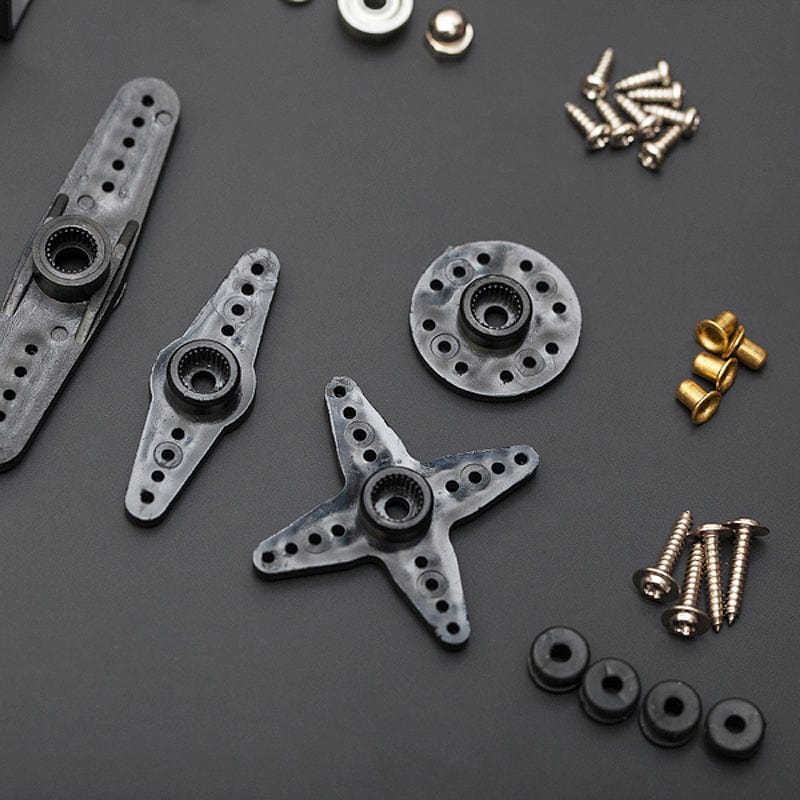

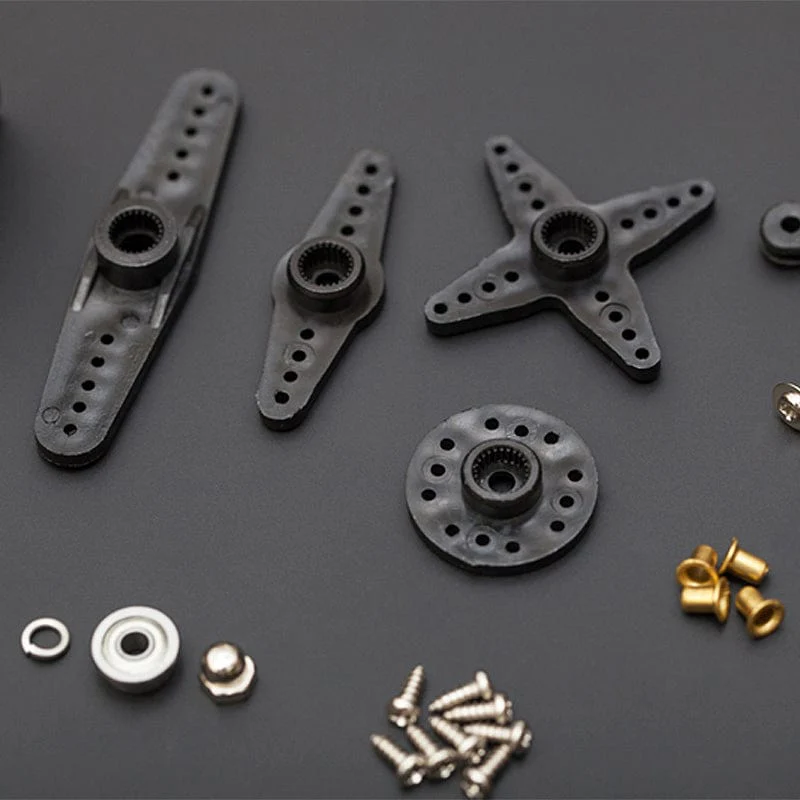

Package Contents

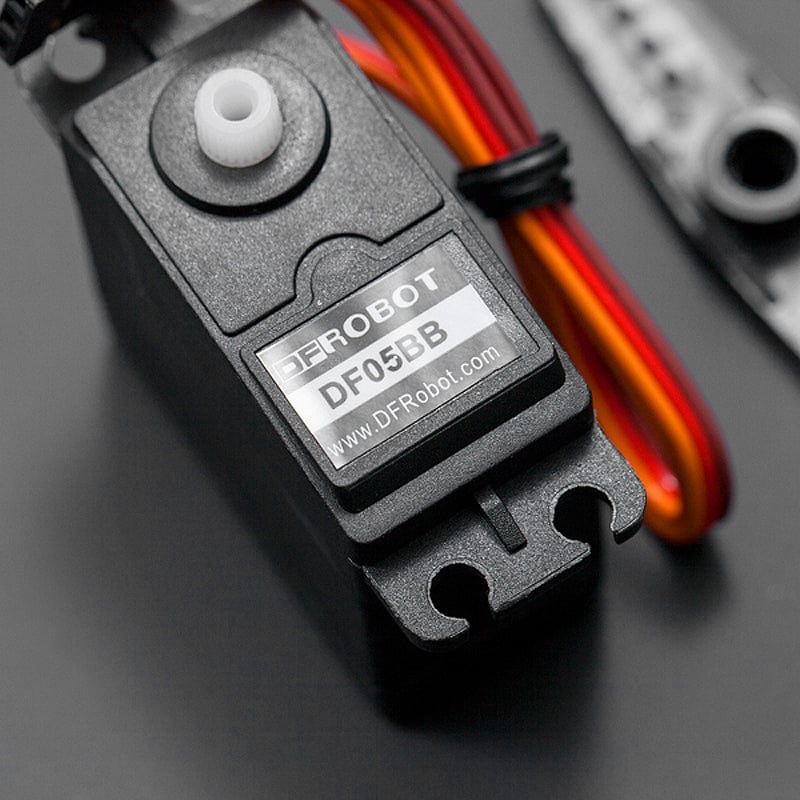

- 2x DF05BB Standard Servo

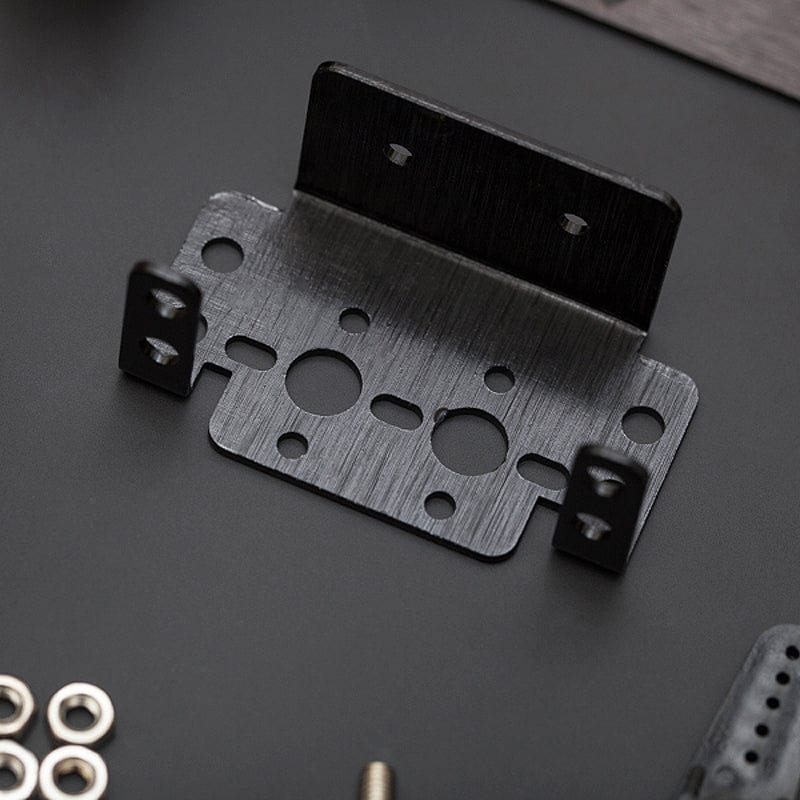

- 1x Aluminum multifunction bracket
- 1x Aluminum U-shape bracket
- 1x Bearing cup
- 1x High-quality sets of screw nuts
