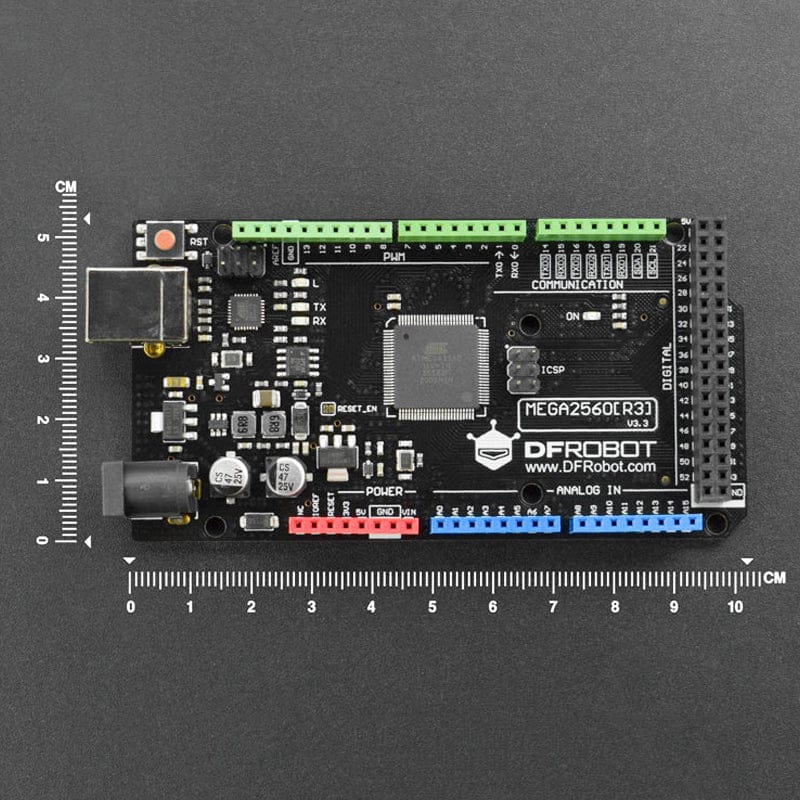

DFRduino Mega2560 (Arduino Mega 2560 R3 Compatible)

The newly updated DFRduino Mega2560 enhances its VIN power supply circuit by replacing the traditional LDO with a DC-DC circuit, significantly improving safety and reliability. This change not only addresses overheating issues but also broadens the input voltage range, allowing the board to operate even with just a 3.7V lithium battery.

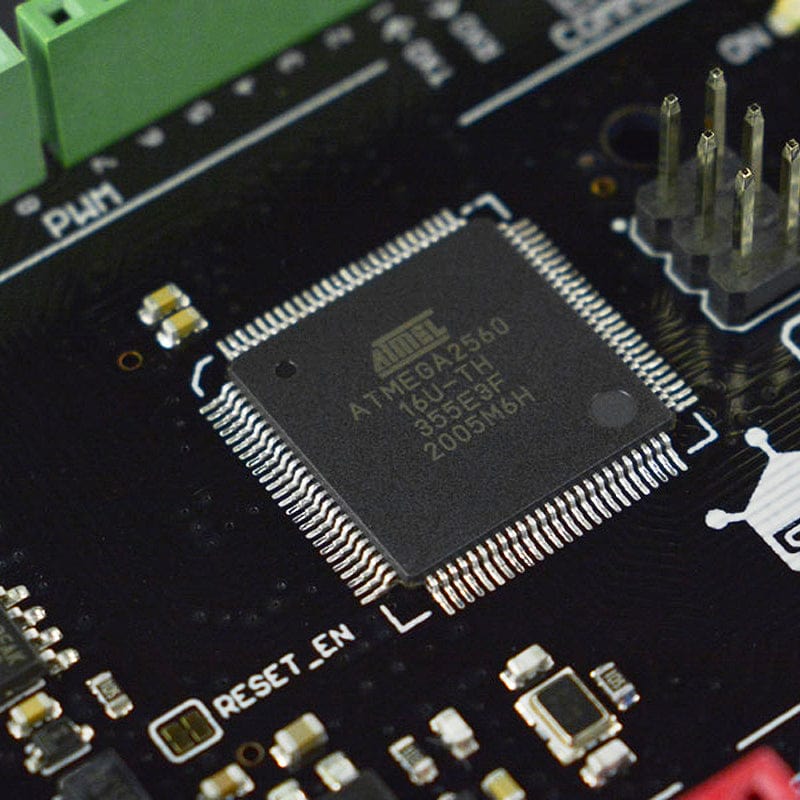

This microcontroller, based on the ATmega2560, provides full compatibility with the Arduino MEGA2560 platform. It is equipped with 54 digital I/O ports, 16 analogue input ports, 4 UARTs (hardware serial ports), and a 16 MHz crystal oscillator. The Mega2560 includes a bootloader, providing direct program downloads via USB. You have the flexibility to power the board using a USB cable, a standard adapter, or an external battery. It also features 256KB of FLASH memory—doubling that of the Mega1280—providing decent space for larger and more complex projects.

Specifications

Working voltage	5V
CPU Frequency	16MHz
TIO ports / PWM	54 / 15
Analog inputs	16
UART	4
I2C	2
SPI	1
Interrupt pins	2
EEPROM[KB]	4
Flash[KB]	256
SRAM[KB]	8
USB	A-B USB cable
Dimension	100 x 53 x 15mm
Vin	7-12V
Weight（g）	70
IDE version	Arduino 1.0 and above

Resources

• DFRobot Arduino Compatible Microcontroller Selection Guide
• DFRduino Mega 2560 Selection Guide
• Arduino IDE Download
• DFRduino Mega2560 Controller Schematics

Package Contents

• 1x DFRduino Mega2560 Microcontroller
