Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued]
HomeStore

Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued]

Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued]

$27.25

Original: $90.82

-70%
Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued]ā€”

$90.82

$27.25

The Story

LED Strips always glow nicely in the dark and are super fun to play with. They can be used in home decorations, festives and interactive art installations. For example this Christmas someone put a phone-controlled strip around the Christmas tree for S.O., and it looked great!
This Digital RGB Strip is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. There are 60 RGB LEDs per meter, and you can control each LED individually. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. It also contains a precision internal oscillator and a 12V programmable constant current control part, effectively ensuring the consistency of pixel point light color.
With low voltage requiremnt and environment-friendly design, this Digital RGB LED Strip has high brightness, low power consumption and long life. Its additional features are awaiting your exploration!

Digital RGB LED Strip 180 LED Projects

Digital RGB LED Strip 180 LED Project 1: Smart Xmas Tree with RGB LED Strip
Got stuck figuring out ideas for Christmas decors? Still thinking about putting LEDs strip and EL wires together? Simply puting LEDs and make them blinking is a has-been.
Hardware Components:
  • Digital RGB LED Strip 180 LED x1
  • Bluno - An Arduino Bluetooth 4.0 (BLE) Board x1
  • Analog Sound Sensor x1
  • Audio Analyzer x1
  • IO Expansion Shield for Arduino V7 x1
  • DC Barrel Jack Adapter - Female x1
  • DC Power([email protected])
  • Cables


Digital RGB LED Strip 180 LED Project 2. How to Make A Pet Wearable

In this tutorial we will use an Arduino Beetle BLE to make a simple wearable device for ā€¦your pet! My cat is the model of this wearable project.

Here are the main functions to implement:

-The wearable device will be built around a small jacket that the cat can wear.

-A light strip on the jacket will be light up with our catā€™s steps (to put dog walkers to shame)

When the wireless jacket is paired with your phone via Bluetooth, it will control the light strip to flash on and off so that you can locate your pet quickly.

Hardware components:

  • Beetle BLE - The smallest Arduino bluetooth 4.0 (BLE)
  • Digital RGB LED Strip 60 LED - (3m)(weatherproof)
  • LilyPad LED Micro - White (5pcs)
  • DFPlayer - A Mini MP3 Player For Arduino
  • 3.7V Polymer Lithium Ion Battery - 1000mAh
  • Speaker


Digital RGB LED Strip 180 LED Project 3. Halloween pumpkin lamp made by micro:bit
How can a Halloween without a pumpkin lamp? The pumpkin lamp made of recently popular Microbit is a good choice.
  • Microbit *2
  • micro:bit Expansion Board for Boson (Gravity Compatible) *1
  • Digital RGB LED Strip 180 LED - (3m)(weatherproof) *1
  • 3.7V battery *2
  • Lithium battery charger *1


Digital RGB LED Strip 180 LED Project 4. How To Make LED Kitchen Sink Lights with a PIR Sensor, Arduino, and 3D Printing

Features

  • Integrated control circuit and RGB chip
  • Built-in signal reshaping circuit
  • Built-in electric reset circuit and power lost reset circuit
  • Each pixel of the three primary color can achieve 256 brightness display,16777216 full color display,scan frequency no less than 400Hz/s
  • Cascading port transmission signal by single line
  • Data speed: 800Kbps
  • over 50,000 hours life

Applications

  • KTV/Nightclub/Hotel Wall
  • Outdoor signs/banners
  • Home decorative lighting
  • Cars
  • Lighting signals

Specification

  • Working Voltageļ¼š3.3 to 6V
  • Max Current: 1A(per meter) @5V
  • Only one pin needed to send the data
  • LED Controlling Individually
  • Noteļ¼šLEDs can work at 3.3V-6V but the luminance will be different
  • Light source: SMD 5050 LED
  • Material: FPCB
  • ICModel: WS2811 (60 IC/m, each IC controls 1 LED)
  • Grayscale: 256 (60pixels/m)
  • Quantity: 60 LEDs / m, cuttable
  • Emitting Angle: 180 Ā°
  • Power: 18W Ā± 10% /m
  • Waterproof Level: weatherproof
  • Weight: 150g/roll

Documents

  • Wiki Doc
  • Flexible LED Strip datasheet

Shipping List

  • RGB LED Stripļ¼ˆWS2812ļ¼‰ 3meters x1
  • Adapter cable for easy connecting x1

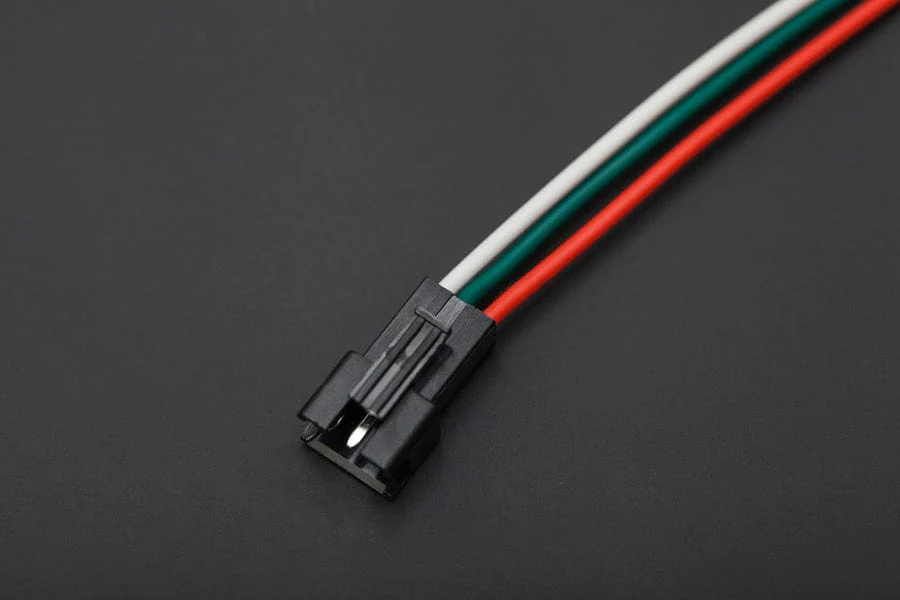

Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

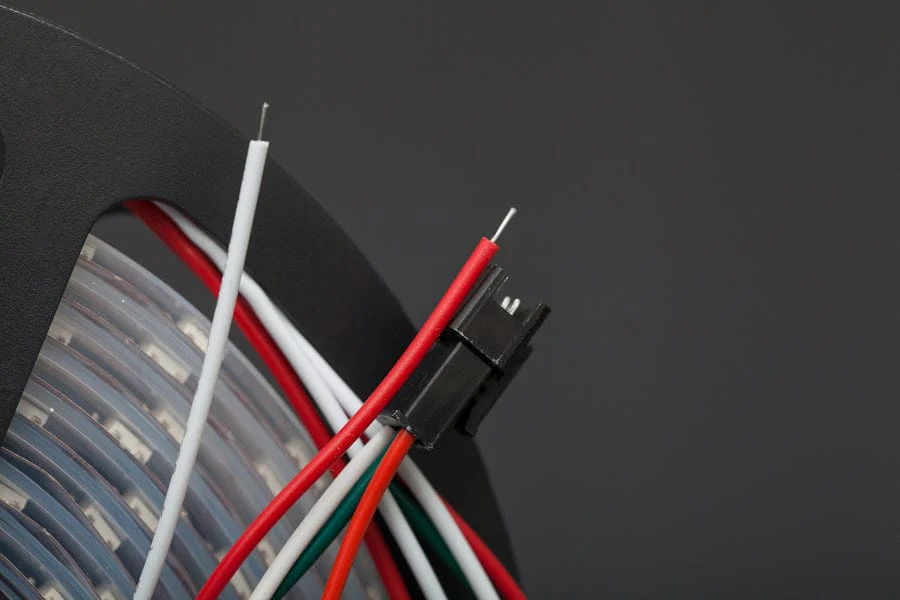

Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

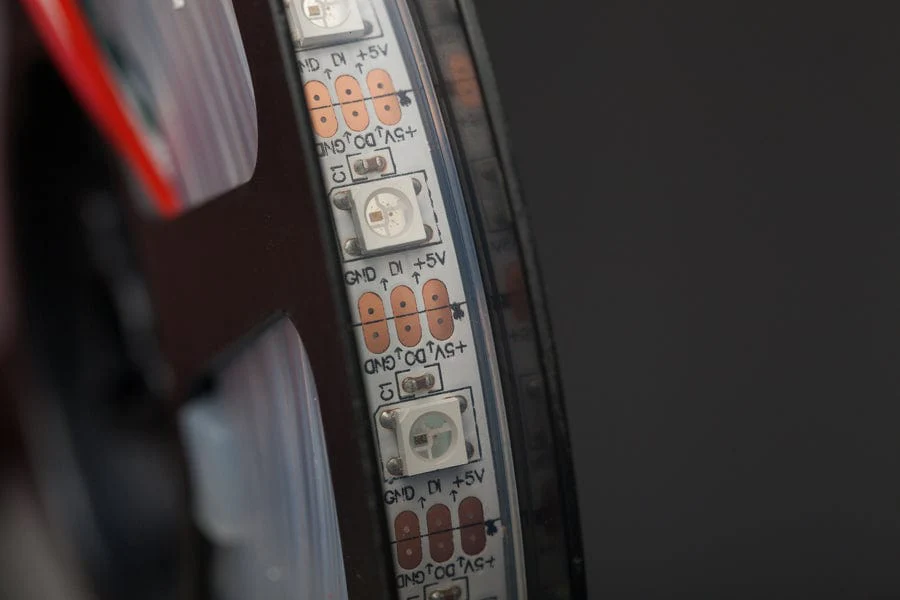

Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued] - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

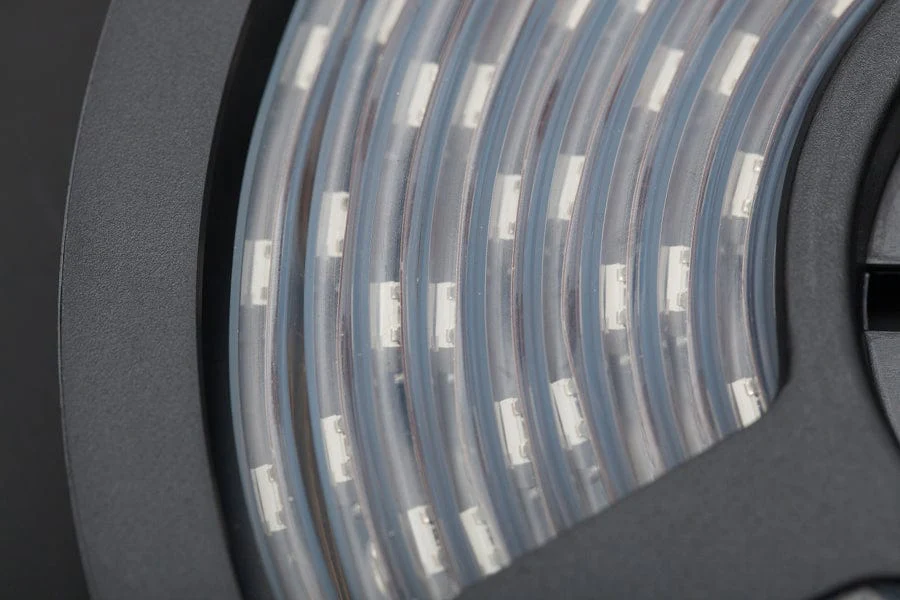

Digital RGB LED Strip 180 LED - (3m)(weatherproof) [Discontinued] - Image 5

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

LED Strips always glow nicely in the dark and are super fun to play with. They can be used in home decorations, festives and interactive art installations. For example this Christmas someone put a phone-controlled strip around the Christmas tree for S.O., and it looked great!
This Digital RGB Strip is a intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. There are 60 RGB LEDs per meter, and you can control each LED individually. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. It also contains a precision internal oscillator and a 12V programmable constant current control part, effectively ensuring the consistency of pixel point light color.
With low voltage requiremnt and environment-friendly design, this Digital RGB LED Strip has high brightness, low power consumption and long life. Its additional features are awaiting your exploration!

Digital RGB LED Strip 180 LED Projects

Digital RGB LED Strip 180 LED Project 1: Smart Xmas Tree with RGB LED Strip
Got stuck figuring out ideas for Christmas decors? Still thinking about putting LEDs strip and EL wires together? Simply puting LEDs and make them blinking is a has-been.
Hardware Components:
  • Digital RGB LED Strip 180 LED x1
  • Bluno - An Arduino Bluetooth 4.0 (BLE) Board x1
  • Analog Sound Sensor x1
  • Audio Analyzer x1
  • IO Expansion Shield for Arduino V7 x1
  • DC Barrel Jack Adapter - Female x1
  • DC Power([email protected])
  • Cables


Digital RGB LED Strip 180 LED Project 2. How to Make A Pet Wearable

In this tutorial we will use an Arduino Beetle BLE to make a simple wearable device for ā€¦your pet! My cat is the model of this wearable project.

Here are the main functions to implement:

-The wearable device will be built around a small jacket that the cat can wear.

-A light strip on the jacket will be light up with our catā€™s steps (to put dog walkers to shame)

When the wireless jacket is paired with your phone via Bluetooth, it will control the light strip to flash on and off so that you can locate your pet quickly.

Hardware components:

  • Beetle BLE - The smallest Arduino bluetooth 4.0 (BLE)
  • Digital RGB LED Strip 60 LED - (3m)(weatherproof)
  • LilyPad LED Micro - White (5pcs)
  • DFPlayer - A Mini MP3 Player For Arduino
  • 3.7V Polymer Lithium Ion Battery - 1000mAh
  • Speaker


Digital RGB LED Strip 180 LED Project 3. Halloween pumpkin lamp made by micro:bit
How can a Halloween without a pumpkin lamp? The pumpkin lamp made of recently popular Microbit is a good choice.
  • Microbit *2
  • micro:bit Expansion Board for Boson (Gravity Compatible) *1
  • Digital RGB LED Strip 180 LED - (3m)(weatherproof) *1
  • 3.7V battery *2
  • Lithium battery charger *1


Digital RGB LED Strip 180 LED Project 4. How To Make LED Kitchen Sink Lights with a PIR Sensor, Arduino, and 3D Printing

Features

  • Integrated control circuit and RGB chip
  • Built-in signal reshaping circuit
  • Built-in electric reset circuit and power lost reset circuit
  • Each pixel of the three primary color can achieve 256 brightness display,16777216 full color display,scan frequency no less than 400Hz/s
  • Cascading port transmission signal by single line
  • Data speed: 800Kbps
  • over 50,000 hours life

Applications

  • KTV/Nightclub/Hotel Wall
  • Outdoor signs/banners
  • Home decorative lighting
  • Cars
  • Lighting signals

Specification

  • Working Voltageļ¼š3.3 to 6V
  • Max Current: 1A(per meter) @5V
  • Only one pin needed to send the data
  • LED Controlling Individually
  • Noteļ¼šLEDs can work at 3.3V-6V but the luminance will be different
  • Light source: SMD 5050 LED
  • Material: FPCB
  • ICModel: WS2811 (60 IC/m, each IC controls 1 LED)
  • Grayscale: 256 (60pixels/m)
  • Quantity: 60 LEDs / m, cuttable
  • Emitting Angle: 180 Ā°
  • Power: 18W Ā± 10% /m
  • Waterproof Level: weatherproof
  • Weight: 150g/roll

Documents

  • Wiki Doc
  • Flexible LED Strip datasheet

Shipping List

  • RGB LED Stripļ¼ˆWS2812ļ¼‰ 3meters x1
  • Adapter cable for easy connecting x1
