DRS - 0401 HerkuleX Smart Servo [Discontinued]

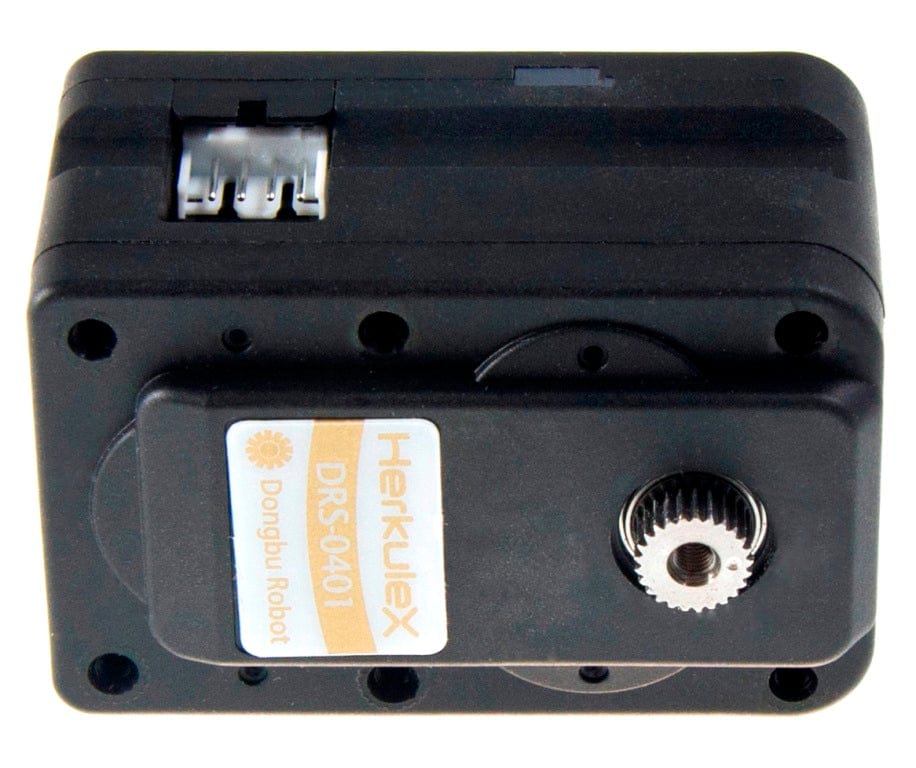

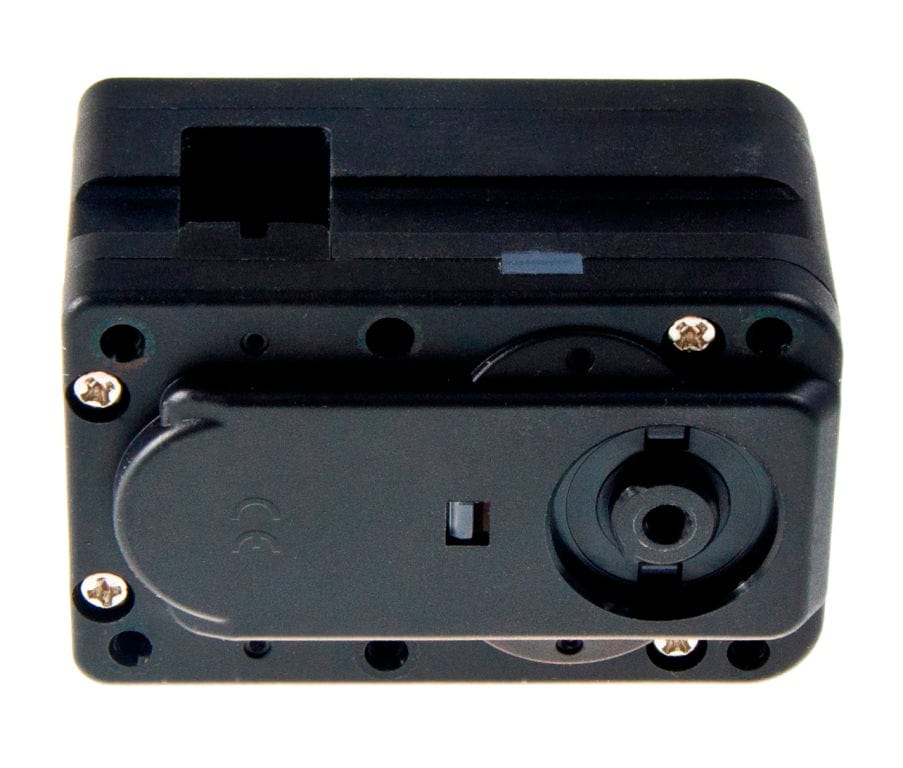

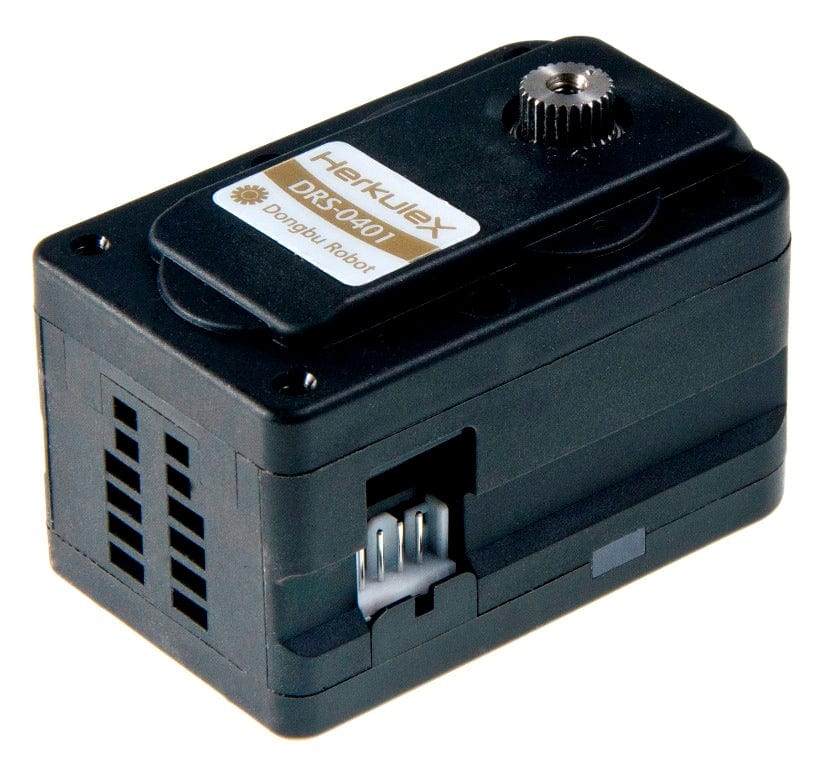

Herkulex DRS-0401 is state of the art modular smart servos incorporating motor, gear reducer, control circutry and communications capability in one single package. Through Premium FAULHABER Coreless DC Motor, this servo can provide the stall torque up to 5.1 N.m at 14.8V, which is really amazing.

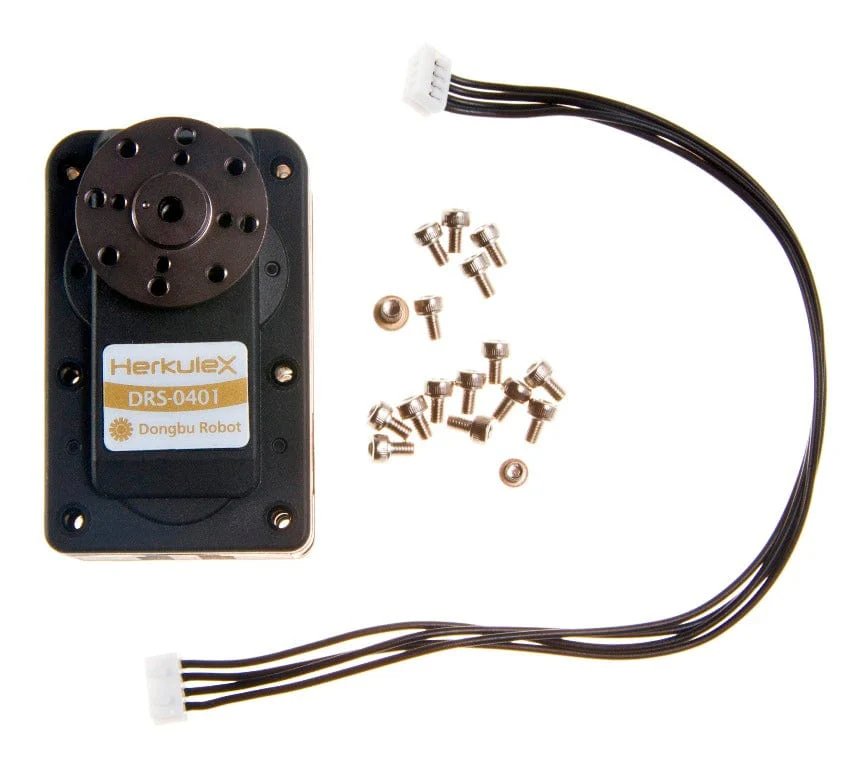

Equipped with serial adapting pieces including Horn, Horn Bolt(M 3*6), Bracket Assembly Bolt(M 2.6*4), Wire Harness(200mm,7.87") and with it's amazing structure, DRS-0401 is extremely easy to assemble. Two connectors attached to each servo allows serial connection as well as parallel connection if required.

It carries different Control Algorithms like PID, Feedforward, Trapezoidal Velocity Profile so on and so forth, which makes the movement smoothly and precisely. By Using UART Serial communications ,we can lightly change the speed, position, LED, operational compliance, stop and operational status of up to 254 servos simultaneoulsy at once. Meanwhile we can get the feedback such as internal temperature, position, and overload sensors.

Servos are capable of diagnosing seven different types of errors which are then indicated by the LED. And we can directly control the RGB of the LED for diagnostics and decorative purposes. It's especially suitable to mechanical arms, robots, joints and etc.
