The Story

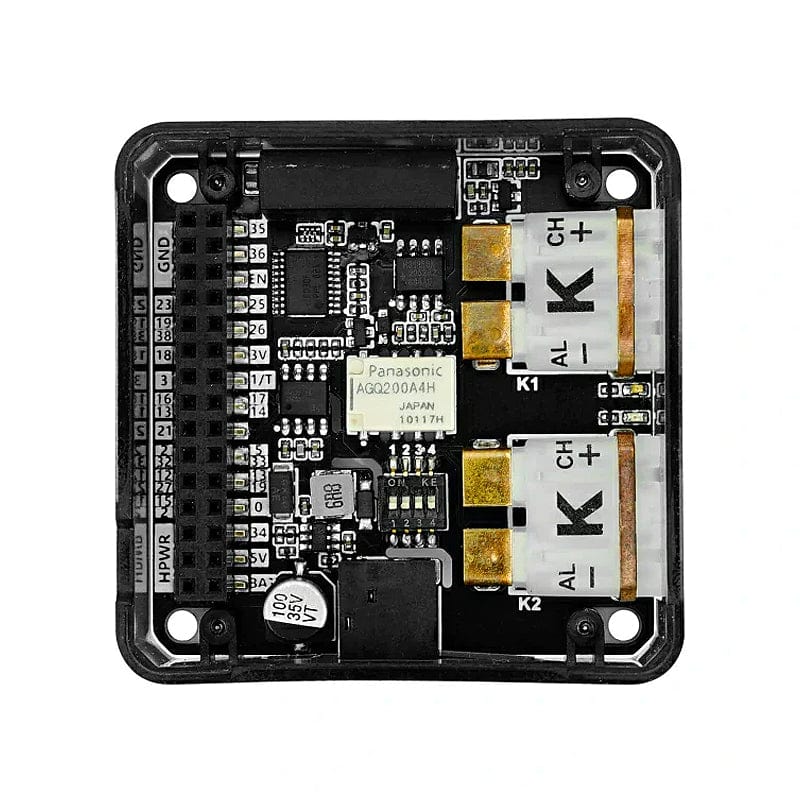

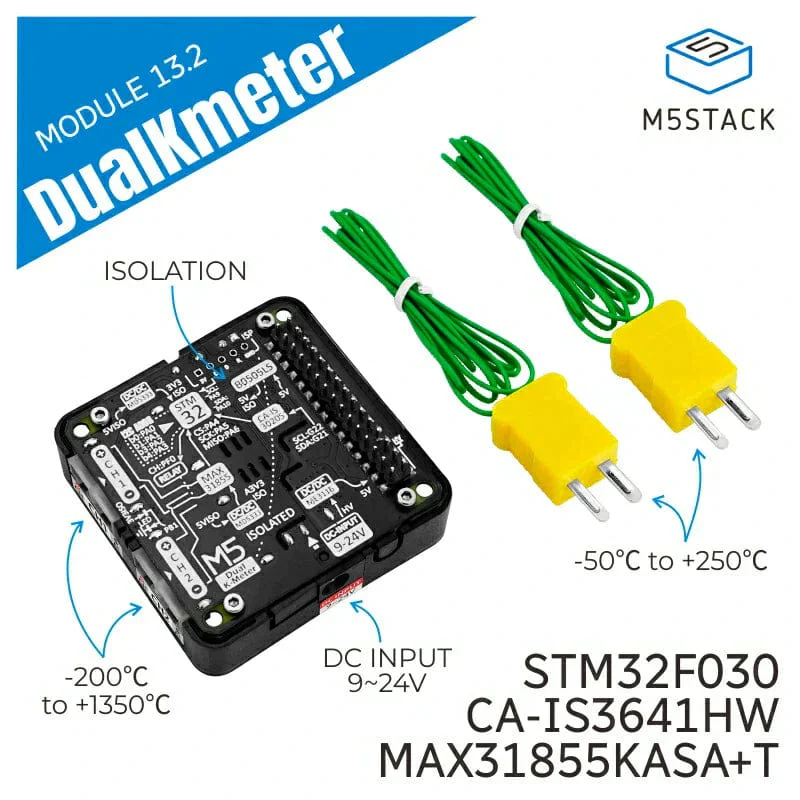

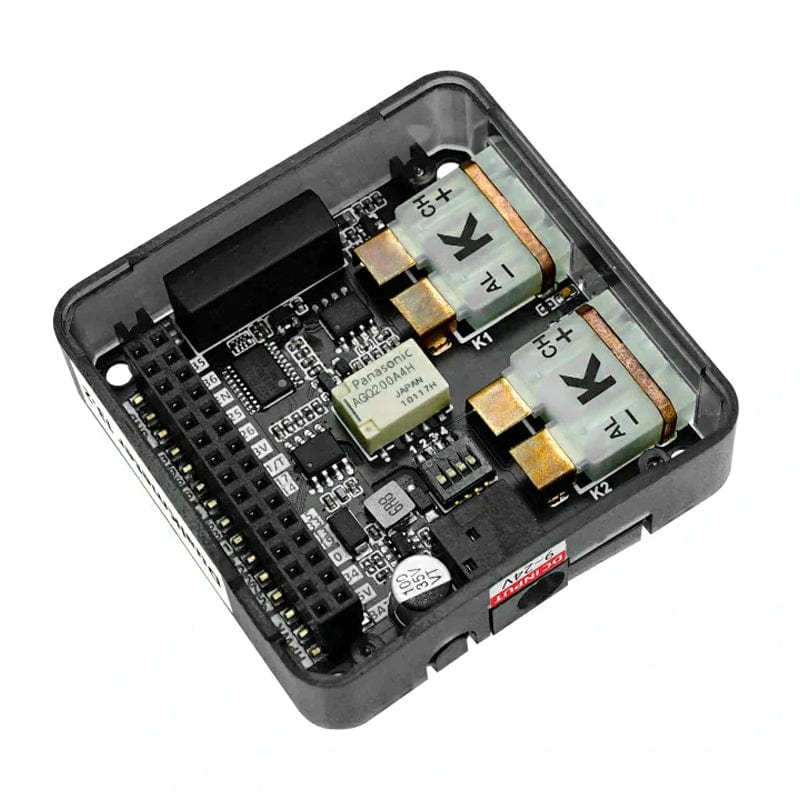

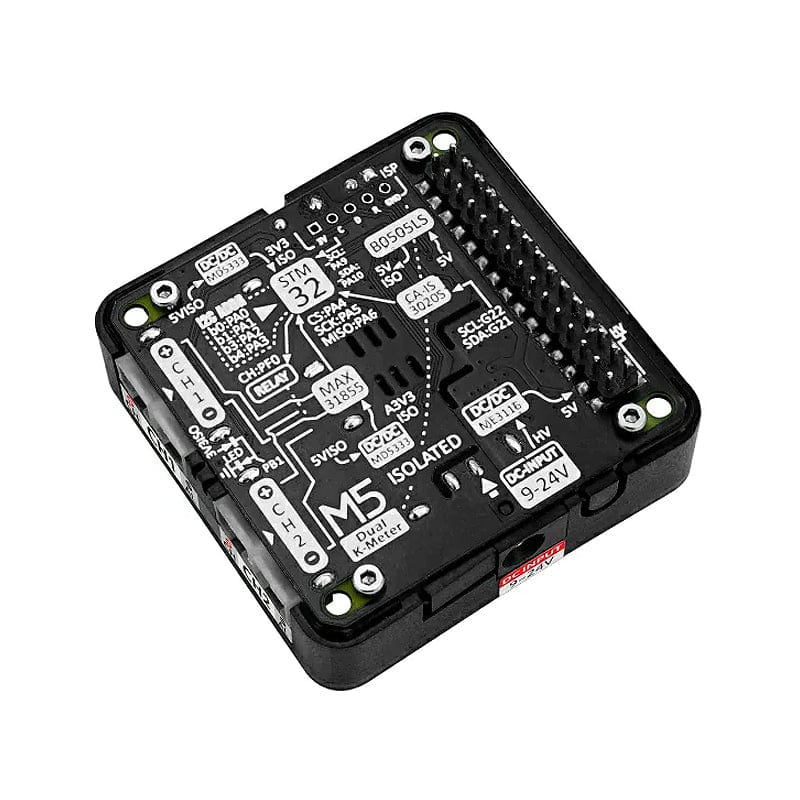

The DualKmeter module 13.2 is a dual-channel K-type temperature measurement module based on the MAX31855KASA. The module has a built-in two-way K-type thermocouple sensor interface, which uses the signal relay to measure the temperature value of the two channels in turn, supporting a measurement range of -200°C to 1350°C, and a measurement accuracy of ±2°C. At the same time, the module also has built-in voltage and signal isolation chips such as the B0505LS-1WR2 and CA-IS3020S, ensuring the stability and safety of the system. In addition, the module has a built-in dial code, which can easily switch different I2C addresses. It can be applied to multiple scenarios such as industrial automation and instrument detection.
Features
- STM32F030F4P6, a 32-bit microcontroller with Cortex-M0 core
- MAX31855KASA+T: (14Bit ADC, 0.25°C Resolution, ±2% Accuracy)
- Supported probe types: Type K - Supports access probe measuring range from -200°C to 1350°C
- Galvanic isolation
- Dual-type K thermocouples
- Dial the code to switch the I2C address (default 0x11)
- Programming platform: Arduino, UIFlow
Specifications
| Resources | Parameters |
| MCU | STM32F030F4P6, a 32-bit microcontroller based on the Cortex-M0 core, 64KB Flash memory and 8KB SRAM |
| DCDC | ME3116 |
| LDO | HX6306P332、MD5333 |
| Digital temperature sensor | MAX31855KASA+T |
| Relay | AGQ200A4H |
| Galvanic isolation | B0505LS-1WR2、CA-IS3020S |
| Measure the temperature | -270°C至+1800°C |
| Module operating temperature | 0-40°C |
| Thermocouple type | K |
| Product Size | 54-54*13.2mm |
| Package Size | 95*65*25mm |
| Product Weight | 37.2g |
| Package Weight | 65.6g |
Resources
- Product Wiki
- DualKmeterModule 13.2 Firmware
- STM32F030F4P6
- B0505LS-1WR2
- CA-IS3020S
- HX6306P332
- MAX31855KASA
- MD5333
- ME3116AM6G
Package contents
- 1 x DualKmeter Module 13.2
- 2 x Type K thermocouples
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The DualKmeter module 13.2 is a dual-channel K-type temperature measurement module based on the MAX31855KASA. The module has a built-in two-way K-type thermocouple sensor interface, which uses the signal relay to measure the temperature value of the two channels in turn, supporting a measurement range of -200°C to 1350°C, and a measurement accuracy of ±2°C. At the same time, the module also has built-in voltage and signal isolation chips such as the B0505LS-1WR2 and CA-IS3020S, ensuring the stability and safety of the system. In addition, the module has a built-in dial code, which can easily switch different I2C addresses. It can be applied to multiple scenarios such as industrial automation and instrument detection.
Features
- STM32F030F4P6, a 32-bit microcontroller with Cortex-M0 core
- MAX31855KASA+T: (14Bit ADC, 0.25°C Resolution, ±2% Accuracy)
- Supported probe types: Type K - Supports access probe measuring range from -200°C to 1350°C
- Galvanic isolation
- Dual-type K thermocouples
- Dial the code to switch the I2C address (default 0x11)
- Programming platform: Arduino, UIFlow
Specifications
| Resources | Parameters |
| MCU | STM32F030F4P6, a 32-bit microcontroller based on the Cortex-M0 core, 64KB Flash memory and 8KB SRAM |
| DCDC | ME3116 |
| LDO | HX6306P332、MD5333 |
| Digital temperature sensor | MAX31855KASA+T |
| Relay | AGQ200A4H |
| Galvanic isolation | B0505LS-1WR2、CA-IS3020S |
| Measure the temperature | -270°C至+1800°C |
| Module operating temperature | 0-40°C |
| Thermocouple type | K |
| Product Size | 54-54*13.2mm |
| Package Size | 95*65*25mm |
| Product Weight | 37.2g |
| Package Weight | 65.6g |
Resources
- Product Wiki
- DualKmeterModule 13.2 Firmware
- STM32F030F4P6
- B0505LS-1WR2
- CA-IS3020S
- HX6306P332
- MAX31855KASA
- MD5333
- ME3116AM6G
Package contents
- 1 x DualKmeter Module 13.2
- 2 x Type K thermocouples
