The Story

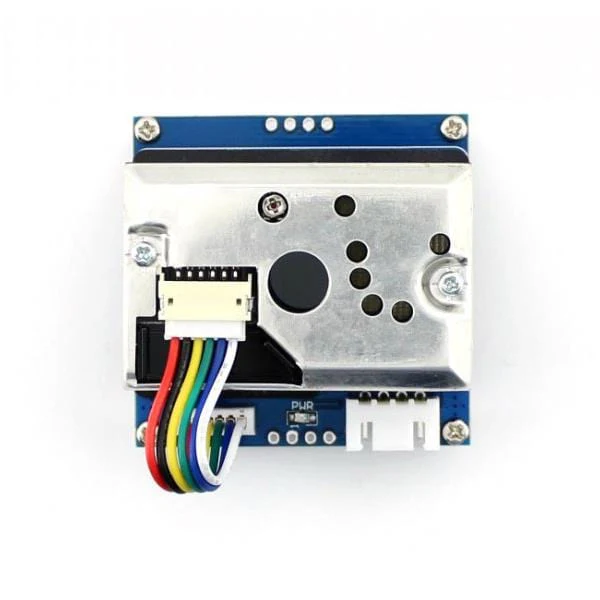

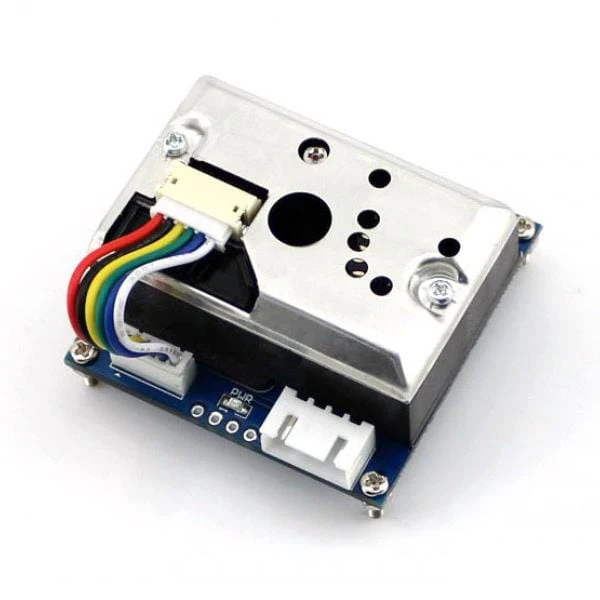

This dust sensor from Waveshare features a Sharp GP2Y1010AU0F sensor, detecting fine particle larger than 0.8μm in diameter. It's great as part of a DIY environmental sensing project.
The sensor features an onboard voltage boost circuit to support a range of power supplies.
Features
- Low power consumption
- Analogue voltage output - output level is linear with dust density
- Embedded voltage boost circuit to support a wide range of power supply
- Note: Pin headers not included
Package Contents
- 1x Dust Sensor
- 1x XH2.54 4-pin wire
Resources
- Product Wiki

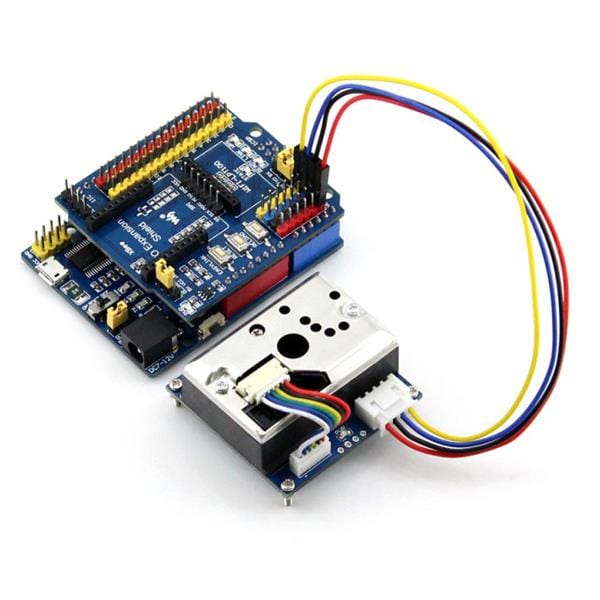

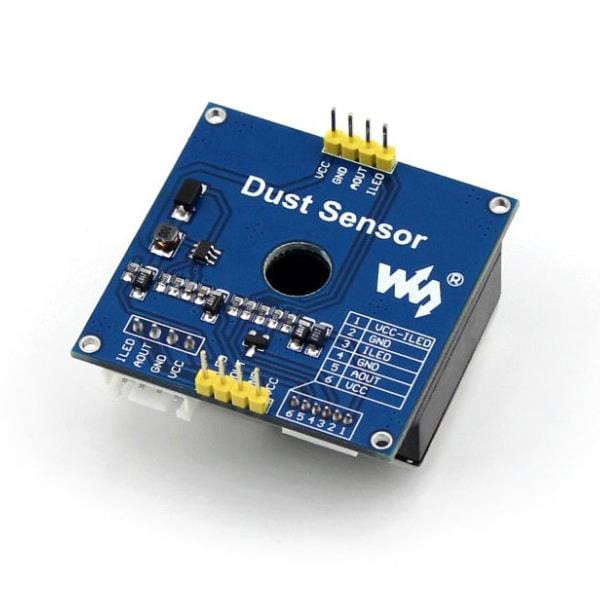

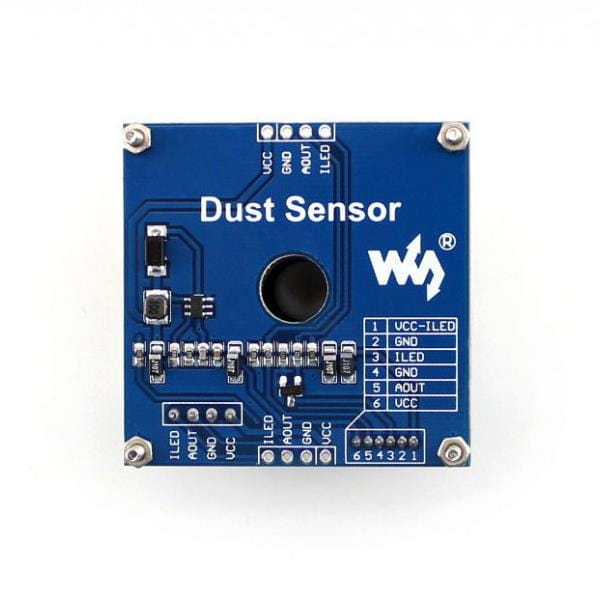

- How to use with an MCU:
- VCC ↔ 2.5V ~ 5.0V
- GND ↔ GND
- AOUT ↔ MCU.IO (analogue output)
- ILED ↔ MCU.IO (module driving pin)
Specifications
- Sensitivity : 0.5V/(100μg/m3)
- Measurement range: 500μg/m3
- Power: 2.5V~5.5V
- Operating current : 20mA(max)
- Operating temperature: -10℃~65℃
- Storage temperature: -20℃~80℃
- Lifetime: 5 years (warranty 1 year)
- Dimension: 63.2mm×41.3mm×21.1mm
- Mounting holes size: 2.0mm
- Airhole size: 9.0mm
