The Story
The ENV III unit is an environmental sensor that integrates the SHT30 and QMP6988 to detect temperature, humidity, and atmospheric pressure data. The SHT30 is a high-precision and low-power digital temperature and humidity sensor, and supports I2C interface (SHT30:0x44 , QMP6988:0x70). The QMP6988 is an absolute air pressure sensor specially designed for mobile applications, with high accuracy and stability, it is suitable for environmental data collection and detection projects.
Features
- Simple and easy to use
- High accuracy
- I2C communication interface
- HY2.0-4P interface, support platform UIFlow , Arduino
- 2x LEGO compatible holes
Package Contents

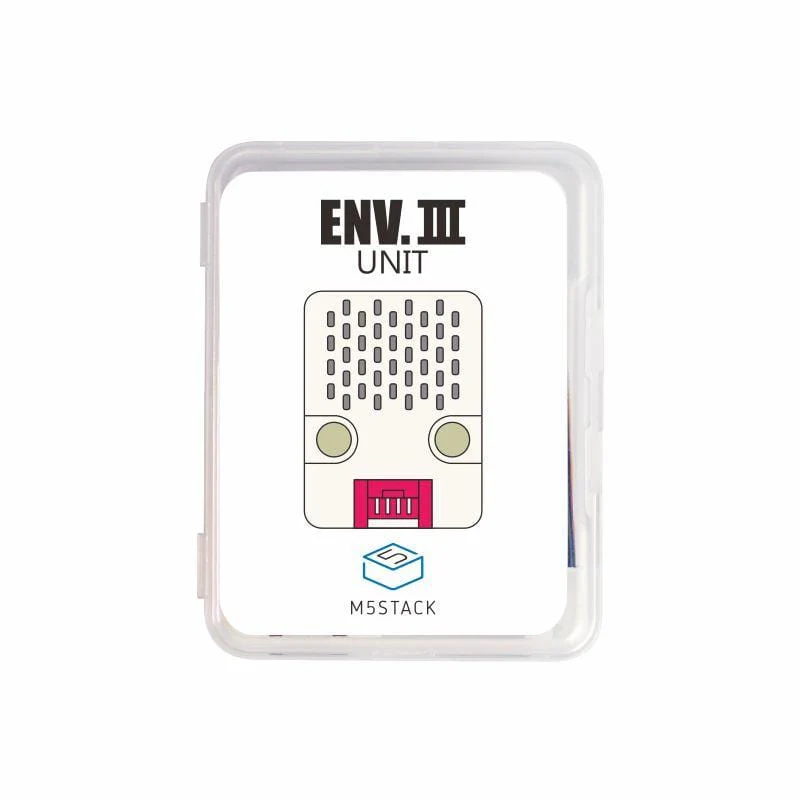

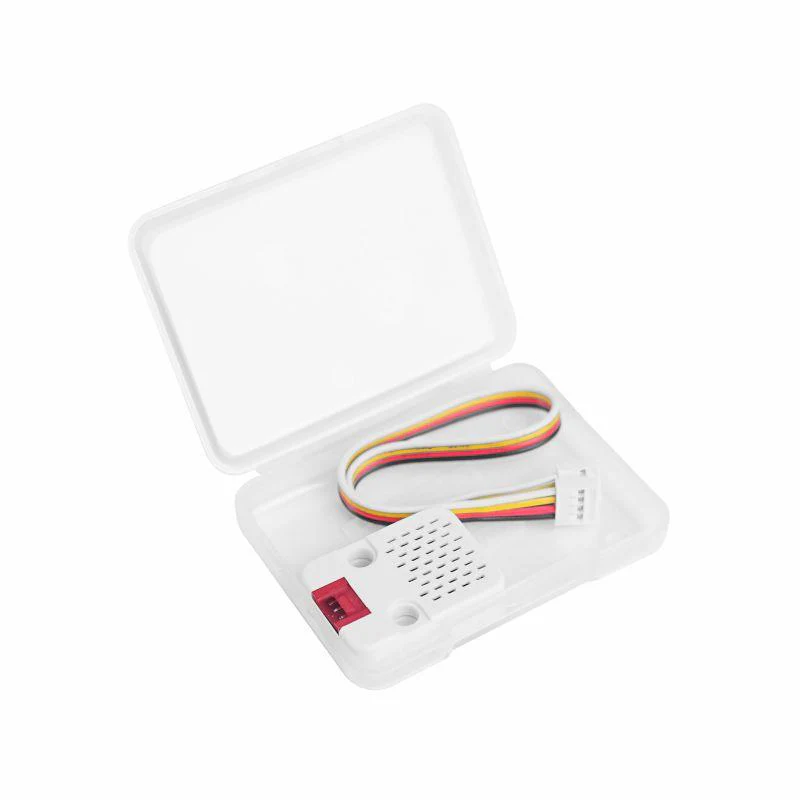

- 1x ENV-III Unit
- 1x HY2.0-4P Cable
Specifications
| Resources | Parameter |
|---|---|
| Maximum temperature measurement range | -40 ~ 120 ℃ |
| Highest measurement accuracy | 0 ~ 60 ℃/±0.2℃ |
| Humidity measurement range/error | 10 ~ 90 %RH / ±2% |
| Maximum measured value of air pressure/resolution/error | 300 ~ 1100hPa / 0.06Pa / ±3.9Pa |

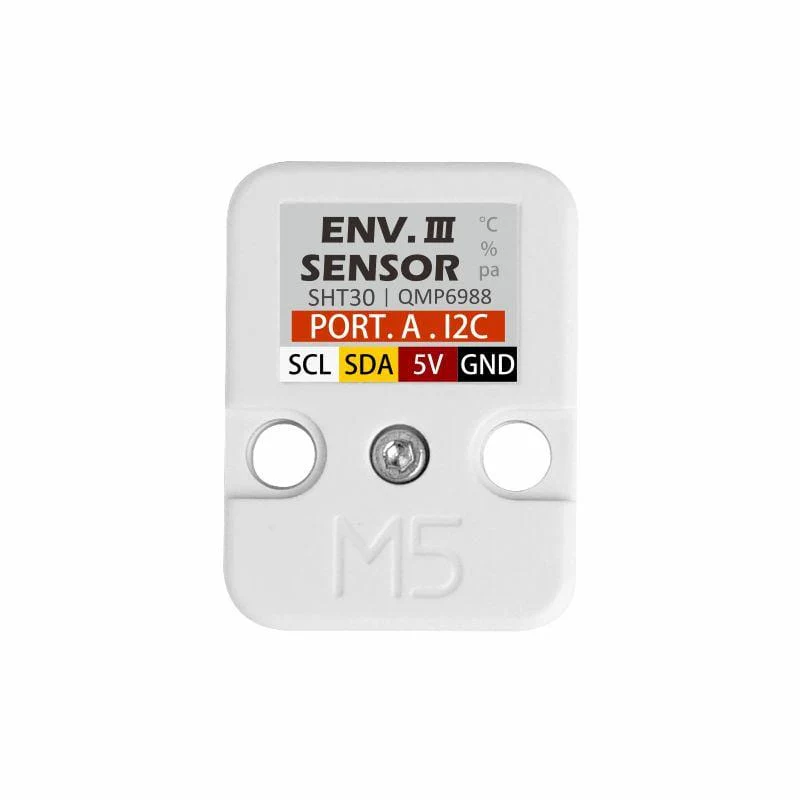

| Communication protocol | I2C: SHT30(0x44), QMP6988(0x70) |
| Working temperature | 32°F to 104°F (0°C to 40°C ) |
| Net weight | 5g |
| Gross weight | 17g |
| Product Size | 24.2*32.2*8.1mm |
| Package Size | 67*53*12mm |
| Case Material | Plastic ( PC ) |
Resources
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The ENV III unit is an environmental sensor that integrates the SHT30 and QMP6988 to detect temperature, humidity, and atmospheric pressure data. The SHT30 is a high-precision and low-power digital temperature and humidity sensor, and supports I2C interface (SHT30:0x44 , QMP6988:0x70). The QMP6988 is an absolute air pressure sensor specially designed for mobile applications, with high accuracy and stability, it is suitable for environmental data collection and detection projects.
Features
- Simple and easy to use
- High accuracy
- I2C communication interface
- HY2.0-4P interface, support platform UIFlow , Arduino
- 2x LEGO compatible holes
Package Contents
- 1x ENV-III Unit
- 1x HY2.0-4P Cable
Specifications
| Resources | Parameter |
|---|---|
| Maximum temperature measurement range | -40 ~ 120 ℃ |
| Highest measurement accuracy | 0 ~ 60 ℃/±0.2℃ |
| Humidity measurement range/error | 10 ~ 90 %RH / ±2% |
| Maximum measured value of air pressure/resolution/error | 300 ~ 1100hPa / 0.06Pa / ±3.9Pa |
| Communication protocol | I2C: SHT30(0x44), QMP6988(0x70) |
| Working temperature | 32°F to 104°F (0°C to 40°C ) |
| Net weight | 5g |
| Gross weight | 17g |
| Product Size | 24.2*32.2*8.1mm |
| Package Size | 67*53*12mm |
| Case Material | Plastic ( PC ) |
