M5Stack PSRAM Camera Module with ESP32 WROVER (OV2640) [Discontinued]

M5Camera is a development board for image recognition. It features an ESP32(4M Flash + 520K RAM) chip and 2-Megapixel camera (OV2640).M5Camera offers plenty of storage, with an extra 4 Mbyte PSRAM. It also supports image transmission via Wi-Fi and debugging through USB Type-C port.

The hardware comes preloaded software, programmed by ESP-IDF. It is an application to run Wi-Fi camera. The output image is size 600*800, since it's 2MP, you sure can optimize the software to output the maximum size of photos.

what this software can do?

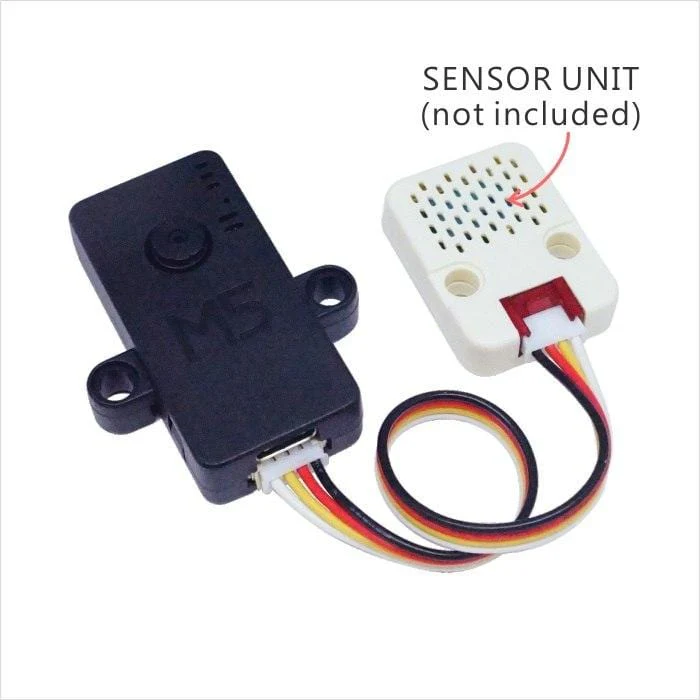

• Power the board via USB type-C or GROVE
• Use your phone to Wi-Fi scan an AP name start with 'm5stack-' and click to connect this AP.
• Open up web browser on your phone and visit 192.168.4.1
• Then here comes the picture. Video is about 5-6 frames per seconds. not super fast.

Product Features

• CP2104 USB-to-TTL converter
• ESP32-WROVER (PCB Antenna)
• WIFI image transmission
• OV2640 sensor

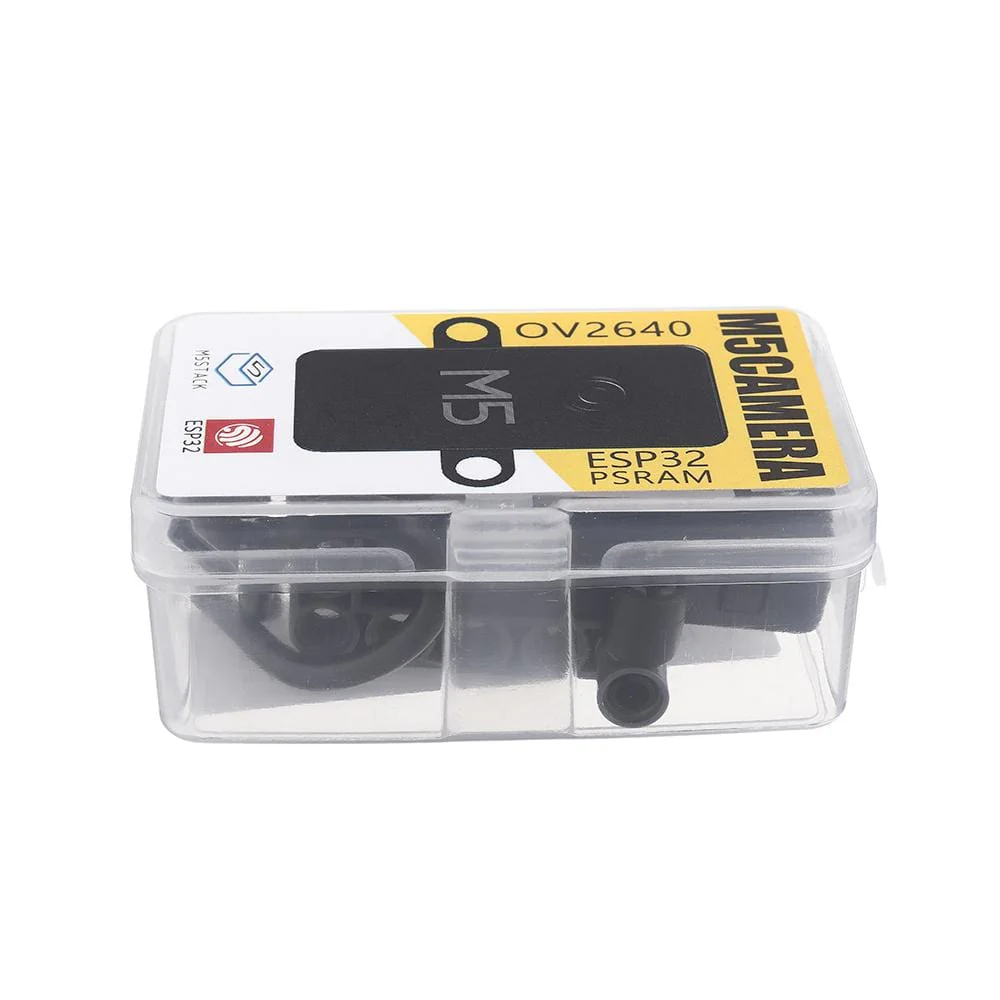

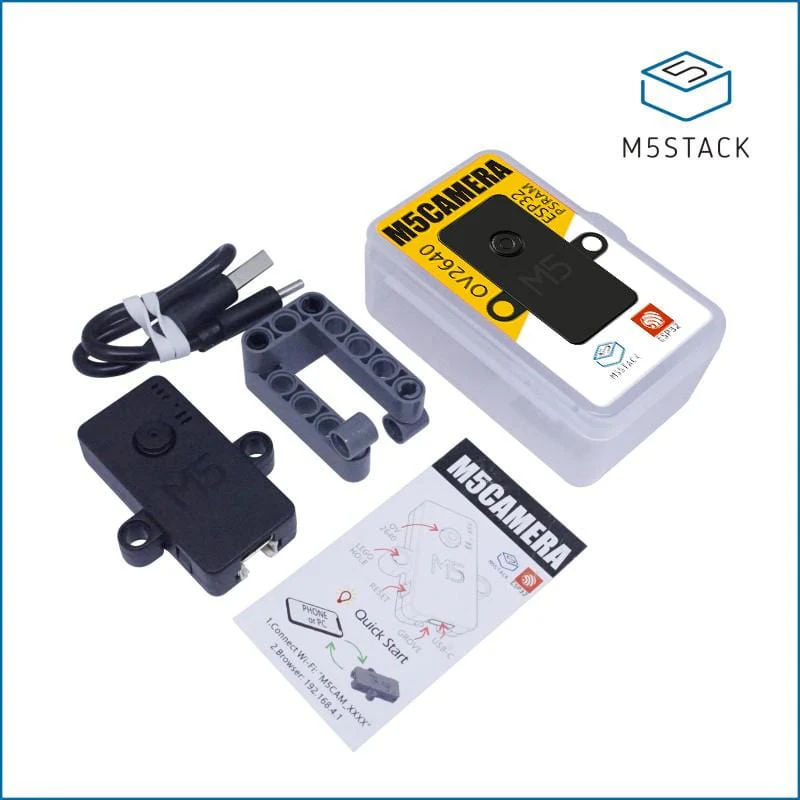

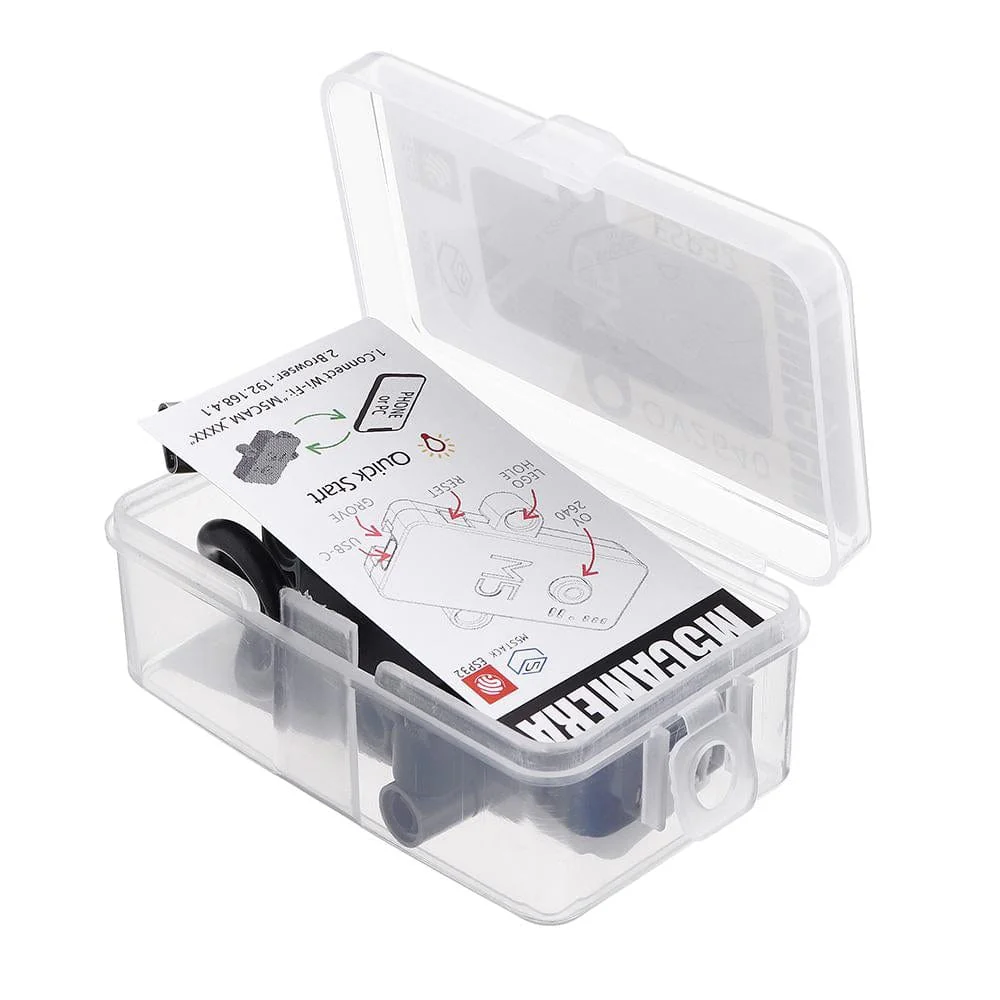

Include

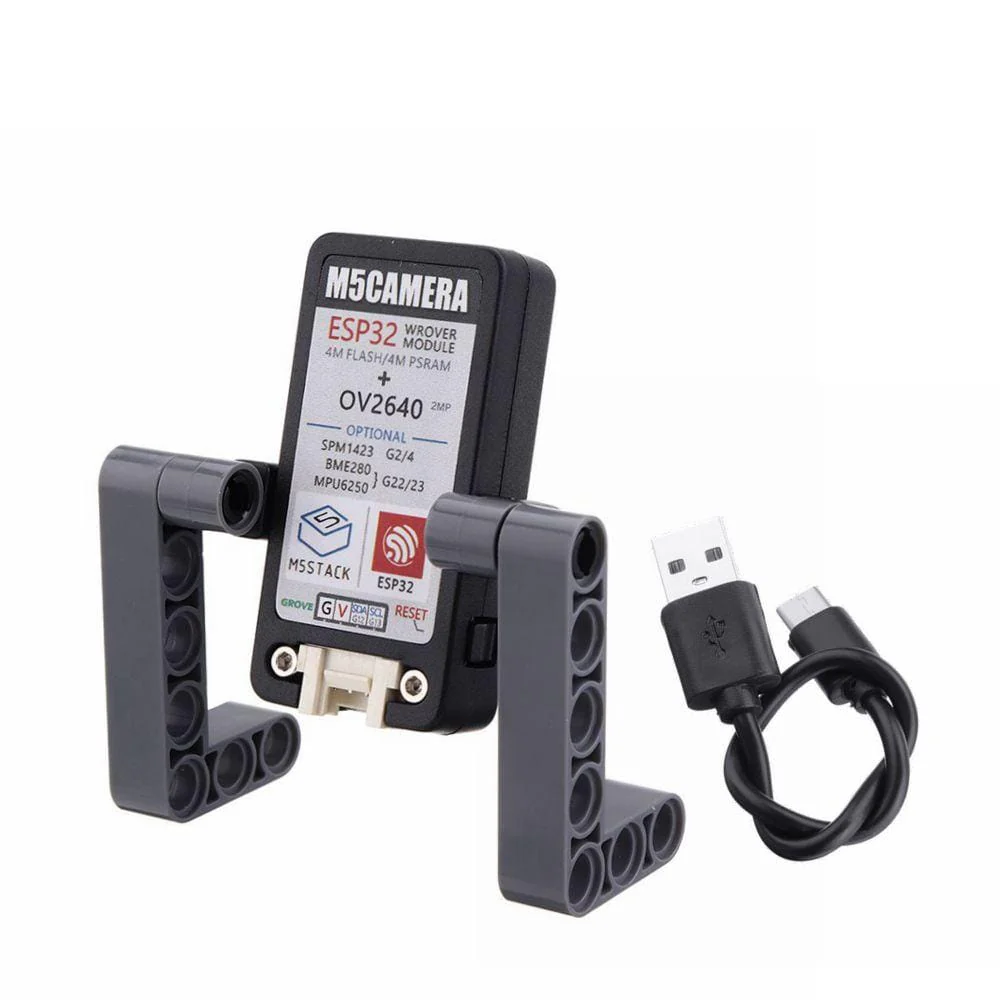

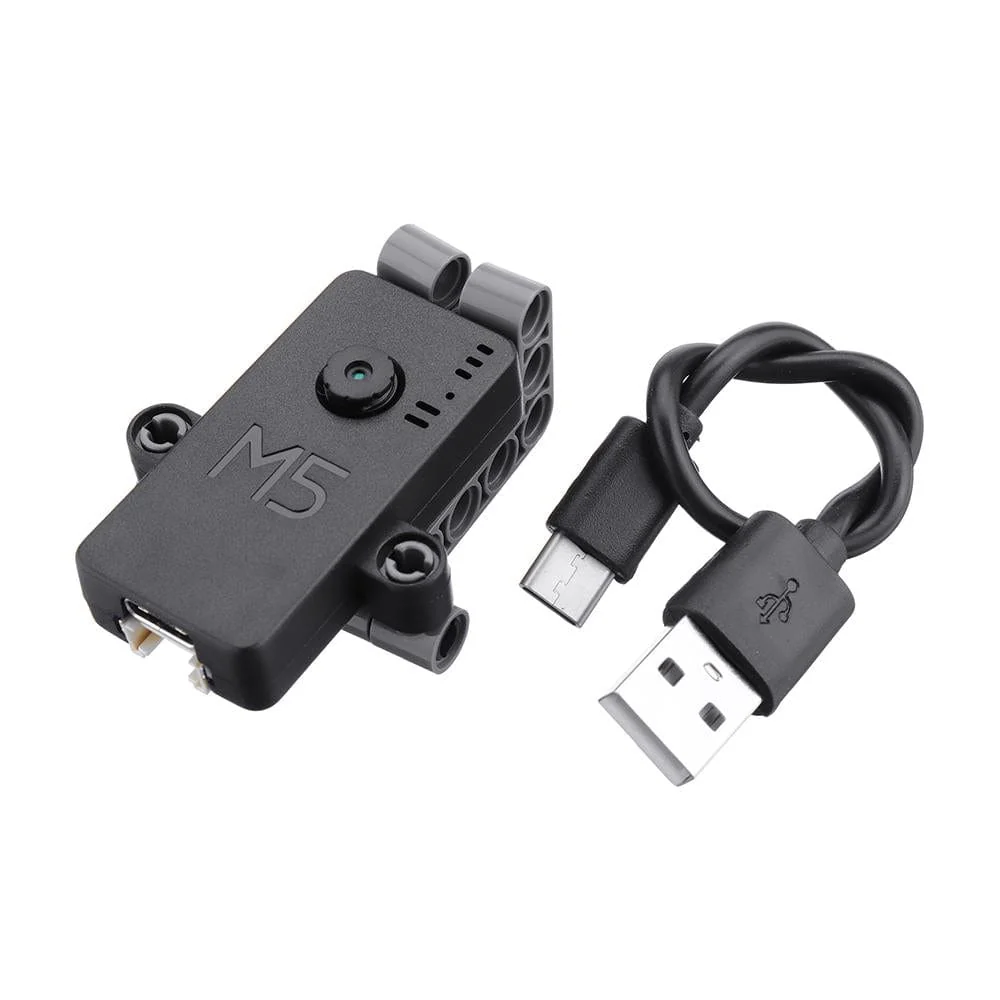

• 1x M5Camera
• 4x LEGO block
• 1x Type-C USB(20cm)

Specification

LEARN AND DOCUMENTS
