M5Stack Core Basic ESP32

The M5Stack Core Basic ESP32 V2.7 is a cost-effective entry-level IoT main controller.

It has an Espressif ESP32 chipset, equipped with 2 low-power Xtensa® 32-bit LX6 microprocessors with a main frequency of up to 240MHz, built-in 16M FLASH memory, integrated 2.0-inch full-colour HD IPS display panel, speaker, TFCard slot and other peripherals.

The full-coverage housing gives circuit stability even in complex industrial applications. Internal provides a variety of interface resources (ADC/DAC/I2C/UART/SPI, etc.) and 15x IO pins at the bottom, which is highly developable. It's ideal for a variety of product prototyping, industrial control, and intelligent building applications.

High productisation

• Exquisite designs, Prototyping right into products
• Product-grade full-coverage cover for more stable circuit operation

Low Code Development:

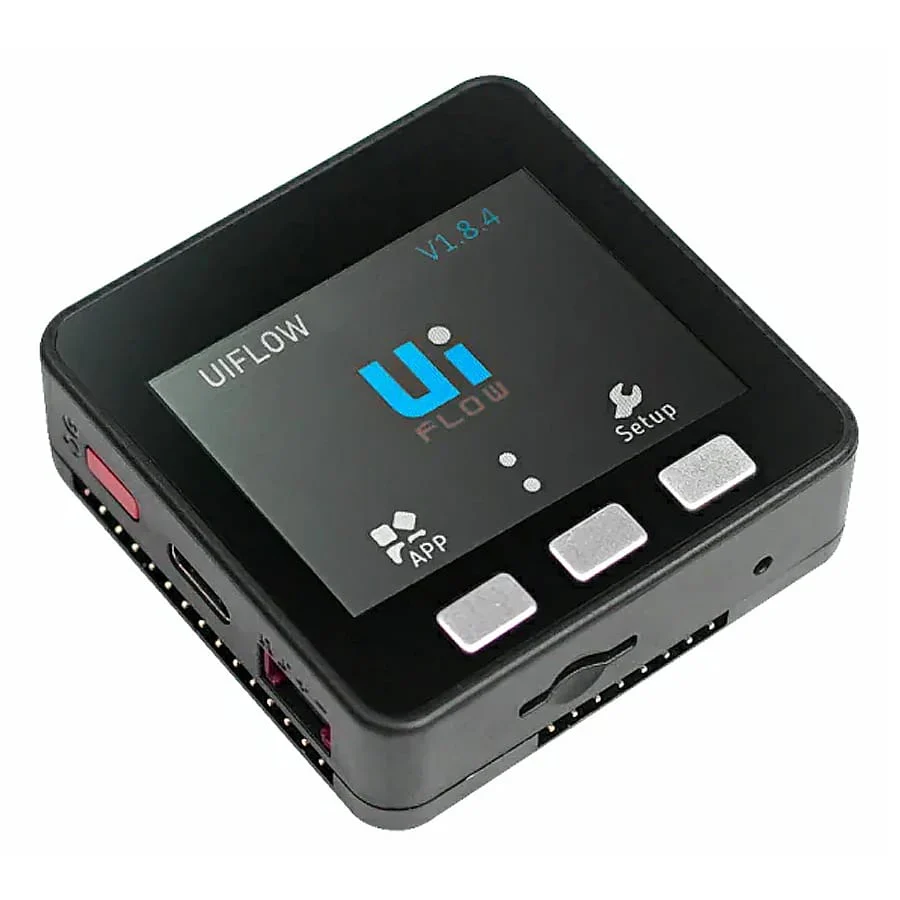

• Support UIFlow graphical programming platform, scripting-free, cloud push
• Fully compatible with mainstream development platforms such as Arduino and ESP32-IDF
• Support FreeRTOS, with dual-core and multitasking mechanism, it can perform tasks efficiently, Program optimisation.

High Integration:

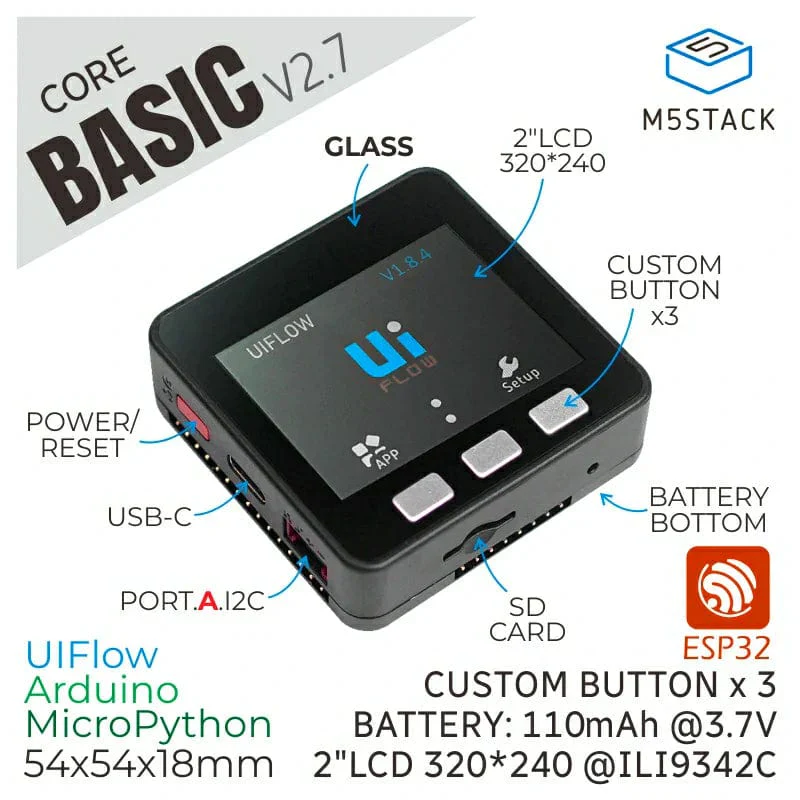

• 2.0 inch IPS display panel, speakers, 3x custom buttons
• Built-in lithium battery power, integrated power management chip, support TypeC interface
• Finely tuned RF circuit for stable and reliable wireless communication

Strong Expandability:

• 15x IO leads
• Easy access to M5Stack's hardware and software ecology system, stackable module design, plug-and-play rich sensors expansion

Power on/off operation

• Power on: Click the red power button on the left
• Shutdown: Quickly double-click the red power button on the left
  *USB power supply *: By default, when USB is powered, it cannot be shut down

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Based on ESP32 development
• 16M FLASH
• Integrated full-colour high-definition IPS display panel and a variety of hardware peripherals
• Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.

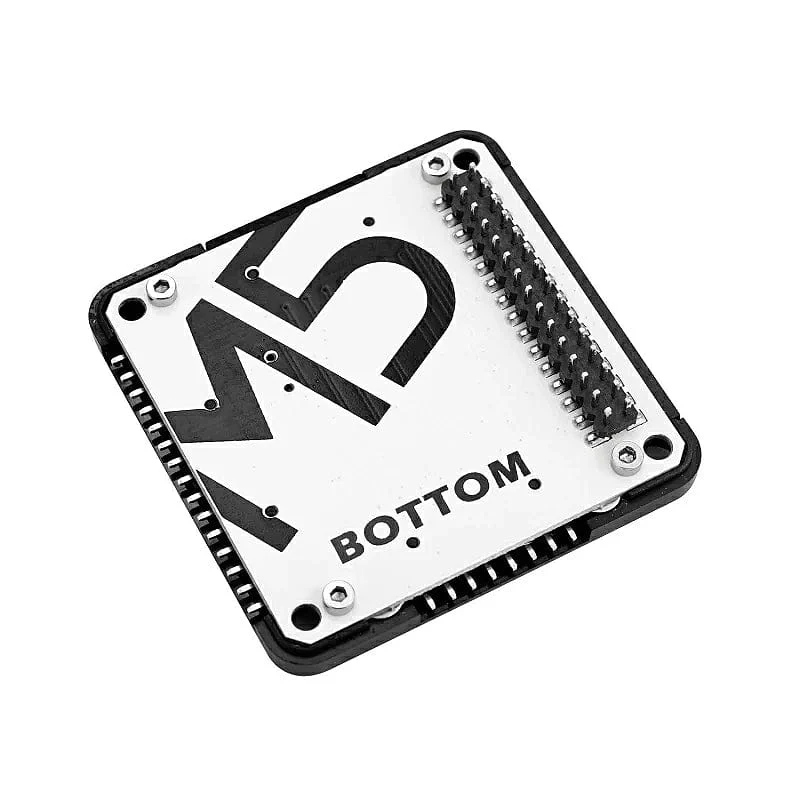

• Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.
• Compatible with multi-platform development:
  • UIFlow
  • MicroPython
  • Arduino
  • .NET nanoFramework

Specifications

Specifications	Parameters
ESP32-D0WDQ6-V3	240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash	16MB
Input power	5V @ 500mA
Interface	TypeC x1, I2C x1

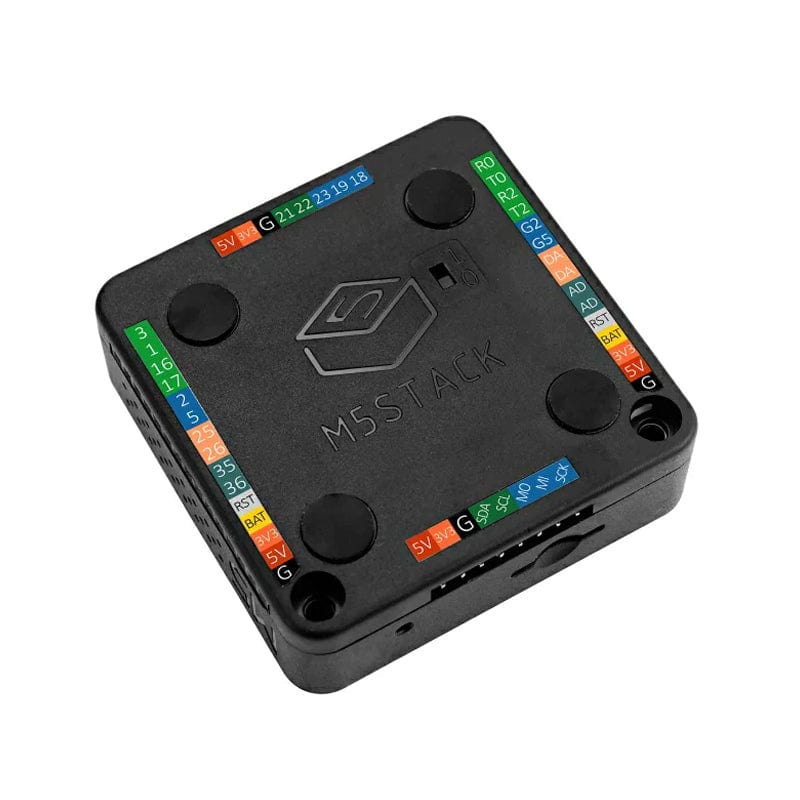

IO	G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
Button	Physical button x 3
LCD screen	2.0"@320x240 ILI9342C IPS panel, maximum brightness 853nit
Speaker	1W-0928
USB chip	CH9102F
Antenna	2.4G 3D Antenna
Battery	110mAh @ 3.7V
Net weight	47.2g
Gross weight	93g
Product size	54mm x 54mm x 18mm
Packing size	95 x 65 x 25mm
Cover Material	Plastic (PC)

Resources

• Product Wiki
• Schematics

Package Contents

• 1x ESP32 Basic Core loT Development Kit V2.7
• 10x Dupont line
• 1x Type-C USB (20cm)
• 1x Manual
• 1x Sticker
