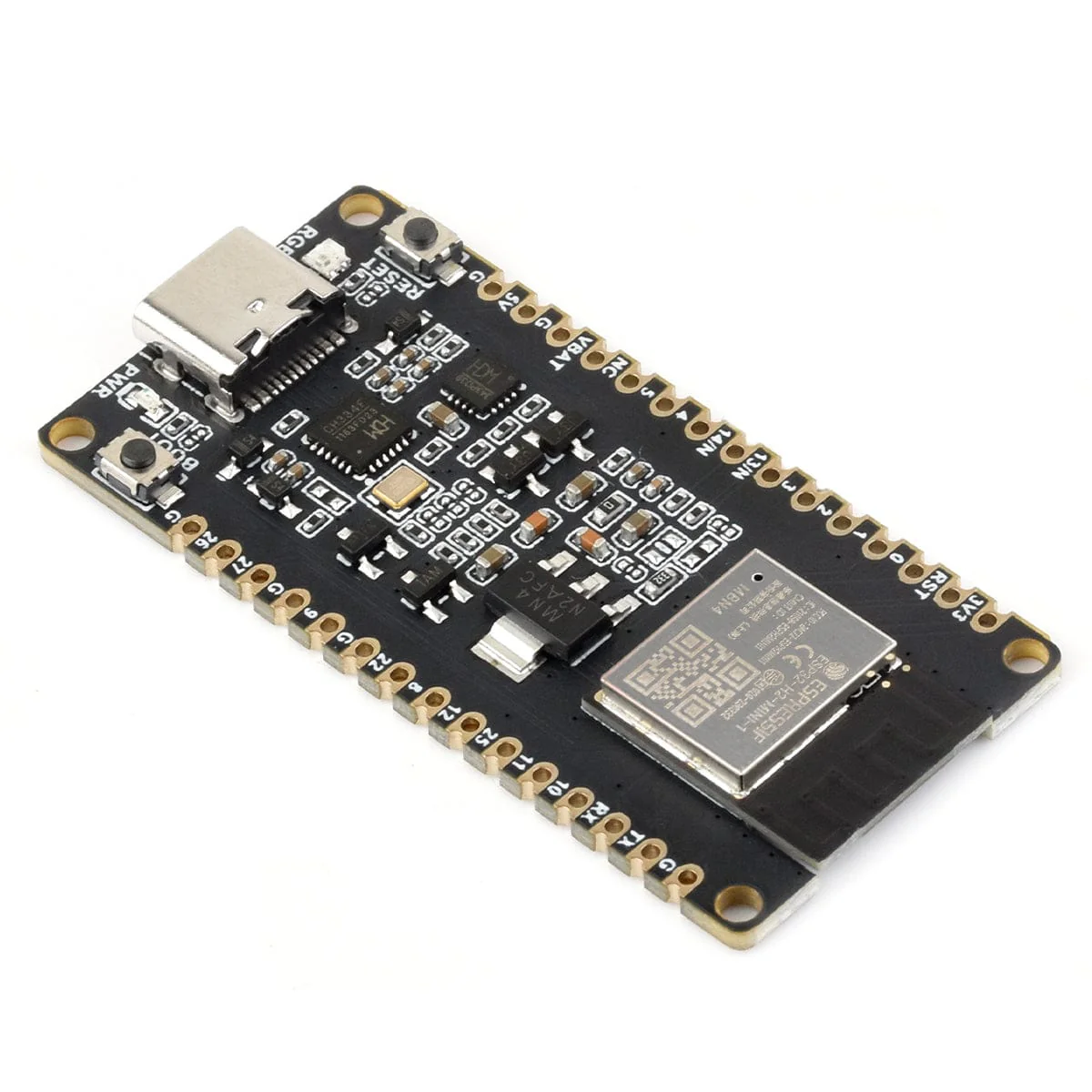

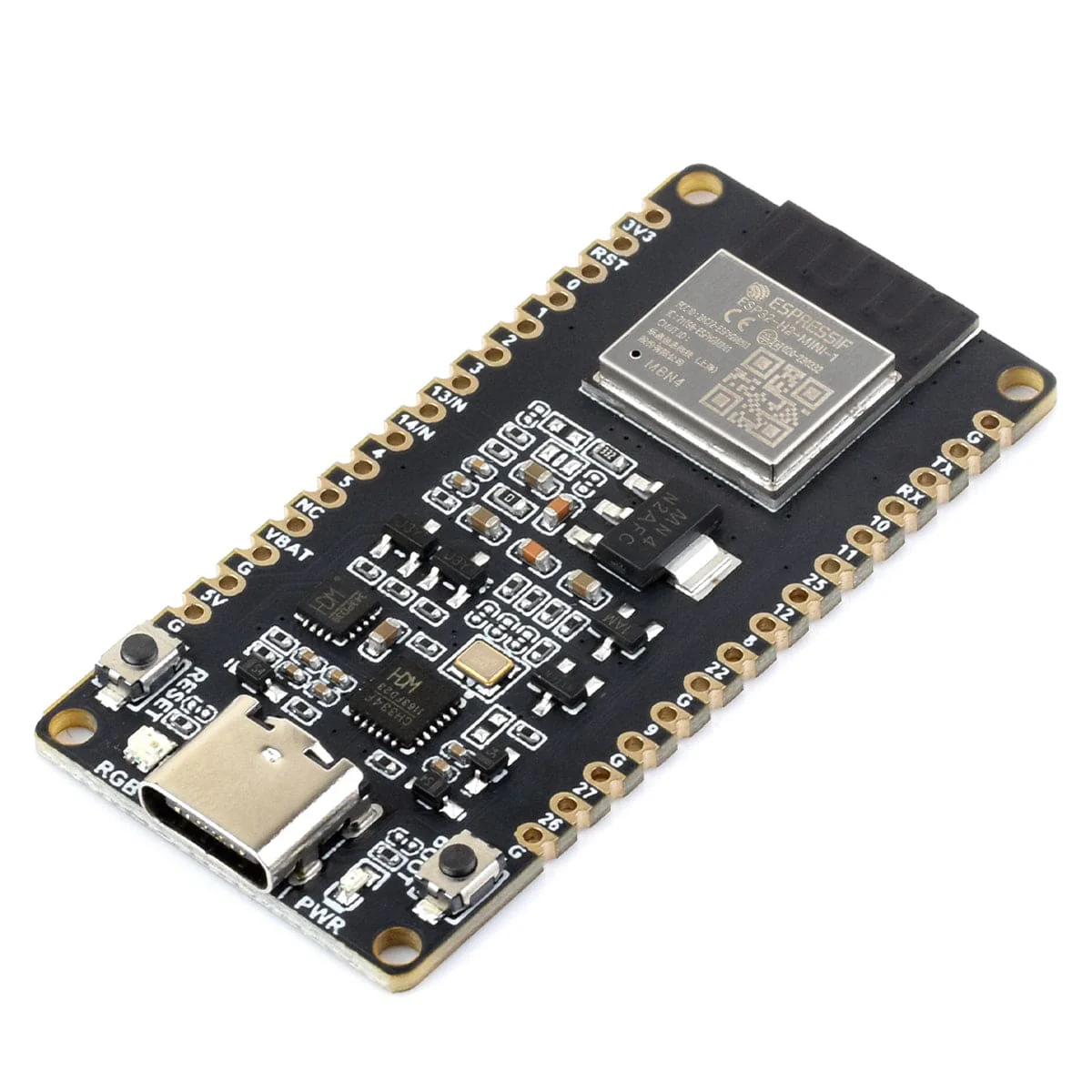

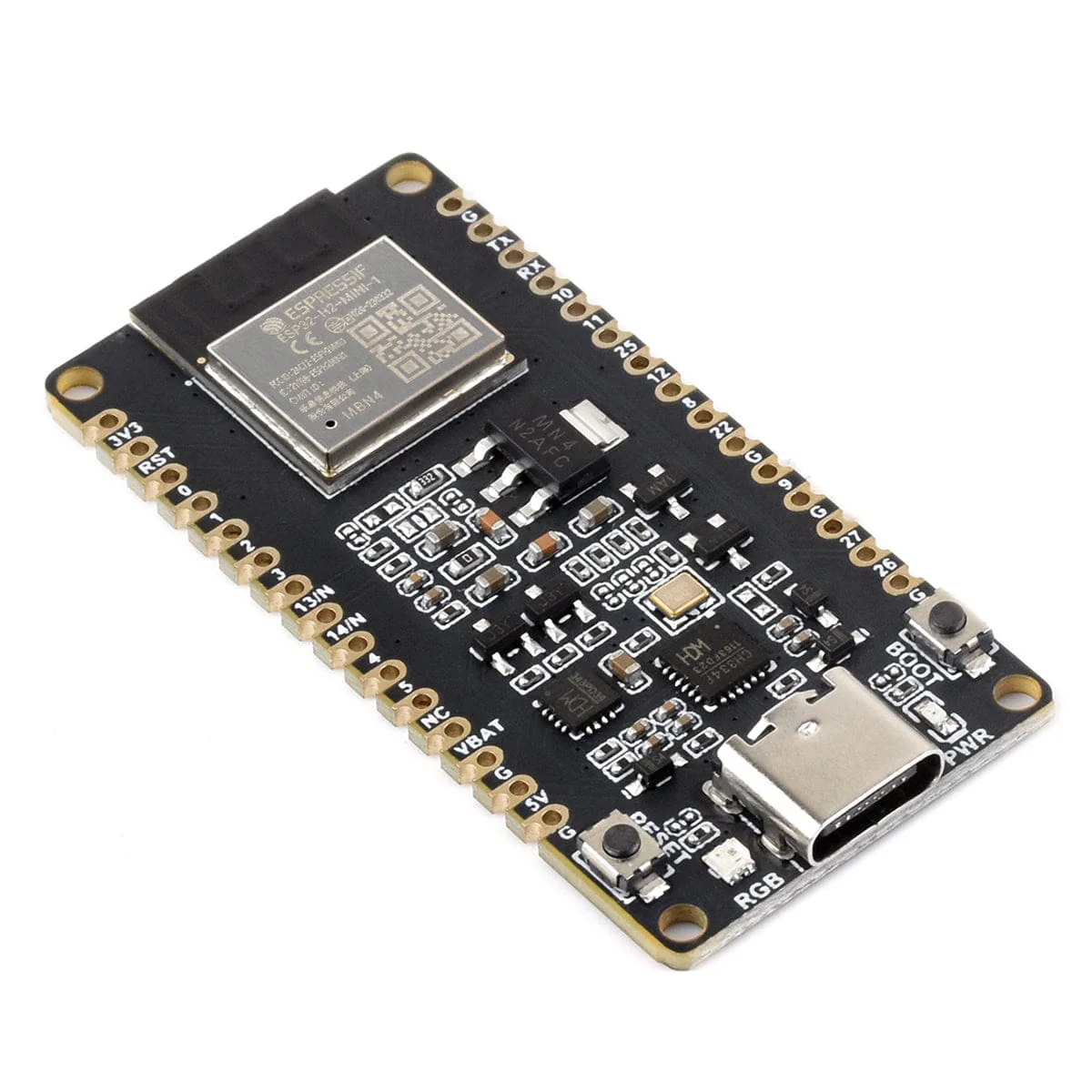

Waveshare ESP32-H2 Development Board

This ESP32-H2 Microcontroller has a RISC-V 32-bit single-core processor with a clock speed of up to 96MHz and 4MB of built-in Flash. The board supports Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread), making it useful for projects that require wireless communication, such as in smart homes or industrial settings.

The board includes a range of peripherals like SPI, UART, I2C, LED PWM, and ADC, and has onboard USB HUB chips (CH343 and CH334), allowing for development via a USB-C port. It is compatible with ESP32-H2-DevKitM-1 board layouts, providing easy expansion with additional modules.

To help you get started, there are online tutorials and examples tailored to the ESP-IDF development, making integrating this board into various projects an easy task.

Features

• Adopts ESP32-H2-MINI-1-N4 module with RISC-V 32-bit single-core processor, up to 96MHz main frequency, built-in 4MB Flash
• Integrated Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Type-C connector, easier to use
• CH343 and CH334 chips can meet the needs of USB and UART development via a Type-C interface
• Rich peripheral interfaces, compatible with the pinout of the ESP32-H2-DevKitM-1 development board, offer strong compatibility and expandability
• Castellated module allows soldering directly to carrier boards

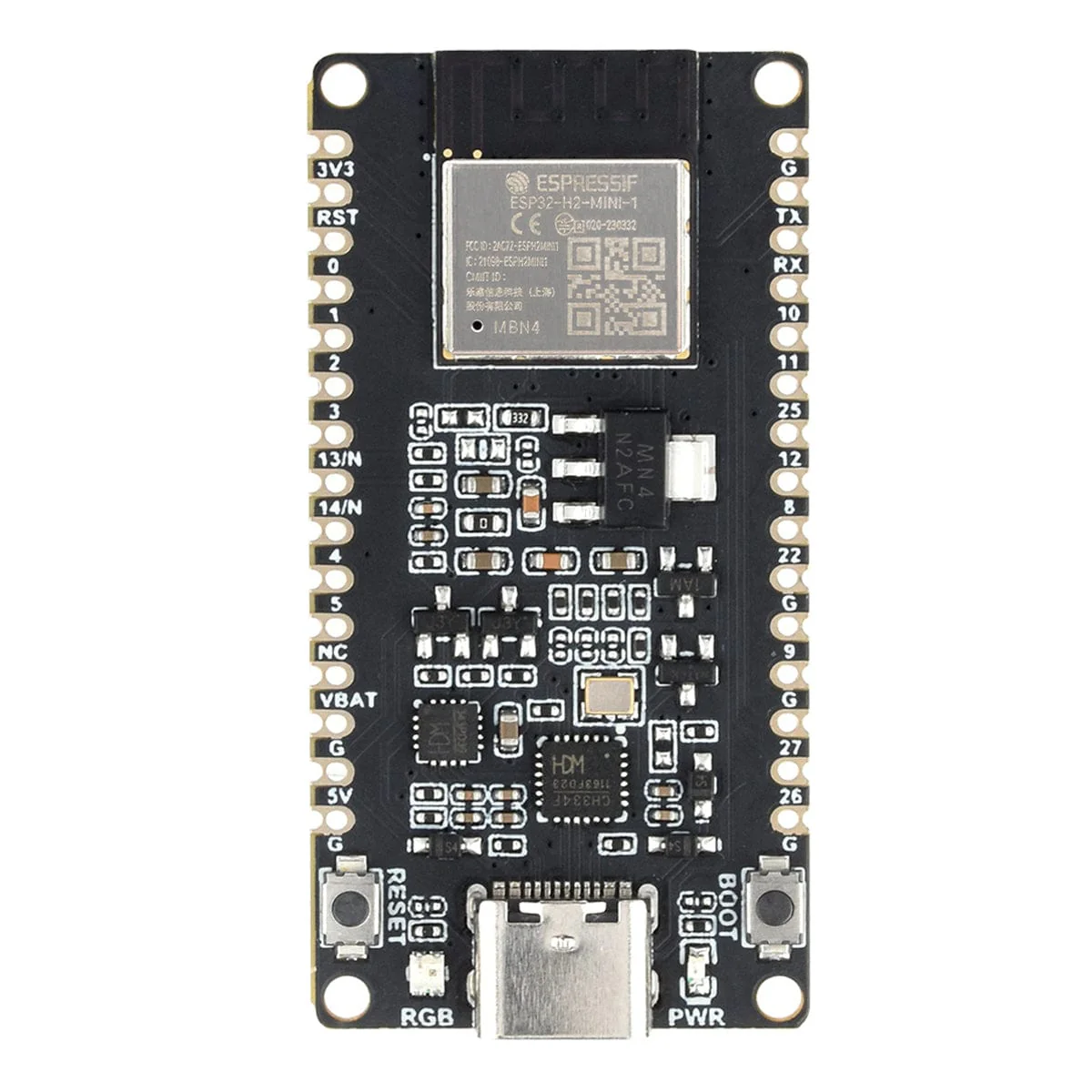

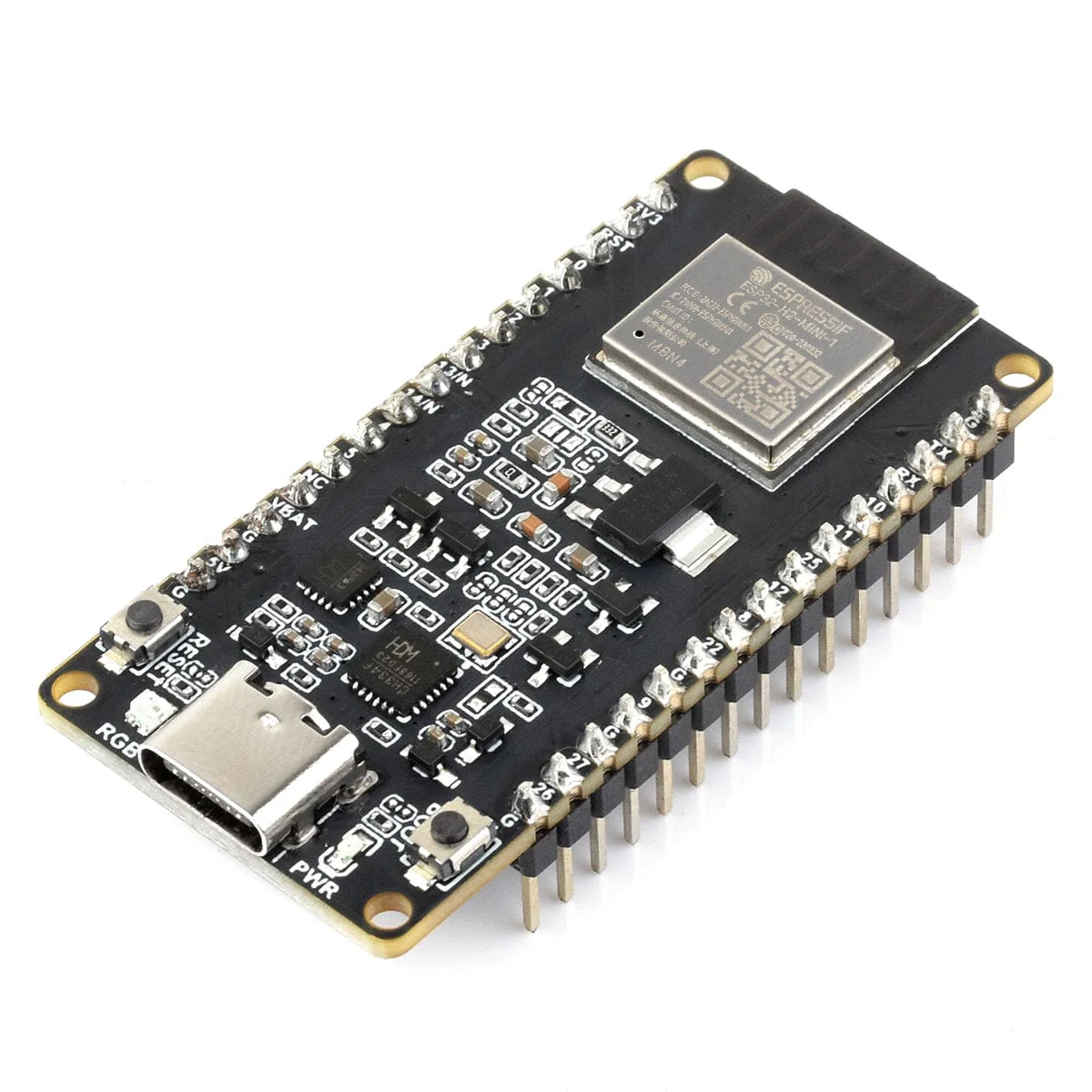

What's on Board

Resources

• Product Wiki
• Schematic

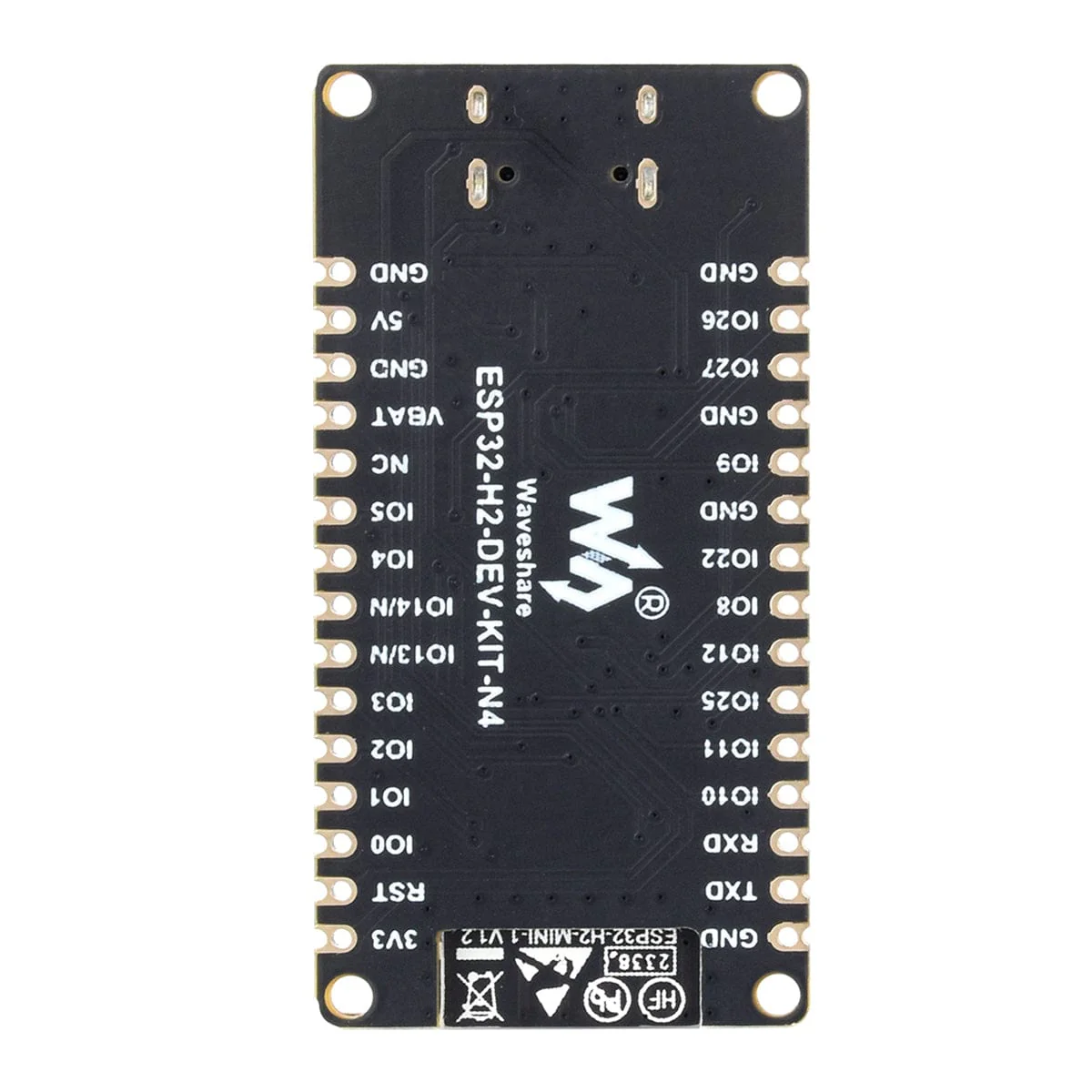

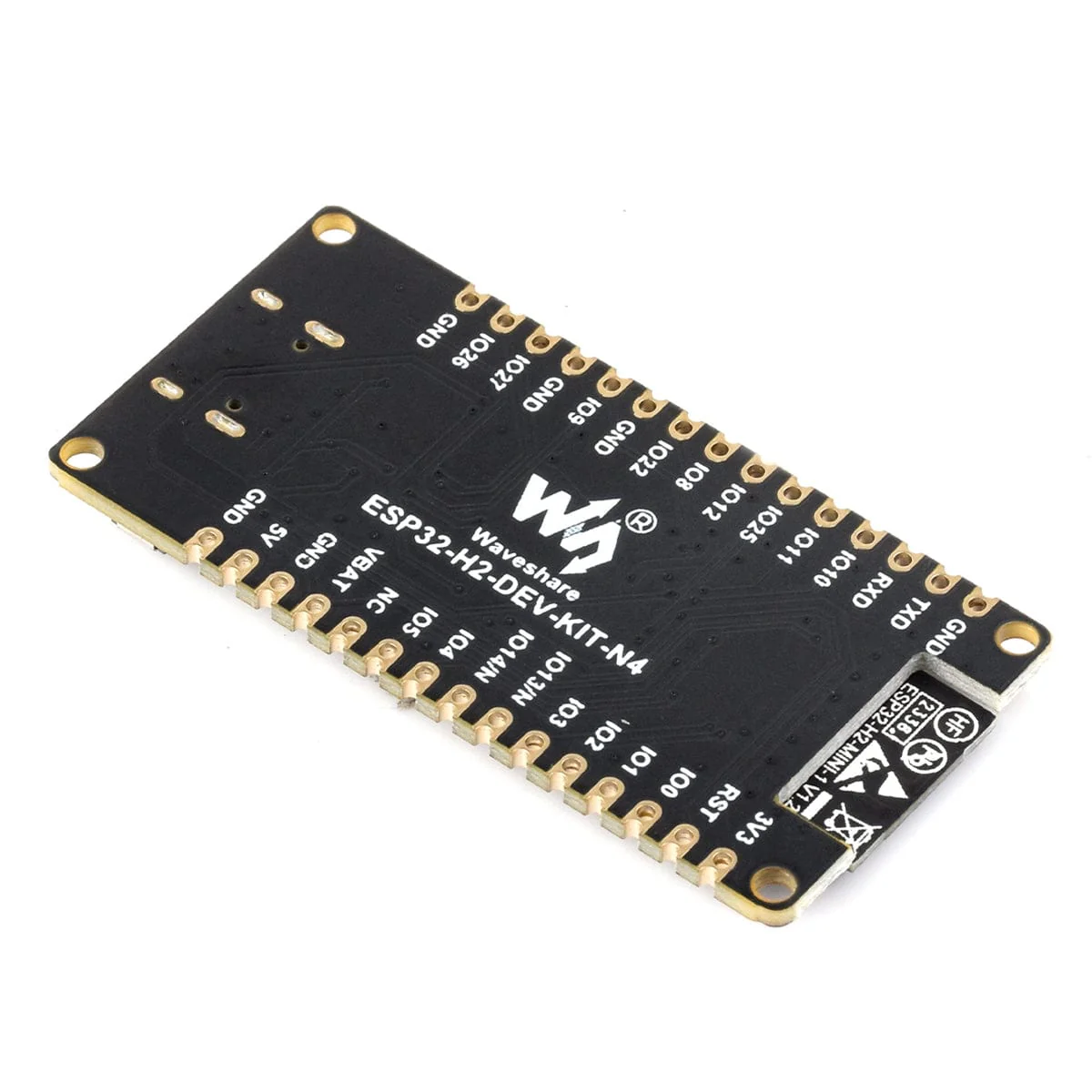

Pinout

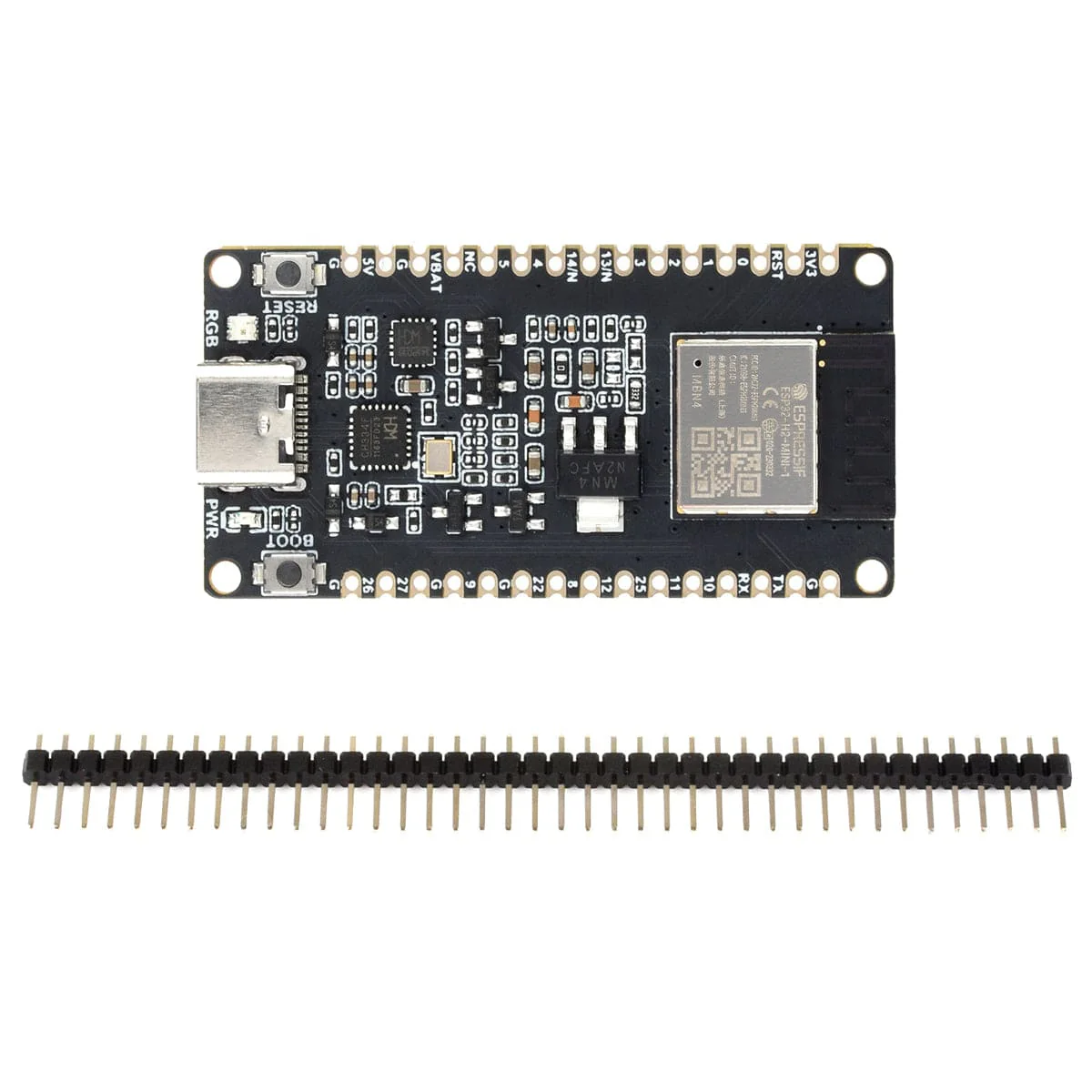

Package Contents

• 1x ESP32-H2 Microcontroller

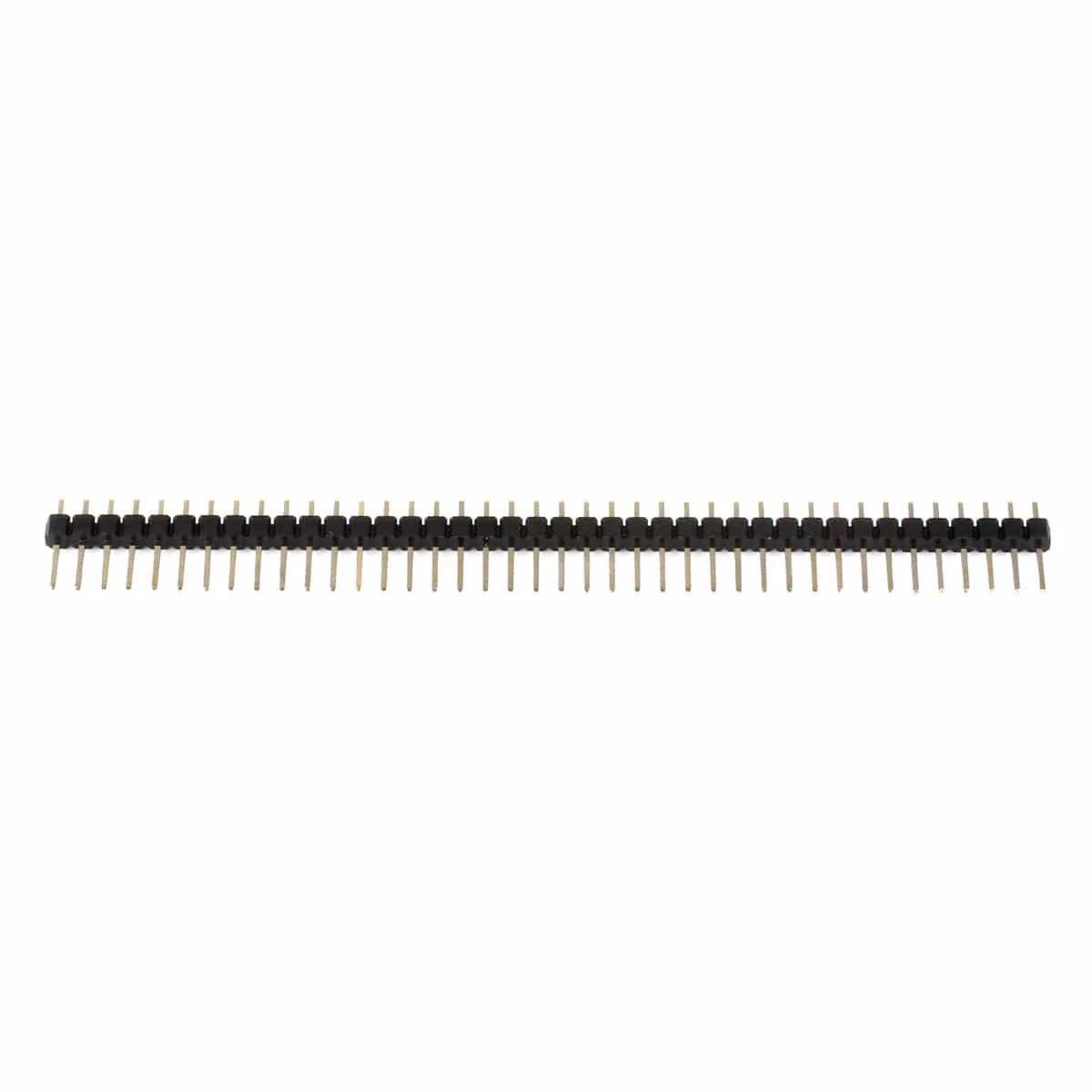

• 2x 40-pin male header (black)
