ESP8266 WiFi Module for Raspberry Pi Pico

This is a WiFi expansion module designed specifically for the Raspberry Pi Pico, giving your Pico WiFi functionality for your projects - great for Pico IoT projects!

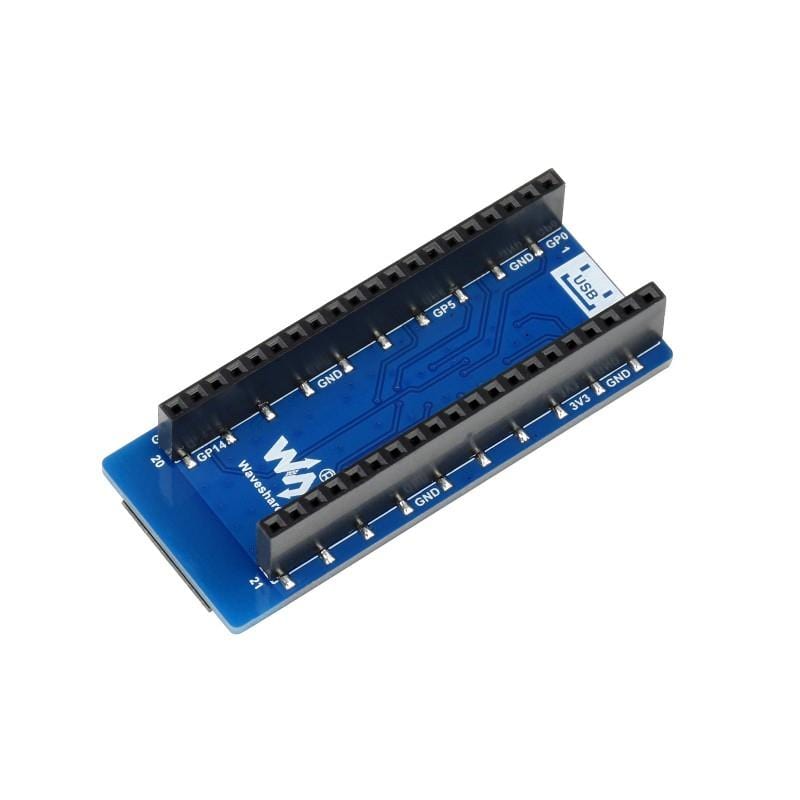

The module can be controlled via UART AT command and supports the TCP/UDP communication protocol. The board comes pre-soldered with dedicated female headers for your Raspberry Pi Pico. A reset and boot button are included onboard for the ESP8266 module, alongside a power indication LED.

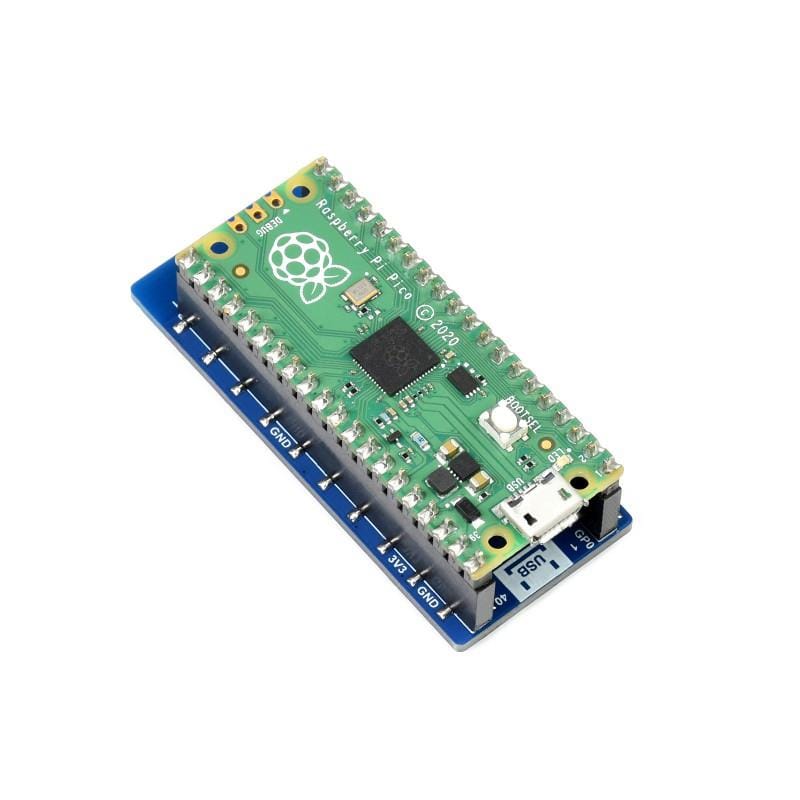

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

• Compatible with Raspberry Pi Pico
• UART communication, controlled via AT command
• Supports STA, AP, and STA+AP three WiFi operating modes, embedded LWIP protocol stack, supports TCP/UDP communication
• Based on ESP8266 module, four-layers process, enhanced impedance matching, stronger signal and a more stable connection
• 2x functional buttons, convenient for the user to update AT firmware through Raspberry Pi Pico
• Online development resources and manual

Specifications

• Communication interface: UART
• UART baud rate: 115200 bps
• WiFi standard: IEEE 802.11b/g/n
• Frequency range: 2400 ~ 2483.5MHz
• WiFi operating mode: WiFi STA, WiFi AP, WiFi STA+AP
• Antenna: PCB antenna
• Operating voltage: 3.3V
• Operating temperature: -40°C ~ 85°C

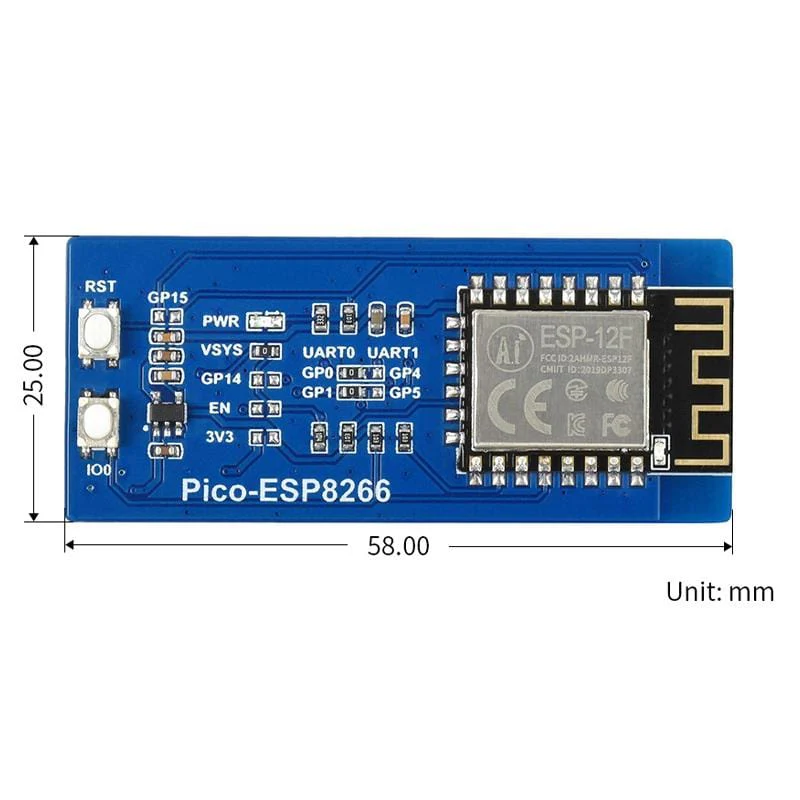

• Dimensions 58 x 25mm

What's Onboard

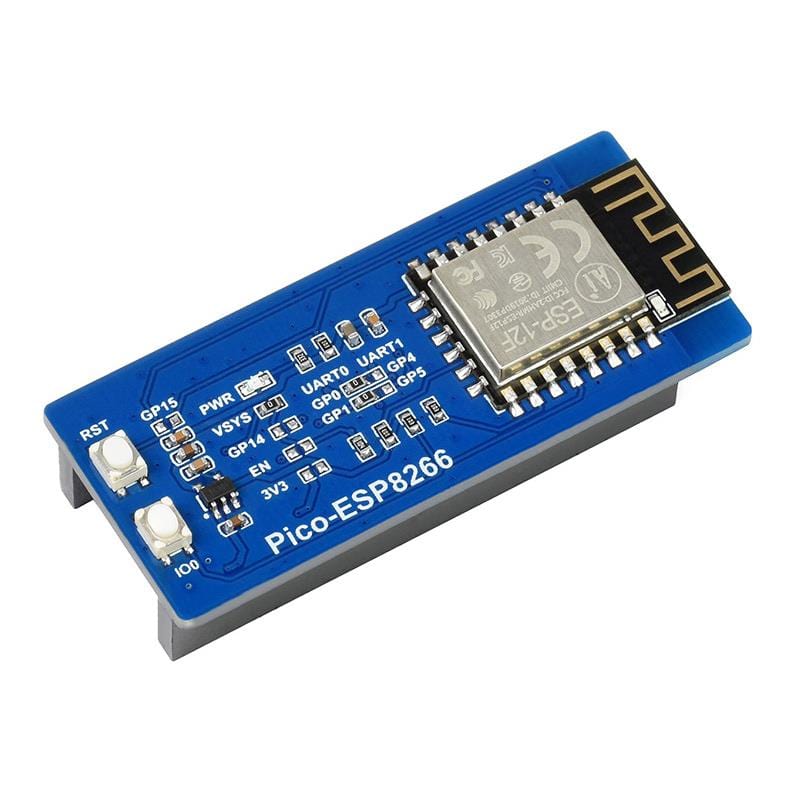

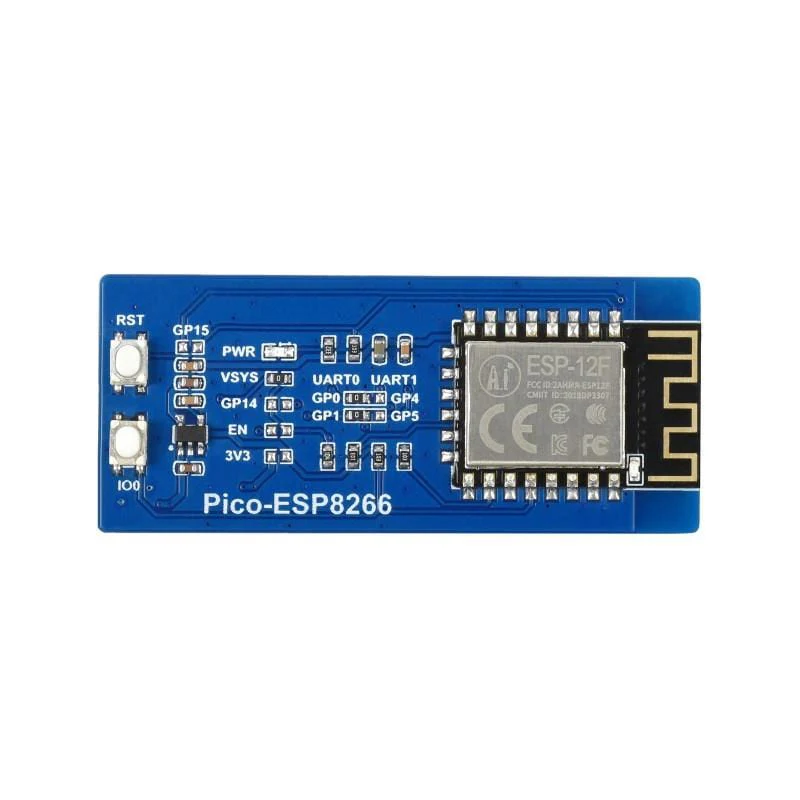

1) ESP8266 module
2) ESP8266 reset button
- Connects to ESP8266 reset pin
3) ESP8266 BOOT button
- Connects to ESP8266 GPIO 0, press to enter awaiting download mode while resetting
4) SPX3819M5
- 3.3V linear regulator

Package Contents

• 1x Pico ESP8266 Module

Raspberry Pi Pico not included

Resources

• Product Wiki

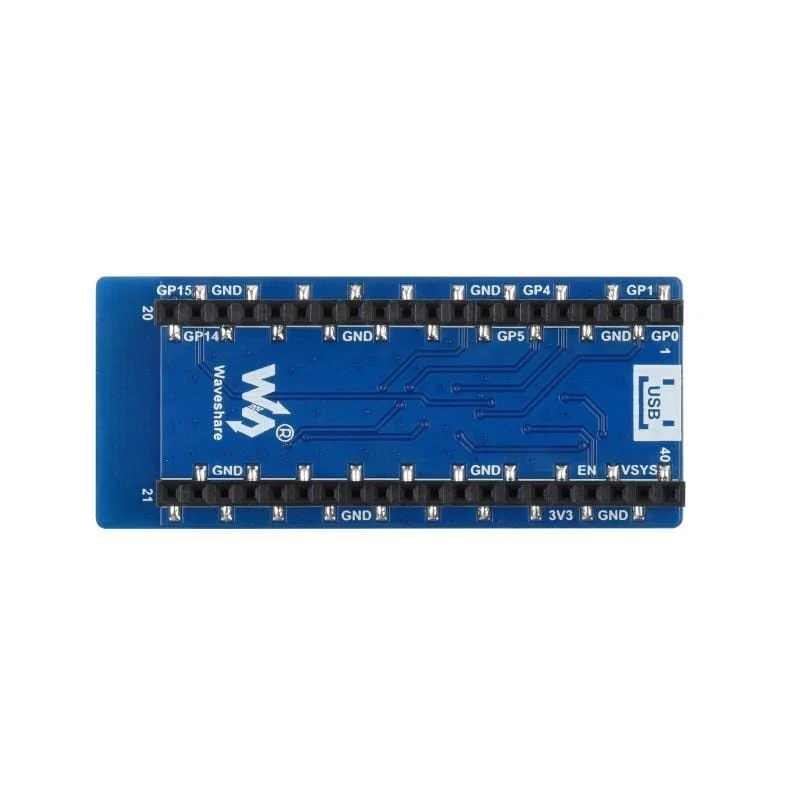

Pinout
