Ethernet and USB HUB HAT for Raspberry Pi

This HUB HAT adds 3 USB ports and an RJ45 Ethernet port to your Raspberry Pi Zero, which is great when you need a stable wired Ethernet connection on a Pi Zero!

It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Raspberry Pi Zero 2 / Zero W / Zero WH. Don't forget to grab an RJ45 cable too!

Raspberry Pi Zero not included.

Connection Notes

• The HAT does not use the GPIO pins, the connector is simply used to pass the pins through for usage
• All data is passed via the micro-USB connection on the HAT
• An adapter is included for connecting this with a Pi Zero micro-USB port, and a short micro-USB cable is included for all other 40-pin models of Raspberry Pi

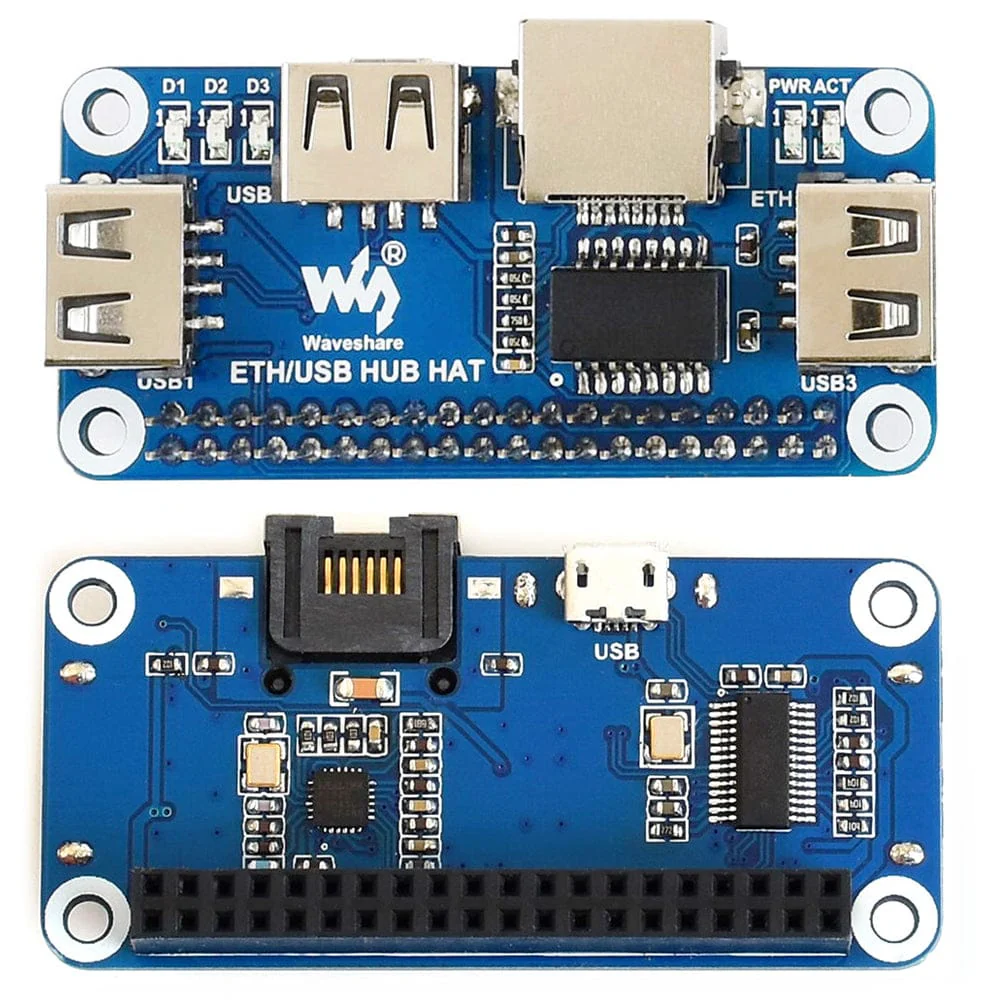

What's onboard?

1. Raspberry Pi GPIO interface
   • For connecting to Raspberry Pi
2. USB extended ports
   • USB1–USB3
3. RJ45 port
   • 10/100M Ethernet interface

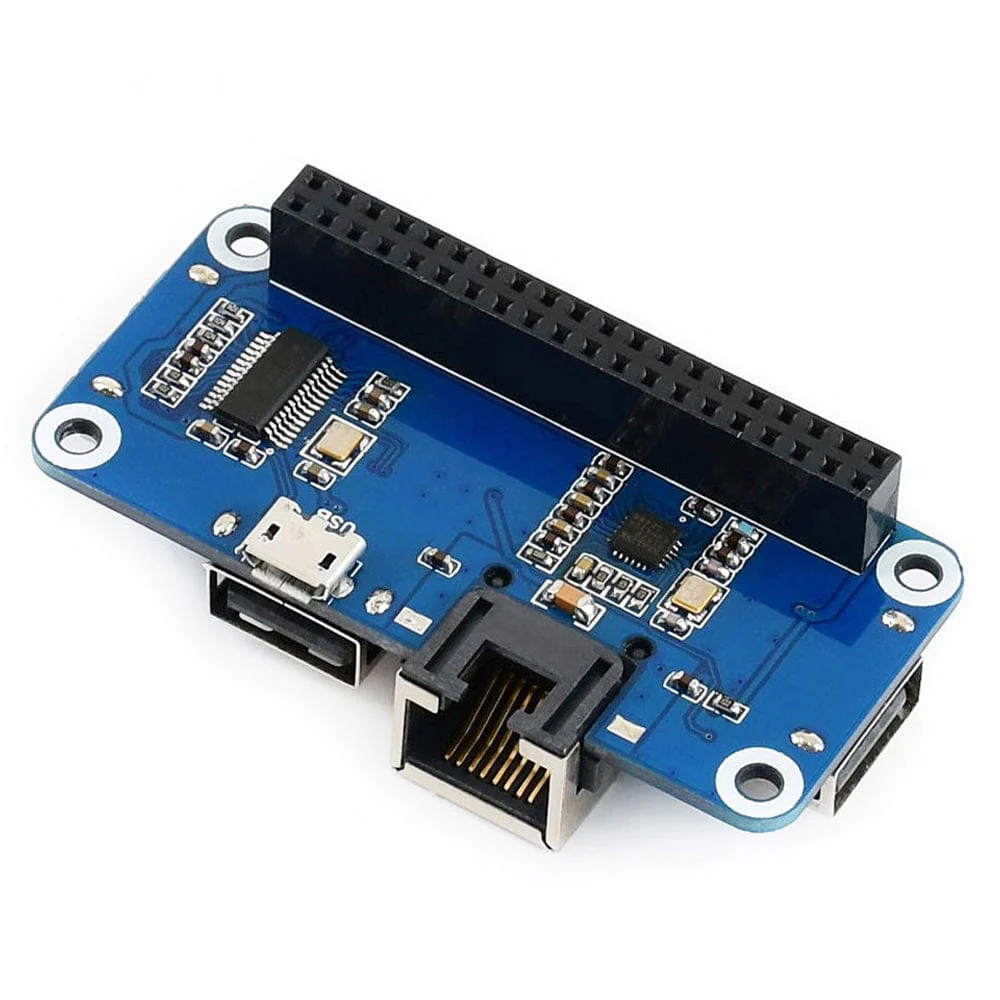

4. USB HUB interface (bottom)
   • Raspberry Pi Zero / Zero 2W / Zero W / Zero WH: via Micro USB connector
   • Raspberry Pi B+ / 2B / 3B / 3B+ / 4B: via Micro USB cable
5. TS8121A
   • Ethernet wave filter
6. RTL8152B
   • 10/100M Ethernet chip
7. FE1.1S
   • USB HUB chip
8. LED indicators
   • PWR: Power indicator
   • ACT: Ethernet indicator
   • D1–D3: USB1–USB3 status indicators

Features

• 3x USB ports, compatible with USB2.0/1.1
• 1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
• Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port

Specifications

• Operating voltage: 5V

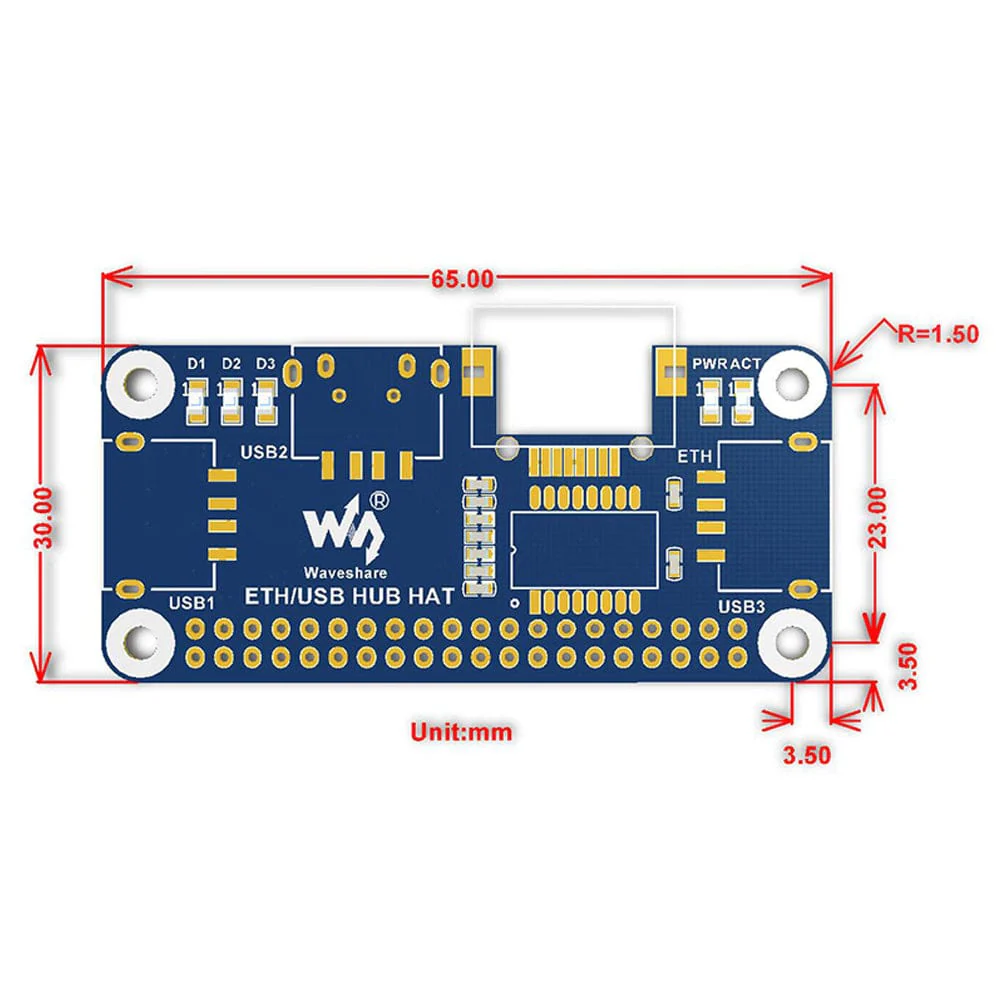

• Dimension: 65mm × 30mm
• Mounting hole size: 3.0mm

Resources

• Product Wiki

Package Contents

• 1x ETH/USB HUB HAT
• 1x Micro USB HAT connector
• 1x Micro USB cable
• 2x Standoffs (male/female)
• 2x Standoff screws
• 2x Standoff nuts

Raspberry Pi Zero not included.
