Extra-Tall 2x13 GPIO Connector [Discontinued]
HomeStore

Extra-Tall 2x13 GPIO Connector [Discontinued]

Extra-Tall 2x13 GPIO Connector [Discontinued]

$0.78

Original: $2.59

-70%
Extra-Tall 2x13 GPIO Connector [Discontinued]—

$2.59

$0.78

The Story

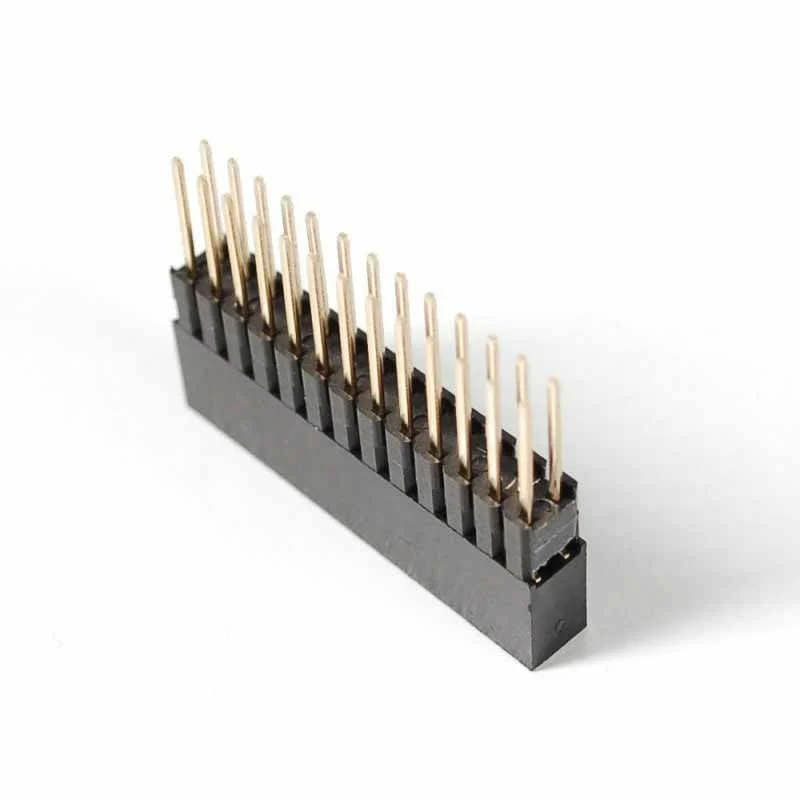

Stack multiple plates, breakouts etc onto your original Raspberry Pi 1 (26-pin) with this custom-made extra-tall and extra-long 2x13 female header.

The female header part has extra spaces to make it 13.6mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 9.7mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8mm remaining, plenty to plug into.

You'll get one header per order.

This socket-header is specifically for the 2x13 header on the Pi Model A and B. If you have a model B+, check out the 2x20 version here, which connects to all the B+ pins!

Technical Details

  • Pin spacing: 2.5mm / 0.1"
  • Pin thickness: 0.6mm / 0.02"
  • Weight: 4.2g

    Description

    Stack multiple plates, breakouts etc onto your original Raspberry Pi 1 (26-pin) with this custom-made extra-tall and extra-long 2x13 female header.

    The female header part has extra spaces to make it 13.6mm tall: when placed on your Pi, a PCB will clear the Ethernet and USB jacks. The stacky pin part is also extra-long, 9.7mm, so that when a standard 1.5mm thickness PCB is installed, there will be 8mm remaining, plenty to plug into.

    You'll get one header per order.

    This socket-header is specifically for the 2x13 header on the Pi Model A and B. If you have a model B+, check out the 2x20 version here, which connects to all the B+ pins!

    Technical Details

    • Pin spacing: 2.5mm / 0.1"
    • Pin thickness: 0.6mm / 0.02"
    • Weight: 4.2g
