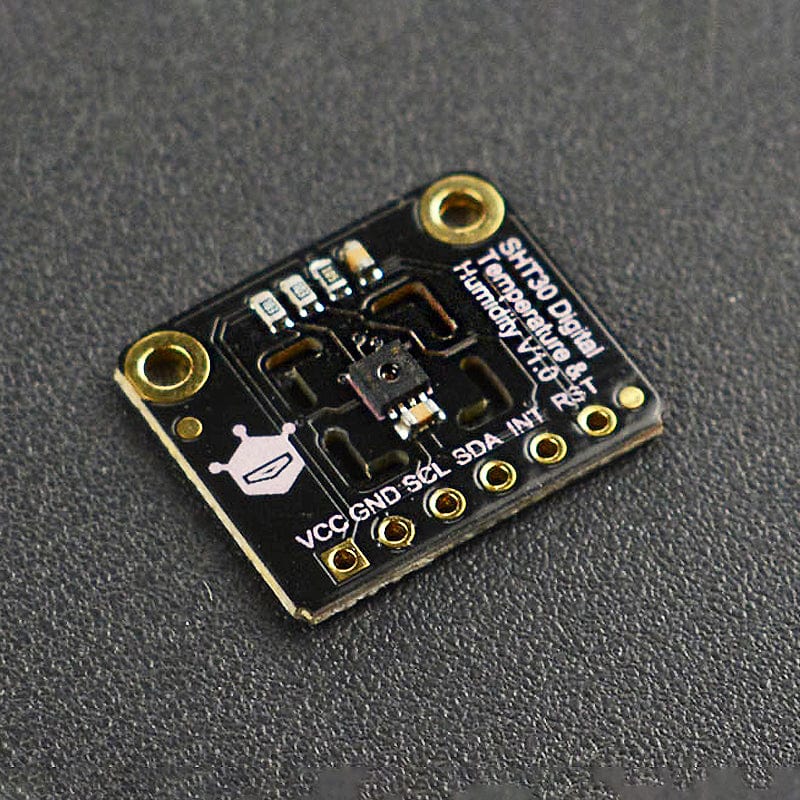

Fermion: SHT30 Digital Temperature & Humidity Sensor

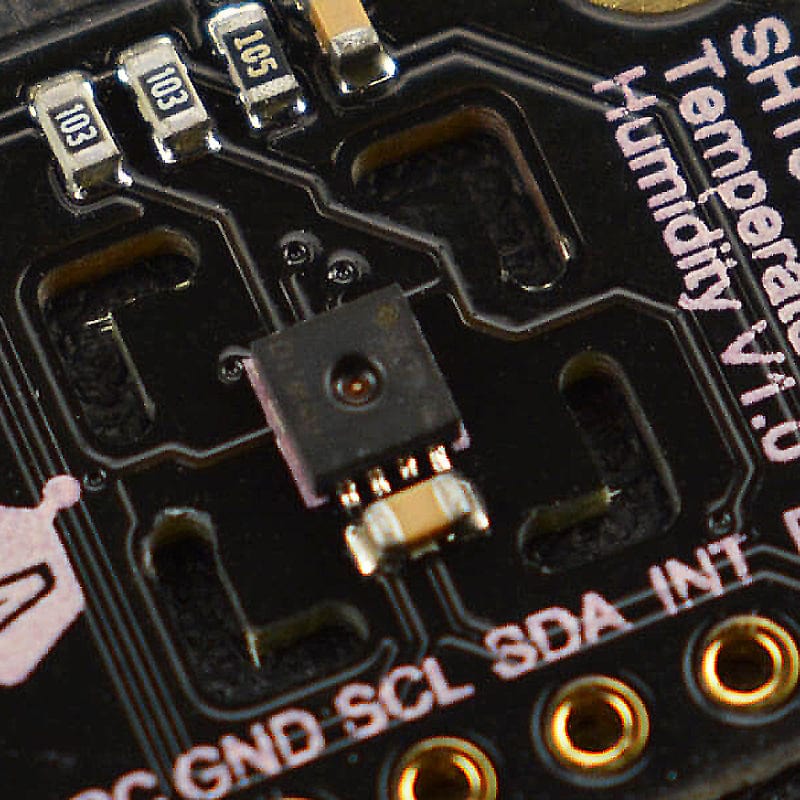

This Digital Temperature & Humidity Sensor breakout board from DFRobot is based on the Sensirion SHT30 sensor IC. Thanks to Sensirion’s CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT30 offers high reliability and long-term stability with low power consumption, fast response and strong anti-interference ability.

The sensor supports I2C communication and is compatible with 3.3V/5V controllers like Arduino, micro:bit, ESP32 and more. It is easy to achieve precise and high-reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.

The SHT30 is the low-cost version of the SHT3x series. It provides humidity accuracy ± 2%RH@10% RH~90% RH (at 25°C), and temperature accuracy±0.2°C@0°C ~65°C (typical).

Selection Guide

Name	SHT30	SHT31	SHT31-F	SHT35
SKU	SEN0330	SEN0331	SEN0332	SEN0333
IC Type	SHT30-DIS-B	SHT31-DIS-B	SHT31-DIS-F	SHT35-DIS-B
Accuracy (RH)	±2@10-90%	±2@0-100%	±2@0-100%	±1.5@0-80%
Temp (°C)	±0.2@0-6	±0.2@0-90	±0.2@0-90	±0.1@20-60
Feature	Cheap	Cost-Effective	IC Dustproof	High Accuracy

Features

• High precise, internal auto-calibrated, digital output
• Low power consumption, fast response, and strong anti-interference
• Compatible with 3.3V/5V controllers

Specifications

• Operating Voltage: 2.15~5.5V
• Operating Current: <1.5mA
• Humidity Detection Range: 0%RH~100%RH
• Humidity Accuracy: ±2%RH@10%RH~90%RH（at 25℃）
• Temperature Detection Range: -40℃~125℃
• Temperature Accuracy: ±0.2℃@0℃-65℃(Typical)
• Communication: I2C

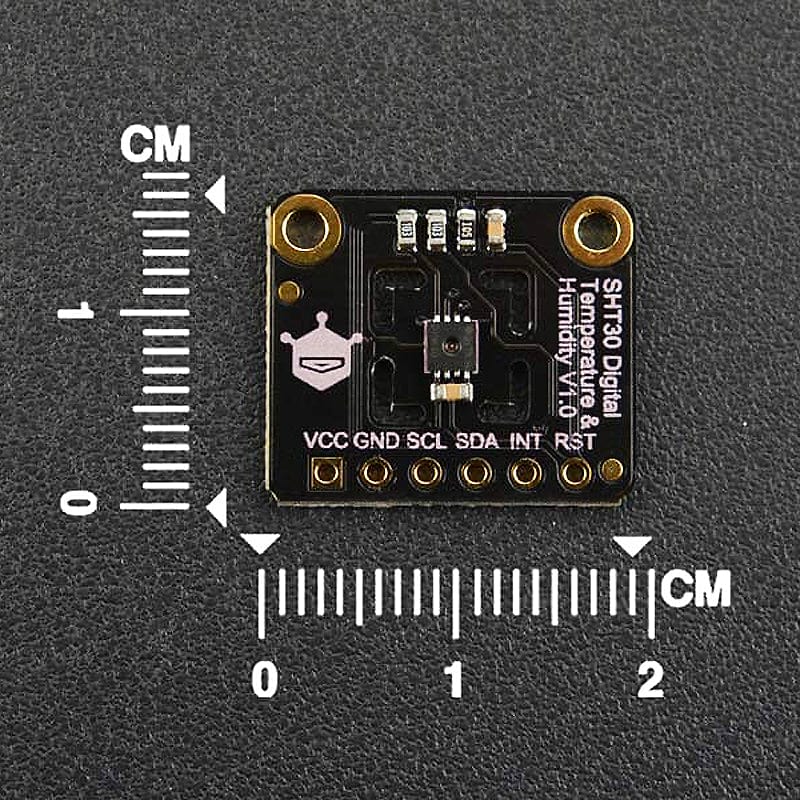

• Outline Dimension: 19x16mm
• Mounting Hole Size: 2mm
• Mounting Hole Pitch: 15mm

Resources

• Product wiki

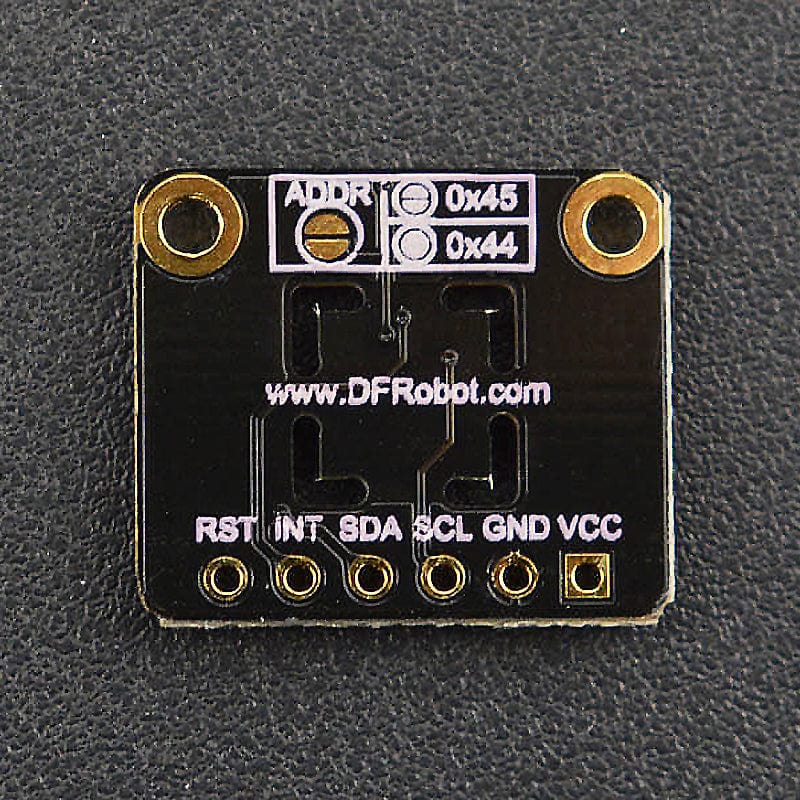

Pinout

Name	Description
SDA	Data line
SCL	Clock Line
GND	Negative
VCC	Positive
INT	Alarm Interrupt
RST	Reset

Package Contents

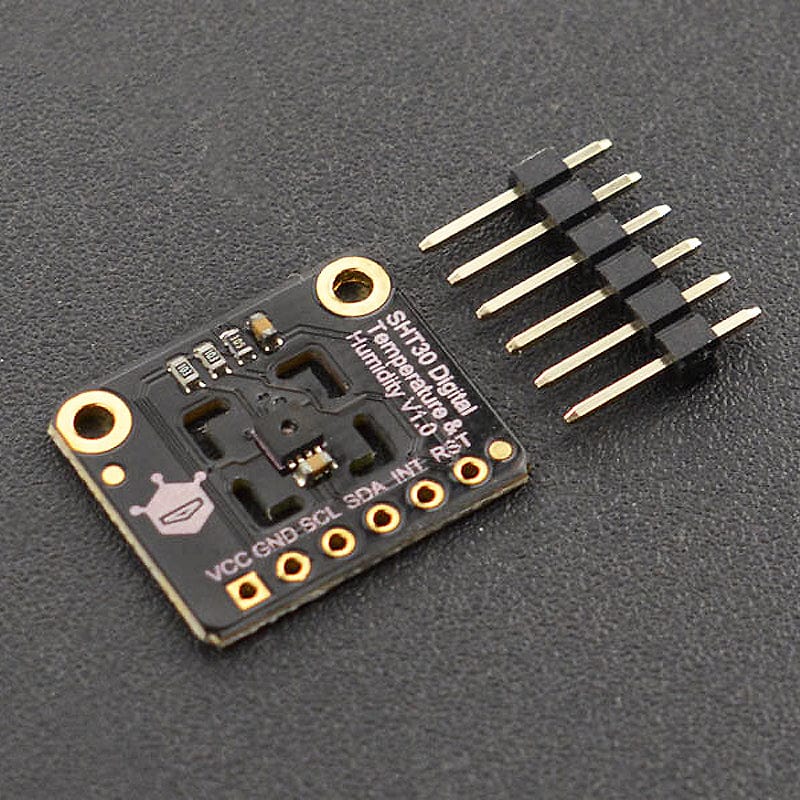

• 1x SHT30 Digital Temperature and Humidity Sensor
• 1x 2.54mm 6-pin Single Row header
