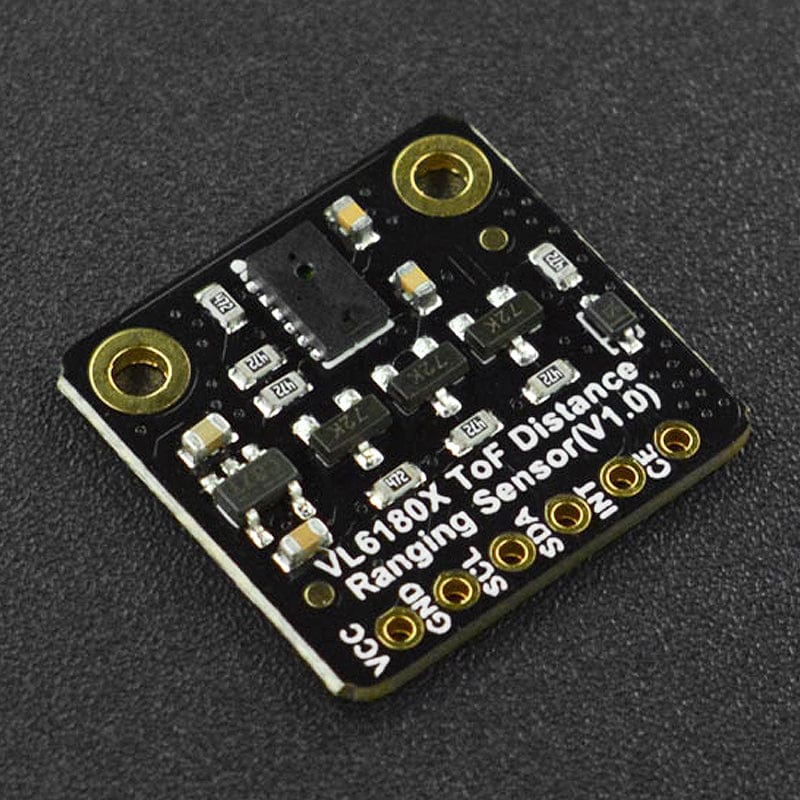

Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)

The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense™technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.

• Simultaneous measurement of distance and ambient light
• VCSEL light source
• Strong anti-interference

Connection Example - DFRduino UNO

• Power Supply Voltage: 3.3V~5V
• Operating Current: ＜5mA
• Measuring Distance: 5-100mm
• Emitter: 940nm invisible laser (VCSEL)
• I2C Address: 0x29
• Operating Temperature Range: -20°C~85°C

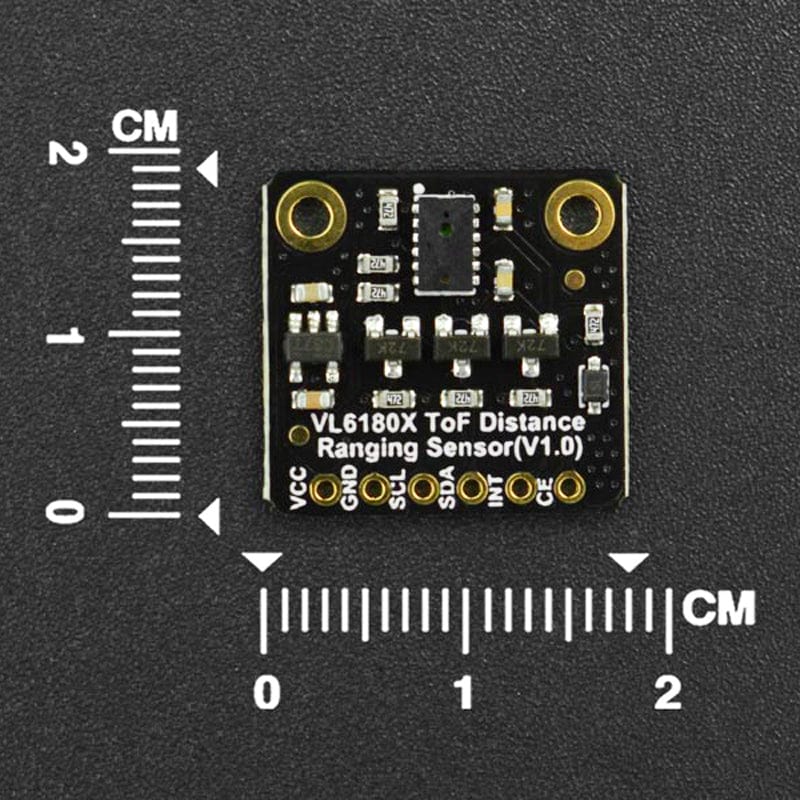

• Product Size: 19 x 18mm

• Product Wiki

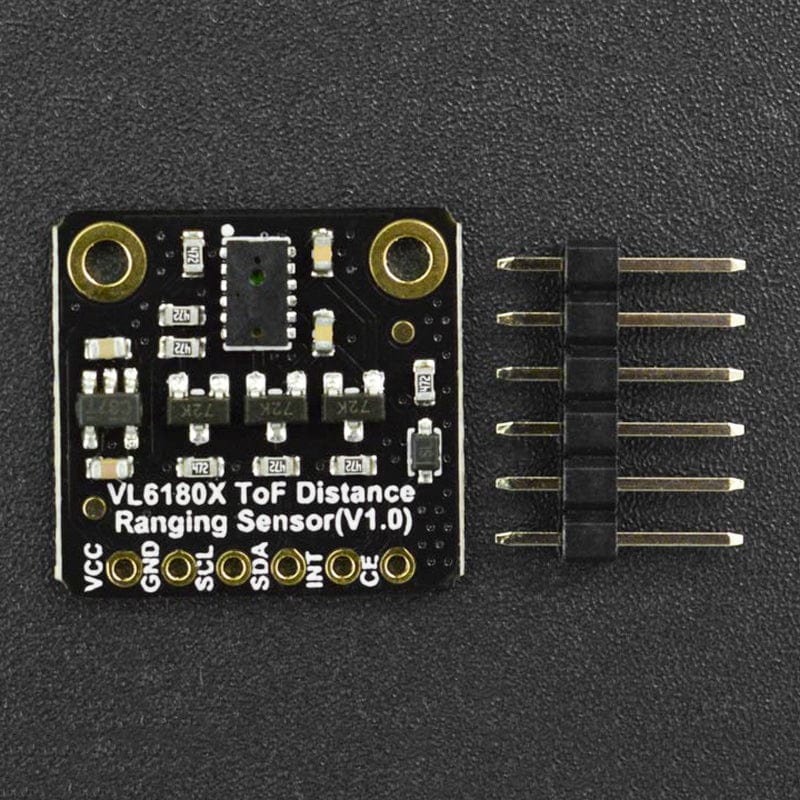

• 1x Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)
• 1x 2.54-6P Black Single Row Pin Header
