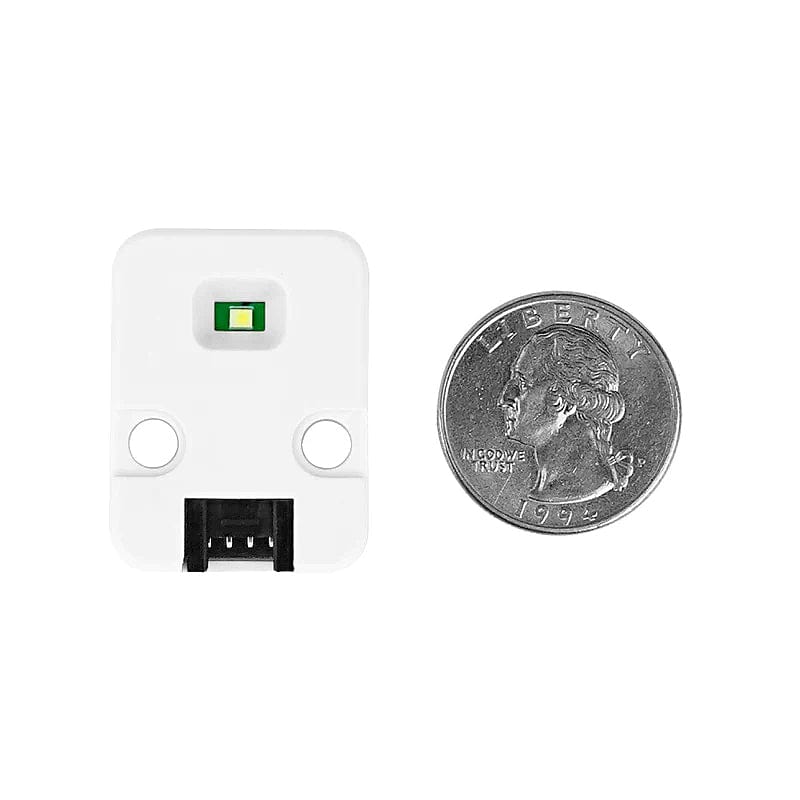

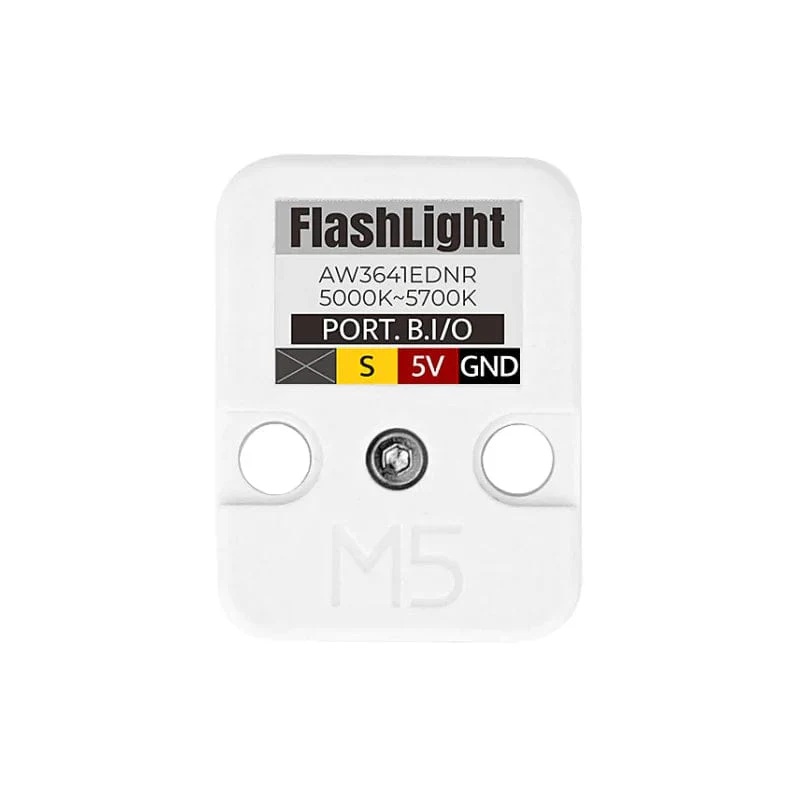

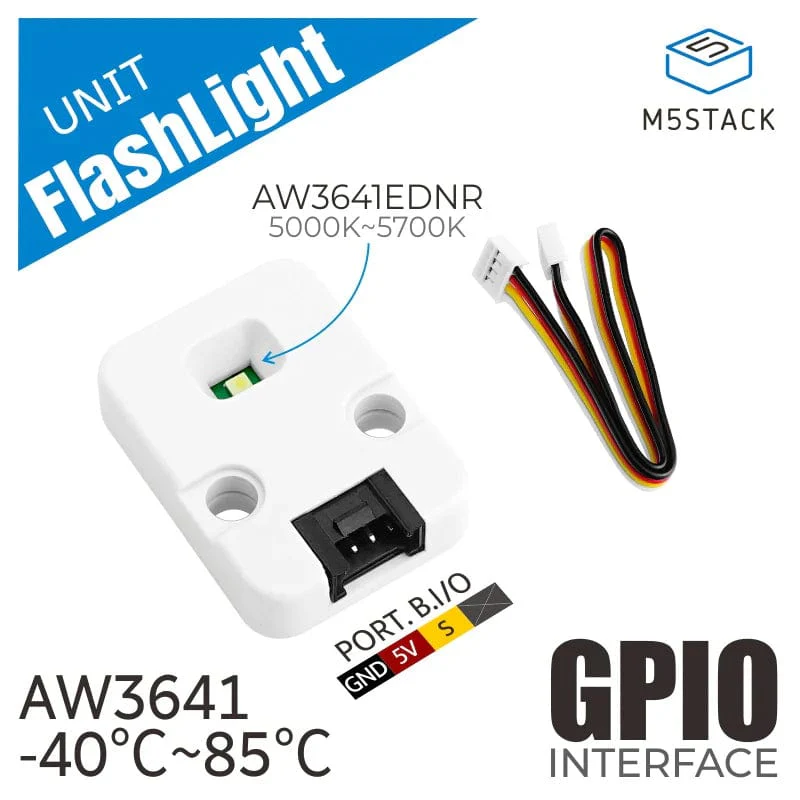

Flashlight Unit

The FlashLight Unit is an I/O Unit with built-in flash, including an AW3641 driver, and a white LED, with a colour temperature of 5000-5700K. There is a mode selection switch on the board, which can set the flash mode and the constant lighting mode. The communication interface is GPIO. This Unit can be used as a flash or lighting application.

Features

• PWM Brightness Adjustment Method
• Over-Temperature Protection
• Over-Voltage and Short-Circuit Protection

Package Contents

• 1x FlashLight Unit
• 1x HY2.0 - 4-pin Cable

Specifications

Resources	Parameters
Driver chip	AW3641EDNR
Adjustment Mode	PWM
AW3641EDNR Operation Temperature Range	-40℃ to +85℃
Unit Operation Temperature	0℃ to +40℃
Color Temperature	5000K~5700K（Kevin）
Product Size	32mm × 24mm × 8mm
Package Size	67mm × 53mm × 12mm
Product Weight	4.7g
Package Weight	9.8g

Resources

• Product Wiki
