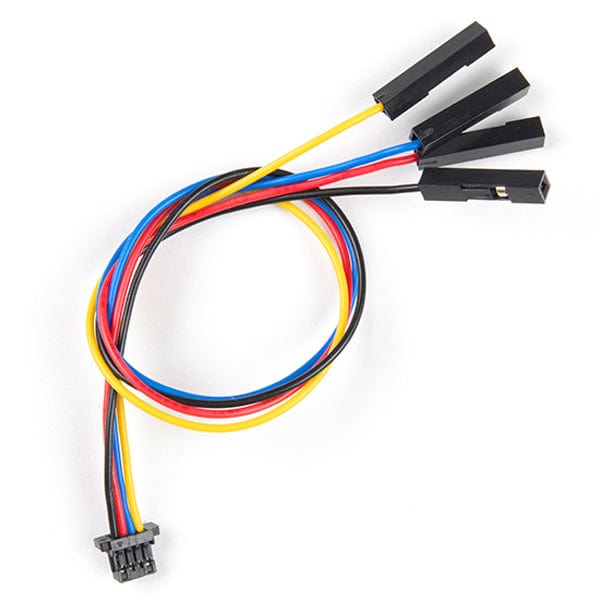

Flexible Qwiic Cable - Female Jumper (4-pin)

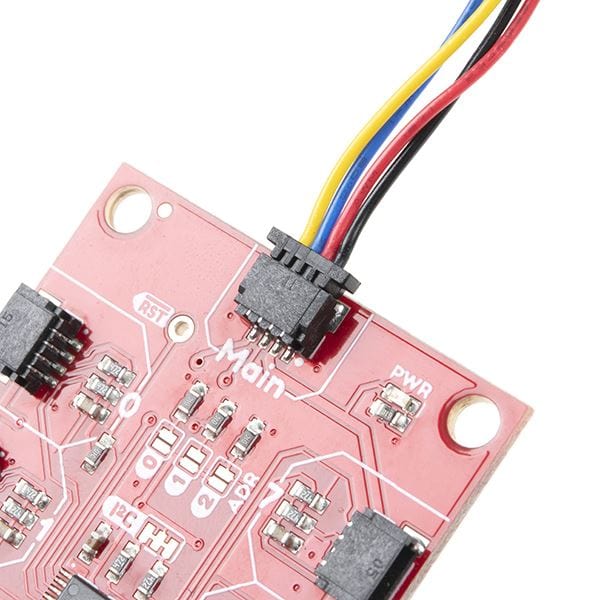

This is a jumper adapter cable that comes pre-terminated with a female Qwiic JST connector on one end and female connectors on the other. The cable insulation is made from a highly malleable material making it more flexible than our original Qwiic cable, particularly in tight spaces or enclosures. This cable makes it easy to connect components with a Qwiic connector to the male pins on various development platforms. This cable is also a great way to attach a logic analyzer to your I2C system.

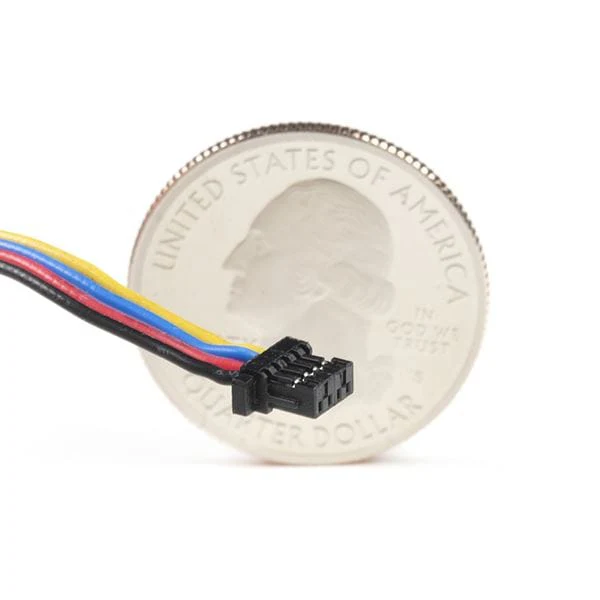

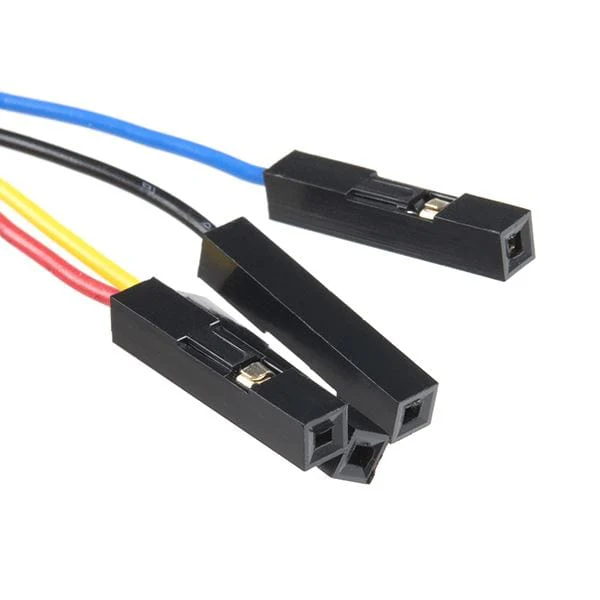

The 28AWG wire's length is 150mm (about 5.9 inches). The adapter’s wires have been colour-coded to red, black, blue and yellow. Additionally, the female Qwiic connector features a basic 1mm pitch, while the female hookup pins can easily connect to a standard 0.1" male connector.

All Qwiic cables have the following color scheme and arrangement:

• Black = GND
• Red = 3.3V
• Blue = SDA
• Yellow = SCL

Resources

• Fritzing Part
