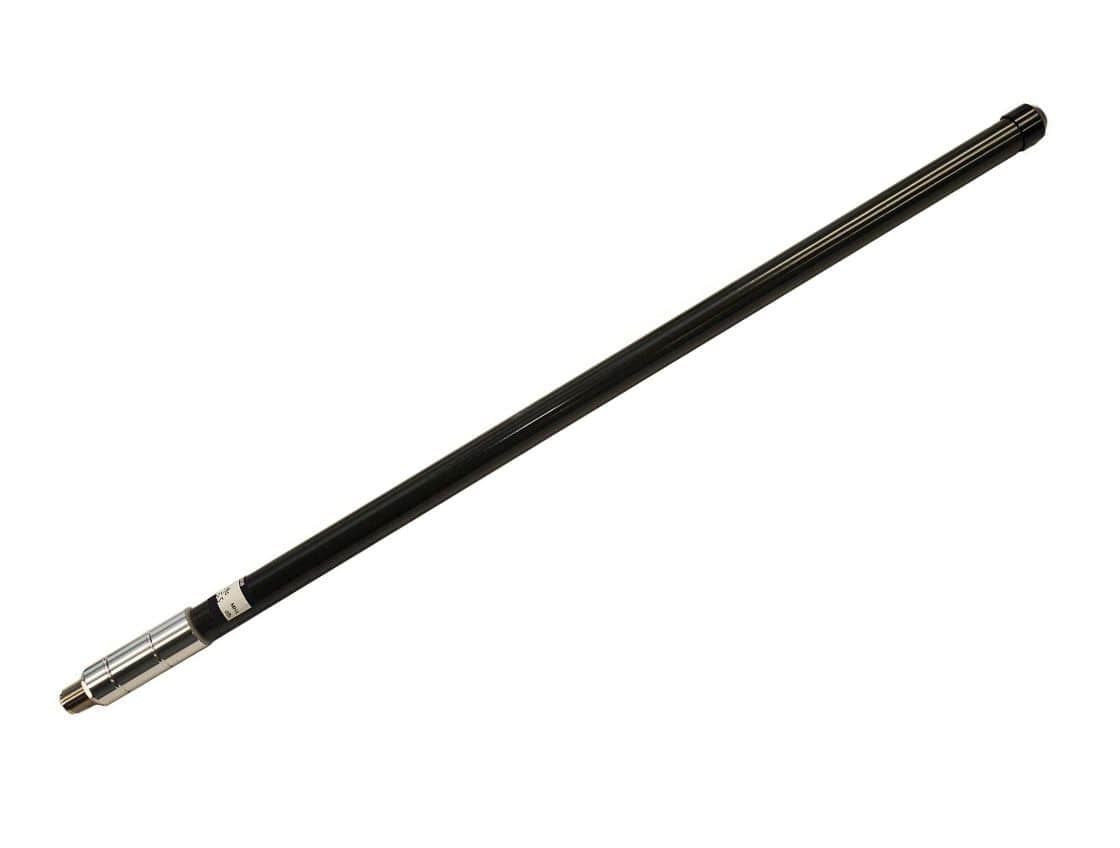

FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued]
HomeStore

FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued]

FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued]

$23.89

Original: $79.65

-70%
FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued]—

$79.65

$23.89

The Story

This is the official FlightAware high-performance, omni directional antenna for receiving 1090MHz Mode S and ADS-B data from aircraft.

The antenna can be used outdoors, mounted on a mast that is 2.5cm to 4cm in diameter (not included), or installed indoors against a window. When properly installed without obstructions, the antenna can receive ADS-B data from aircraft up to 250mi / 400km away.

Mounting bracket and U-bolts included. Compatible with all ADS-B receivers including FlightFeeder, PiAware, Mode S Beast, Radarcape, Kinetic SBS1/SBS3, RTL Dongles, and more.

Features

  • Quality: 1090MHz
  • Gain: 5.5dBi Avg
  • Radiation: Omni
  • Connector: N-FEMALE.
  • Suitable for Mode S and ADS-B data from Aircraft USA
  • Finish: Olive Green
  • 26"/66cm Long
  • Bracket Dimensions
    • 4 x 7mm Holes in Rectangular Pattern. Vertical Spacing: 39mm / Horizontal Spacing 48mm (Center to Center)
    • 2 x 45mm Diameter Clamps

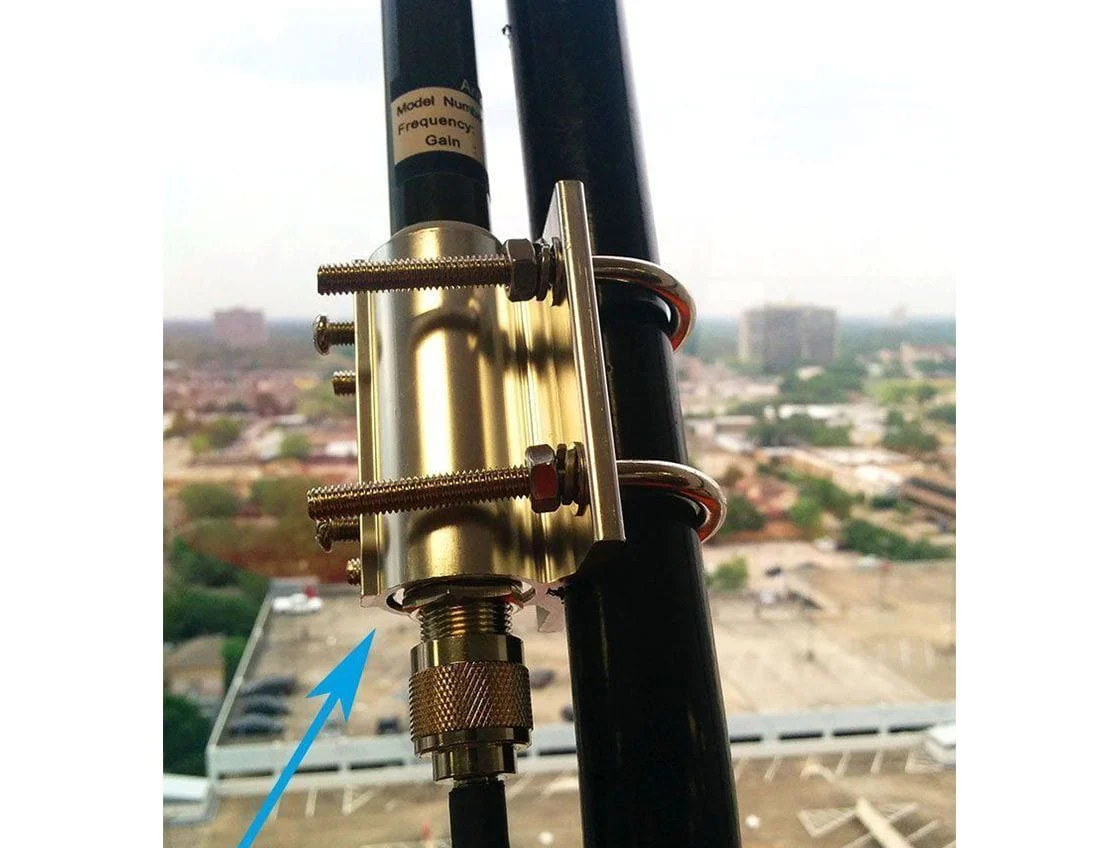

FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

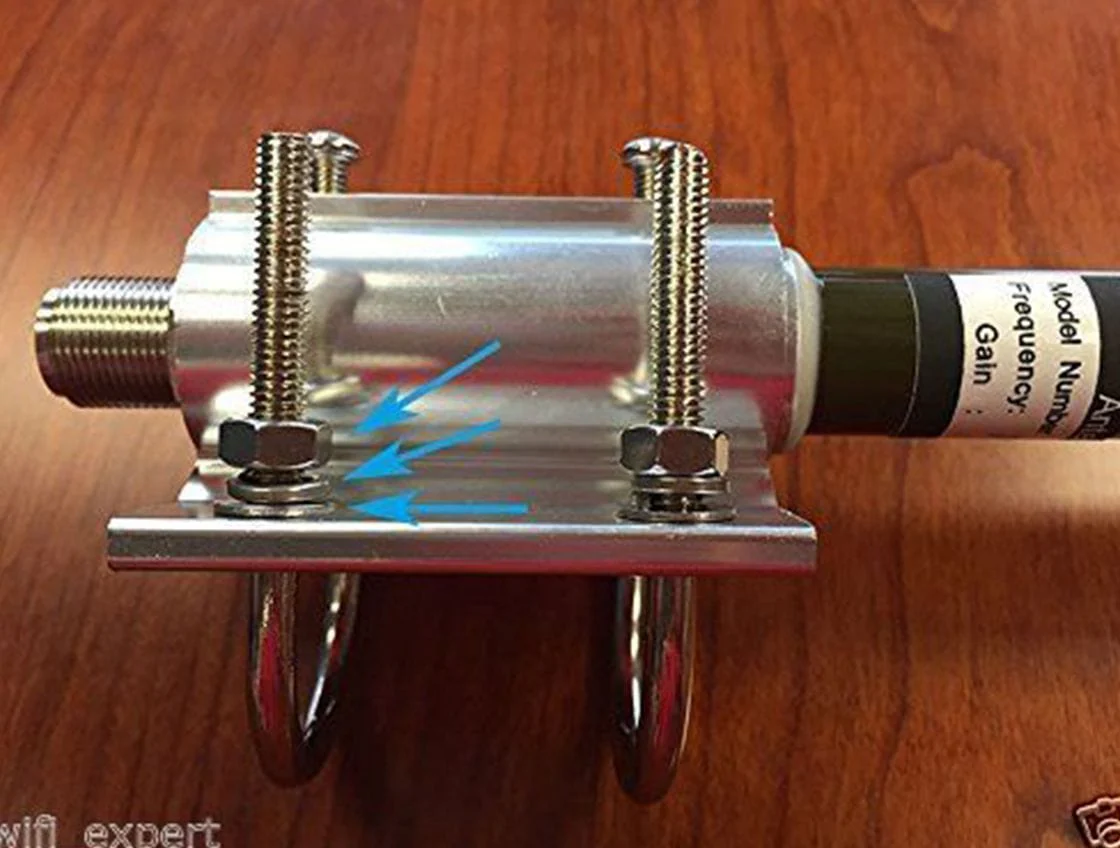

FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

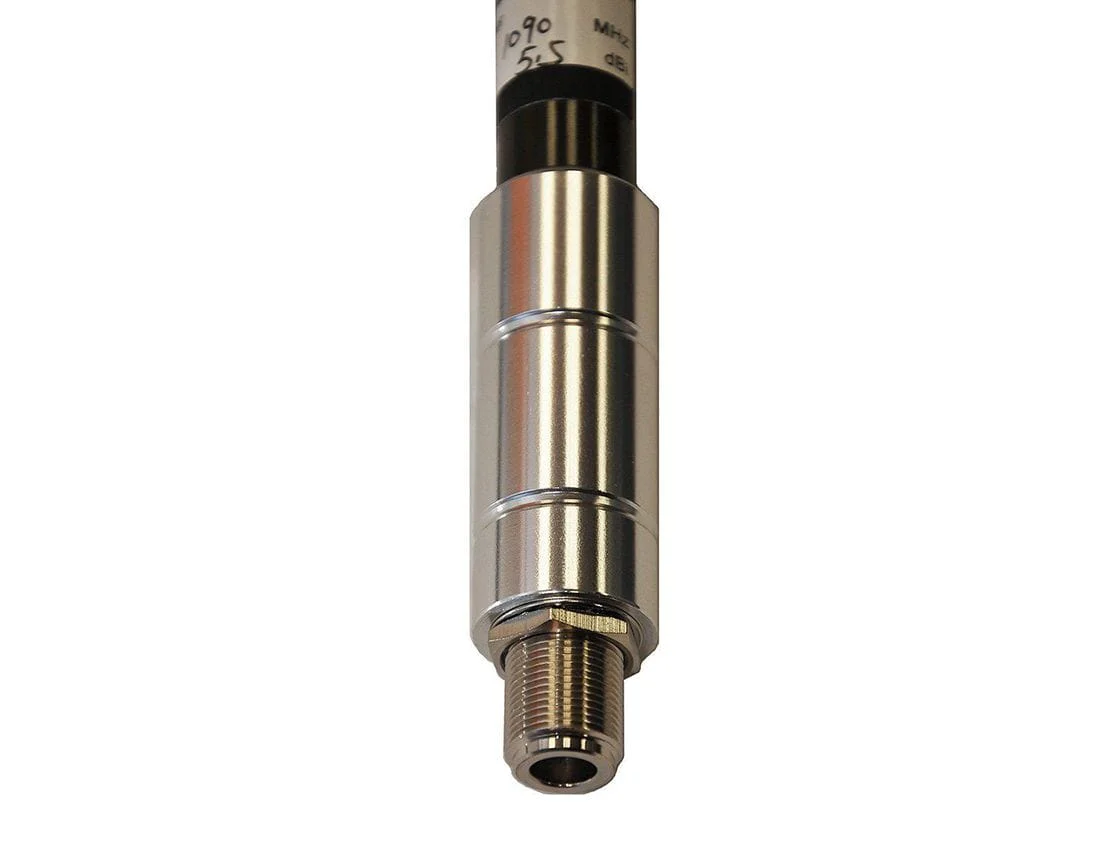

FlightAware 1090MHz ADS-B N-Type Antenna 26" - 5.5dBi [Discontinued] - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This is the official FlightAware high-performance, omni directional antenna for receiving 1090MHz Mode S and ADS-B data from aircraft.

The antenna can be used outdoors, mounted on a mast that is 2.5cm to 4cm in diameter (not included), or installed indoors against a window. When properly installed without obstructions, the antenna can receive ADS-B data from aircraft up to 250mi / 400km away.

Mounting bracket and U-bolts included. Compatible with all ADS-B receivers including FlightFeeder, PiAware, Mode S Beast, Radarcape, Kinetic SBS1/SBS3, RTL Dongles, and more.

Features

  • Quality: 1090MHz
  • Gain: 5.5dBi Avg
  • Radiation: Omni
  • Connector: N-FEMALE.
  • Suitable for Mode S and ADS-B data from Aircraft USA
  • Finish: Olive Green
  • 26"/66cm Long
  • Bracket Dimensions
    • 4 x 7mm Holes in Rectangular Pattern. Vertical Spacing: 39mm / Horizontal Spacing 48mm (Center to Center)
    • 2 x 45mm Diameter Clamps
