Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino
HomeStore

Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino

Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino

$12.93
Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino—
$12.93

The Story

This is an Arduino Carbon Monoxide Sensor. It uses MQ7 probe to detect Carbon Monoxide (CO) concentrations in the air from 20 to 2000ppm.

The sensitivity can be adjusted by the potentiometer. The output is proportional to the density of gas. You can use analog reading to read the data from this sensor.

To ease the difficulty of using this sensor, a Gravity Interface is adapted to allow plug&play. The Arduino IO expansion shield is the best match for this senor connecting to your Arduino microcontroller.

Connection Example - I/O Expansion Shield

Specifications

  • Power supply needs: 5V
  • Interface type: Analog
  • Pin Definition: 1-Output 2-GND 3-VCC
  • High sensitivity to carbon monoxide
  • Fast response
  • Stable and long life
  • Size: 40 x 20mm

Resources

  • Product Wiki
  • MQ7 datasheet
  • Schematic

Package Contents

  • 1x Carbon Monoxide Sensor (MQ7)
Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

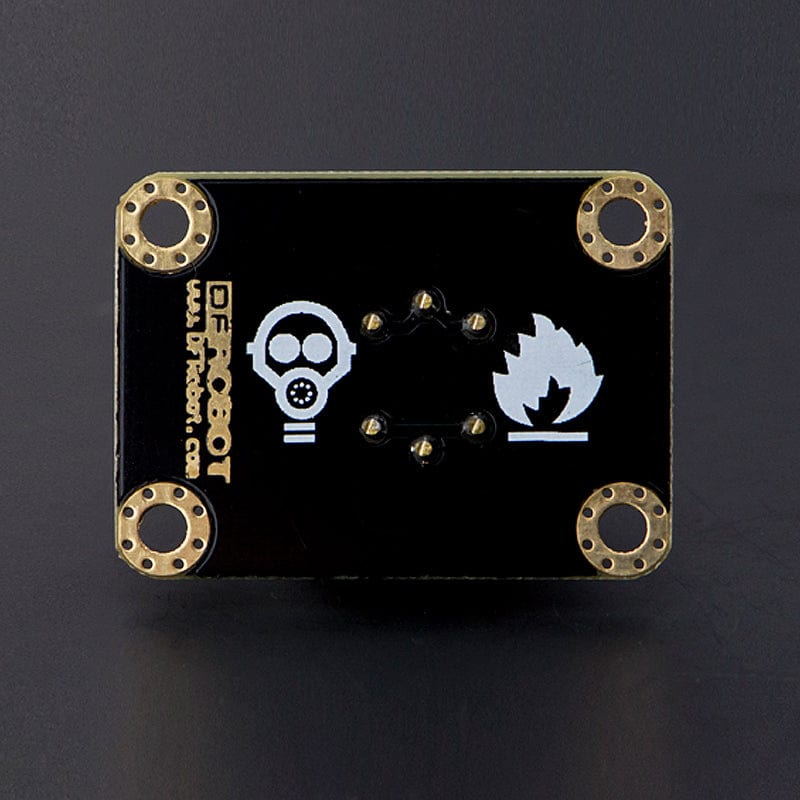

Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

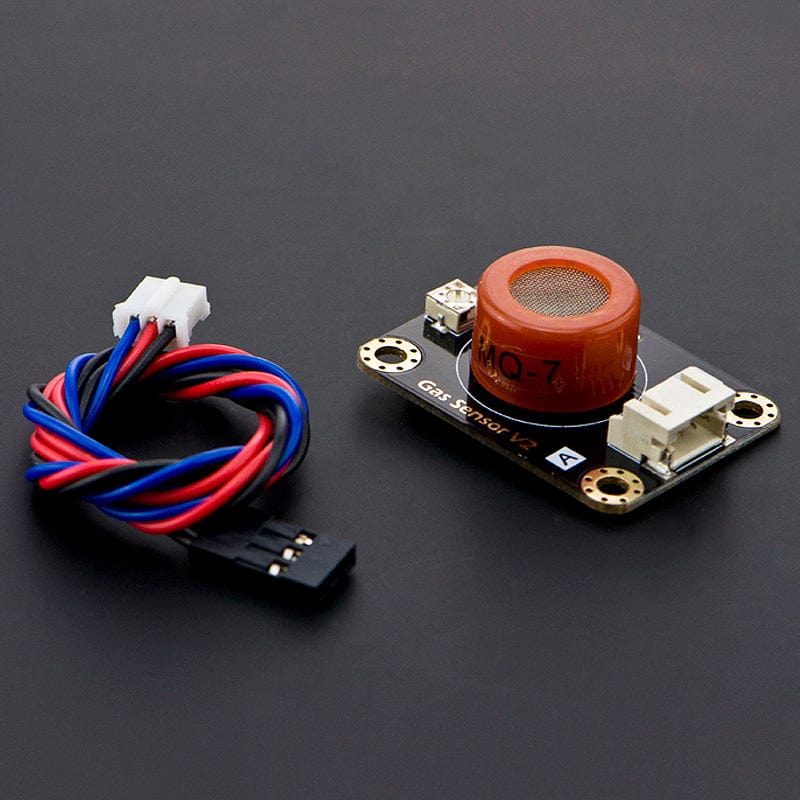

Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

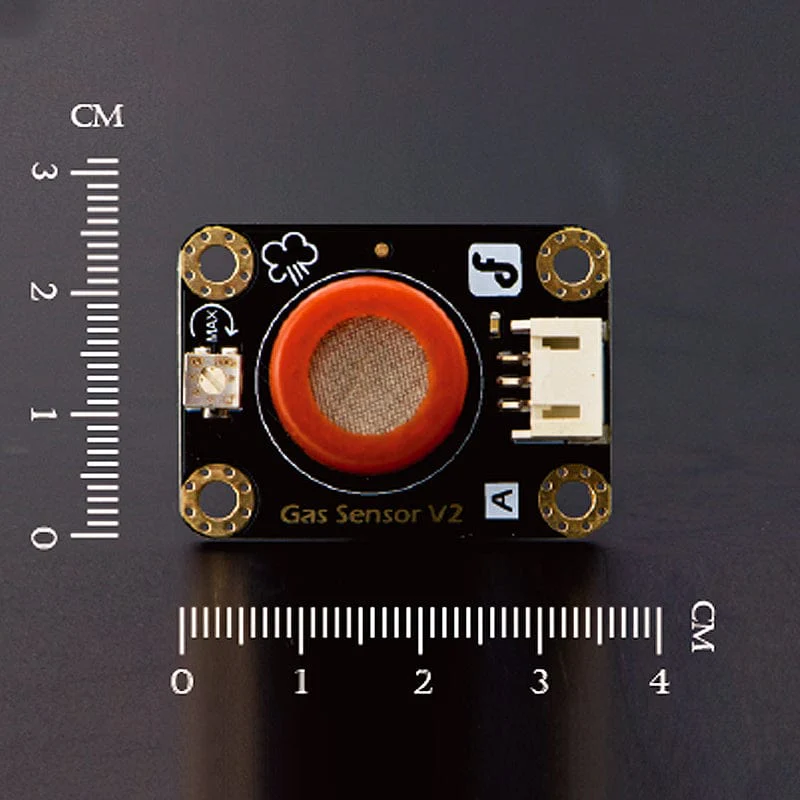

Gravity: Analog Carbon Monoxide Sensor (MQ7) For Arduino - Image 5
