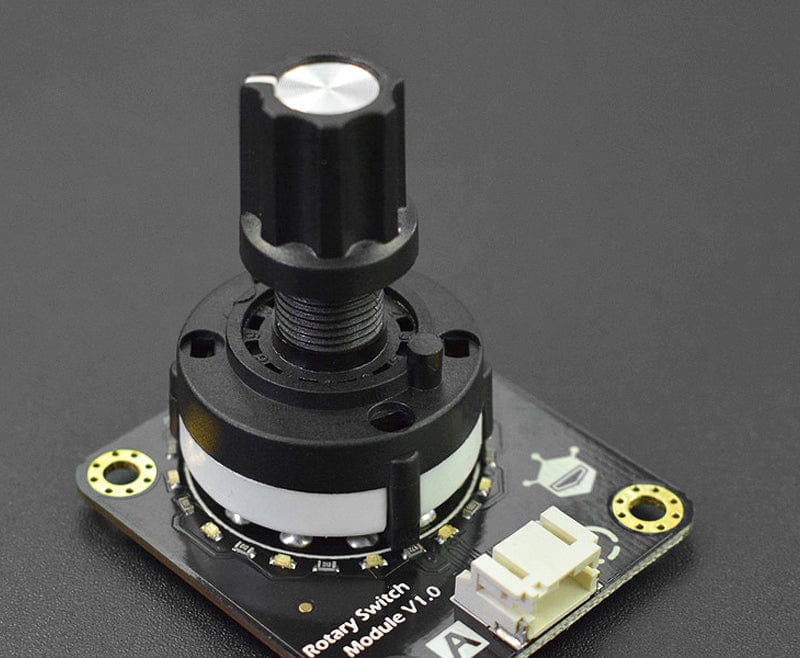

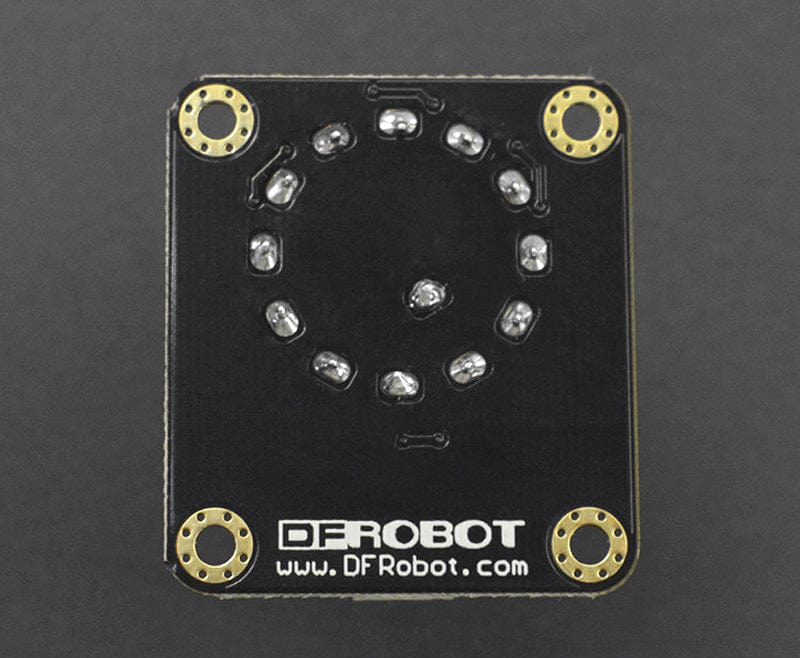

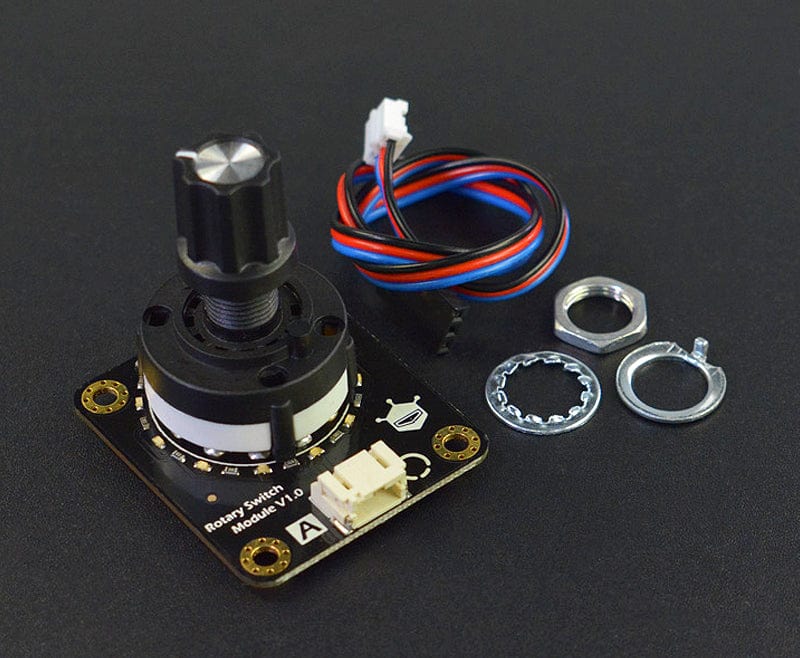

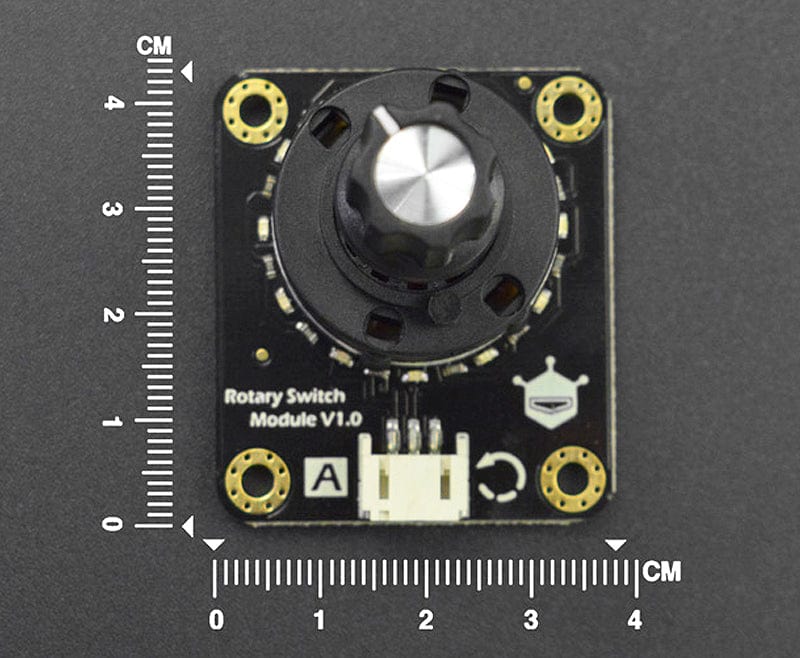

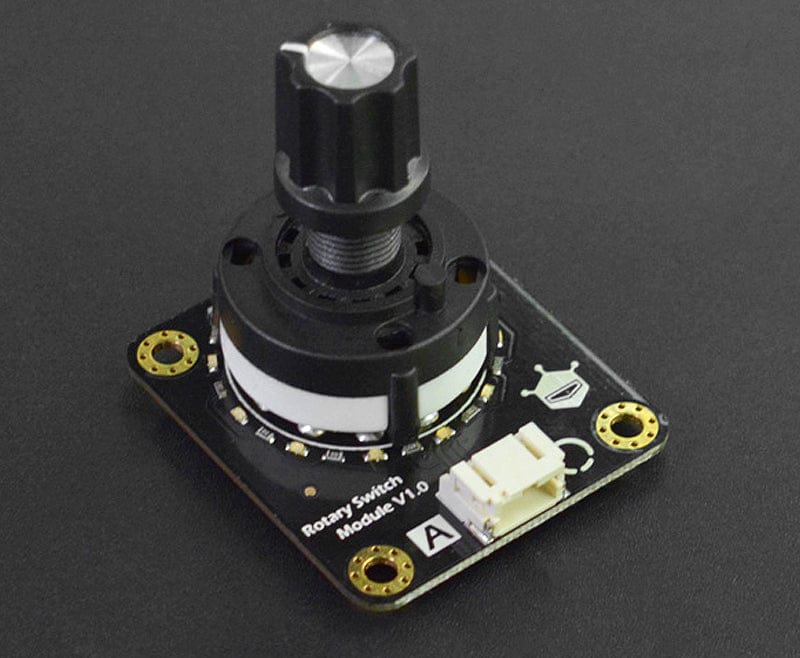

Gravity: Analog Rotary Switch Module V1

A rotary switch is a switch operated by rotation. It is often used when more than two positions are needed, such as multi-speed control. The Rotary Switch uses an analog input to read the 12 state which saves IO resource for the Arduino. This Rotary Switch Module has 12 positions. Each position has the appropriate indicator. You can also adjust metal buckle inside the switch to change the position number. So, it's very flexible to use.

A rotary switch consists of a spindle or "rotor" that has a contact arm or "spoke" which projects from its surface like a cam. It has an array of terminals, arranged in a circle around the rotor, each of which serves as a contact for the "spoke" through which any one of a number of different electrical circuits can be connected to the rotor. Thus a rotary switch provides greater pole and throw capabilities than simpler switches do.

1. Unify the digital and analog sensor interface,and directly printed A,D on the board to represent analog and digital

2. Each sensor board is printed with an icon to simply illustrate sensor function.

In order to unfity interface, new version analog sensor pin will all be changed(Please see the following comparison chart). So the new version sensor is currently incompatible with I/O expansion boards, but can be compatible with Romeo. We will continue to update. For the inconvenience caused, please understand.
