Gravity: Digital Piranha LED Module - Green [Discontinued]
HomeStore

Gravity: Digital Piranha LED Module - Green [Discontinued]

Gravity: Digital Piranha LED Module - Green [Discontinued]

$1.02

Original: $3.40

-70%
Gravity: Digital Piranha LED Module - Green [Discontinued]—

$3.40

$1.02

The Story

This is a Piranha LED light module. A digital pin (LOW on, HIGH off) is used to control it. The brightness of LED can be controller via PWM output.

Applications

  • DIY Projects
  • Toys
  • Games
  • Audio indicator

Specification

  • Voltage: 3.3~5v
  • Light color: Green
  • High luminous output
  • Luminous Intensity： 2500-3300mcd
  • Wavelength: 520-530nm
  • Compatible with IO Expansion shield
  • Viewing angle: 80-110°
  • Size: 30x20mm(1.18"x0.79")
  • Weight: 5g
  • Pin Definition
    • Digital control pin (PWM)
    • Power Supply
    • GND

Documents

  • Product wiki page

Shipping List

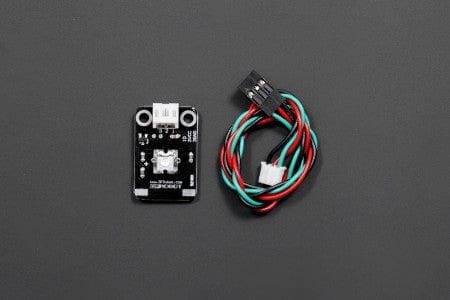

  • Digital piranha LED light module-Green x1
  • Digital Cable (SKU:FIT0011) x1

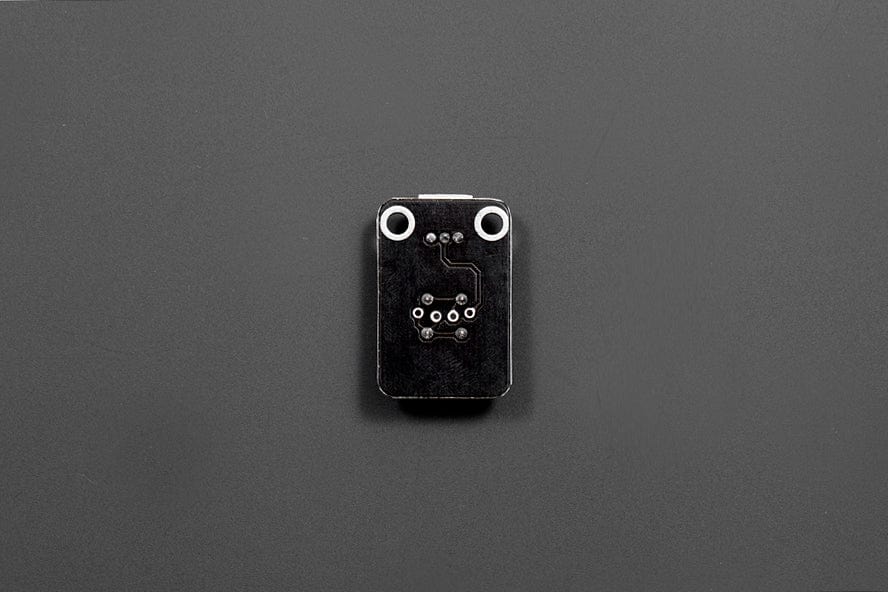

Gravity: Digital Piranha LED Module - Green [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

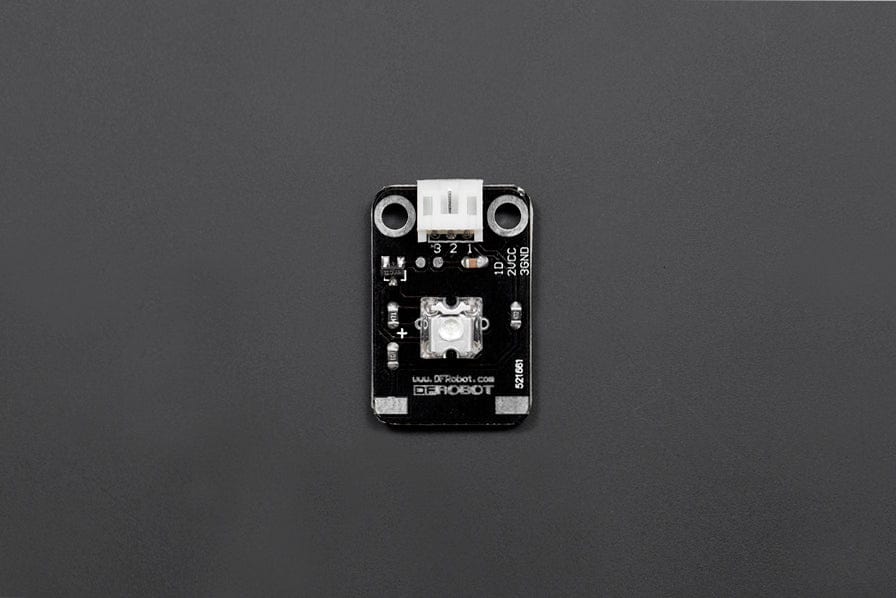

Gravity: Digital Piranha LED Module - Green [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

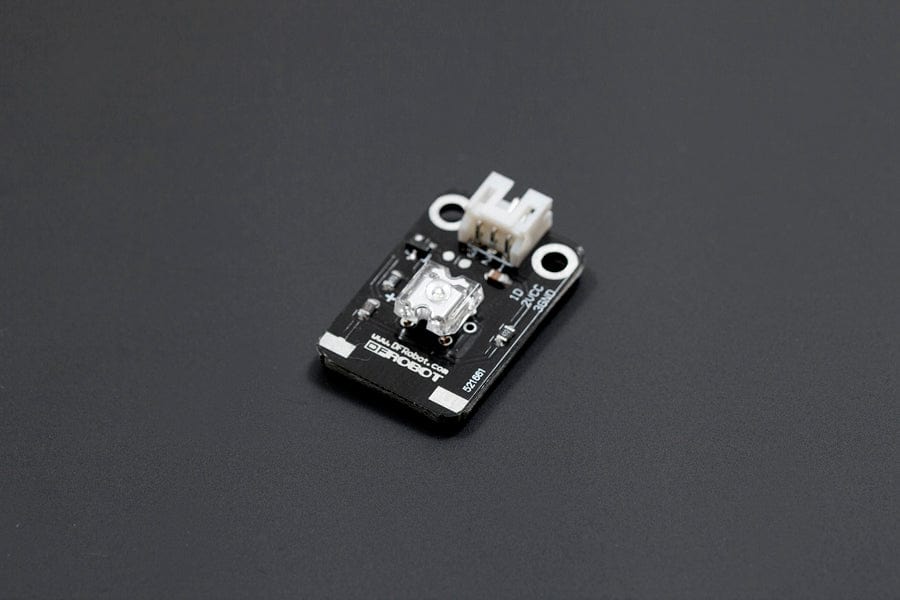

Gravity: Digital Piranha LED Module - Green [Discontinued] - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

This is a Piranha LED light module. A digital pin (LOW on, HIGH off) is used to control it. The brightness of LED can be controller via PWM output.

Applications

  • DIY Projects
  • Toys
  • Games
  • Audio indicator

Specification

  • Voltage: 3.3~5v
  • Light color: Green
  • High luminous output
  • Luminous Intensity： 2500-3300mcd
  • Wavelength: 520-530nm
  • Compatible with IO Expansion shield
  • Viewing angle: 80-110°
  • Size: 30x20mm(1.18"x0.79")
  • Weight: 5g
  • Pin Definition
    • Digital control pin (PWM)
    • Power Supply
    • GND

Documents

  • Product wiki page

Shipping List

  • Digital piranha LED light module-Green x1
  • Digital Cable (SKU:FIT0011) x1
