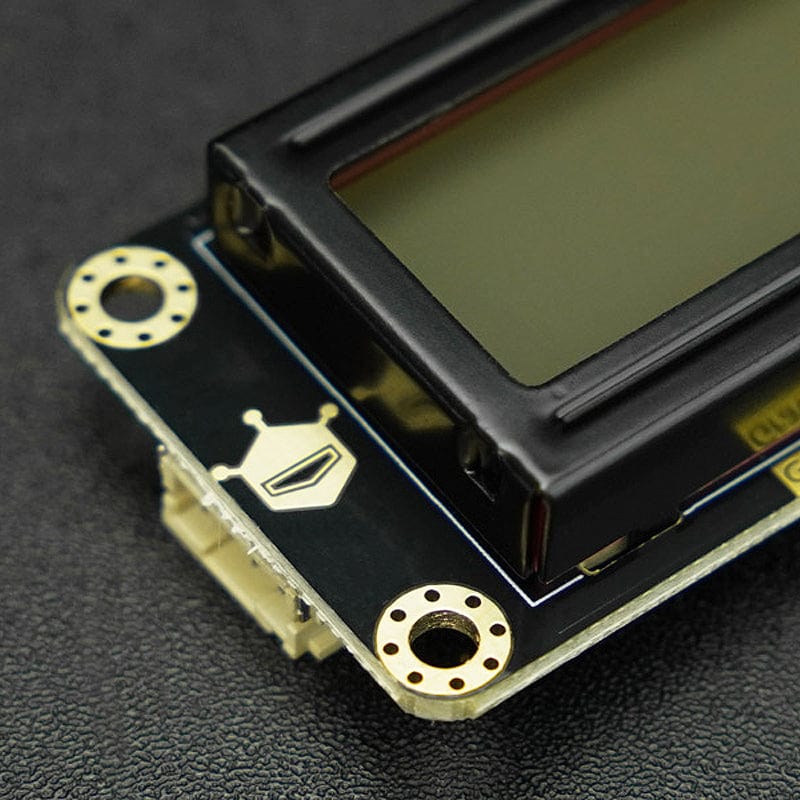

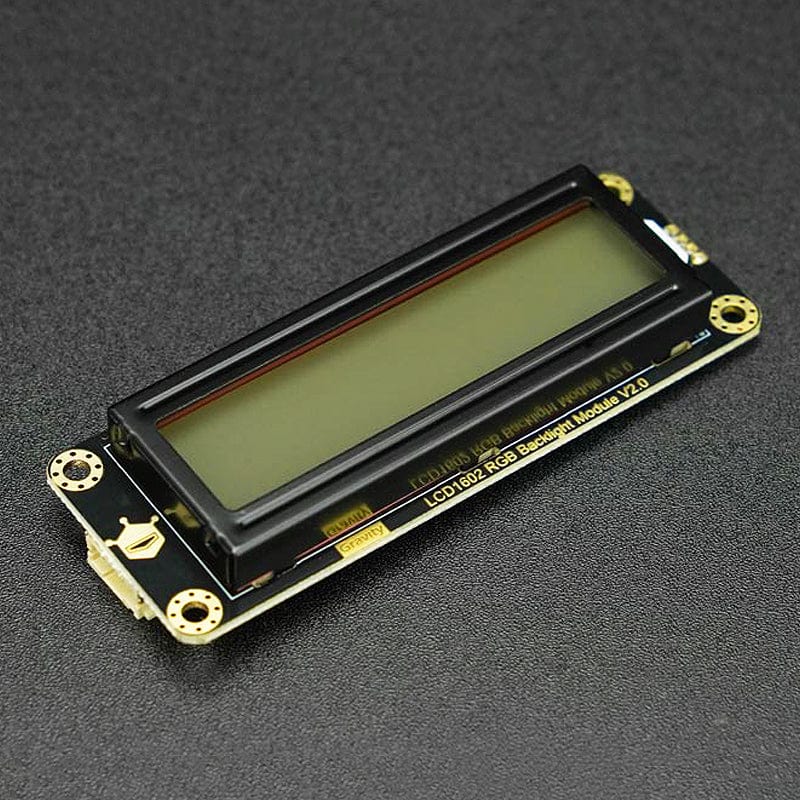

Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display—
$15.66
The Story
Have you been fed up with Black/White LCD screen? Do you want to try a colorful one? DFRobot I2C 16x2 Arduino LCD with RGB Backlight Display module will bring you a new experience about screen. It comes with RGB full color backlight, which has 16 million kinds of color.

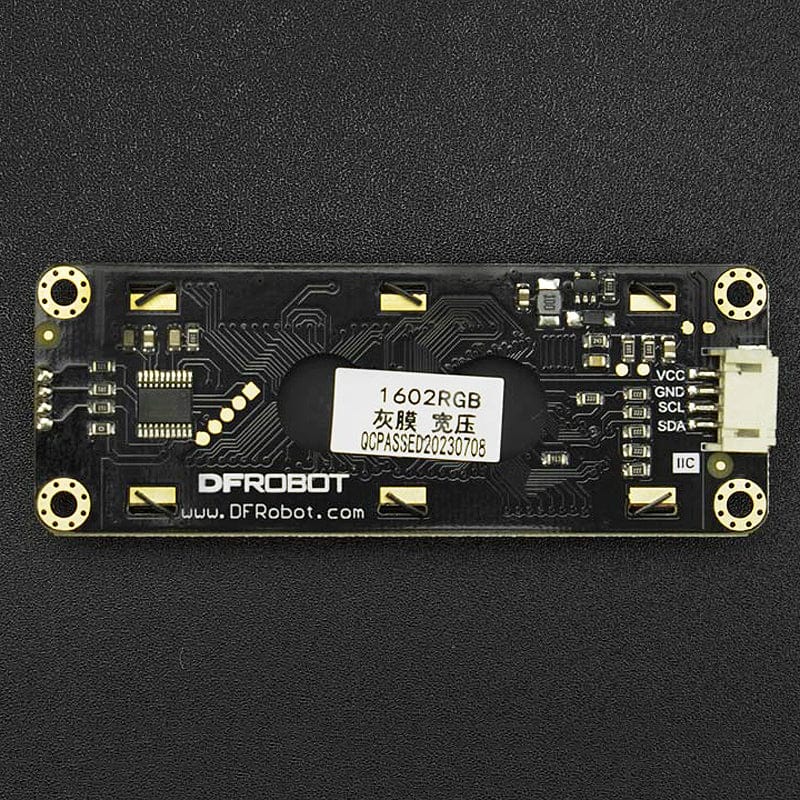

Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16x2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will saves at least 4 digital / analog pins on Arduino. And Gravity interface make it easier to use with our Gravity: IO expansion shield.
Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16x2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will saves at least 4 digital / analog pins on Arduino. And Gravity interface make it easier to use with our Gravity: IO expansion shield.
Specifications
- Operating Voltage: 3.3V ~ 5.0V
- Operating Current: <60mA
- Display: 16 x 2
- Communication: I2C
- Backlight: RGB adjustable backlight (16 million)
- Operating Temperature: -20 to + 70°C
- Storage Temperature: -30 to + 80°C

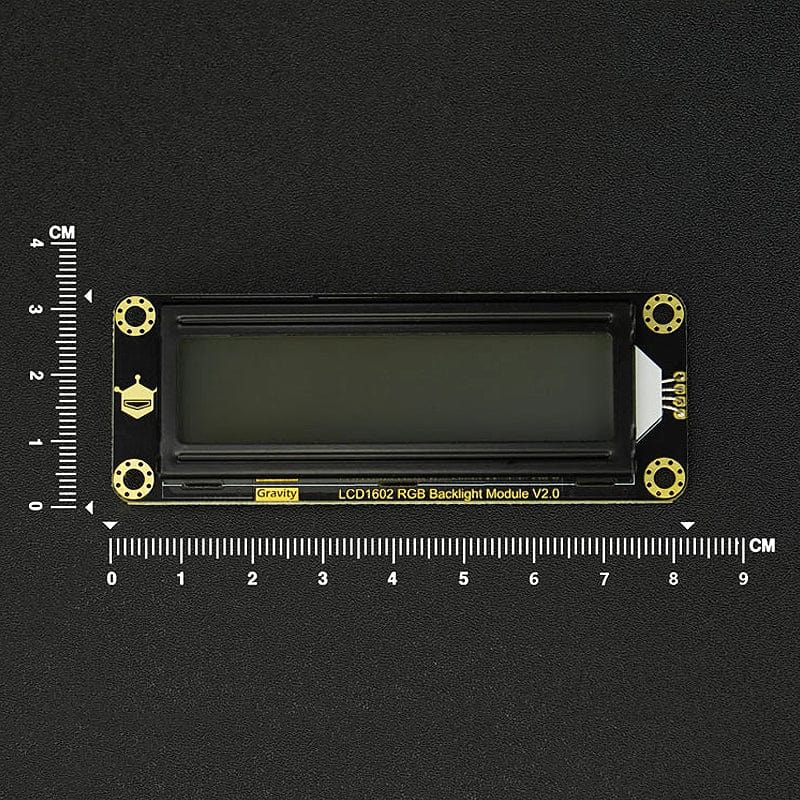

- Dimension: 87.0 x 32.0 x 13.0mm
Resources
- Product Wiki
- More Documents
Package Contents

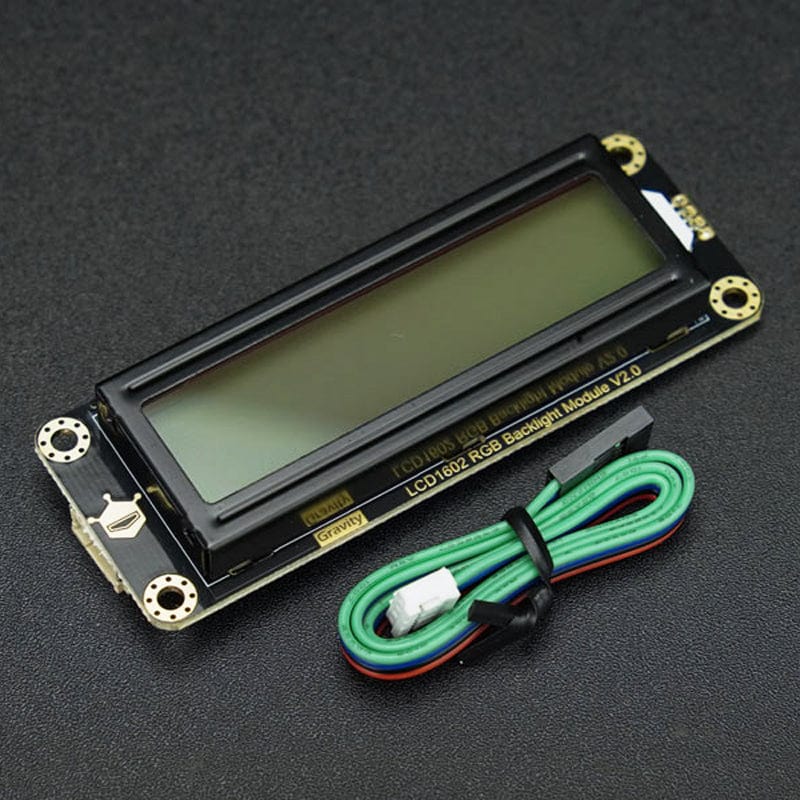

- 1x Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display
- 1x Gravity 4Pin I2C/UART Sensor Cable
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Have you been fed up with Black/White LCD screen? Do you want to try a colorful one? DFRobot I2C 16x2 Arduino LCD with RGB Backlight Display module will bring you a new experience about screen. It comes with RGB full color backlight, which has 16 million kinds of color.
Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16x2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will saves at least 4 digital / analog pins on Arduino. And Gravity interface make it easier to use with our Gravity: IO expansion shield.
Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16x2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will saves at least 4 digital / analog pins on Arduino. And Gravity interface make it easier to use with our Gravity: IO expansion shield.
Specifications
- Operating Voltage: 3.3V ~ 5.0V
- Operating Current: <60mA
- Display: 16 x 2
- Communication: I2C
- Backlight: RGB adjustable backlight (16 million)
- Operating Temperature: -20 to + 70°C
- Storage Temperature: -30 to + 80°C
- Dimension: 87.0 x 32.0 x 13.0mm
Resources
- Product Wiki
- More Documents
Package Contents
- 1x Gravity: I2C 16x2 Arduino LCD with RGB Backlight Display
- 1x Gravity 4Pin I2C/UART Sensor Cable
