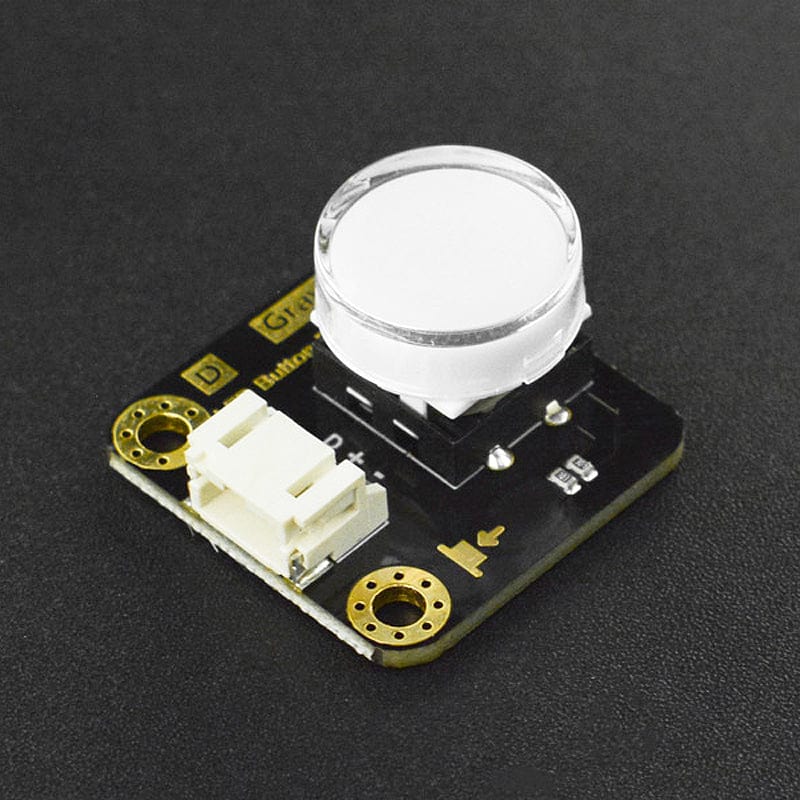

Gravity: LED Button - Red

This is a simple LED-illuminated switch button with a transparent cap. It’s just like a basic switch button, but it lights up color(red/ yellow/ green/ blue/ white) when pressed down, which gives you visual feedback. These little buttons can be used with micro:bit to realize various fun interactive projects!

Note: When pressed down, the module outputs high, and the LED lights up. When released, the module outputs low and the LED turns off.

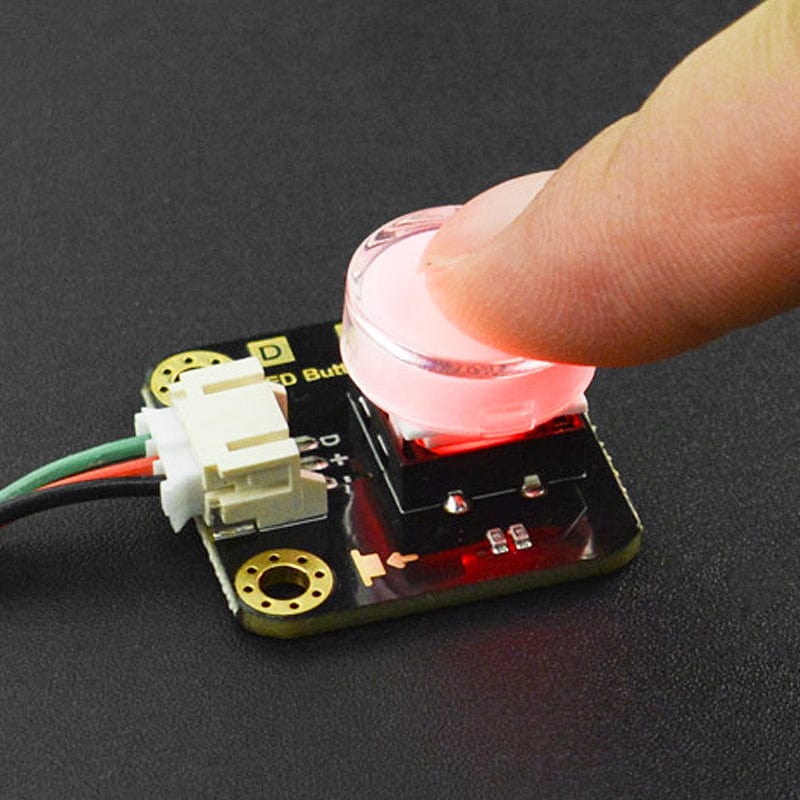

• Internal LED turns On when the button is pressed down.

Connection Diagram - Micro:Bit with IO Extender

• Operating Voltage: +3.3 - 5V (3.3V is recommended)
• Output: Digital
• Connector: PH2.0-3-Pin

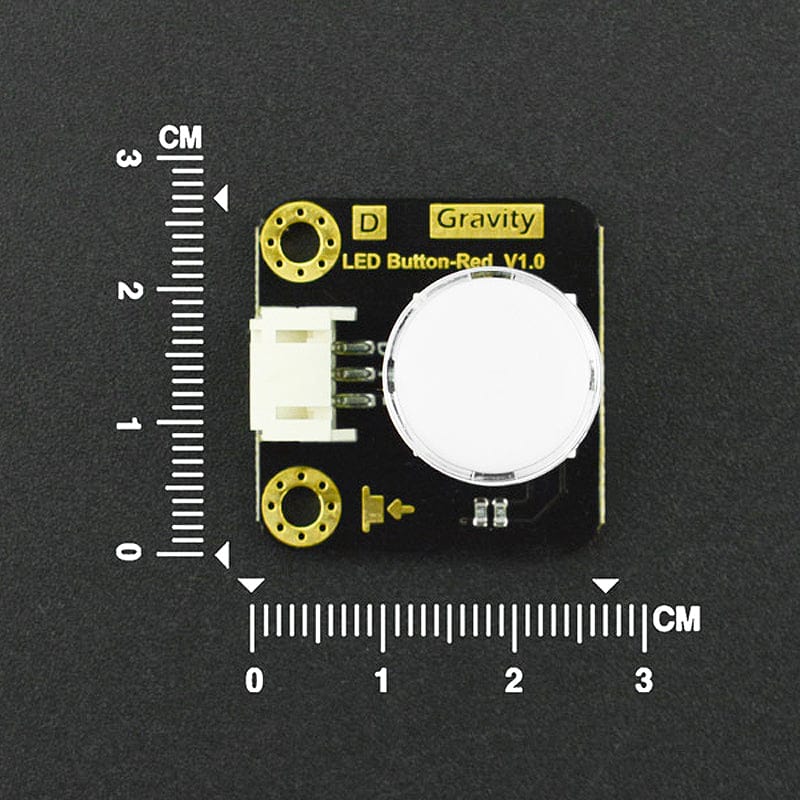

• Dimension: 27 x 26.5mm
• Colours Available: Red, Yellow, Green, Blue, White

• Product wiki

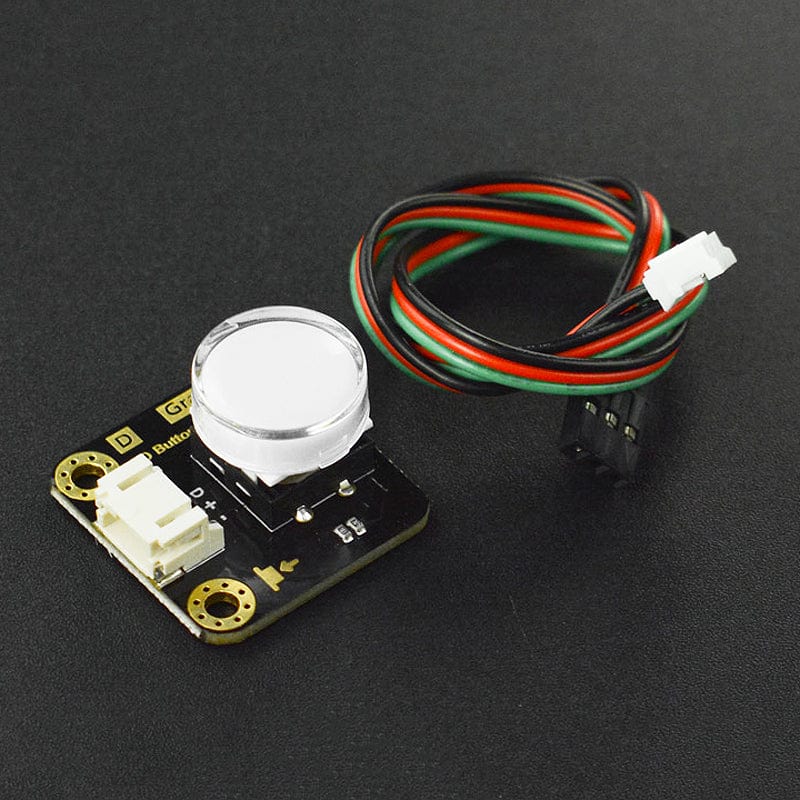

• 1x Gravity: LED Button - Red
• 1x Digital Sensor Connector
