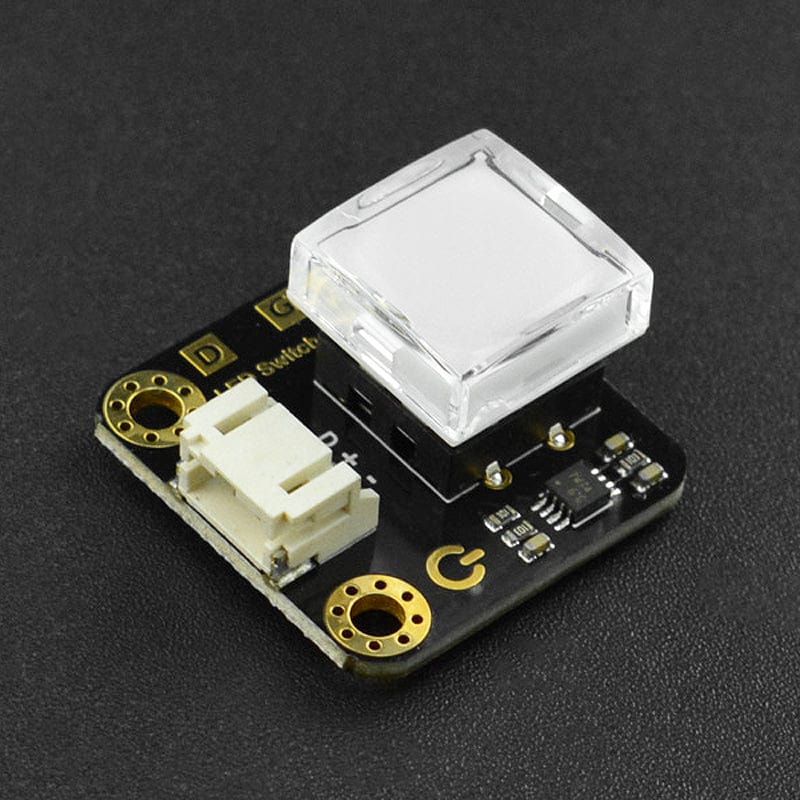

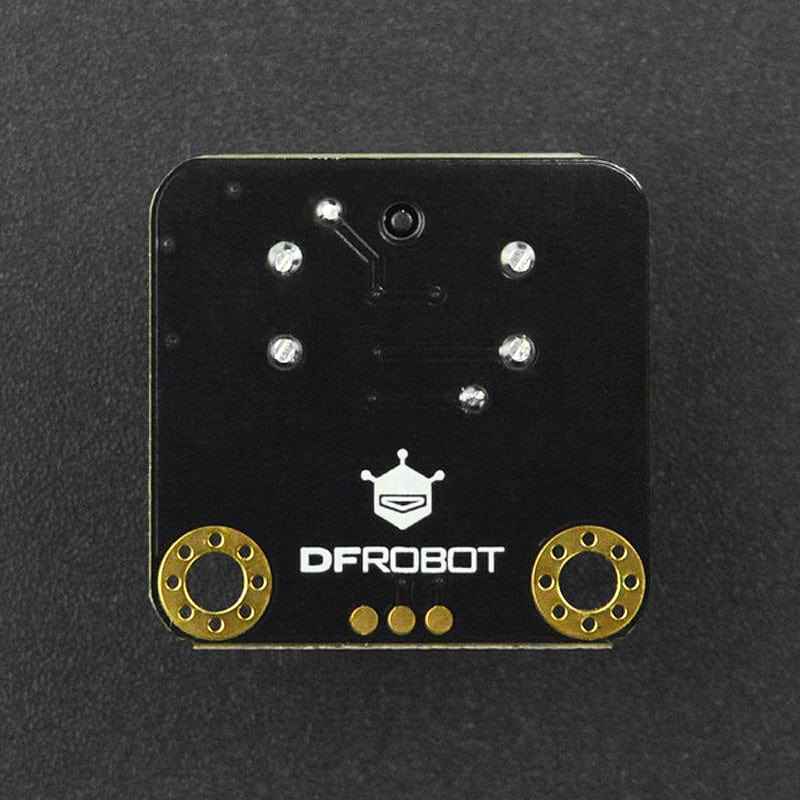

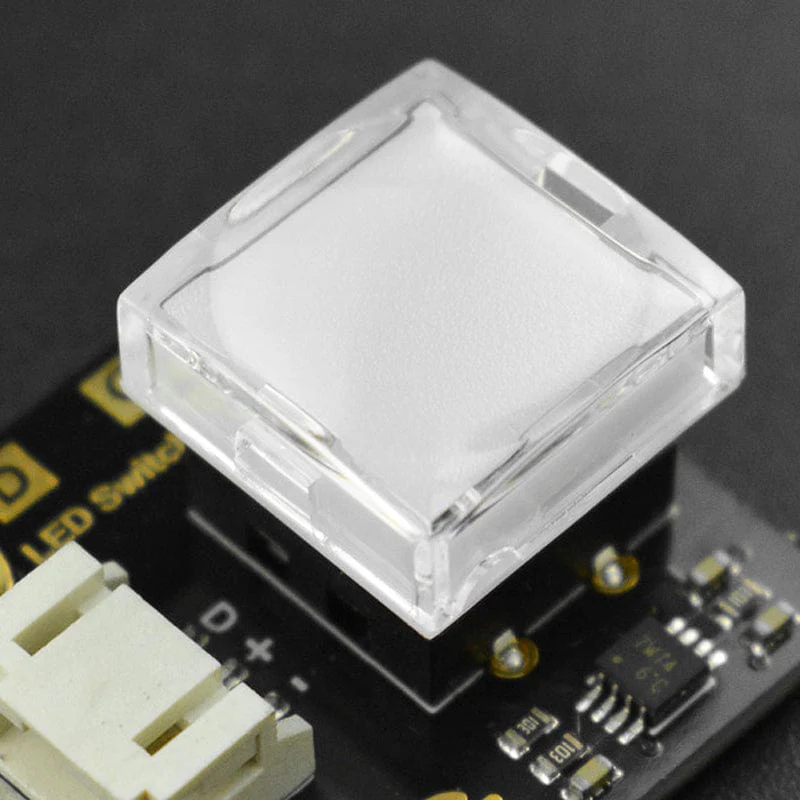

Gravity: LED Switch - Red

This is a simple LED-illuminated self-lock switch button. It’s just like a basic switch button, but it lights up color(red/yellow/green/blue/white) when pressed down, which gives you visual feedback. These little buttons can be used with micro: bit to realize various fun interactive projects, such as switch, backlight keyboard, music player panel, and recording control panel.

Note: The module comes with self-lock function. When the button is pressed down, the module outputs high, and the LED lights up. When being pressed again, the module outputs low and the LED turns off.

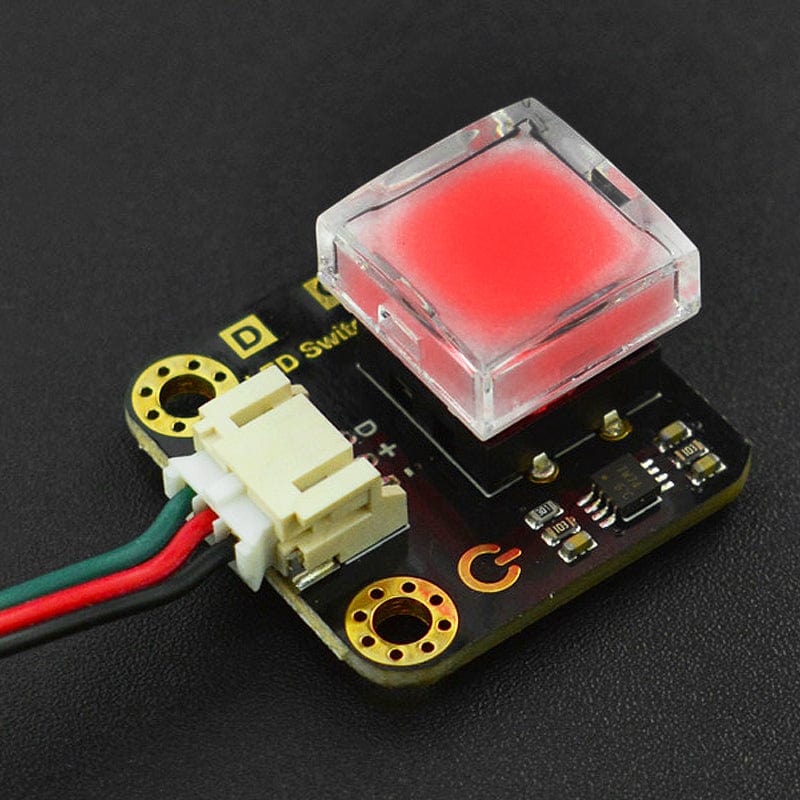

• Internal LED turns On when the button is pressed down

Connection Diagram - Micro:Bit with IO Extender

• Operating Voltage: +3.3-5V (3.3V is recommended)
• Output: Digital
• Connector: PH2.0-3P

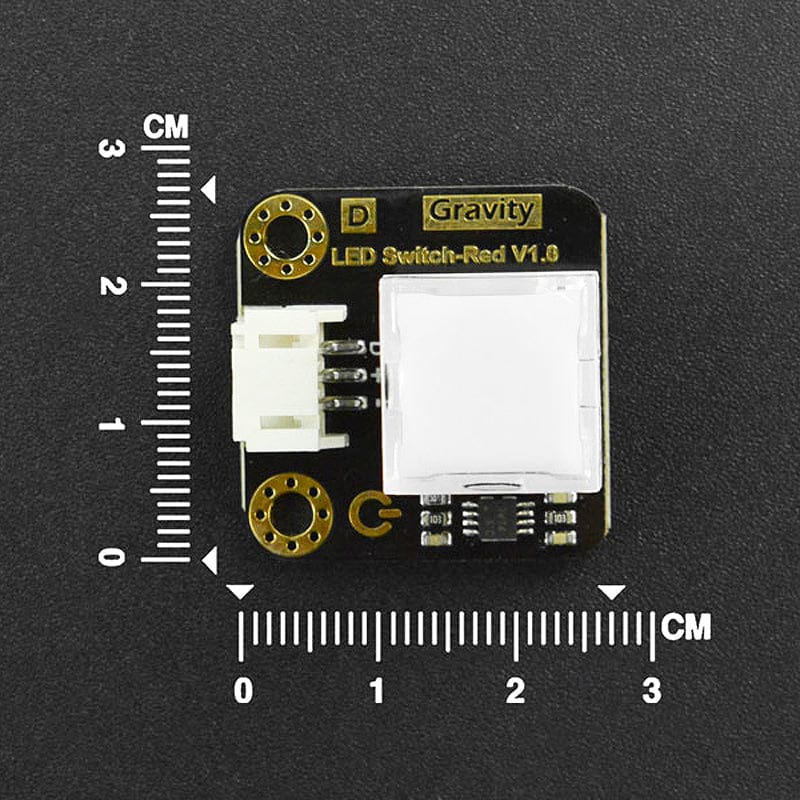

• Dimension: 27 x 26.5mm
• Colors Available: Red, Yellow, Green, Blue, White

• Product wiki

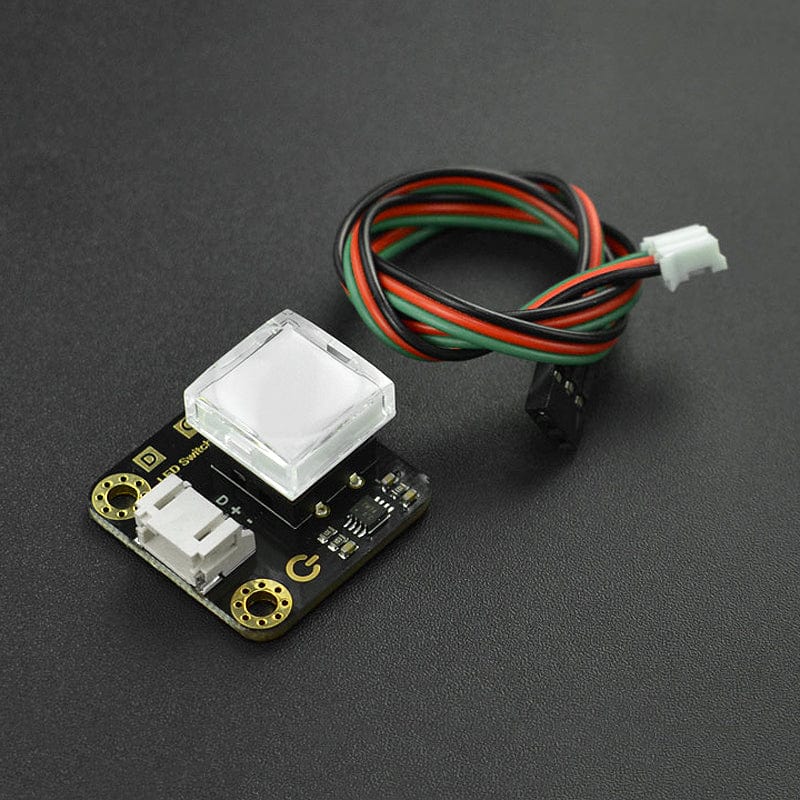

• 1x Gravity: LED Switch
• 1x Digital Sensor Connector
