The Story

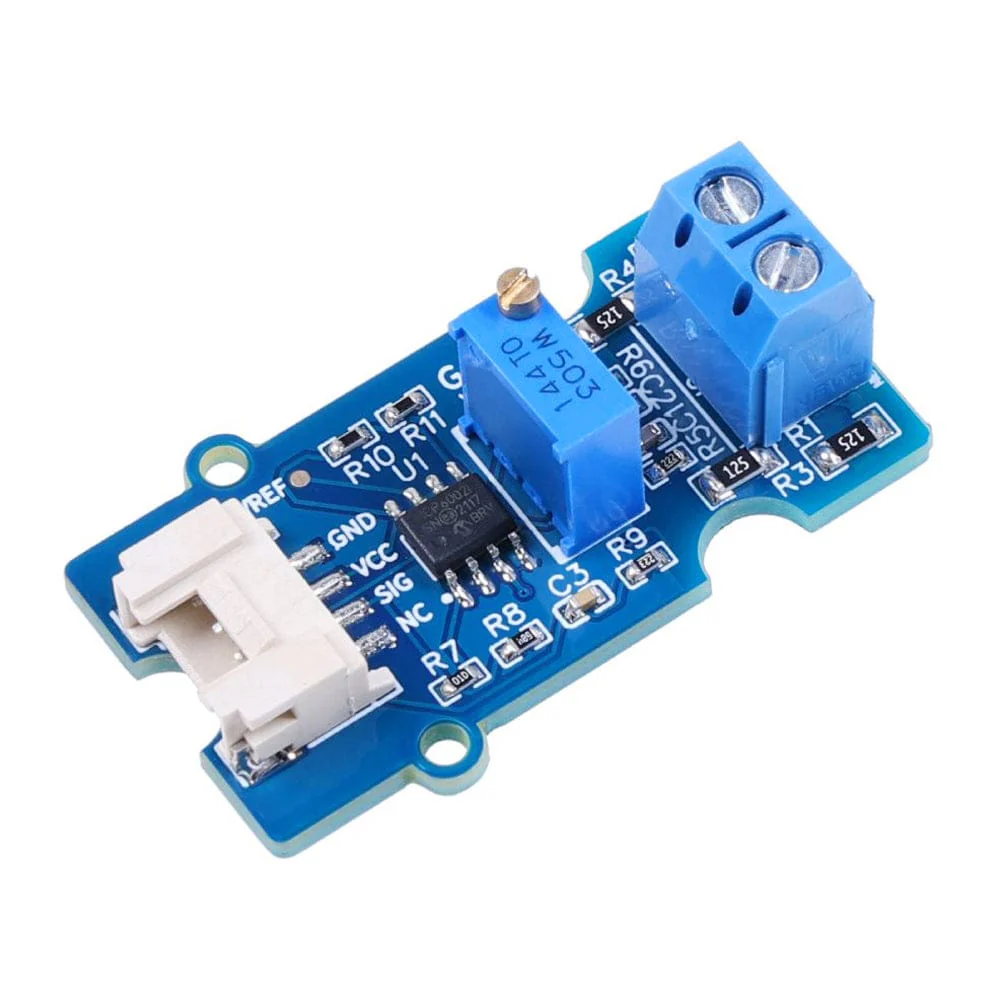

This Voltage Sensor measures RMS AC voltages, making it ideal for energy meters. It has adjustable gain to accommodate different voltage inputs (120V-240V AC).
Since the sensor outputs an analogue signal, it can be easily integrated with various development boards, allowing you to control the sampling frequency and ADC resolution without limitations. Its accuracy lets it detect voltage variations caused by high-power loads when switched on, making it an excellent choice for building smart energy meters.
Features
- It has gained for different voltage inputs (120V-240V AC)
- Using Analog as output, it can be compatible with many different development boards
- Accurately measure the voltage changes generated by high power loads when they are turned on
- Equipped with MCP6002 core with Analogue output
- Just sample plug and play, allowing you to easily add a wireless function
- Product Number: Seeed 101991032
Specifications
| Input Voltage | 5-3.3V |
| Output Type | Analogue |
| Module IC | MCP6002 (OPAMP) |
Resources
- GitHub

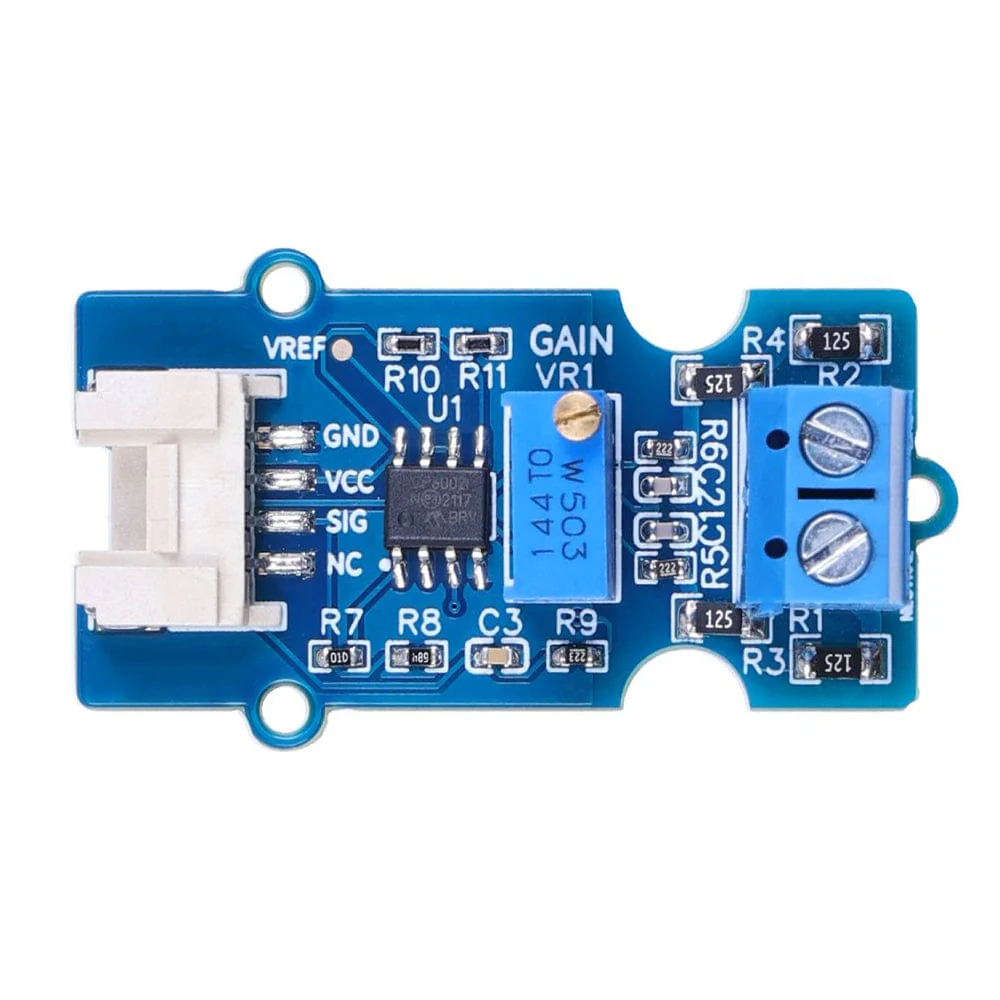

Pinout
Package Contents
- 1x Grove Voltage Sensor
