$12.82The Story

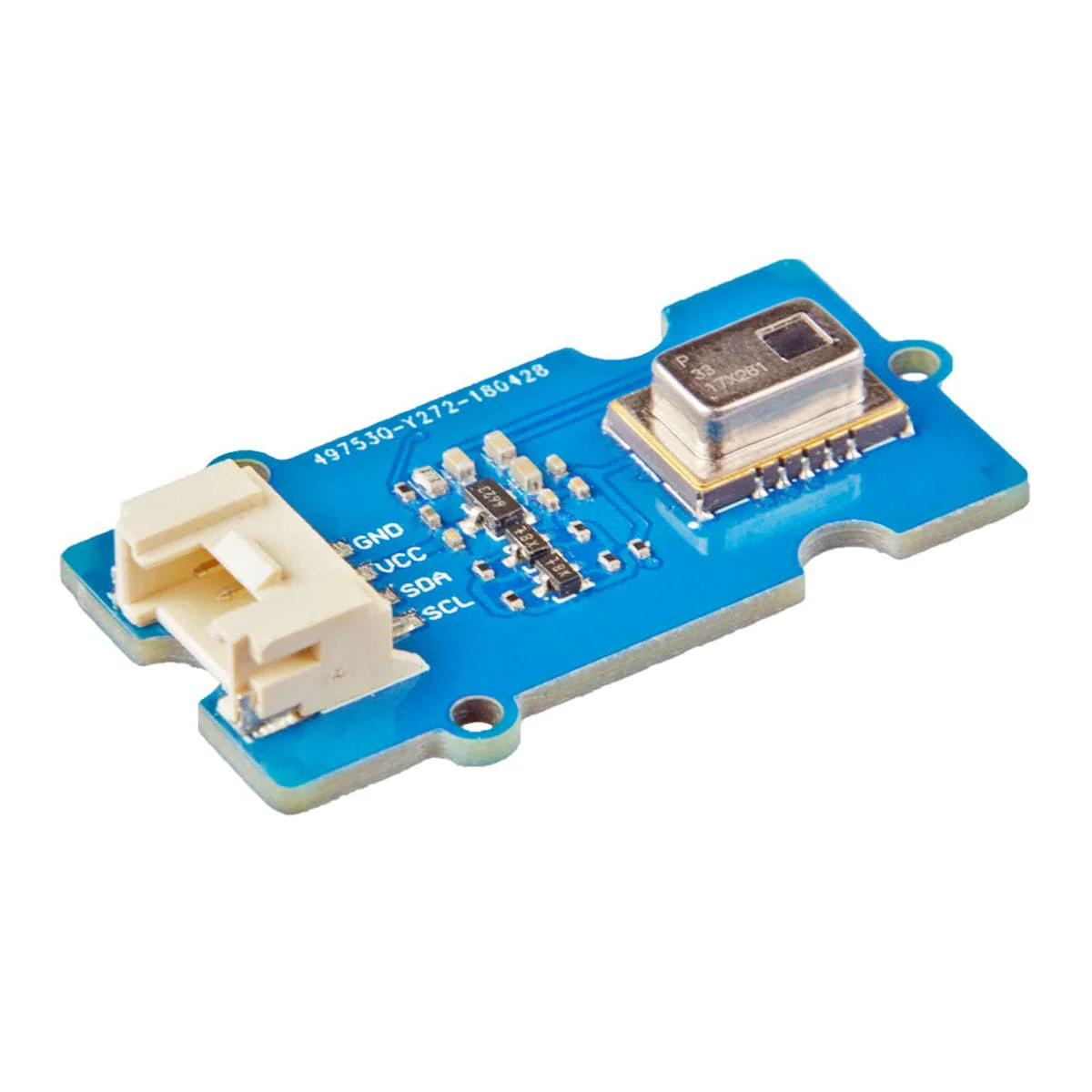

The AMG8833 Infrared Thermal Temperature Sensor Array is a high-precision infrared sensor using advanced MEMS technology. It can measure temperatures between 0°C and 80°C (32°F to 176°F) with an accuracy of ±2.5°C (4.5°F).
The sensor detects temperatures across an 8 x 8 grid (64 pixels) with a maximum detection range of 7 meters. Compatible with Arduino and Raspberry Pi, this module is perfect for building a custom thermal camera or temperature monitoring system.
Features
- Compact and simple: Temperature detection of the two-dimensional area: 8 × 8 (64 pixels)
- Wide temperature range: Temperature range of measuring object: 0 °C to 80 °C +32 °F to +176 °F
- High precision: Accuracy ± 2.5°C (4.5°F)
- Long detection distance: It can detect people from a distance of up to 7 meters (23) feet
- Grove unified socket: The sensor ensures "Plug and Play" and could be versatile for various projects
- Product Number: Seeed 101020557
Specifications

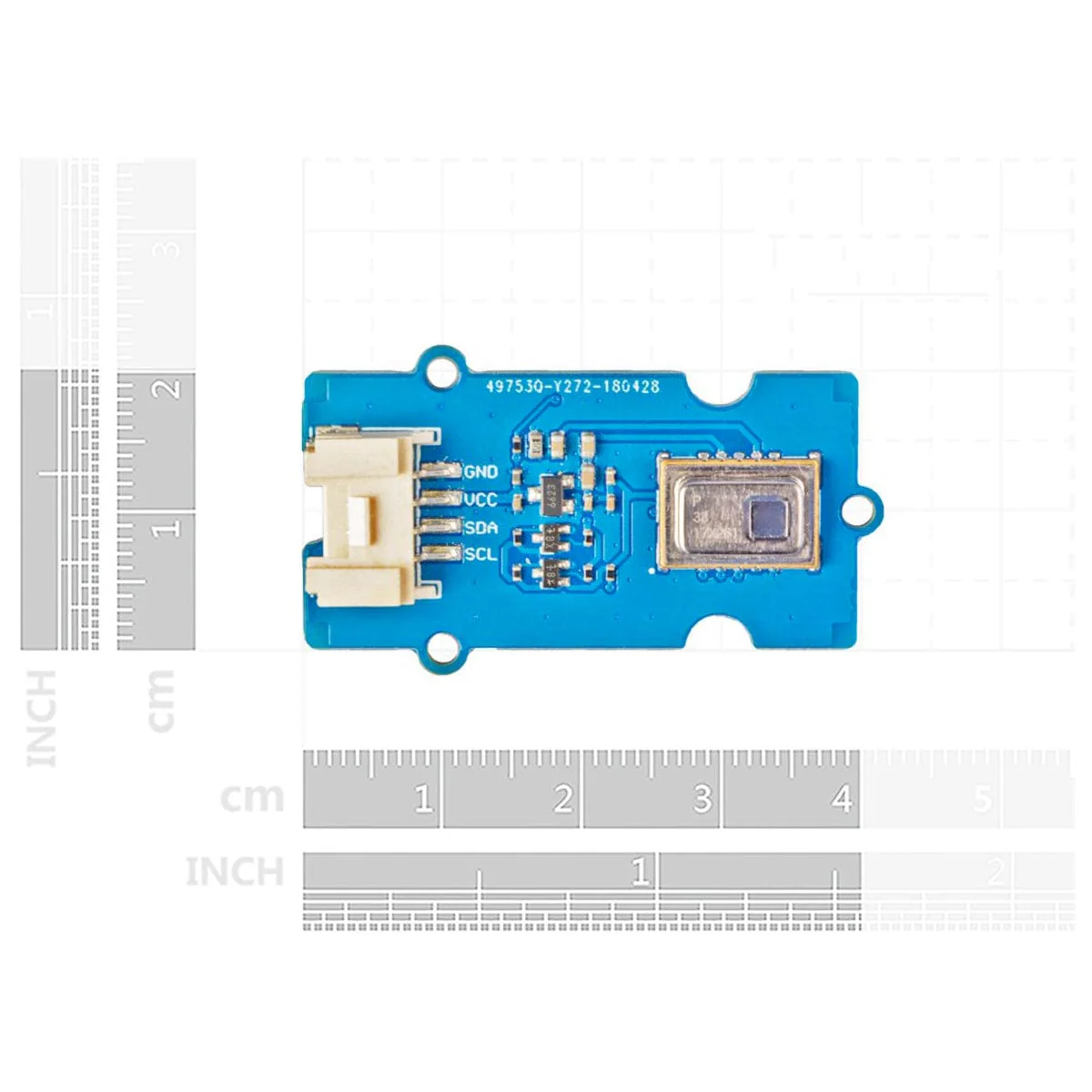

| Dimensions | 40mm x 20mm x 6mm |
| Weight | G.W 10g |
| Battery | Excluded |
| Operating Voltage | 3.3V / 5V |
| Temperature range of measuring object | 0°C to 80°C +32°F to +176°F |
| Operating temperature range | 0°C to 80°C +32 °F to +176°F |
| Storage temperature range | −20°C to 80°C –4°F to +176°F |
| Temperature accuracy | Typical ±2.5 °C ±4.5 °F |
| Viewing angle | Typical 60° |
| Optical axis gap | Within Typical ±5.6° |
| Number of pixels | 64 |
| External interface | I2C |

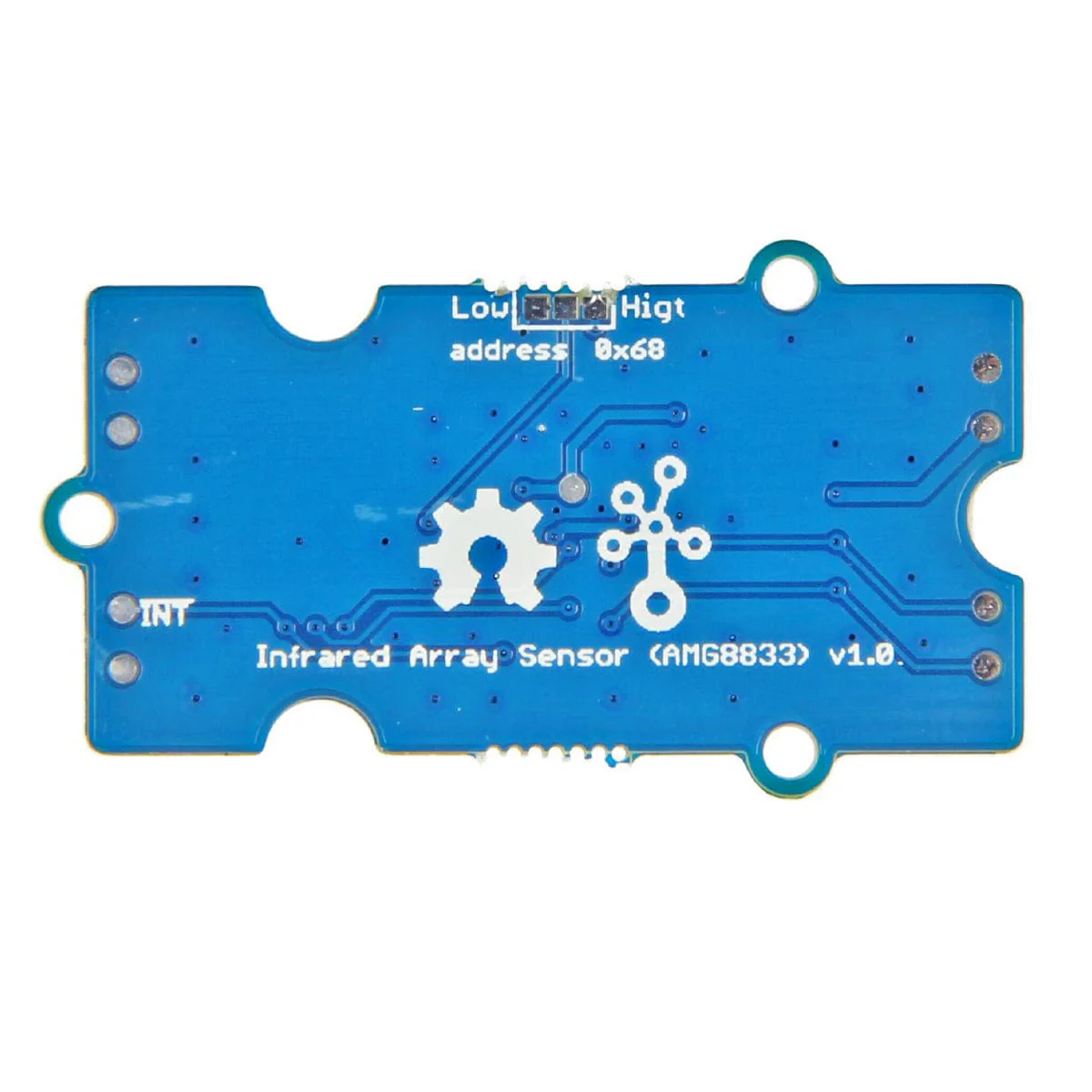

| I2C Address | 0x68 (default) / 0x69 (optional) |
Resources
- Product Wiki
- AMG8833 Arduino library
- AMG8833 Python library

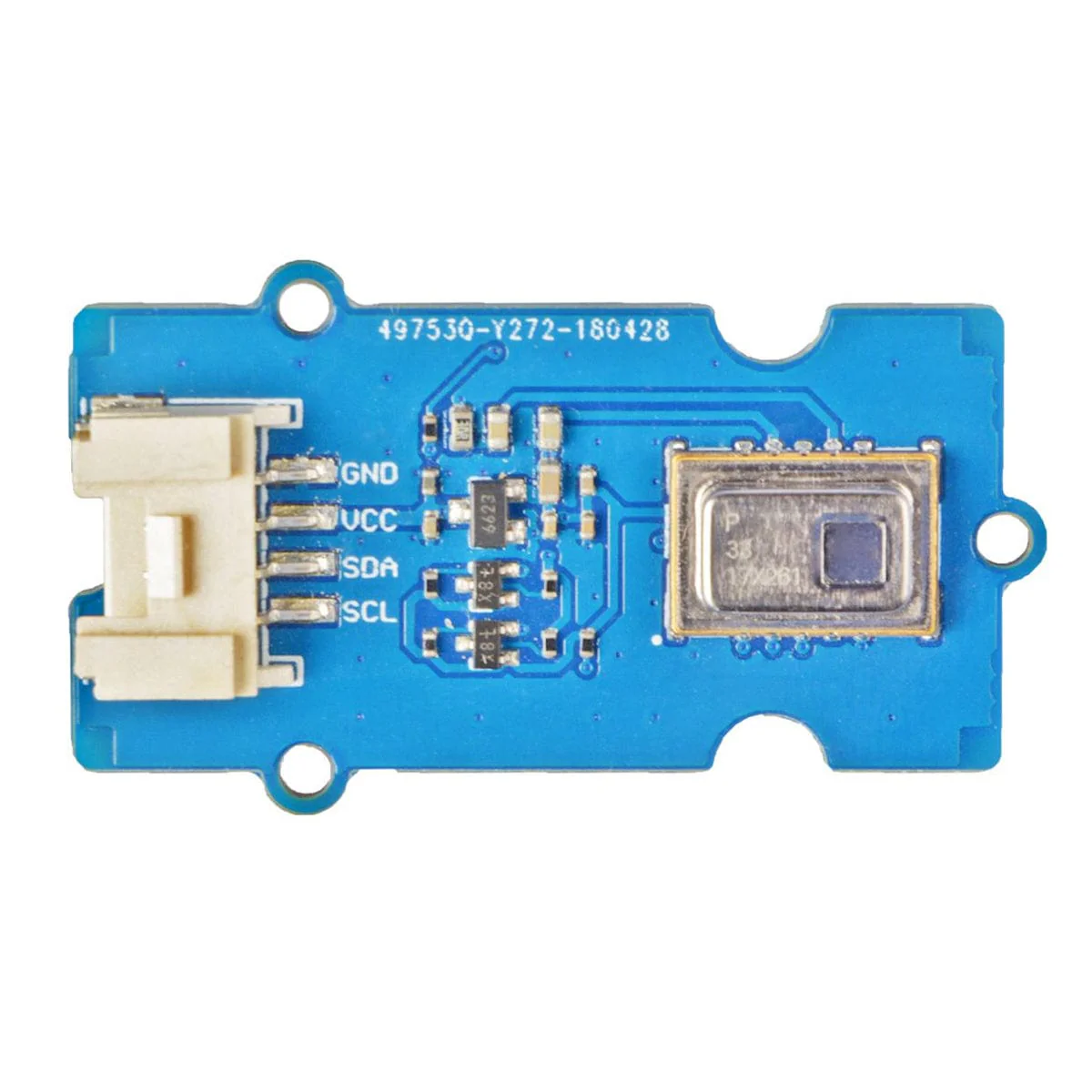

Pinout
Package Contents
- 1x Infrared Temperature Sensor Array (AMG8833)
- 1x Grove Cable
