$2.57The Story

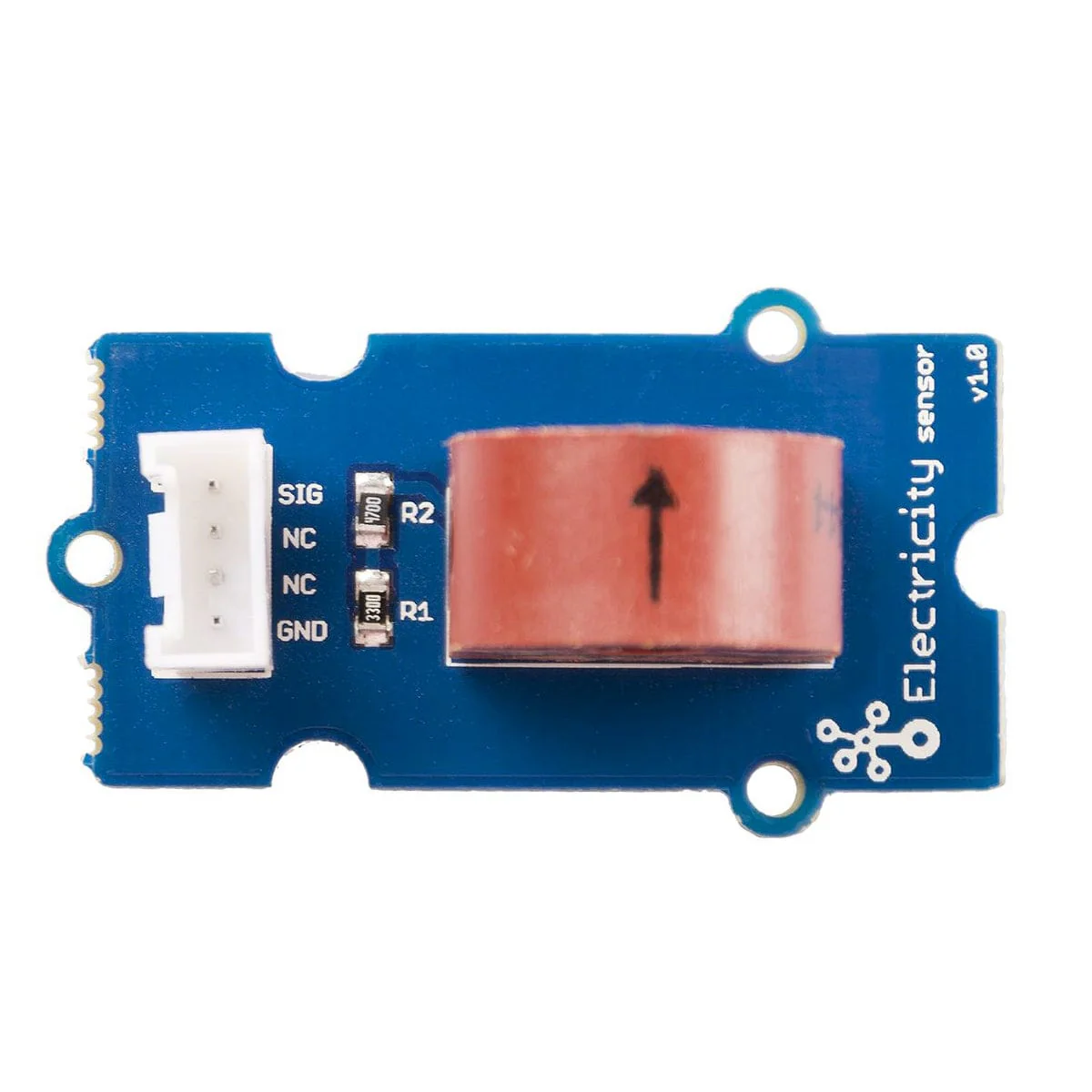

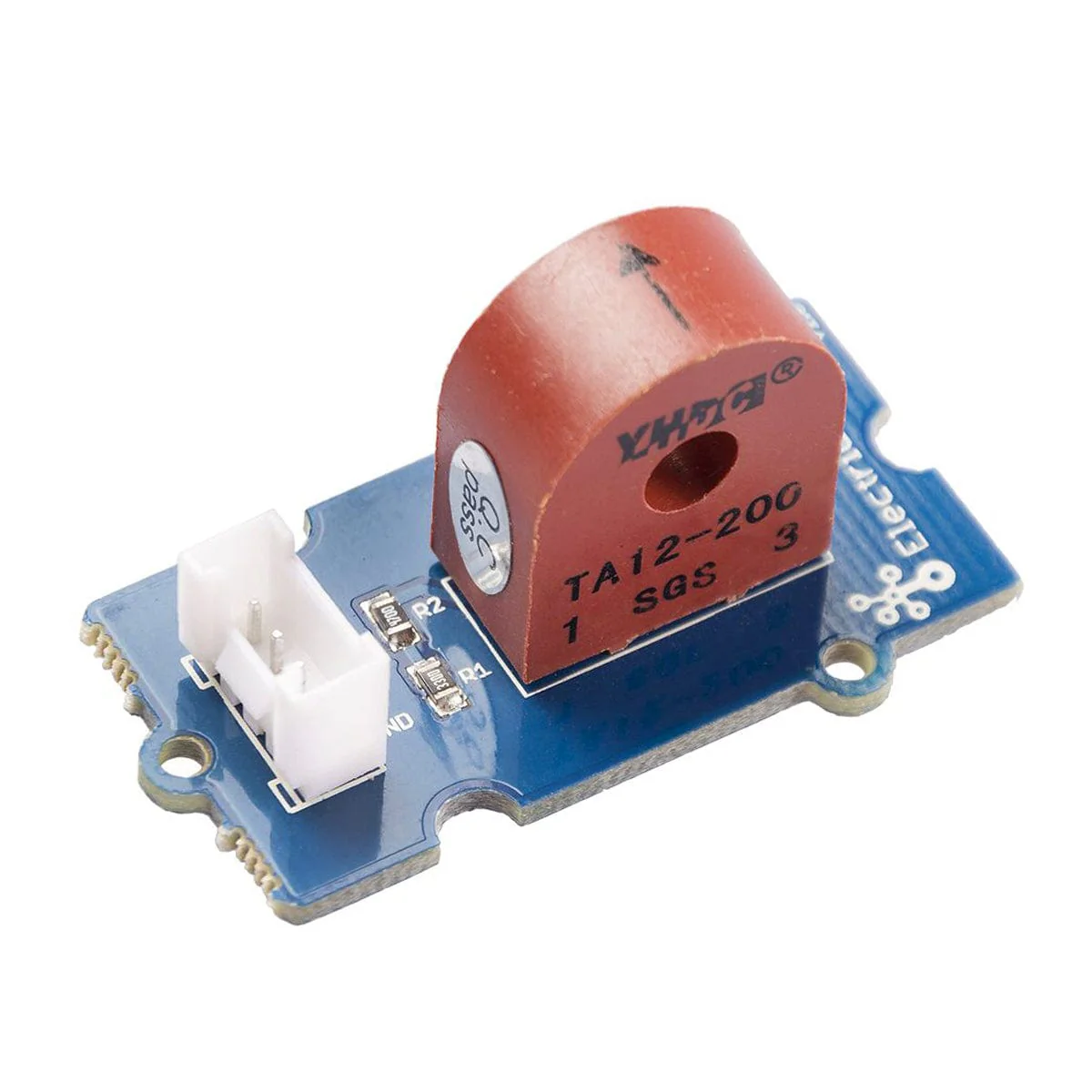

This electricity sensor is built around the TA12-200 current transformer, which converts large alternating currents into smaller, manageable signals.
It's perfect for measuring AC currents of up to 5A, making it very useful for testing and monitoring electrical systems. It is compatible with Arduino (With a Grove - Base Shield) or Raspberry Pi (Only with the Grove-Base HAT)
Features
- Grove Compatible Interface
- Maximum 5A Input
- High Accuracy
- Small Size
- Product Number: Seeed 101020027
Specifications

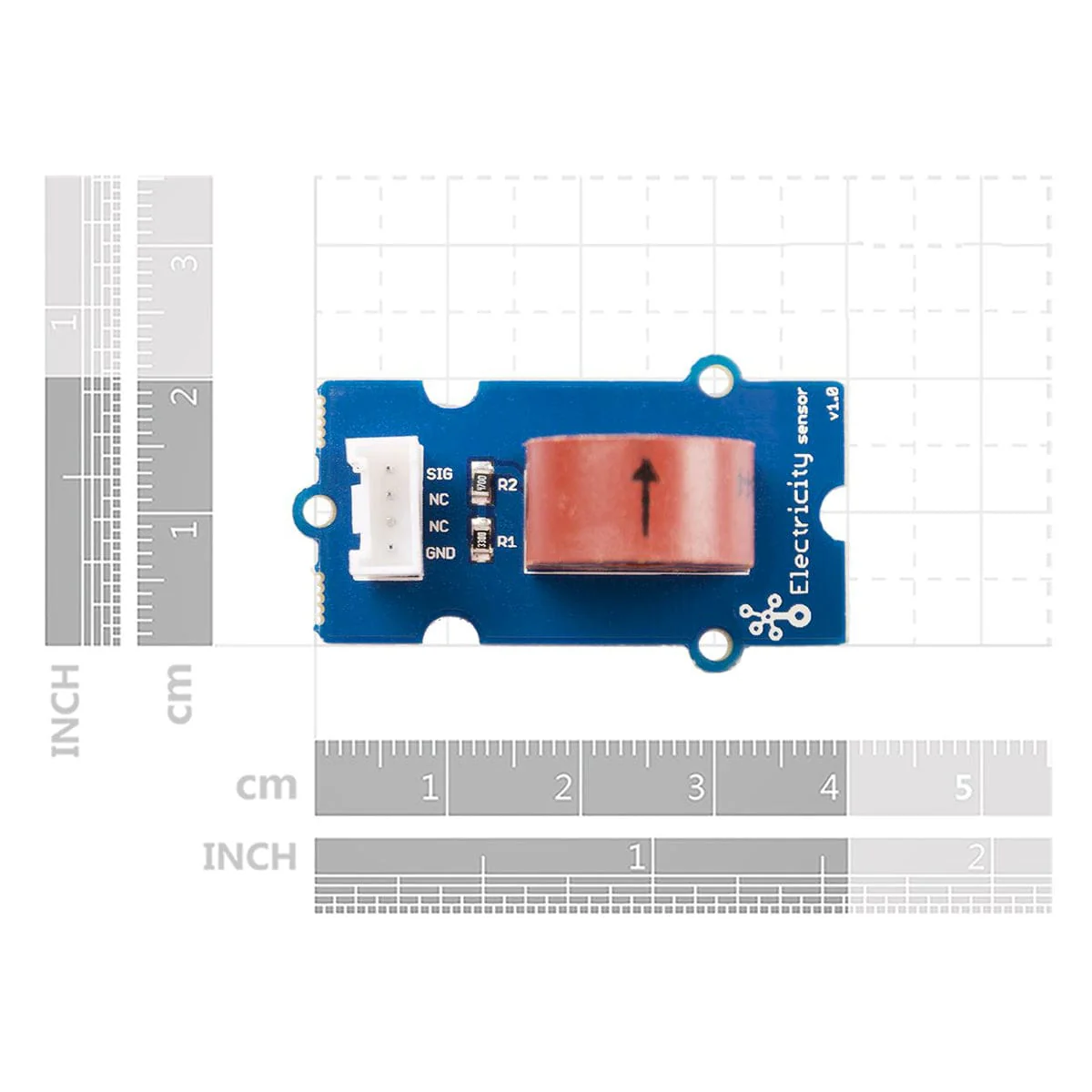

| PCB Size | 2.0cm x 4.0cm |
| Interface | 2.0mm pitch pin header |
| IO Structure | SIG, NC, NC, GND |
| RoHS | Yes |
| Dimensions | 130mm x 90mm x 24mm |
| Weight | 16g |
Resources
- Product Wiki
- Eagle File
- Schematic in PDF
Package Contents
- 1x Grove - Electricity Sensor
- 1x Grove Cable
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This electricity sensor is built around the TA12-200 current transformer, which converts large alternating currents into smaller, manageable signals.
It's perfect for measuring AC currents of up to 5A, making it very useful for testing and monitoring electrical systems. It is compatible with Arduino (With a Grove - Base Shield) or Raspberry Pi (Only with the Grove-Base HAT)
Features
- Grove Compatible Interface
- Maximum 5A Input
- High Accuracy
- Small Size
- Product Number: Seeed 101020027
Specifications
| PCB Size | 2.0cm x 4.0cm |
| Interface | 2.0mm pitch pin header |
| IO Structure | SIG, NC, NC, GND |
| RoHS | Yes |
| Dimensions | 130mm x 90mm x 24mm |
| Weight | 16g |
Resources
- Product Wiki
- Eagle File
- Schematic in PDF
Package Contents
- 1x Grove - Electricity Sensor
- 1x Grove Cable
