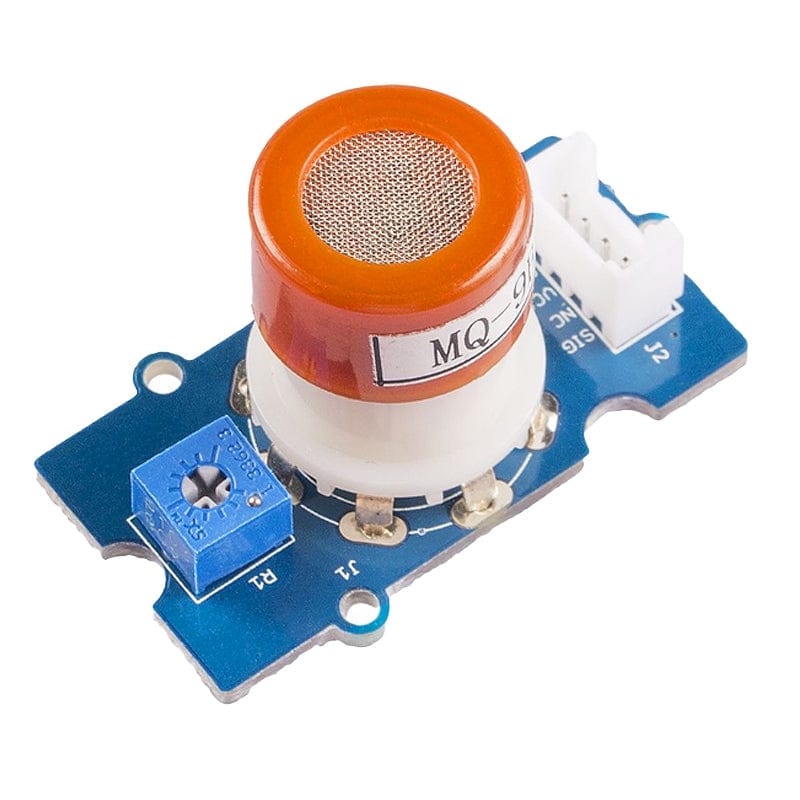

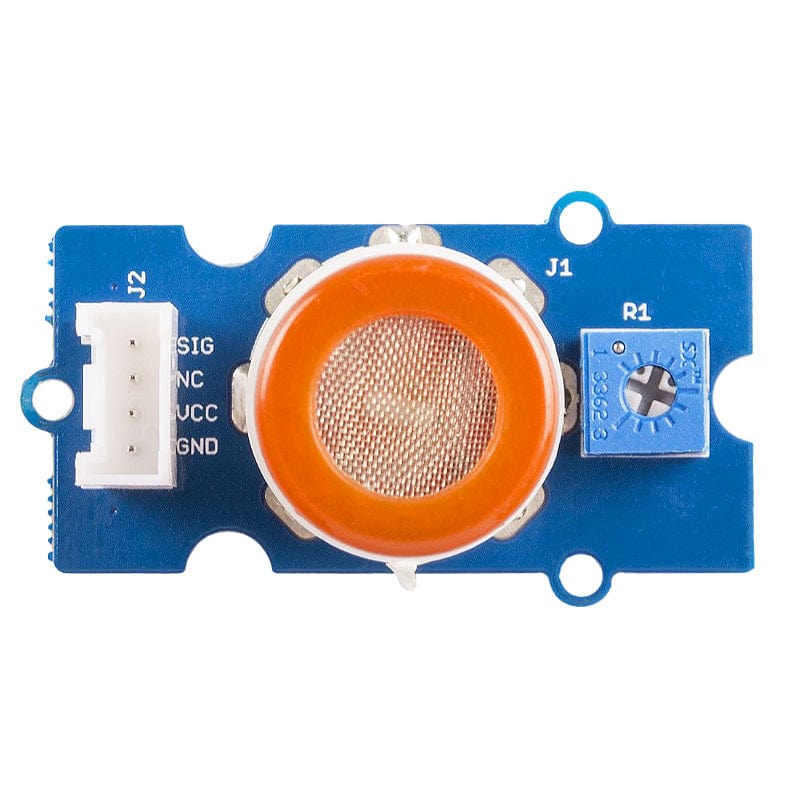

Grove - Gas Sensor (MQ9) [Discontinued]

The Grove - Gas Sensor module is useful for gas leakage detecting (in home and industry). It can detect LPG, i-butane, methane, alcohol, Hydrogen, some and so on. Measurements can be taken as soon as possible based on its fast response time. Also the sensitivity can be adjusted by the potentiometer.

Each Grove - Gas Sensor Kit consists of one gas sensor base and four detectors, including MQ2, MQ3, MQ5 and MQ9. Below is a contrast table of them. You can switch the detector on the base according to specific target gases.

Symbol	MQ-2	MQ-3	MQ-5	MQ-9
Detect Gas	Combustible Gas?Smoke	Alcohol Vapor	LPG, Natural Gas, Town Gas	Carbon Monoxide, Coal Gas, Liquefied Gas
Detect Concentration	300-10000ppm	0.04-4mg/L Alcohol	300-10000ppm	10-1000ppmCO;100-10000PPm Gas



Features

• High sensitivity to Combustible gas in wide range
• Stable performance, long life, low cost
• Fast response
• Wide detection range
• Simple drive circuit
• Product number: Seeed 101020045

Resources

• Manual
• Product Wiki
• Preface - Getting Started
• Introduction to Grove

Notes

• Hot-swapping the grove may lead to IC burnout, please turn off the power of main board before swapping grove.
