Grove - Gesture Sensor (PAJ7620U2)
HomeStore

Grove - Gesture Sensor (PAJ7620U2)

Grove - Gesture Sensor (PAJ7620U2)

$4.29

Original: $14.30

-70%
Grove - Gesture Sensor (PAJ7620U2)—

$14.30

$4.29

The Story

The Grove Gesture is based on the PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including moving up, moving down, moving left, moving right and more, with a simple swipe of your hand.

We can use the gesture to adjust the sound volume, control a robot, direct an application and more. We can also make a remote-control unit, which is able to operate many devices at the same time using gestures

Features

  • 9 gestures recognition
  • Built-in proximity detection
  • Grove compatible
  • Product number: Seeed 101020083

    Specifications

    • Interface: IIC
    • 9 gesture recognition
    • Operating voltage: 5V
    • Dimensions: 20x20mm
    • Sensor: PAJ7620U2
    • Detecting range: 5-10cm
    • Ambient light immunity: < 100k Lux

    Resources

    • Product Wiki

    Package Contents

    • 1x Grove Gesture Sensor
    • 1x Grove Cable

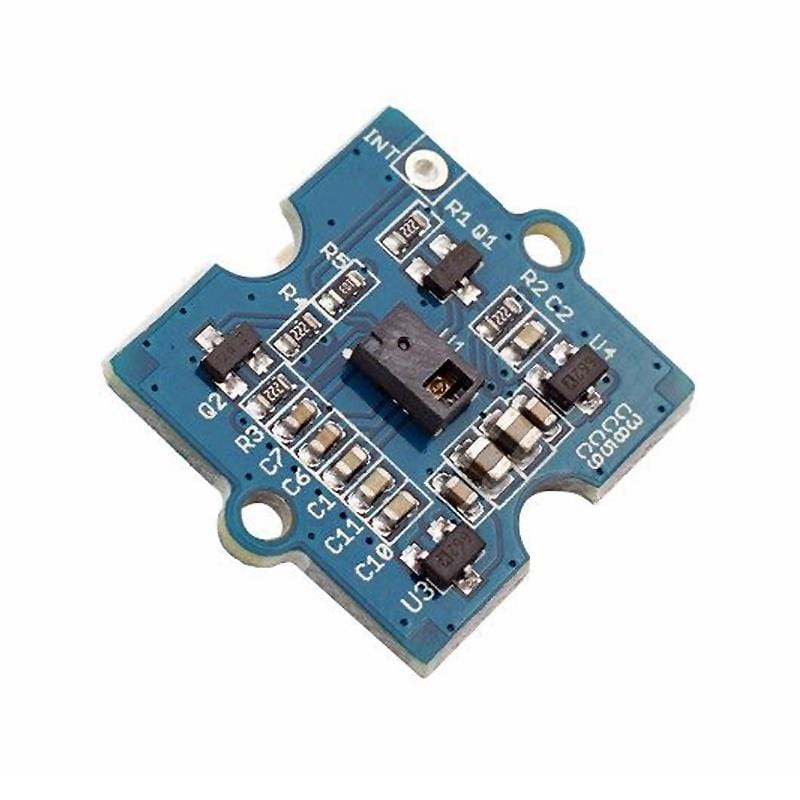

    Grove - Gesture Sensor (PAJ7620U2) - Image 2

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

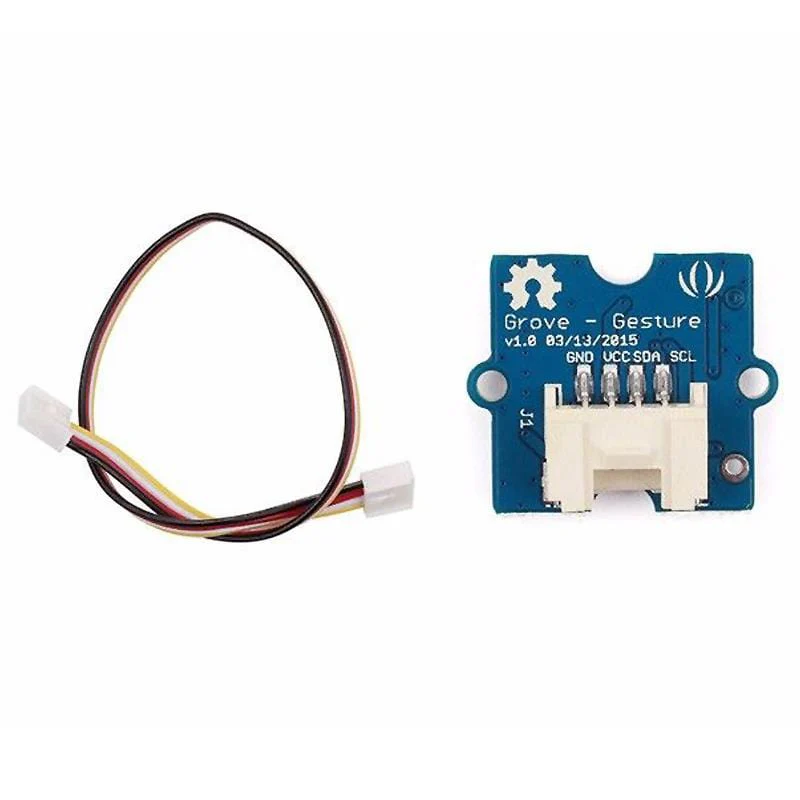

    Grove - Gesture Sensor (PAJ7620U2) - Image 3

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

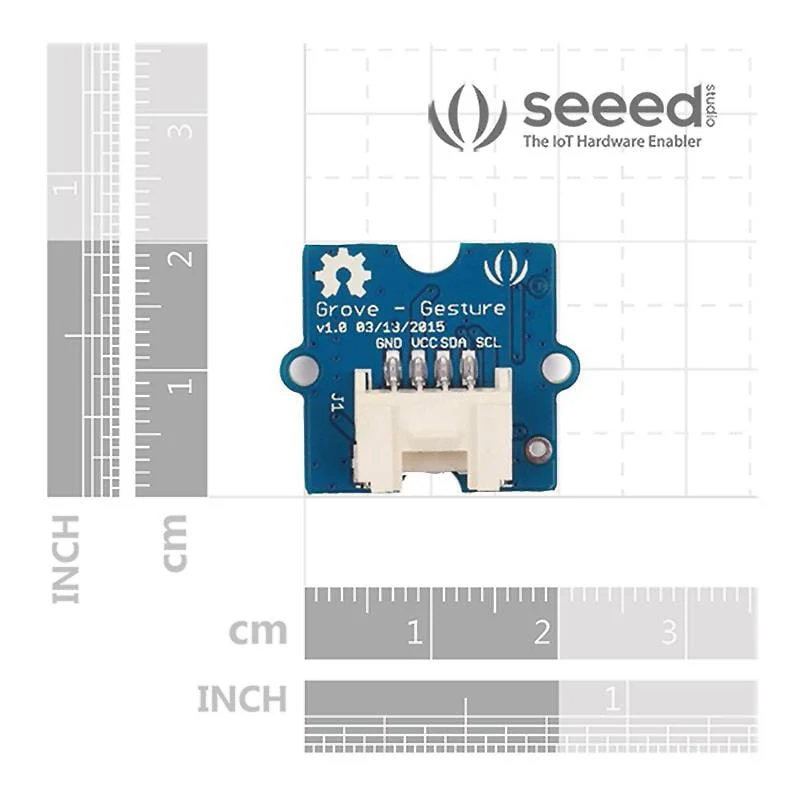

    Grove - Gesture Sensor (PAJ7620U2) - Image 4

    Details & Craftsmanship

    Every detail has been carefully considered to bring you the perfect product.

    Description

    The Grove Gesture is based on the PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 gestures including moving up, moving down, moving left, moving right and more, with a simple swipe of your hand.

    We can use the gesture to adjust the sound volume, control a robot, direct an application and more. We can also make a remote-control unit, which is able to operate many devices at the same time using gestures

    Features

    • 9 gestures recognition
    • Built-in proximity detection
    • Grove compatible
    • Product number: Seeed 101020083

      Specifications

      • Interface: IIC
      • 9 gesture recognition
      • Operating voltage: 5V
      • Dimensions: 20x20mm
      • Sensor: PAJ7620U2
      • Detecting range: 5-10cm
      • Ambient light immunity: < 100k Lux

      Resources

      • Product Wiki

      Package Contents

      • 1x Grove Gesture Sensor
      • 1x Grove Cable
