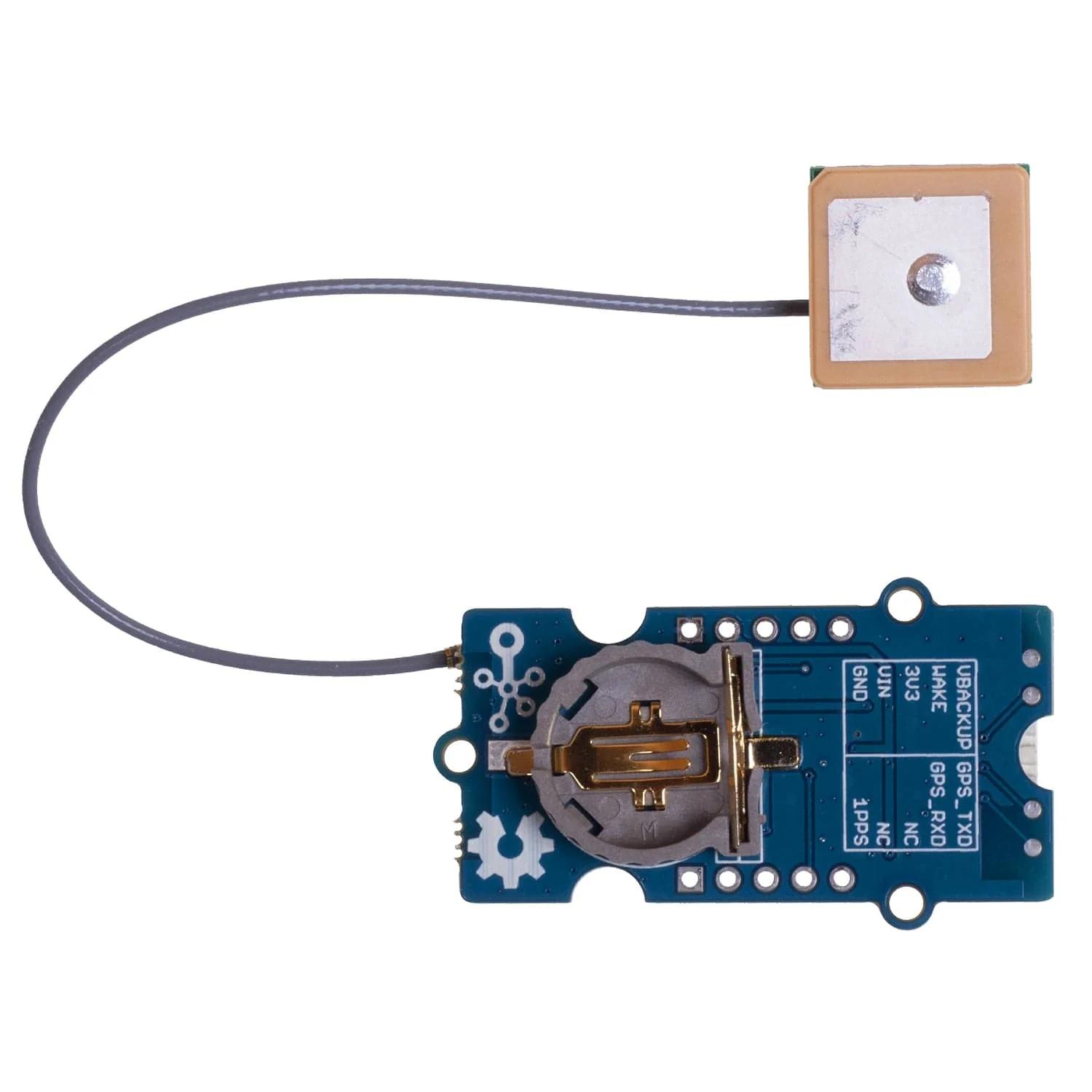

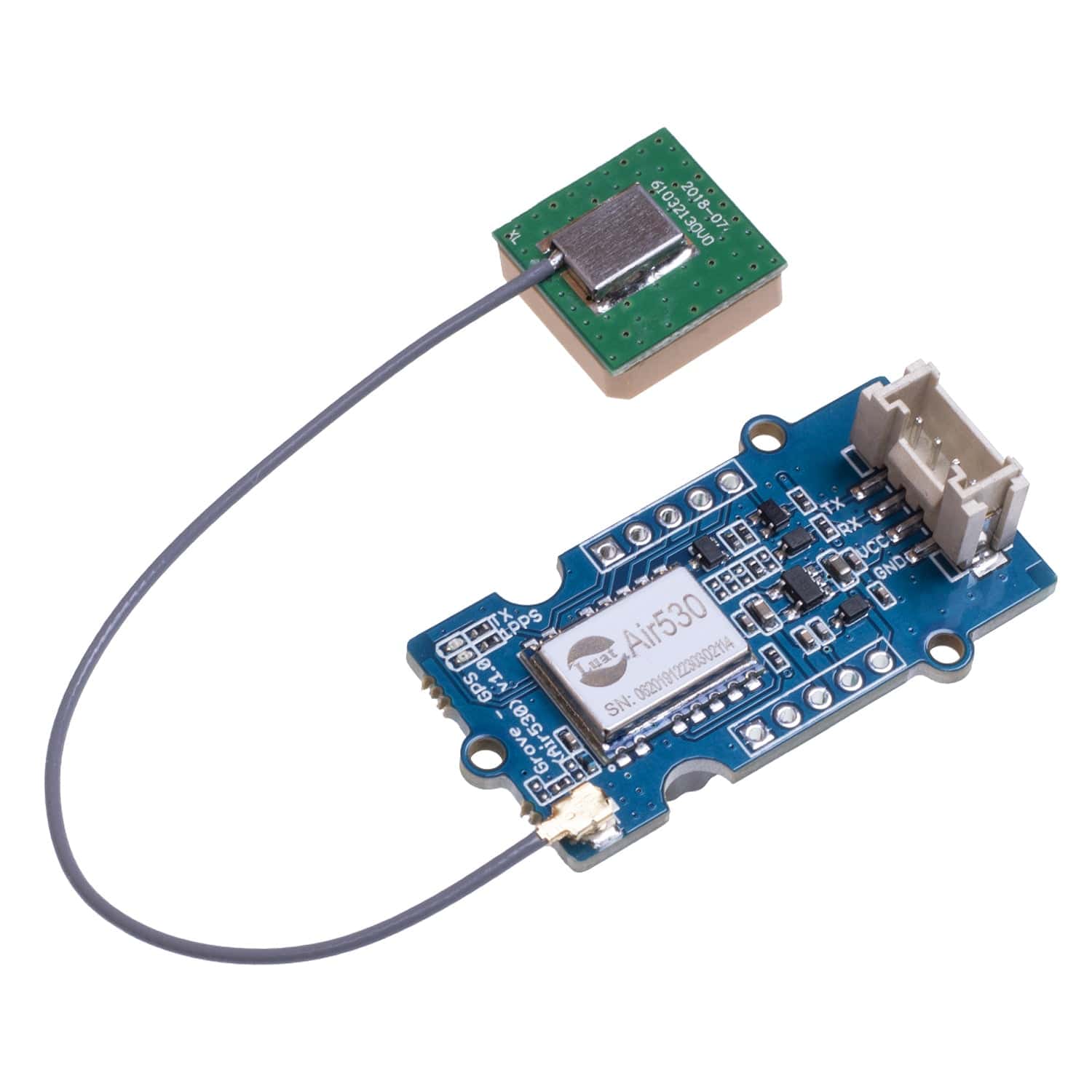

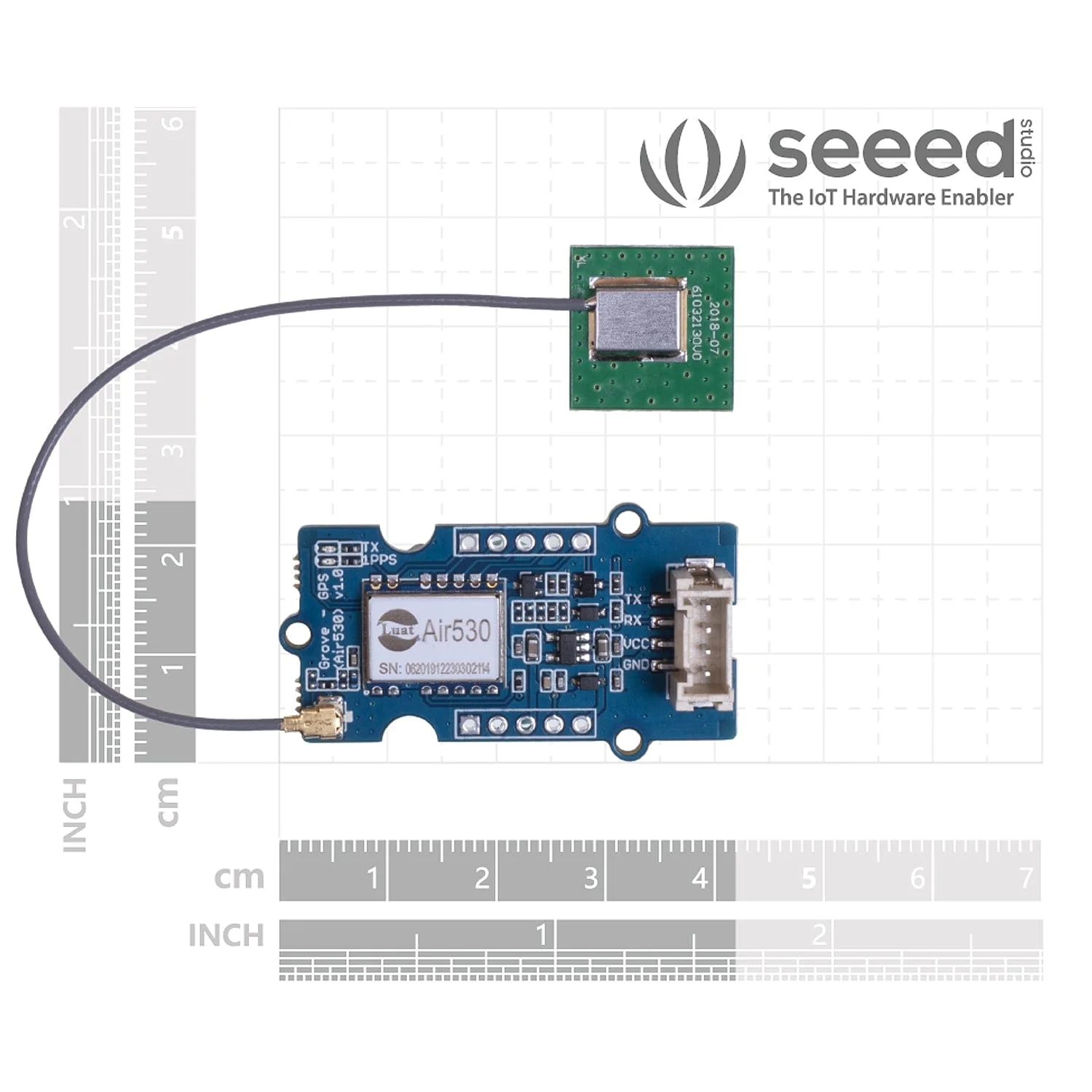

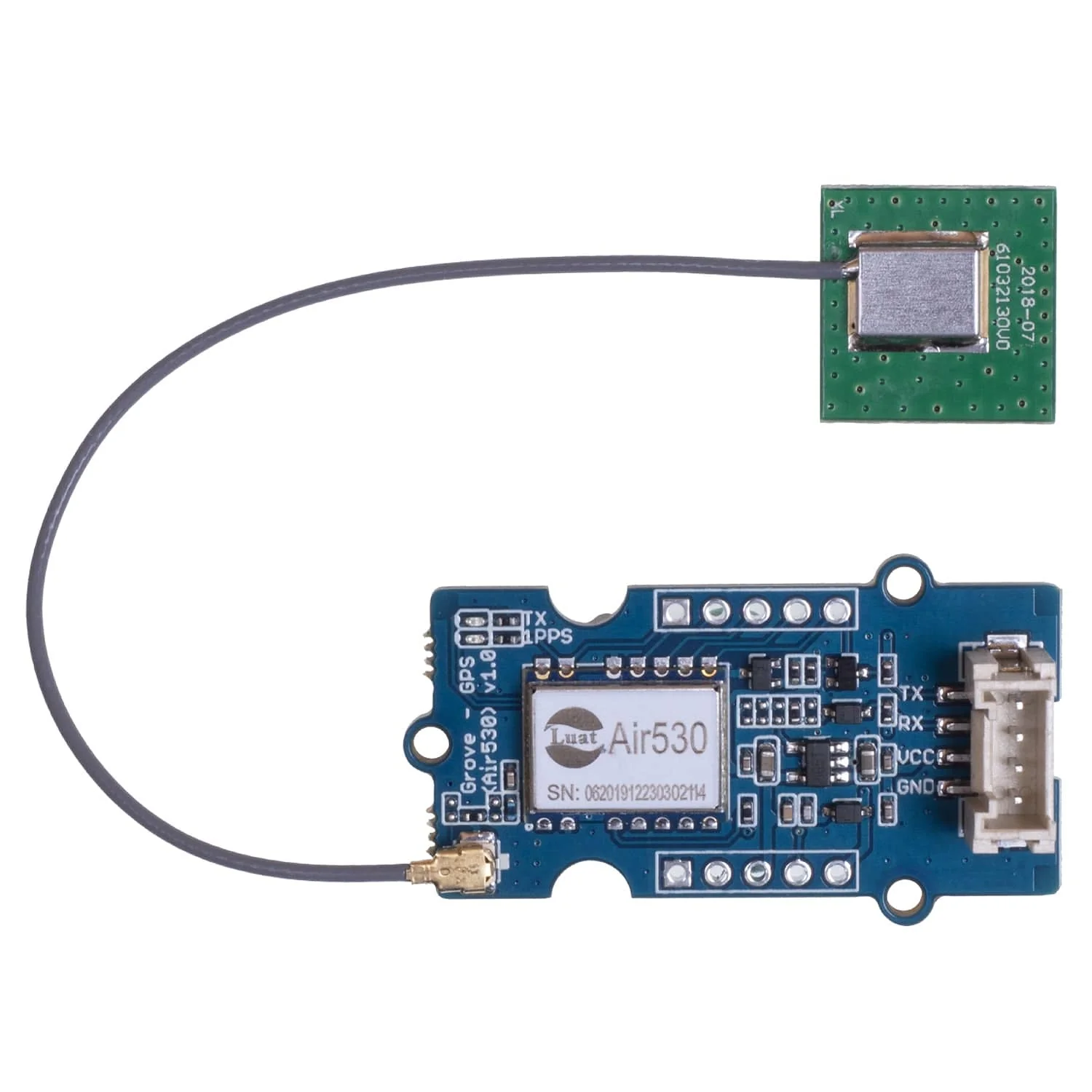

Grove - GPS (Air530)

Are you confused about your GPS not working well in urban areas? Then you should not miss our new Air530 GPS! It’s a high-performance, multi-mode satellite positioning and navigation module to use with Arduino. It supports GPS / Beidou / Glonass / Galileo / QZSS and SBAS, which makes it suitable for GNSS positioning applications, such as car navigation, smart wear, and drones. This module is capable of receiving more than 6 satellites at the same time, and is able to work with a bad signal.

Features

• High precision Positioning: Positioning error within 10 meters, and will still be accurate with a bad signal
• The Integrated Design of RF Baseband: Adopt the integrated design of RF baseband, which integrates DC/DC, LDO, LNA, RF front-end, baseband processing, 32-bit RISC based chip, RAM, FLASH storage, RTC, and power management functions
• Low Power Consumption: Low power consumption at only 31uA
• High Compatibility: Compatible hard/soft interface for other modules
• Product number: Seeed 109020022

Specifications

Parameters		Values
Supply voltage		3.3V/5V
Working current		up to 60mA
Interface		UART
Time of warm start		4s
Time of cold boot		30s
Working Temperature		-35C-85°C
Storage Temperature		-55°C-100°C
Humidity		5%-95%
Time of Positioning	Pure hardware cold start	27.5s
	Pure hardware hot start	<1S
	Pure hardware recapture	<1S
	Software-assisted A-GNSS	<5S
Sensitivity	Cold start	-148dBm
	Hot Start	-162dBm
	Recapture	-164dBm
	Track	-166dBm
Accuracy	Horizontal positioning accuracy	2.5m
	High positioning accuracy	3.5m
	Speed accuracy	0.1m/s
	Time transfer accuracy	30ns
Consumption	Capture current [email protected]	42.6mA
	Tracking current [email protected]	36.7mA
	Low power [email protected]	0.85mA
	Ultra-low-power [email protected]	31uA

Resources

• Product Wiki

Pinout

Package Contents

• 1x GPS (Air 530) board
• 1x Grove cable
