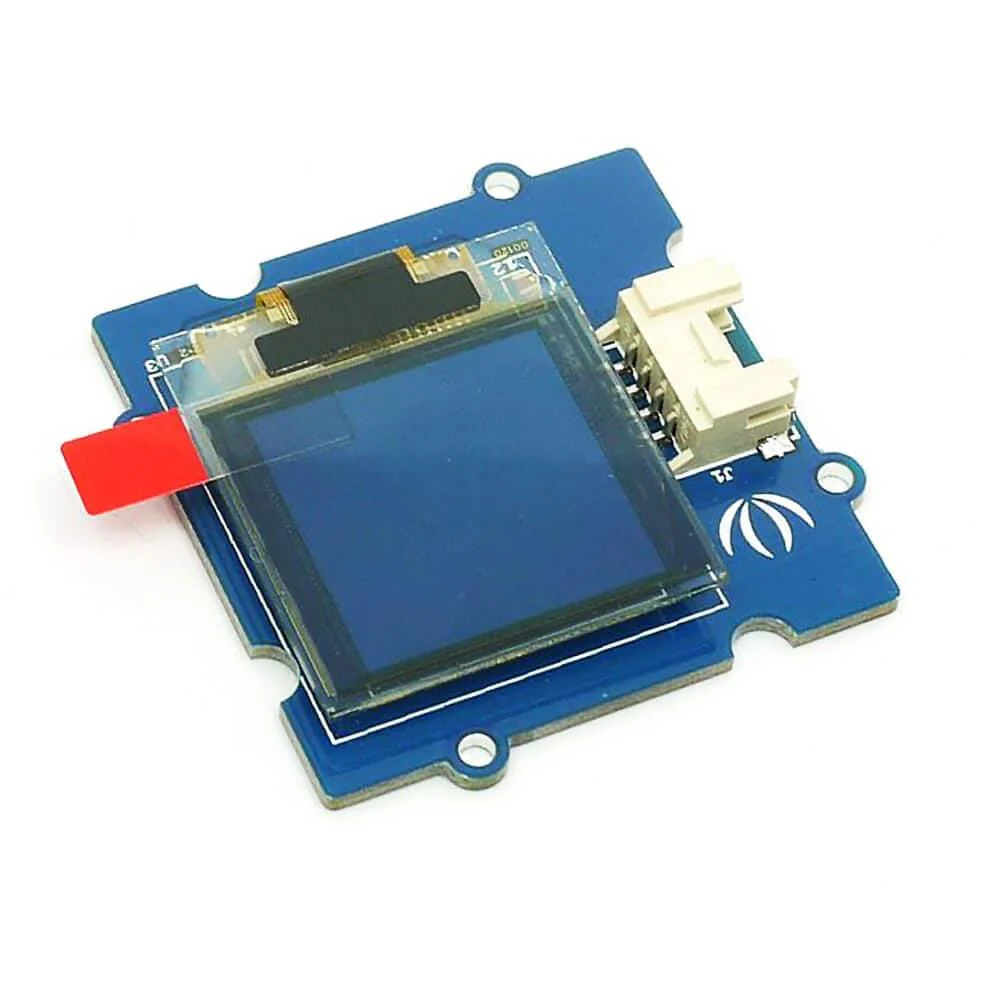

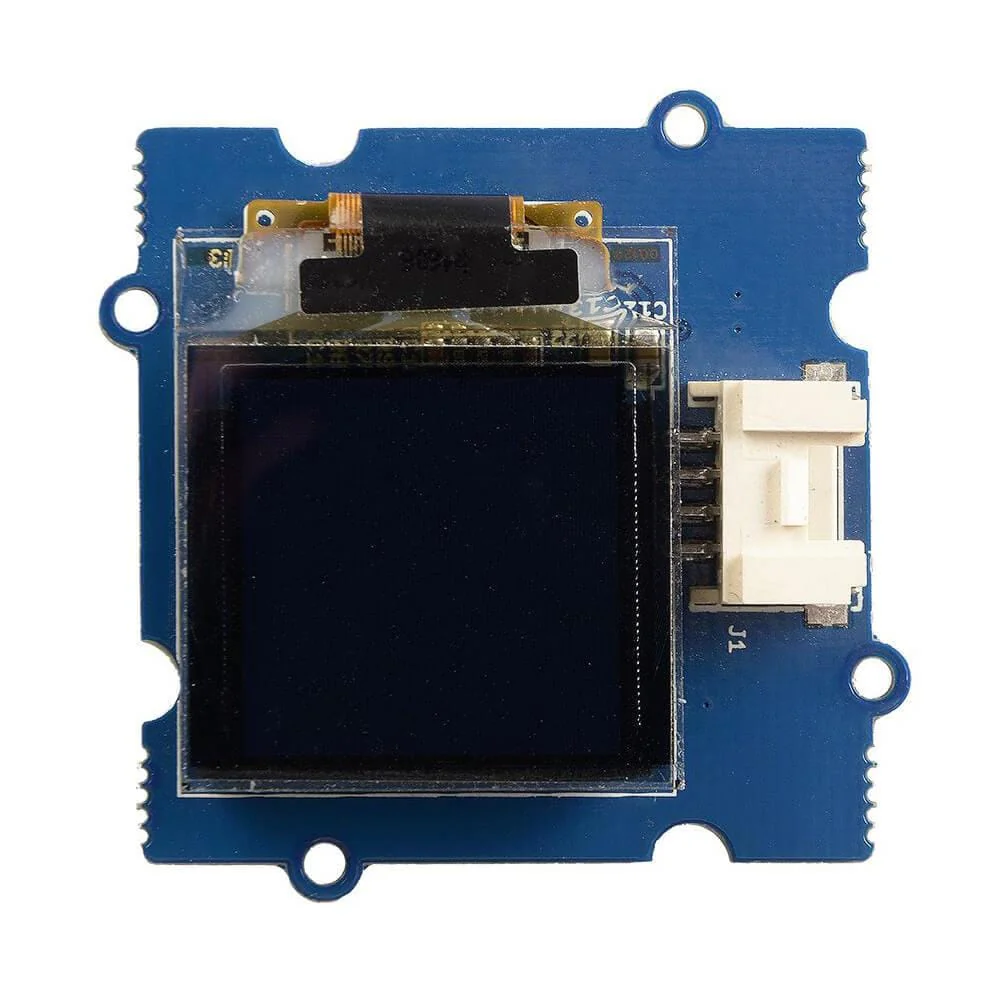

Grove - OLED Display 1.12" [Discontinued]

The Grove OLED 1.12'' is a 16-colour grayscale 96×96 dot-matrix OLED display module with a Grove compatible 4-pin I2C interface.

The display is constructed with a 96 x 96 dot-matrix OLED module (LY120) and SSD1327 driver IC. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

Features

• Dot Matrix: 96 x 96 Pixels
• Colour: Grayscale Display (16 Gray shades)
• Supports both Normal and Inverse Color Display
• Supports Continuous Horizontal Scrolling

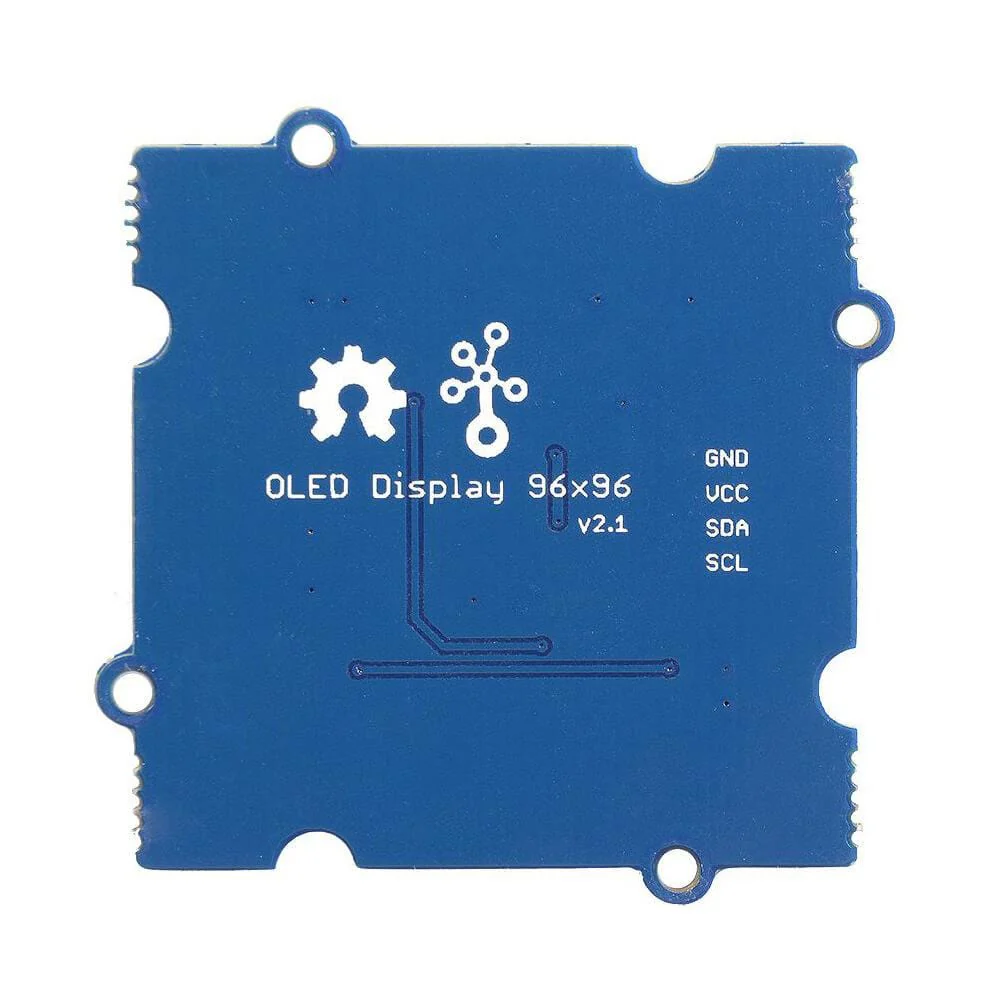

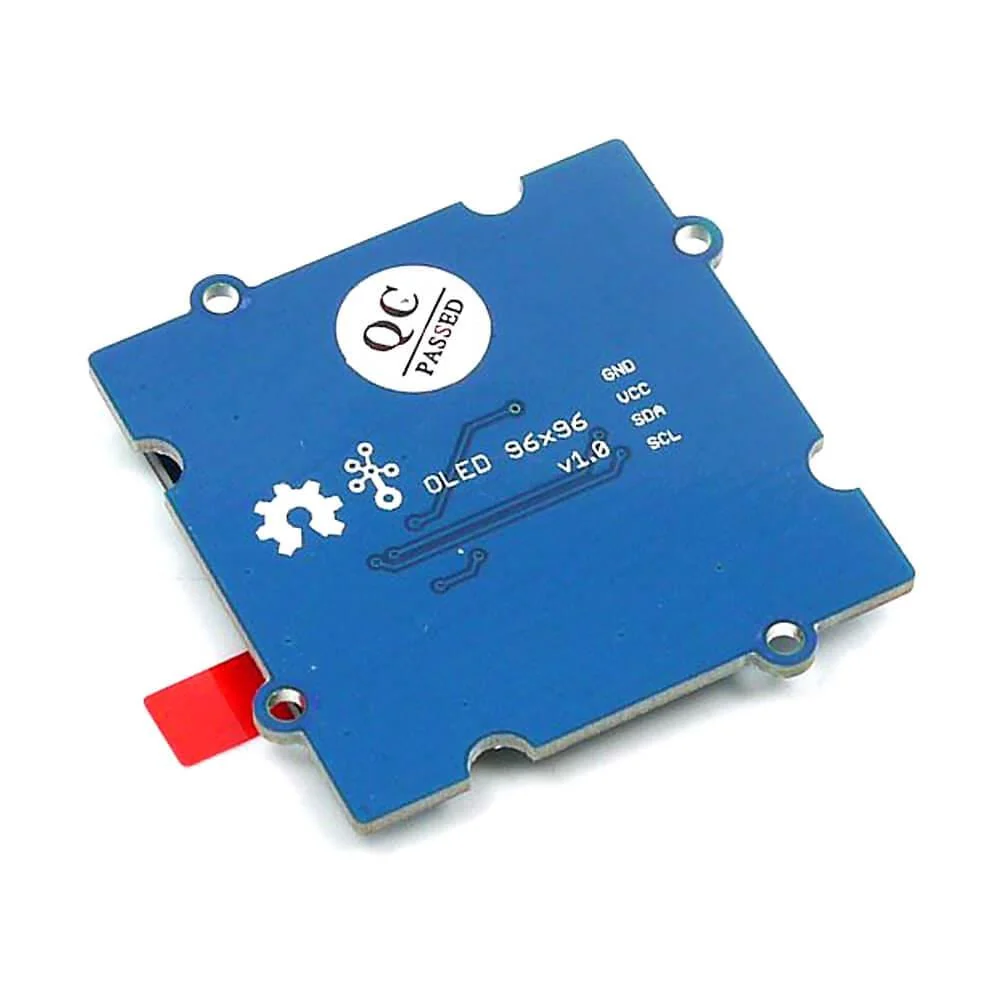

• Grove compatible 4-pin I2C connector
• Works with both 5V and 3.3V logic MCUs
• Interface: I2C
• Wide operating temperature: -40 °C ~ 70 °C
• Weight: 16.5g

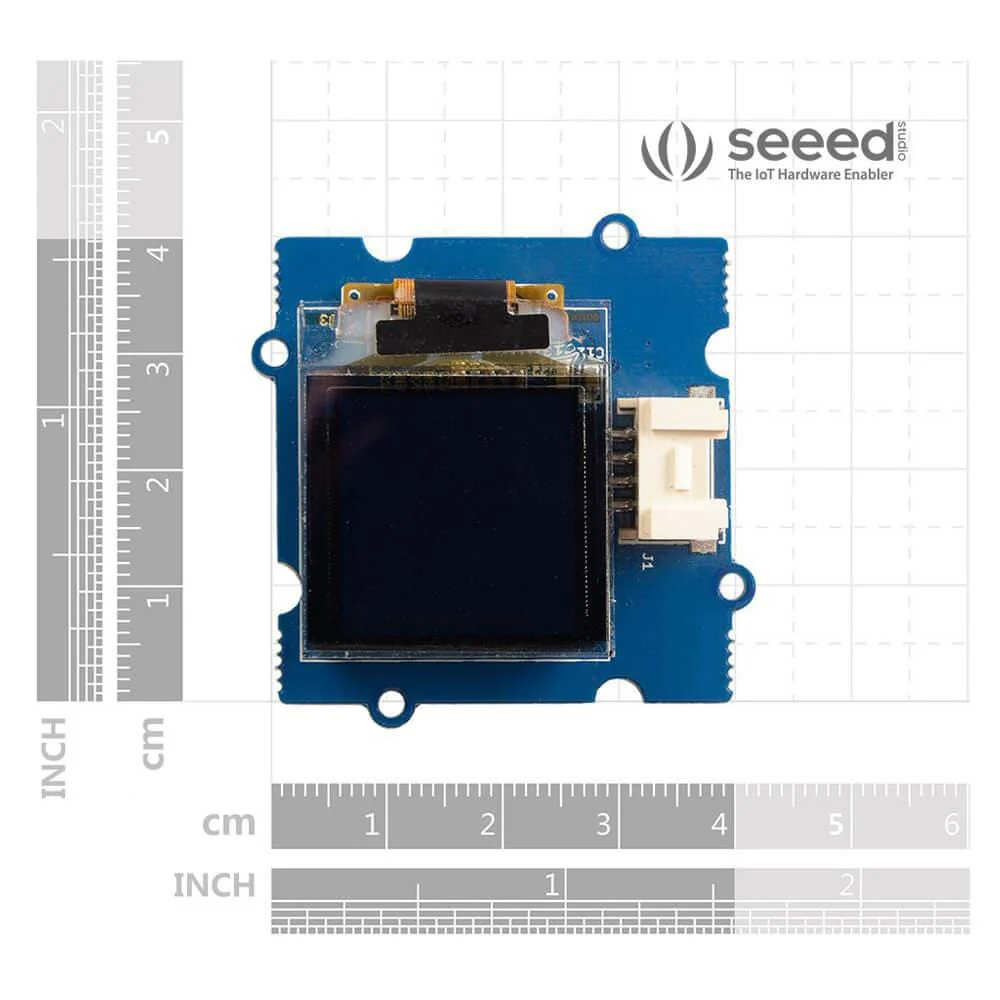

• Dimensions: 40mm x 40mm x 10mm

Package Contents

• 1x Grove OLED Display 1.12"

Resources

• Product Wiki
