Hall sensors are used to detect and measure magnetic fields - the output signal level is proportional to the magnetic field intensity.

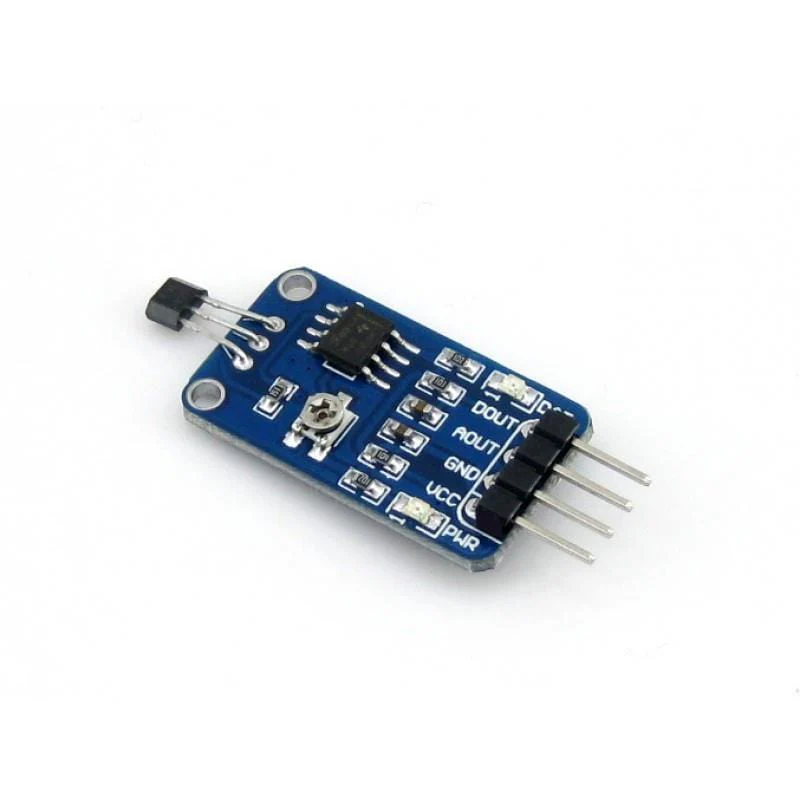

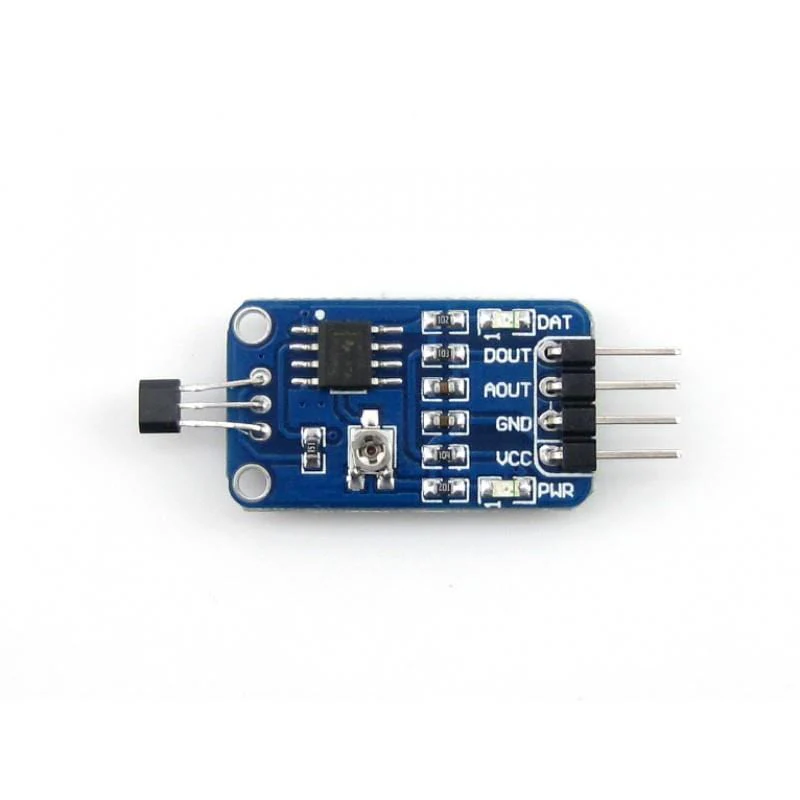

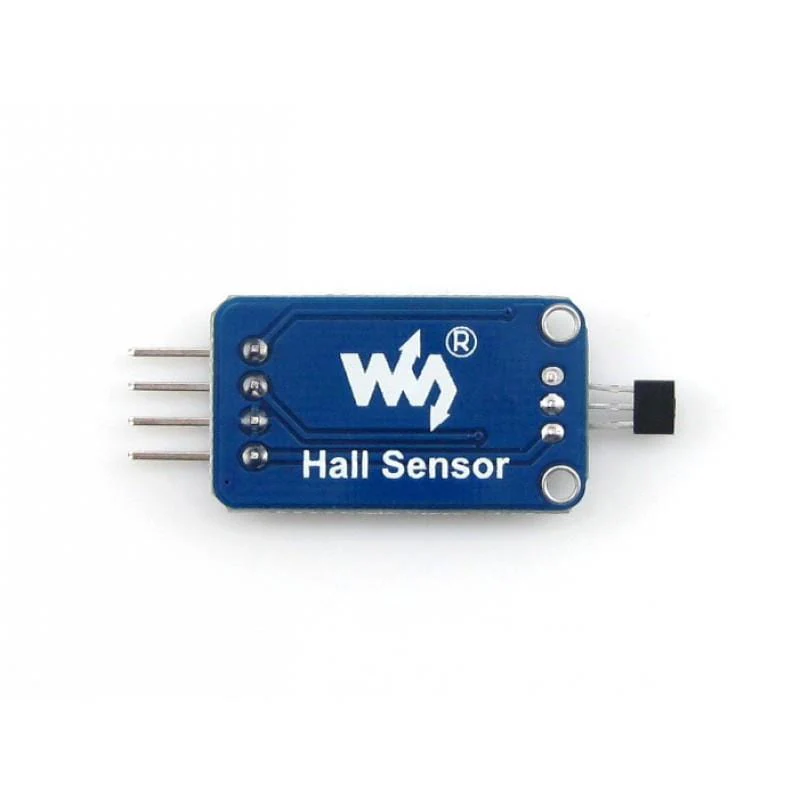

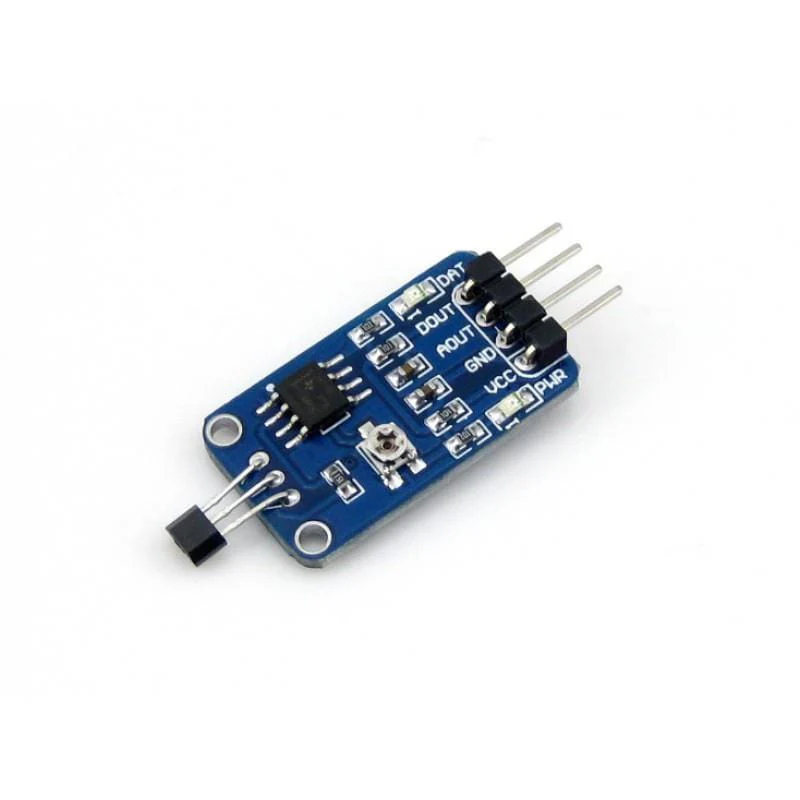

This Hall Sensor from Waveshare uses an LM393 wide-range voltage comparator and features adjustable sensitivity and a signal output indicator LED.
Comes with a 4-pin jumper cable for connecting to your development board.
Features
- 49E hall sensor
- Features a wide-range voltage comparator (LM393)
- Adjustable sensitivity
- Signal output indicator
- Male pins pre-soldered
Resources
- Product Wiki
How to Use
In the case of working with an MCU:
- VCC ↔ 2.3V ~ 5.3V
- GND ↔ power supply ground
- AOUT ↔ MCU.IO (analog output)
- DOUT ↔ MCU.IO (digital output)
Package Contents
- 1x Hall Sensor Module
- 1x 4-pin cable
Specifications
- Power: 2.3V ~ 5.3V
- Dimensions: 27.0mm * 15.5mm
- Mounting holes size: 2.0mm (M2)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
