$34.27The Story

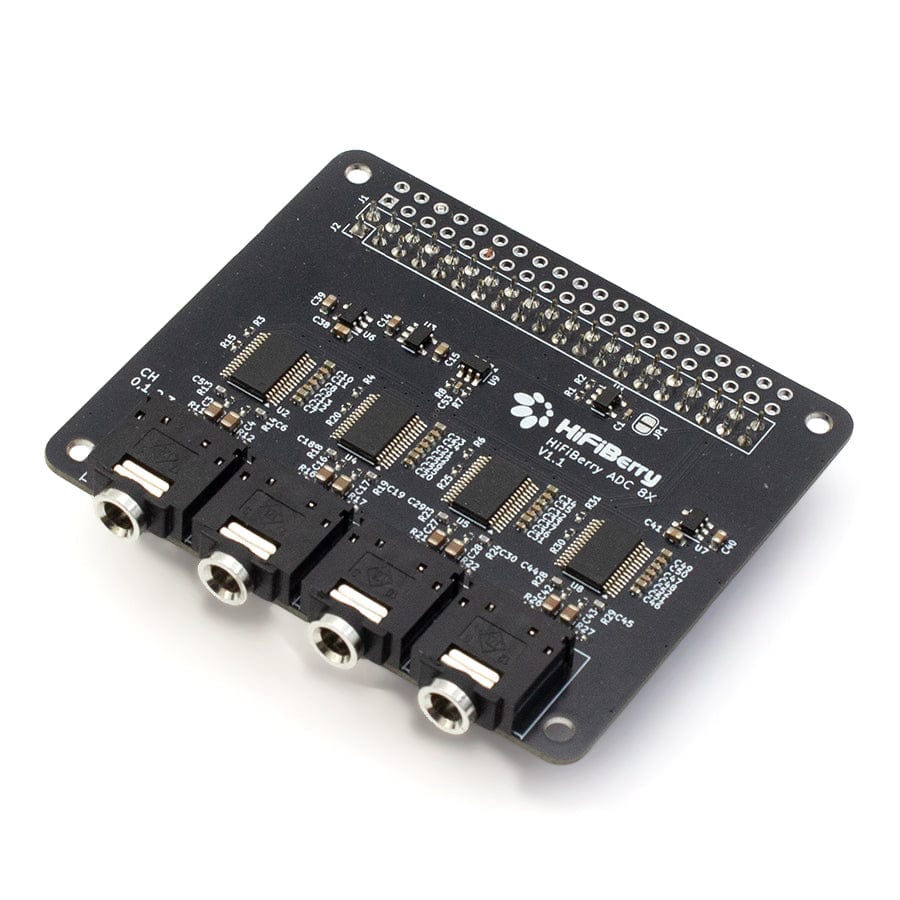

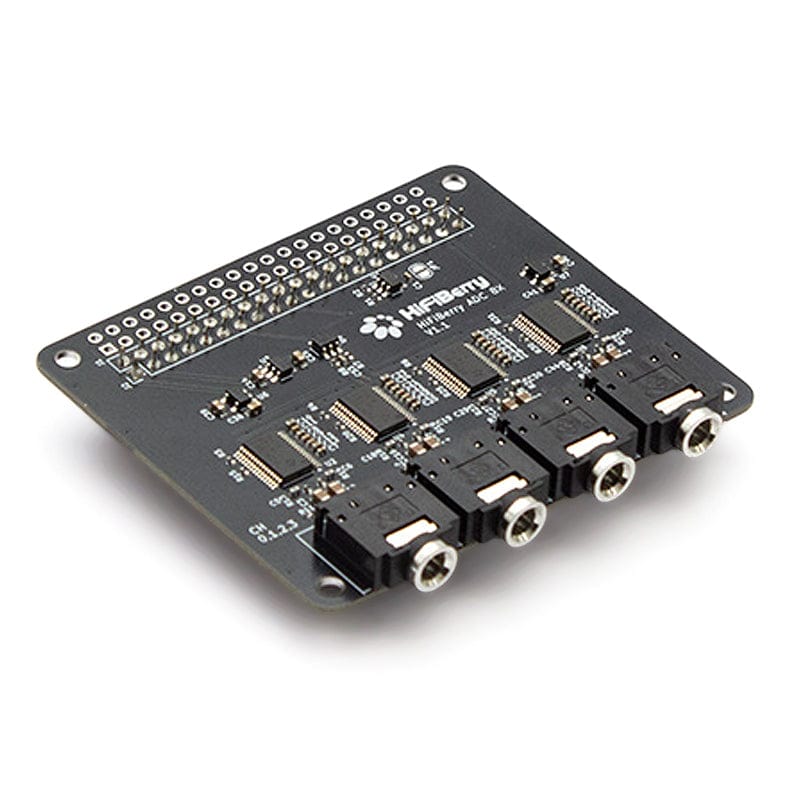

The ADC8x is an add-on for the HiFiBerry DAC8X for Raspberry Pi 5. It adds 8 input channels to the DAC8X, providing it with eight analog input ports!
This product can’t be used standalone! You need a HiFiBerry DAC8X to use this board.
The DAC8X is already a powerful, compact, and cost-effective solution for creating multi-channel audio players. But you’ve asked for more - specifically, analog input functionality. Your requests have been heard!
The new ADC8X add-on adds eight analog input ports to the DAC8X. Designed for simplicity, the ADC8X connects directly to the header on the DAC8X, unlocking an array of possibilities:
- Analogue audio crossovers
- Multi-channel effects processing
- Audio mixers and routing engines
- And so much more!

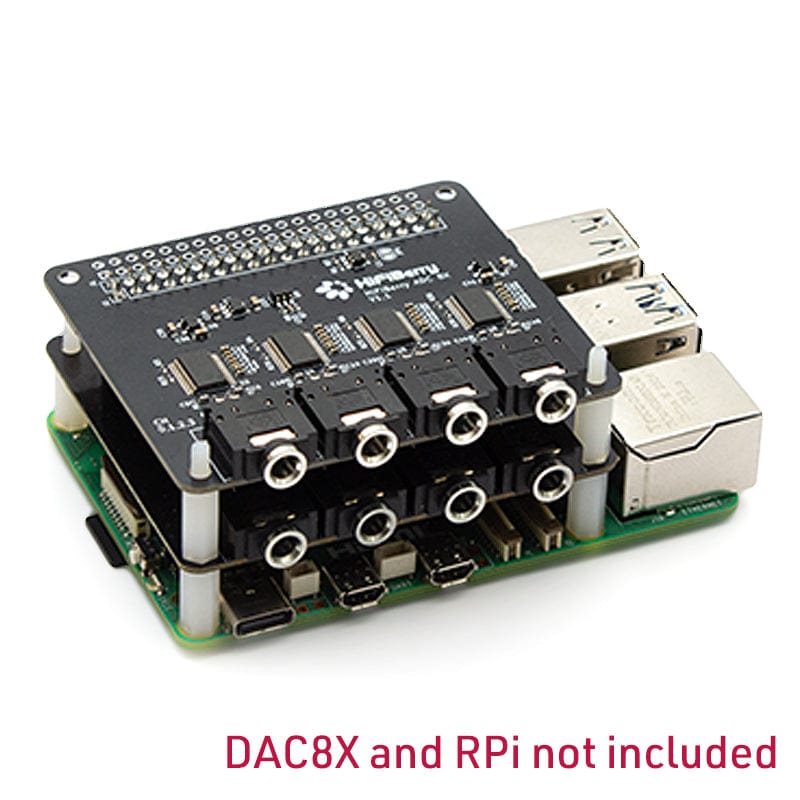

DACX board and Raspberry Pi not included
Features
- 8-channel input
- Four dedicated 192kHz/24bit high-quality Burr-Brown ADCs
- Connects directly to the DAC8x, no additional cables needed
- No soldering, comes as a pre-fabricated kit. You just plug it into the DAC8x
- Compatible with all Raspberry Pi 5 and the DAC8x
- Directly powered from the Raspberry Pi, no additional power supply
- Two ultra-low-noise linear voltage regulators for optimal audio performance
- Comes with all components required to mount it
Specifications
| Maximum Input Voltage | 2.1Vrms |
| ADC Signal-to-Noise Ratio | 110dB (typical) |
| ADC THD+N | -85dB (typical) |
| Frequency Response | 10Hz–70kHz (-3dB) |
| Power Consumption | <0.3W |
| Sample Rates | 44.1–192kHz |
Resources
Overlay for config.txt: dtoverlay=hifiberry-dac8x
- Datasheet
- Using the ADC8X with the DAC8X
- Preview: ADC8X add-on
- Updating the Linux kernel
- 3D Step model
- EAN: 4260439551139
Package Contents
- 1x HiFiBerry ADC8X Add-on
DACX and Raspberry Pi board not included
