$22.02The Story

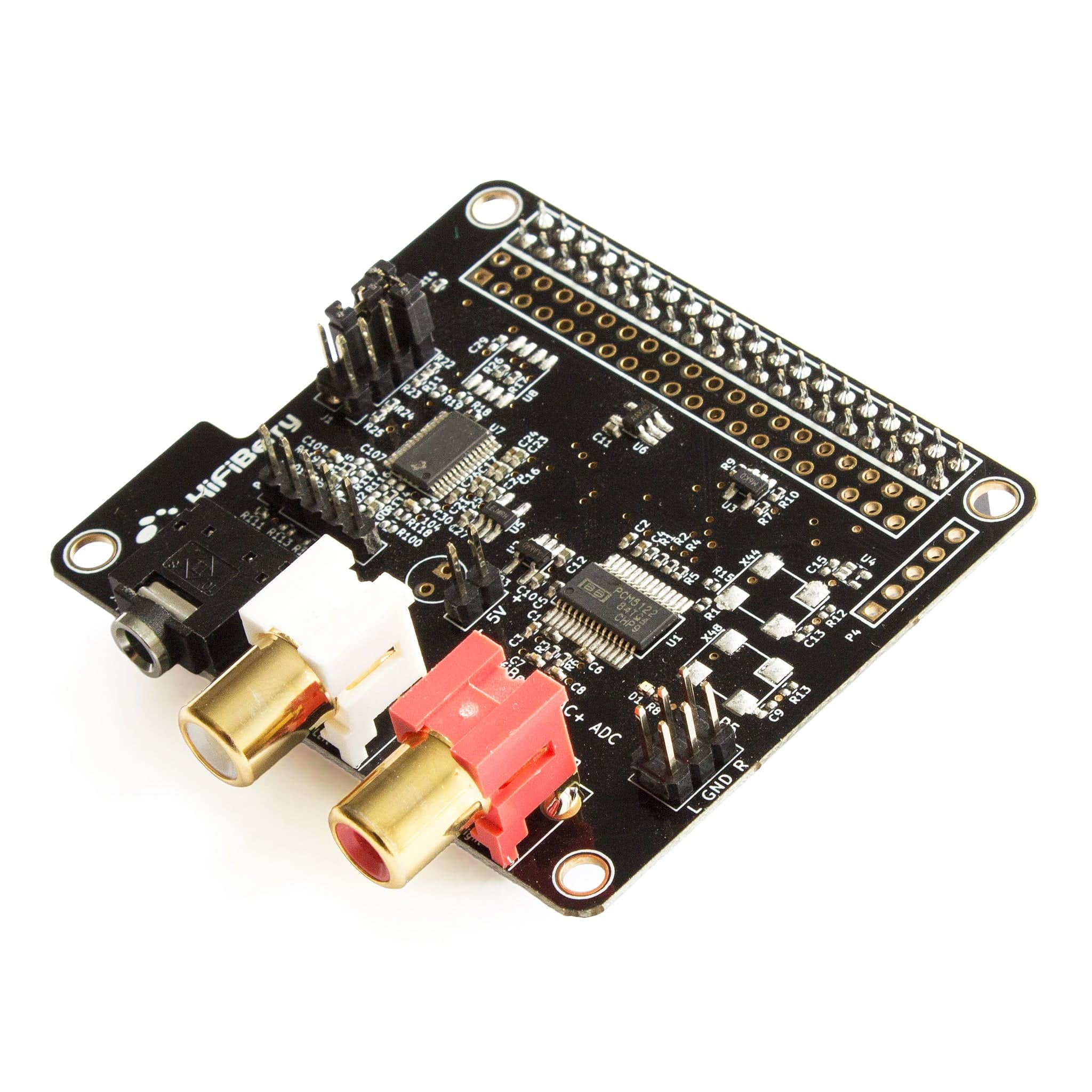

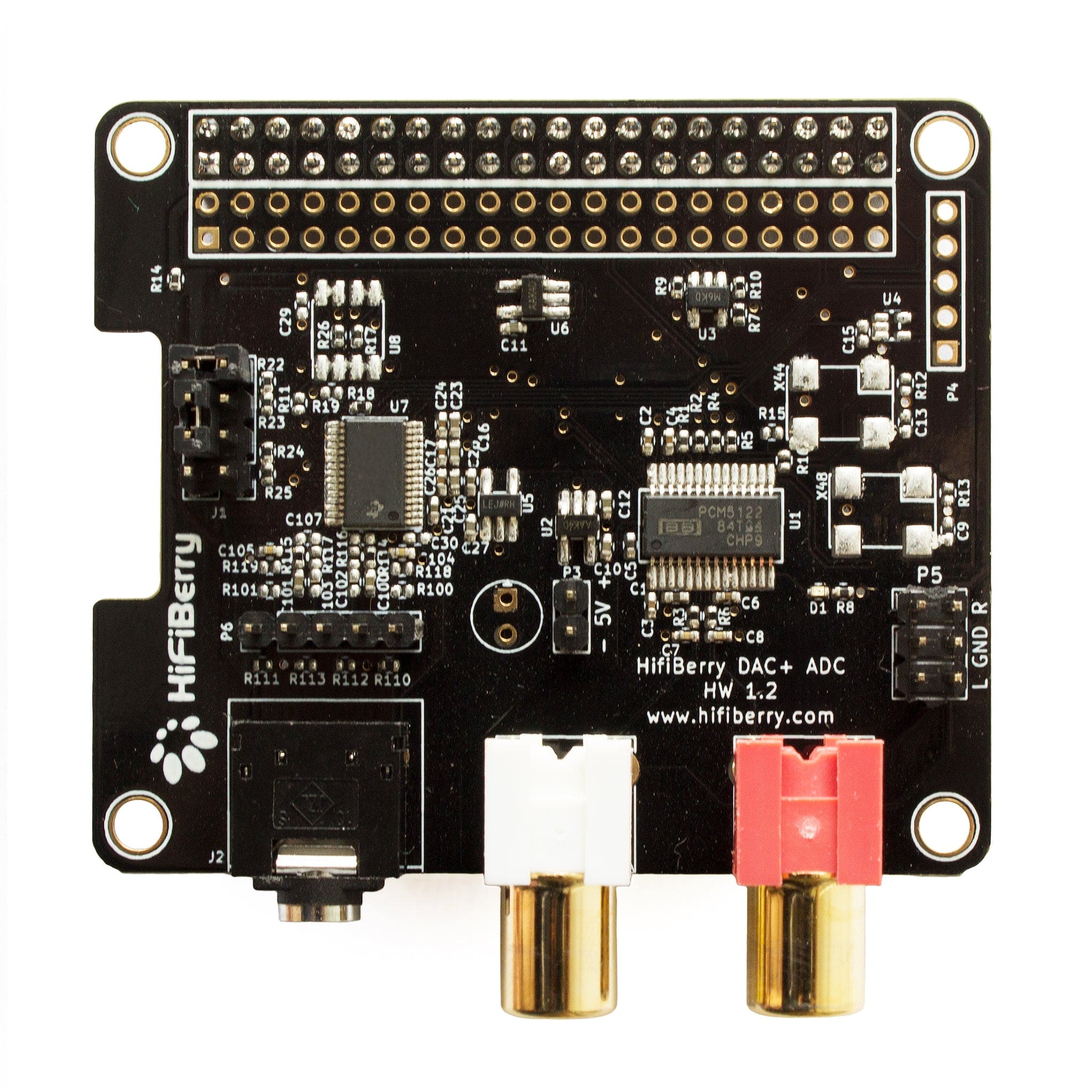

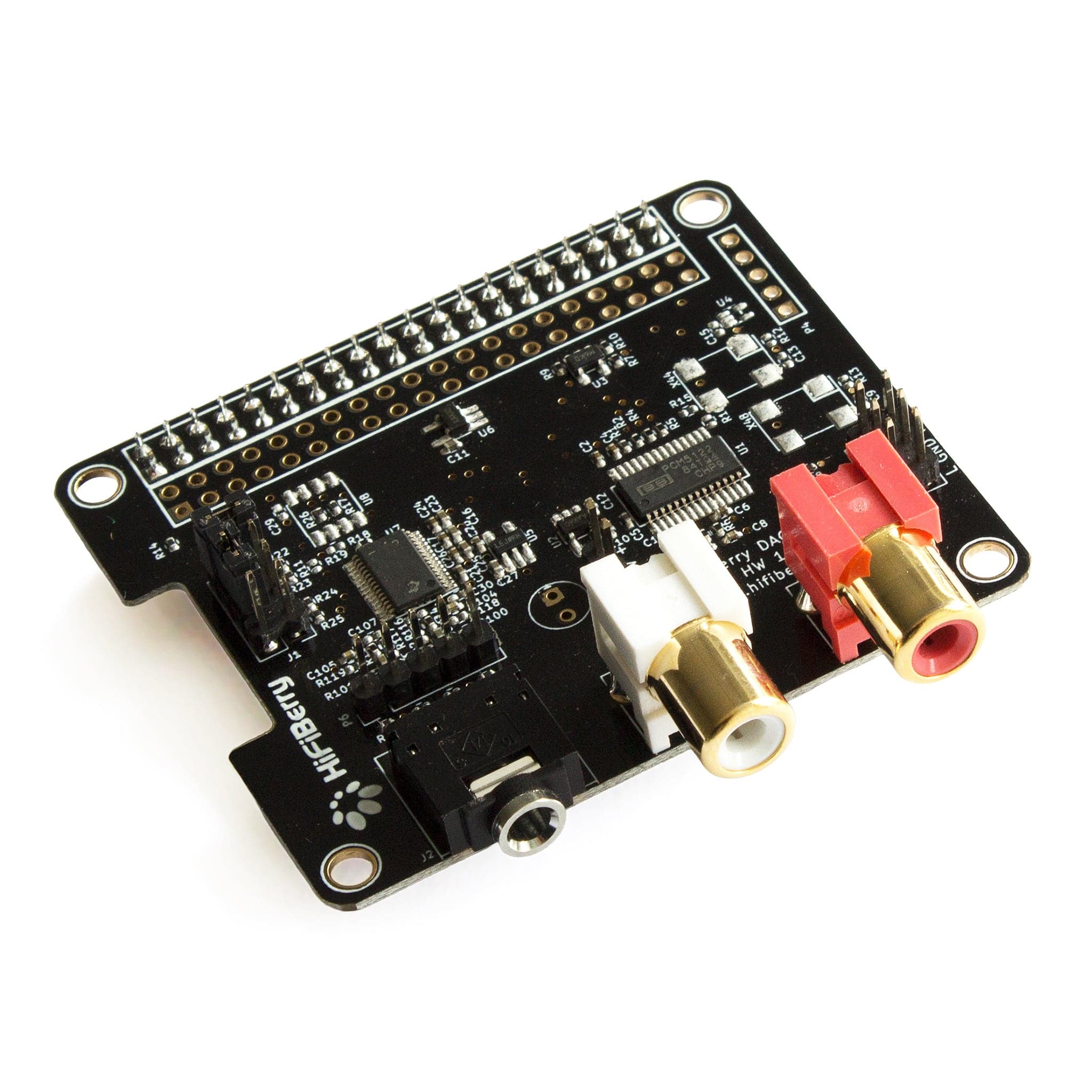

The HiFiBerry DAC+ ADC is a high-resolution digital-to-analogue and analogue-to-digital converter for the Raspberry Pi, that combines the well-known DAC+ with an analogue input. Both input and output support sample rates up to 192kHz.
This is a special sound card for the Raspberry Pi, optimised for one specific use case: the best audio playback quality! It is specifically designed for applications that not only need playback but also recording functionalities.
We also stock a Pro model and a 60W Class-D Amplifier add-on!
Features
- Stereo input and output
- Dedicated 192kHz/24bit high-quality Burr-Brown DAC
- Dedicated 192kHz/24bit high-quality Burr-Brown ADC
- Hardware volume control for DAC. You can control the output volume using “alsamixer” or any application that supports ALSA mixer controls.
- Connects directly to the Raspberry Pi, no additional cables needed
- No soldering, comes as a pre-fabricated kit. You just plug it onto the Raspberry Pi, it conforms to the Raspberry Pi hardware-attached-on-top (HAT) specification.
- Compatible with all Raspberry Pi models with a 40-pin GPIO connector
- Directly powered from the Raspberry Pi, no additional power supply
- Three ultra-low-noise linear voltage regulators for optimal audio performance
- HAT compliant, EEPROM for automatic configuration
- Gold plated RCA output connectors
- Comes with all components required to mount it. We include 4 M2.5x12mm spacers to fix the board onto the Raspberry Pi
- Audio input requires updated Linux kernel
Specifications
| Maximum Input Voltage | 2.1Vrms |
| Maximum Output Voltage | 2.1Vrms |
| ADC Signal-to-Noise Ratio | 110dB (typical) |
| DAC Signal-to-Noise Ratio | 112dB (typical) |
| ADC THD+N | -85dB (typical) |
| DAC THD+N | -93dB (typical) |
| Input Voltage for Lowest Distortion | 0.8Vrms (typical) |
| Input Gain | 0dB, 12dB, 32dB (configurable with jumpers) |
| Power Consumption | <0.3W |
| Sample Rates | 44.1–192kHz |
Resources & Instructions
- Datasheet (inc. specification and configuration)
- Using dynamic microphones with the DAC+ ADC
- DAC+ ADC Kernel Update
Package Contents
- 1x HiFiBerry DAC+ ADC
