The Story
The Italtronic/Hitaltech DIN rail mountable enclosures are designed specifically for the Raspberry Pi Model B+, 2, 3 & 3B+ and they come in a variety of shapes and sizes!

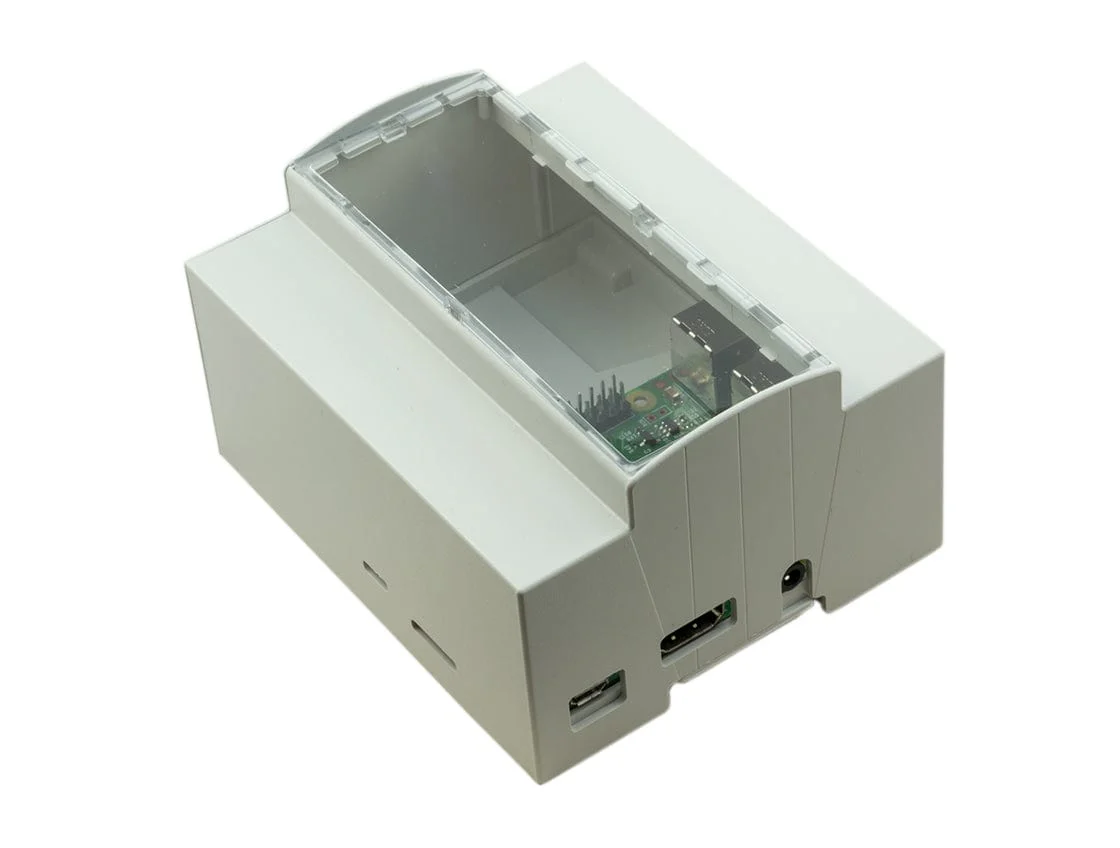

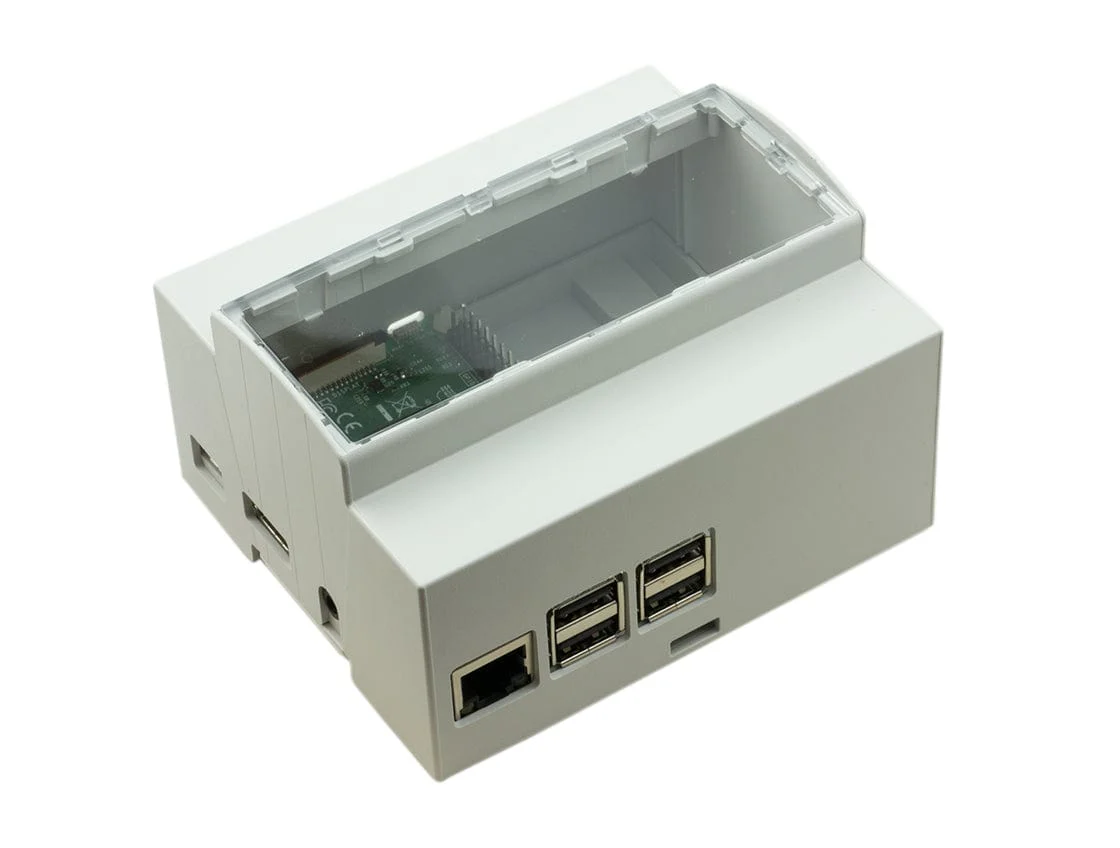

This is the 6M XTS Modulbox, a DIN rail mountable enclosure with transparent removable top for easy access!
The kit comes complete with DIN rail hook for ultra-fast mounting.
The unit features 36mm internal clearance from the Raspberry Pi PCB to the top of the case, so there's plenty of room for GPIO mounted expansion boards.
Features:
- Raspberry Pi DIN Rail Mountable Case for Electrical Domestic Cabinet 43880 STD Application.
- Wall Mountable
- Secure Clip-In Base
- UL94V-0 Self Extinguishing PPO and PC Material

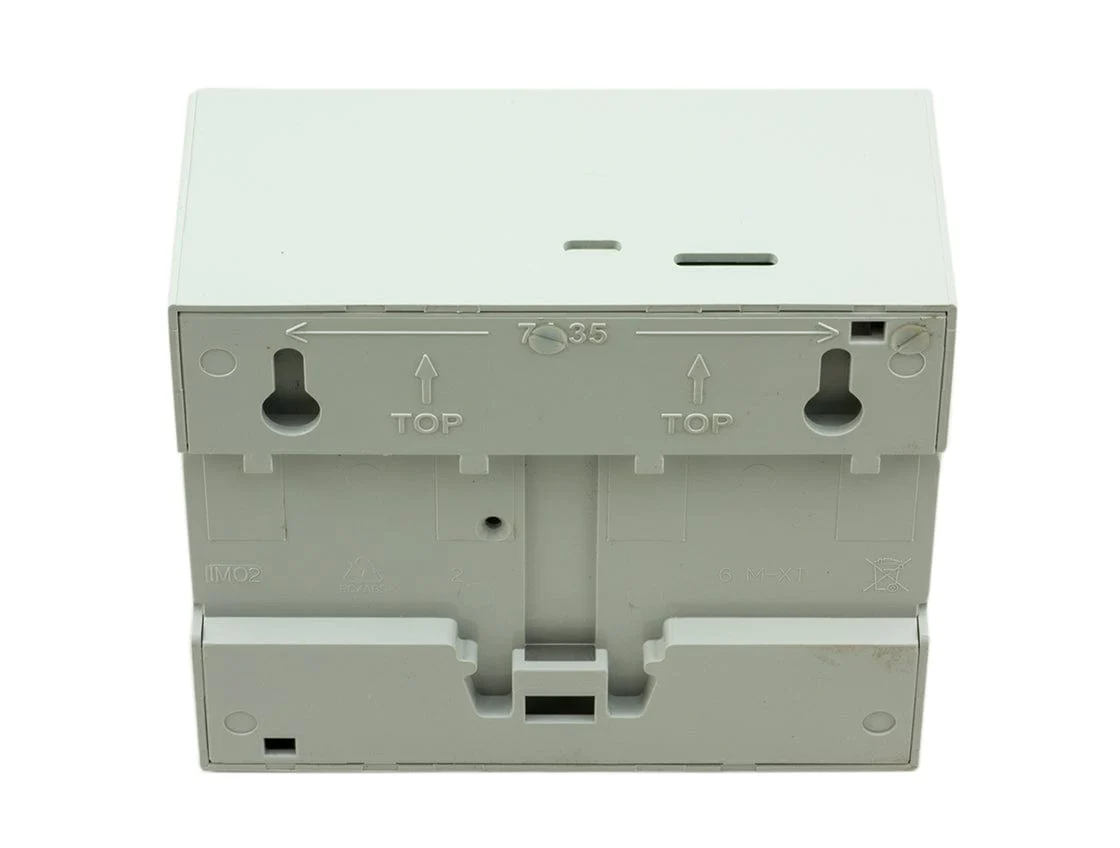

- Includes DIN Rail Hook
- Rev. 2 Raspberry Pi Board Mounting Points (Screws Included)
- Dimensions (LxWxH) 90.5x106.5x55mm
- Transparent Panel for Easy Access
- Manufacture PN: 25.0610000.RMB
Downloads
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Italtronic/Hitaltech DIN rail mountable enclosures are designed specifically for the Raspberry Pi Model B+, 2, 3 & 3B+ and they come in a variety of shapes and sizes!
This is the 6M XTS Modulbox, a DIN rail mountable enclosure with transparent removable top for easy access!
The kit comes complete with DIN rail hook for ultra-fast mounting.
The unit features 36mm internal clearance from the Raspberry Pi PCB to the top of the case, so there's plenty of room for GPIO mounted expansion boards.
Features:
- Raspberry Pi DIN Rail Mountable Case for Electrical Domestic Cabinet 43880 STD Application.
- Wall Mountable
- Secure Clip-In Base
- UL94V-0 Self Extinguishing PPO and PC Material
- Includes DIN Rail Hook
- Rev. 2 Raspberry Pi Board Mounting Points (Screws Included)
- Dimensions (LxWxH) 90.5x106.5x55mm
- Transparent Panel for Easy Access
- Manufacture PN: 25.0610000.RMB
