HRLV - MaxSonar - EZ (MB1013) [Discontinued]
HomeStore

HRLV - MaxSonar - EZ (MB1013) [Discontinued]

HRLV - MaxSonar - EZ (MB1013) [Discontinued]

$15.81

Original: $52.69

-70%
HRLV - MaxSonar - EZ (MB1013) [Discontinued]—

$52.69

$15.81

The Story

The HRLV-MaxSonar-EZ products are high resolution ultrasonic sensors, that provide a component module solution that offers easy to use outputs, no sensor dead zone, calibrated beam patterns, stable range readings, low power demands, and a host of other features.

FEATURES

  • 1mm(0.04") Resolution
The HRLV-MaxSonar-EZ Sensors offer calibrated 1 mm accuracy of 0.1% at 1 meter(39.37").
  • Internal Temperature Compensation
The speed of sound in air increases about 0.6 meters per second, per degree centigrade. Because of this, each HRLV-MaxSonar-EZ is equipped with an internal temperature sensor which allows the sensor to apply a compensation for speed of sound changes.
With the internal temperature sensor, range readings immediately (within twenty seconds) after power up are the most accurate, and this is ideal for battery applications where the sensor is powered off most of the time. The self heating (15mW at 5V, or 8mW at 3.3V) will change the temperature of the sensor by 3 degrees C or so. (The amount of self heating is also slightly dependent upon user mounting). As such, self heating will cause the sensor to read the actual air temperature inaccurately.
  • External Temperature Sensor
With the HR-MaxTemp connected to the HRLV-MaxSonar-EZ line of sensors, realtime automatic temperature compensation is available. The HR-MaxTemp allows the HRLV-MaxSonar-EZ sensor to monitor the changes to air temperature while ignoring self-heating.
Self-heating is an issue with internal temperature sensors, where the temperature increase is typically 2 to 5 degrees centigrade. If ignored this will cause a drift of the reported of up to 3%.
The HRLV-MaxSonar-EZ is designed to used alongside the HR-MaxTemp temperature sensor. On power-up the HRLV-MaxSonar-EZ will automatically detect an attached temperature sensor and begin to apply temperature compensation for the speed of sound changes to all range outputs.
  • The Interface
The HRLV-MaxSonar-EZ interface is designed to be very easy and intuitive to use. The interface output formats included are pulse width output, analog voltage output, and asynchronous serial RS232 or TTL (using a soldered jumper) output. All interfaces work without user code or complicated setup strings.
  • The Power Requirements
The HRLV-MaxSonar-EZ functions throughout a 2.5V to 5.5V operational voltage range. This allows for easy integration from 2.5V to 5.5V and means that users of low voltage microcontrollers, or those who wish to operate in solar or battery based systems do not have to provide an extra power supply for the sensor.
The HRLV-MaxSonar-EZ sensors have a 3.1mA average current draw during free ranging operation.
  • The Controlled Beam Shape
Similar ultrasonic products may have frequent side lobe detection and can even falsely trigger on objects behind or to the sides of the sensor. The HRLV-MaxSonar-EZ offers a controlled beam that is designed to reject small objects (clutter) outside of the central beam area and provides long range sensitivity without detecting frivolous or unwanted targets.
Users are encouraged to pick the product with the sensitivity that best matches their application. In the HRLV-MaxSonar-EZ product line the product with the widest beam is the MB1003. The product with the narrowest beam is the MB1043.
  • The Calibration
Each HRLV-MaxSonar-EZ is tested for proper operation at our facility and comes with a factory calibrated beam pattern to help ensure consistent operation of the sensor even from part to part.
The HRLV-MaxSonar-EZ automatically calibrates to its environment before every range reading. This calibration includes voltage, humidity, acoustic noise, electrical noise conditions, and compensation for temperature.

SPECIFICATION

  • Operates from 2.5V-5.5V
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm(11.81") will typically range as 30 cm
  • Resolution of 1 mm(0.04")
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • 10Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15? to +65? (+5? to +149?)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Internal temperature compensation
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use
  • Size: 22x20x25mm(0.87"x0.79"x0.98")

DOCUMENTS

  • MB1013 datasheet
  • Selection guide
  • Quick Start Guide

SHIPPING LIST

  • HRLV-MaxSonar-EZ1 x1

REVIEW

Recently Viewed Items and Featured Recommendations
  • LattePanda (4G/64GB/Without win10 License) - The Most Powerful Win10 Dev Board
    $139.00
  • Gravity: Analog pH Sensor / Meter Pro Kit For Arduino
    $56.95
  • Gravity: Analog Electrical Conductivity Sensor / Meter For Arduino
    $69.90
  • Gravity: Analog pH Sensor / Meter Kit For Arduino
    $29.50
  • LattePanda (2G/32GB/Without Win10 License) - The Most Powerful Win10 Dev Board
    $79.00
  • Double Sided Micro USB Cable
    $3.10
  • Gravity: Analog CO2 Gas Sensor For Arduino
    $56.00
  • Plywood Case for LattePanda
    $8.20

Features
  • 1mm(0.04") Resolution
The HRLV-MaxSonar-EZ Sensors offer calibrated 1 mm accuracy of 0.1% at 1 meter(39.37").
  • Internal Temperature Compensation
The speed of sound in air increases about 0.6 meters per second, per degree centigrade. Because of this, each HRLV-MaxSonar-EZ is equipped with an internal temperature sensor which allows the sensor to apply a compensation for speed of sound changes.
With the internal temperature sensor, range readings immediately (within twenty seconds) after power up are the most accurate, and this is ideal for battery applications where the sensor is powered off most of the time. The self heating (15mW at 5V, or 8mW at 3.3V) will change the temperature of the sensor by 3 degrees C or so. (The amount of self heating is also slightly dependent upon user mounting). As such, self heating will cause the sensor to read the actual air temperature inaccurately.
  • External Temperature Sensor
With the HR-MaxTemp connected to the HRLV-MaxSonar-EZ line of sensors, realtime automatic temperature compensation is available. The HR-MaxTemp allows the HRLV-MaxSonar-EZ sensor to monitor the changes to air temperature while ignoring self-heating.
Self-heating is an issue with internal temperature sensors, where the temperature increase is typically 2 to 5 degrees centigrade. If ignored this will cause a drift of the reported of up to 3%.
The HRLV-MaxSonar-EZ is designed to used alongside the HR-MaxTemp temperature sensor. On power-up the HRLV-MaxSonar-EZ will automatically detect an attached temperature sensor and begin to apply temperature compensation for the speed of sound changes to all range outputs.
  • The Interface
The HRLV-MaxSonar-EZ interface is designed to be very easy and intuitive to use. The interface output formats included are pulse width output, analog voltage output, and asynchronous serial RS232 or TTL (using a soldered jumper) output. All interfaces work without user code or complicated setup strings.
  • The Power Requirements
The HRLV-MaxSonar-EZ functions throughout a 2.5V to 5.5V operational voltage range. This allows for easy integration from 2.5V to 5.5V and means that users of low voltage microcontrollers, or those who wish to operate in solar or battery based systems do not have to provide an extra power supply for the sensor.
The HRLV-MaxSonar-EZ sensors have a 3.1mA average current draw during free ranging operation.
  • The Controlled Beam Shape
Similar ultrasonic products may have frequent side lobe detection and can even falsely trigger on objects behind or to the sides of the sensor. The HRLV-MaxSonar-EZ offers a controlled beam that is designed to reject small objects (clutter) outside of the central beam area and provides long range sensitivity without detecting frivolous or unwanted targets.
Users are encouraged to pick the product with the sensitivity that best matches their application. In the HRLV-MaxSonar-EZ product line the product with the widest beam is the MB1003. The product with the narrowest beam is the MB1043.
  • The Calibration
Each HRLV-MaxSonar-EZ is tested for proper operation at our facility and comes with a factory calibrated beam pattern to help ensure consistent operation of the sensor even from part to part.
The HRLV-MaxSonar-EZ automatically calibrates to its environment before every range reading. This calibration includes voltage, humidity, acoustic noise, electrical noise conditions, and compensation for temperature.

SPECIFICATION

  • Operates from 2.5V-5.5V
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm(11.81") will typically range as 30 cm
  • Resolution of 1 mm(0.04")
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • 10Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15? to +65? (+5? to +149?)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Internal temperature compensation
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use
  • Size: 22x20x25mm(0.87"x0.79"x0.98")

DOCUMENTS

  • MB1013 datasheet
  • Selection guide
  • Quick Start Guide

SHIPPING LIST

  • HRLV-MaxSonar-EZ1 x1

Specification
  • Operates from 2.5V-5.5V
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm(11.81") will typically range as 30 cm
  • Resolution of 1 mm(0.04")
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • 10Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15? to +65? (+5? to +149?)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Internal temperature compensation
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use
  • Size: 22x20x25mm(0.87"x0.79"x0.98")

Documents

  • MB1013 datasheet
  • Selection guide
  • Quick Start Guide

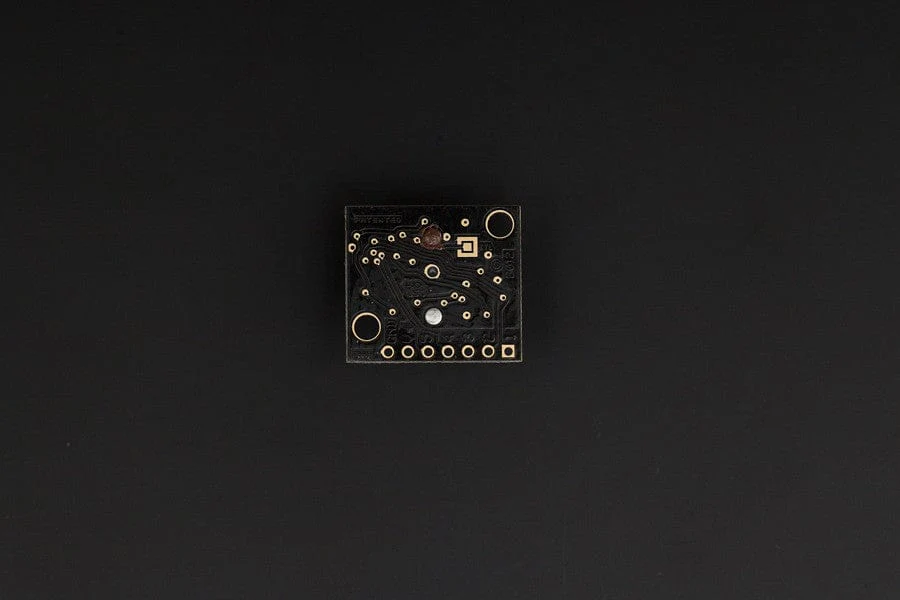

HRLV - MaxSonar - EZ (MB1013) [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

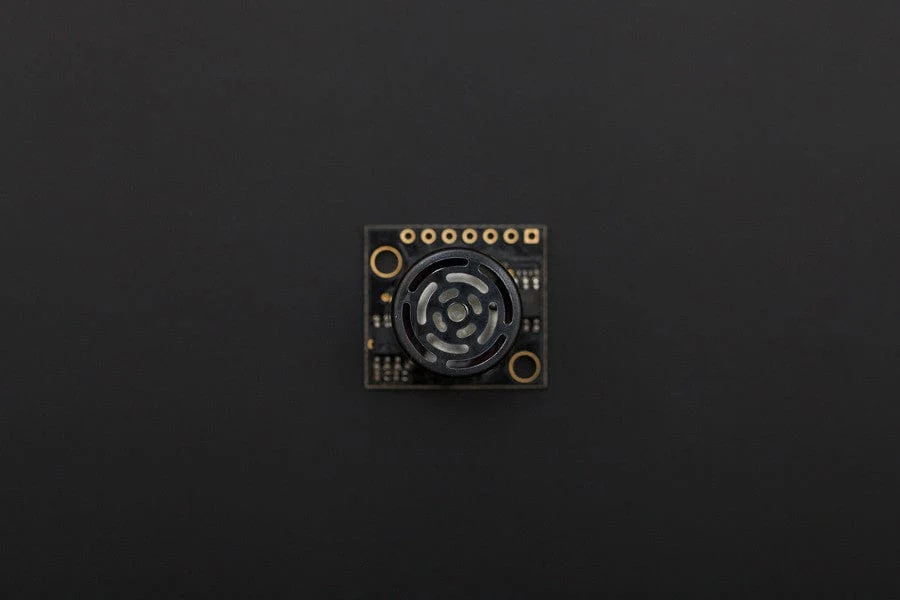

HRLV - MaxSonar - EZ (MB1013) [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The HRLV-MaxSonar-EZ products are high resolution ultrasonic sensors, that provide a component module solution that offers easy to use outputs, no sensor dead zone, calibrated beam patterns, stable range readings, low power demands, and a host of other features.

FEATURES

  • 1mm(0.04") Resolution
The HRLV-MaxSonar-EZ Sensors offer calibrated 1 mm accuracy of 0.1% at 1 meter(39.37").
  • Internal Temperature Compensation
The speed of sound in air increases about 0.6 meters per second, per degree centigrade. Because of this, each HRLV-MaxSonar-EZ is equipped with an internal temperature sensor which allows the sensor to apply a compensation for speed of sound changes.
With the internal temperature sensor, range readings immediately (within twenty seconds) after power up are the most accurate, and this is ideal for battery applications where the sensor is powered off most of the time. The self heating (15mW at 5V, or 8mW at 3.3V) will change the temperature of the sensor by 3 degrees C or so. (The amount of self heating is also slightly dependent upon user mounting). As such, self heating will cause the sensor to read the actual air temperature inaccurately.
  • External Temperature Sensor
With the HR-MaxTemp connected to the HRLV-MaxSonar-EZ line of sensors, realtime automatic temperature compensation is available. The HR-MaxTemp allows the HRLV-MaxSonar-EZ sensor to monitor the changes to air temperature while ignoring self-heating.
Self-heating is an issue with internal temperature sensors, where the temperature increase is typically 2 to 5 degrees centigrade. If ignored this will cause a drift of the reported of up to 3%.
The HRLV-MaxSonar-EZ is designed to used alongside the HR-MaxTemp temperature sensor. On power-up the HRLV-MaxSonar-EZ will automatically detect an attached temperature sensor and begin to apply temperature compensation for the speed of sound changes to all range outputs.
  • The Interface
The HRLV-MaxSonar-EZ interface is designed to be very easy and intuitive to use. The interface output formats included are pulse width output, analog voltage output, and asynchronous serial RS232 or TTL (using a soldered jumper) output. All interfaces work without user code or complicated setup strings.
  • The Power Requirements
The HRLV-MaxSonar-EZ functions throughout a 2.5V to 5.5V operational voltage range. This allows for easy integration from 2.5V to 5.5V and means that users of low voltage microcontrollers, or those who wish to operate in solar or battery based systems do not have to provide an extra power supply for the sensor.
The HRLV-MaxSonar-EZ sensors have a 3.1mA average current draw during free ranging operation.
  • The Controlled Beam Shape
Similar ultrasonic products may have frequent side lobe detection and can even falsely trigger on objects behind or to the sides of the sensor. The HRLV-MaxSonar-EZ offers a controlled beam that is designed to reject small objects (clutter) outside of the central beam area and provides long range sensitivity without detecting frivolous or unwanted targets.
Users are encouraged to pick the product with the sensitivity that best matches their application. In the HRLV-MaxSonar-EZ product line the product with the widest beam is the MB1003. The product with the narrowest beam is the MB1043.
  • The Calibration
Each HRLV-MaxSonar-EZ is tested for proper operation at our facility and comes with a factory calibrated beam pattern to help ensure consistent operation of the sensor even from part to part.
The HRLV-MaxSonar-EZ automatically calibrates to its environment before every range reading. This calibration includes voltage, humidity, acoustic noise, electrical noise conditions, and compensation for temperature.

SPECIFICATION

  • Operates from 2.5V-5.5V
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm(11.81") will typically range as 30 cm
  • Resolution of 1 mm(0.04")
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • 10Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15? to +65? (+5? to +149?)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Internal temperature compensation
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use
  • Size: 22x20x25mm(0.87"x0.79"x0.98")

DOCUMENTS

  • MB1013 datasheet
  • Selection guide
  • Quick Start Guide

SHIPPING LIST

  • HRLV-MaxSonar-EZ1 x1

REVIEW

Recently Viewed Items and Featured Recommendations
  • LattePanda (4G/64GB/Without win10 License) - The Most Powerful Win10 Dev Board
    $139.00
  • Gravity: Analog pH Sensor / Meter Pro Kit For Arduino
    $56.95
  • Gravity: Analog Electrical Conductivity Sensor / Meter For Arduino
    $69.90
  • Gravity: Analog pH Sensor / Meter Kit For Arduino
    $29.50
  • LattePanda (2G/32GB/Without Win10 License) - The Most Powerful Win10 Dev Board
    $79.00
  • Double Sided Micro USB Cable
    $3.10
  • Gravity: Analog CO2 Gas Sensor For Arduino
    $56.00
  • Plywood Case for LattePanda
    $8.20

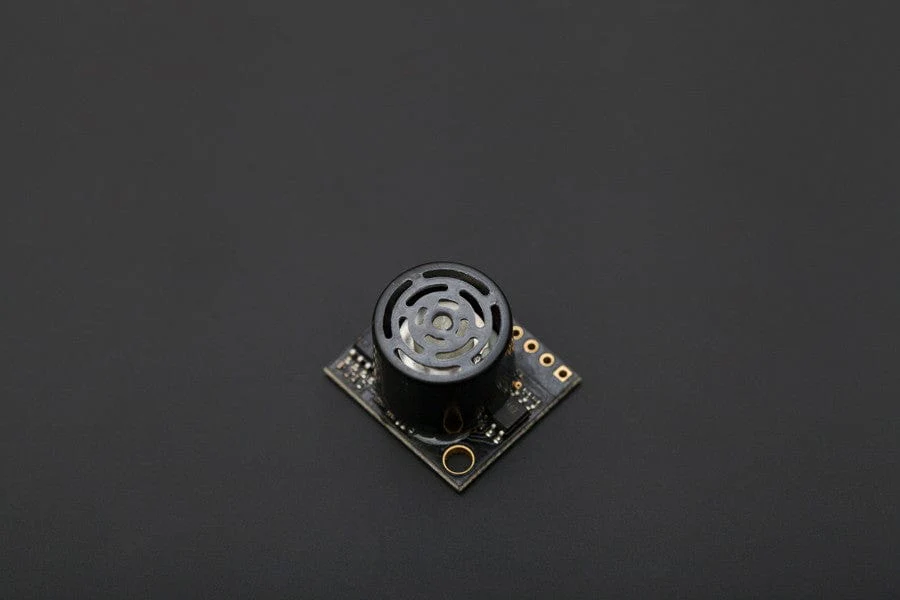

Features
  • 1mm(0.04") Resolution
The HRLV-MaxSonar-EZ Sensors offer calibrated 1 mm accuracy of 0.1% at 1 meter(39.37").
  • Internal Temperature Compensation
The speed of sound in air increases about 0.6 meters per second, per degree centigrade. Because of this, each HRLV-MaxSonar-EZ is equipped with an internal temperature sensor which allows the sensor to apply a compensation for speed of sound changes.
With the internal temperature sensor, range readings immediately (within twenty seconds) after power up are the most accurate, and this is ideal for battery applications where the sensor is powered off most of the time. The self heating (15mW at 5V, or 8mW at 3.3V) will change the temperature of the sensor by 3 degrees C or so. (The amount of self heating is also slightly dependent upon user mounting). As such, self heating will cause the sensor to read the actual air temperature inaccurately.
  • External Temperature Sensor
With the HR-MaxTemp connected to the HRLV-MaxSonar-EZ line of sensors, realtime automatic temperature compensation is available. The HR-MaxTemp allows the HRLV-MaxSonar-EZ sensor to monitor the changes to air temperature while ignoring self-heating.
Self-heating is an issue with internal temperature sensors, where the temperature increase is typically 2 to 5 degrees centigrade. If ignored this will cause a drift of the reported of up to 3%.
The HRLV-MaxSonar-EZ is designed to used alongside the HR-MaxTemp temperature sensor. On power-up the HRLV-MaxSonar-EZ will automatically detect an attached temperature sensor and begin to apply temperature compensation for the speed of sound changes to all range outputs.
  • The Interface
The HRLV-MaxSonar-EZ interface is designed to be very easy and intuitive to use. The interface output formats included are pulse width output, analog voltage output, and asynchronous serial RS232 or TTL (using a soldered jumper) output. All interfaces work without user code or complicated setup strings.
  • The Power Requirements
The HRLV-MaxSonar-EZ functions throughout a 2.5V to 5.5V operational voltage range. This allows for easy integration from 2.5V to 5.5V and means that users of low voltage microcontrollers, or those who wish to operate in solar or battery based systems do not have to provide an extra power supply for the sensor.
The HRLV-MaxSonar-EZ sensors have a 3.1mA average current draw during free ranging operation.
  • The Controlled Beam Shape
Similar ultrasonic products may have frequent side lobe detection and can even falsely trigger on objects behind or to the sides of the sensor. The HRLV-MaxSonar-EZ offers a controlled beam that is designed to reject small objects (clutter) outside of the central beam area and provides long range sensitivity without detecting frivolous or unwanted targets.
Users are encouraged to pick the product with the sensitivity that best matches their application. In the HRLV-MaxSonar-EZ product line the product with the widest beam is the MB1003. The product with the narrowest beam is the MB1043.
  • The Calibration
Each HRLV-MaxSonar-EZ is tested for proper operation at our facility and comes with a factory calibrated beam pattern to help ensure consistent operation of the sensor even from part to part.
The HRLV-MaxSonar-EZ automatically calibrates to its environment before every range reading. This calibration includes voltage, humidity, acoustic noise, electrical noise conditions, and compensation for temperature.

SPECIFICATION

  • Operates from 2.5V-5.5V
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm(11.81") will typically range as 30 cm
  • Resolution of 1 mm(0.04")
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • 10Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15? to +65? (+5? to +149?)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Internal temperature compensation
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use
  • Size: 22x20x25mm(0.87"x0.79"x0.98")

DOCUMENTS

  • MB1013 datasheet
  • Selection guide
  • Quick Start Guide

SHIPPING LIST

  • HRLV-MaxSonar-EZ1 x1

Specification
  • Operates from 2.5V-5.5V
  • 42kHz Ultrasonic sensor measures distance to objects
  • RoHS compliant
  • Read from all sensor outputs: Analog Voltage, RS232 or TTL Serial, and Pulse Width
  • Virtually no sensor dead zone, objects closer than 30 cm(11.81") will typically range as 30 cm
  • Resolution of 1 mm(0.04")
  • Maximum range of 5000 mm (195 inches)
  • Tolerates outside noise sources
  • 10Hz reading rate
  • Small, light weight module
  • Designed for easy integration into your project or product
  • Operational Temperature from -15? to +65? (+5? to +149?)
  • Real-time automatic calibration (voltage, humidity, ambient noise)
  • Internal temperature compensation
  • Option external temperature compensation HR-MaxTemp
  • Firmware filtering for better noise tolerance and clutter rejection
  • Great starting point for users unsure of which sensor to use
  • Size: 22x20x25mm(0.87"x0.79"x0.98")

Documents

  • MB1013 datasheet
  • Selection guide
  • Quick Start Guide
