I2C Joystick 2 Unit (STM32G030)

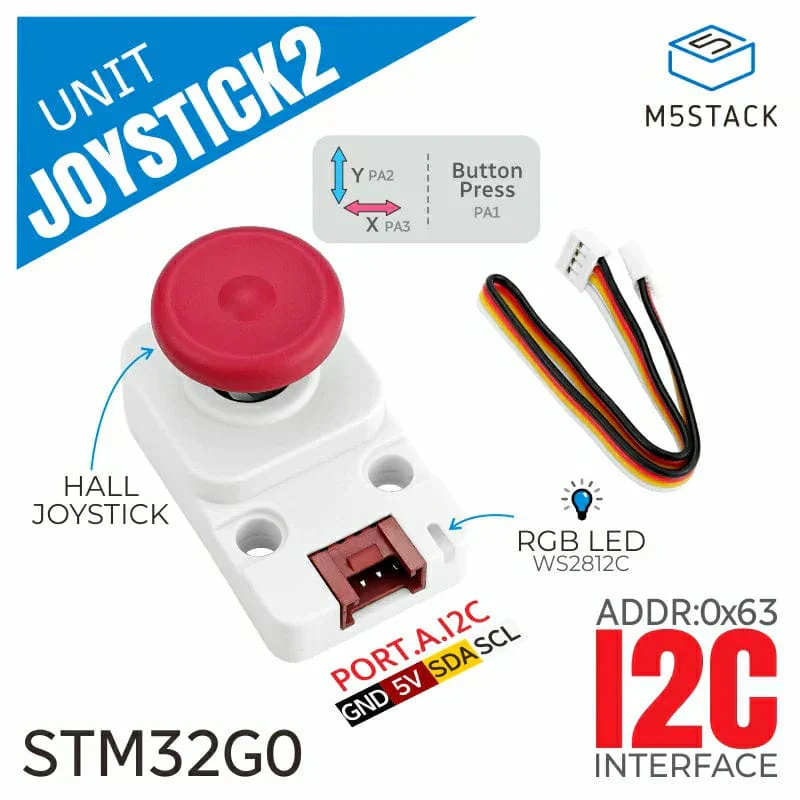

The JoyStick2 is a joystick input module featuring the STM32G030F6P6 microcontroller for control signal acquisition. It communicates via I2C and supports three-axis inputs, including analogue input for the X/Y axes and digital for the Z-axis button. Using a Hall effect joystick,

It provides high-precision control through magnetic field detection, which gives benefits like non-contact operation, wear resistance, and strong anti-interference. The unit includes WS2812 RGB LEDs for status indication and a firmware upgrade interface. It's ideal for projects such as game controllers and robotic operations.

Features

• Hall effect joystick
• Three-axis input:
  • X/Y-axis analogue input
  • Z-axis button digital input
• Built-in STM32
• I2C communication
• RGB LED
• 2x LEGO-compatible holes
• Development platforms: Arduino, UIFlow

Specifications

MCU	STM32G030F6P6@Cortex-M0+, 32KB Flash, 8KB SRAM, 64MHz
Communication Protocol	I2C: 0x63
X/Y-axis Offset Output	16-bit ADC output (0-65535)
Z-axis Button Output	0/1
RGB LED	1x WS2812C

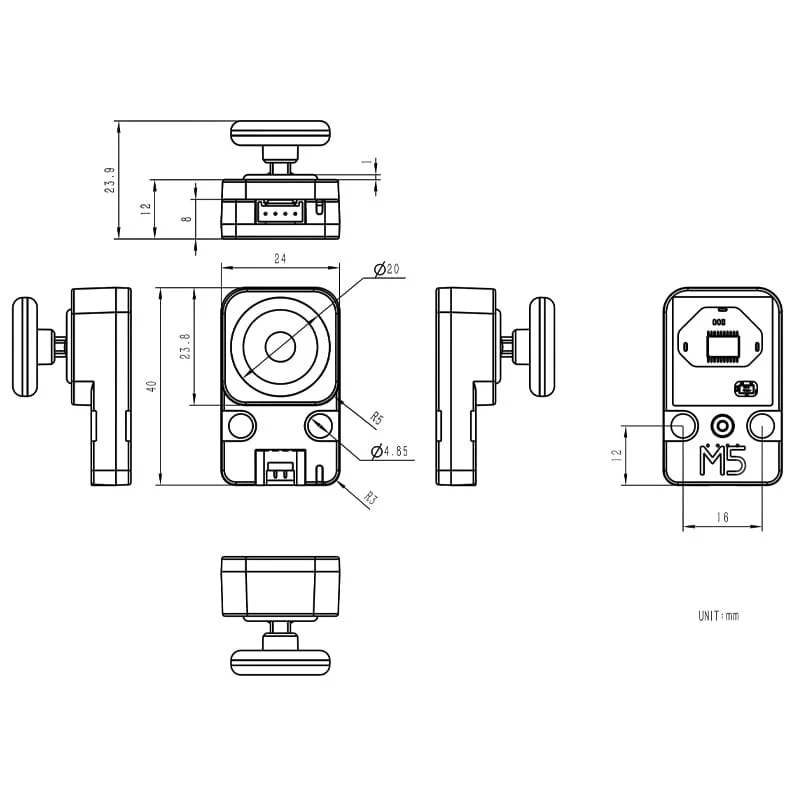

Product Dimensions	40 x 24 x 23.9mm
Packaging Dimensions	136 x 92 x 26mm
Product Weight	10.2g
Packaging Weight	15.5g

Resources

• Product Wiki
• JoyStick2 Unit Firmware
• JoyStick2 Unit Library

Package Contents

• 1x JoyStick2 Unit
• 1x HY2.0 4-pin Grove cable (20cm)
