The Story

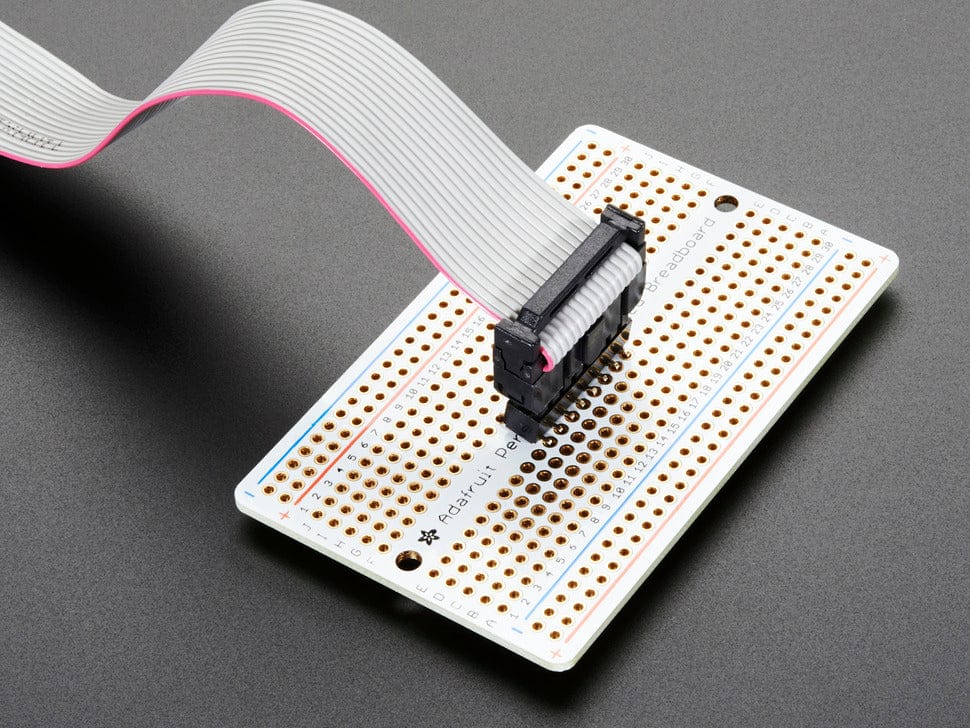

This 2x8 (16 pin - 0.1" spaced) IDC Breadboard Helper is great in conjunction with any 16-pin IDC cables.

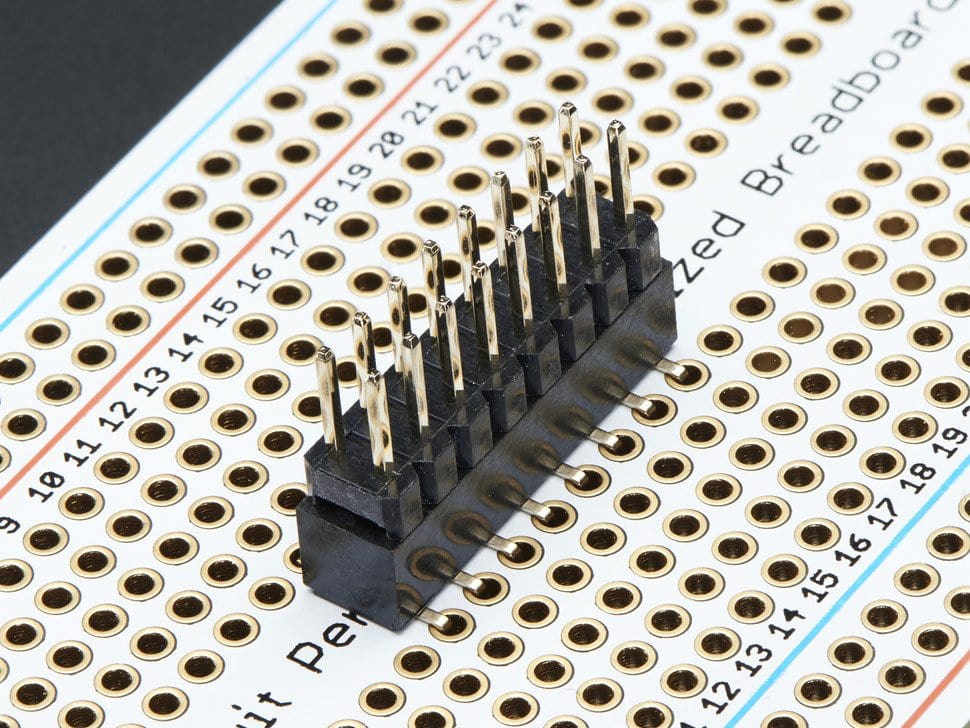

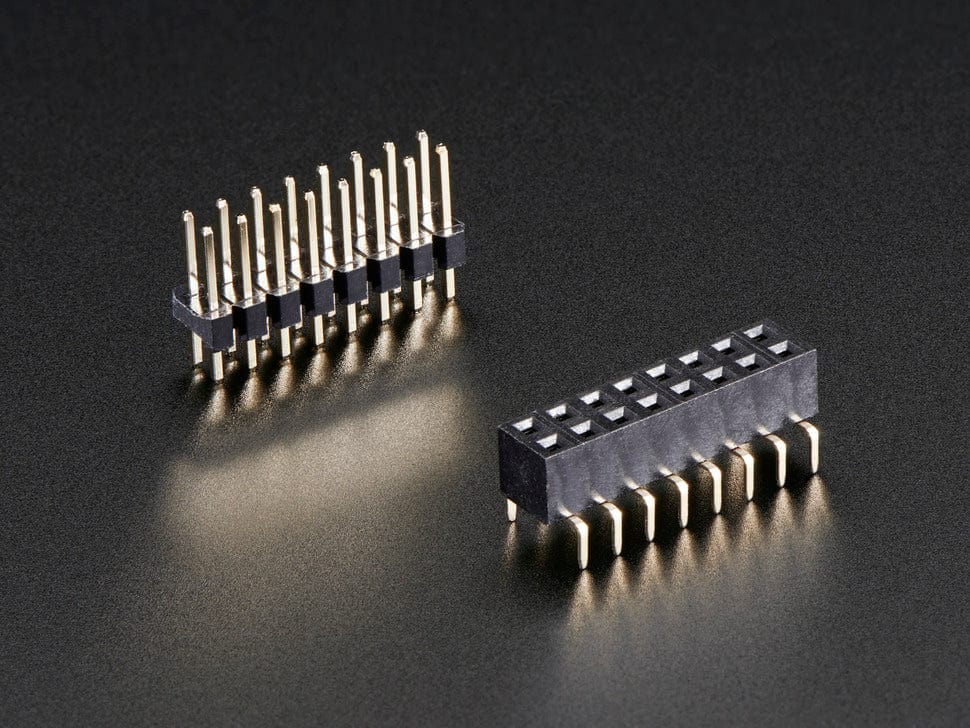

It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a Perma-Proto and then the header plugs into the top of the socket.
Works best when soldered in place (they don't always stay put in a breadboard).
Each order comes with one socket and one header. Perma Proto and IDC cable not included!
Technical details

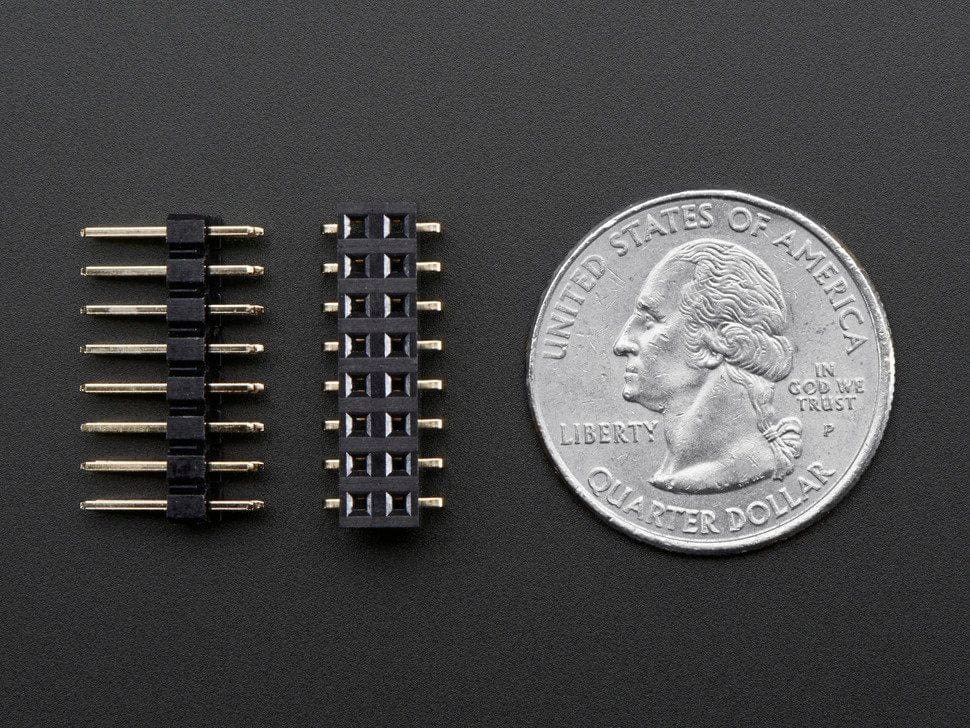

- Dimensions (assembled): 21mm x 8mm x 17mm
- Dimensions (header): 20mm x 5mm x 12mm
- Dimensions (socket): 21mm x 8mm x 8mm
- Weight (assembled): 1.8g
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
This 2x8 (16 pin - 0.1" spaced) IDC Breadboard Helper is great in conjunction with any 16-pin IDC cables.
It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a Perma-Proto and then the header plugs into the top of the socket.
Works best when soldered in place (they don't always stay put in a breadboard).
Each order comes with one socket and one header. Perma Proto and IDC cable not included!
Technical details
- Dimensions (assembled): 21mm x 8mm x 17mm
- Dimensions (header): 20mm x 5mm x 12mm
- Dimensions (socket): 21mm x 8mm x 8mm
- Weight (assembled): 1.8g
