Infrared Proximity Sensor

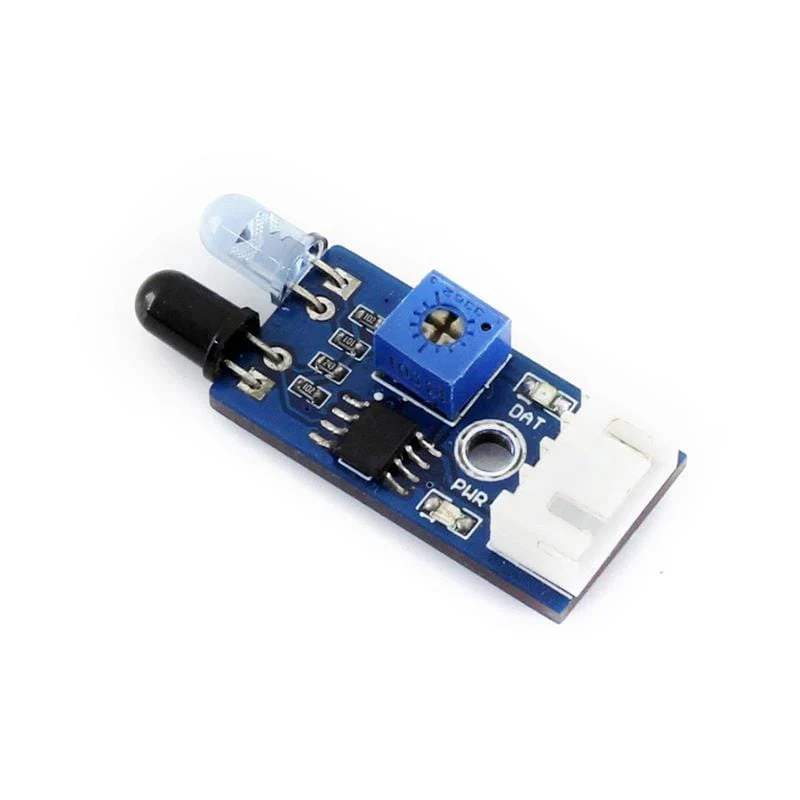

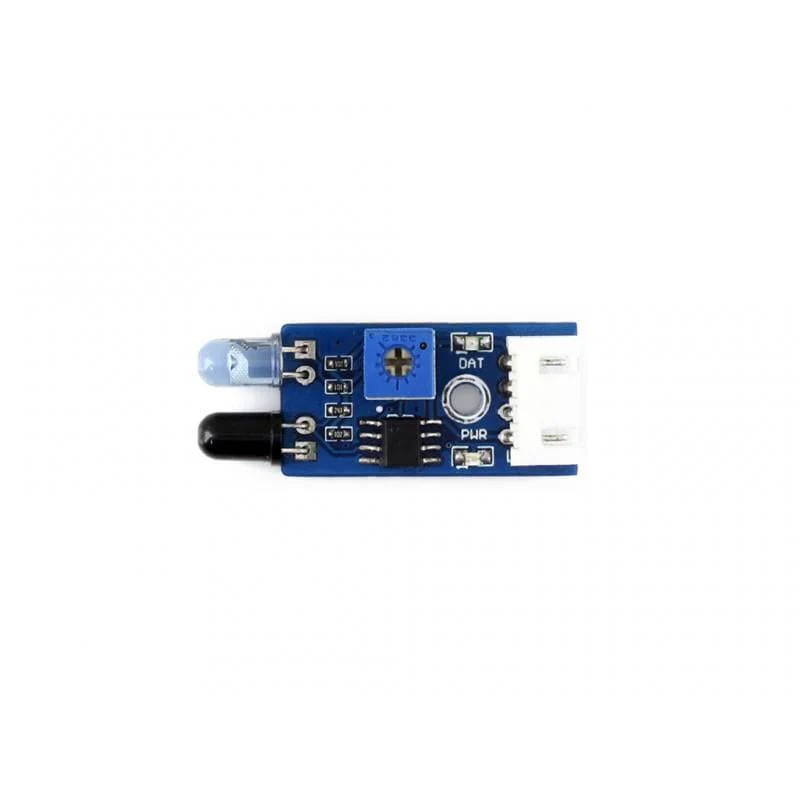

This is an Infrared Proximity Sensor - great for adding obstacle avoidance functionality to your Arduino robot project!

The sensor emits a beam of light and receives the reflected beam back, which is then used to calculate distance from a nearby object. The sensitivity can be adjusted using the onboard potentiometer.

A 4-pin XH2.54 wire is included, which has female jumper ends for connecting to your microcontroller.

Features

• Emitting a beam of infrared, and receive the reflected beam
• Features wide-range voltage comparator LM393
• Adjustable sensitivity
• Signal output indicator

Package Contents

• 1x Infrared Proximity Sensor
• 1x XH2.54 4-pin wire

Specifications

• Power: 3.3V ~ 5V
• Dimension: 39mm × 15.5mm (including the IR LED)
• Mounting holes size: 3mm (M3)
• Detection range: 2cm ~ 30cm (depending on the obstacle's colour, farthest for white)
• Detection angle: 35°
• Recommended environment: indoor, to avoid the impact of sunshine
• Dimensions: 30mm x 15.50mm

Resources

• Product Wiki

How To Use

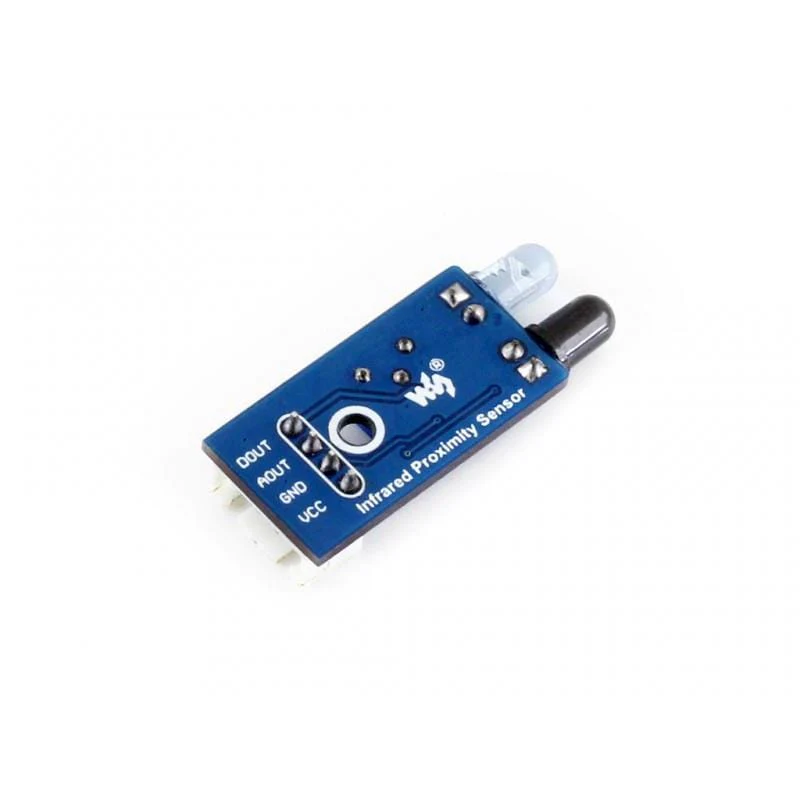

In the case of working with an MCU:

• VCC ↔ 3.3V ~ 5V
• GND ↔ GND
• AOUT ↔ MCU.IO (analogue output)
• DOUT ↔ MCU.IO (digital output)
