Gravity: IO Expansion Shield for Launchpad [Discontinued]
HomeStore

Gravity: IO Expansion Shield for Launchpad [Discontinued]

Gravity: IO Expansion Shield for Launchpad [Discontinued]

$2.94

Original: $9.80

-70%
Gravity: IO Expansion Shield for Launchpad [Discontinued]—

$9.80

$2.94

The Story

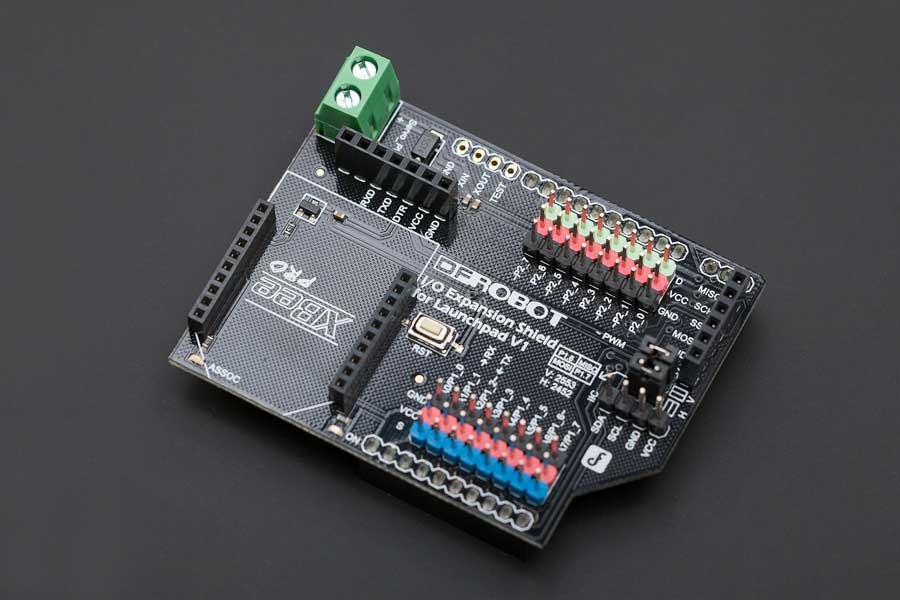

DFRobot proudly presents the I/O expansion shield for Texas Instruments MSP430 LaunchPad. With the I/O expansion shield, your LaunchPad will be able to access more than 100 various sensors, servos and wireless modules from DFRobot.
The Xbee & APC220 socket allows you to start immediatly without additional wireless shield.The SPI & I2C interface enables direct plugging of modules and sensors.A well designed corner cut to make room for the test button on LaunchPad.The colorful standard DFRobot 3 Pinout headers provide additional power for sensors and modules and can be clearly recognized and connected the digital and analog sensors.
Sensor connector :
  • Green-Digital
  • Blue-Analog
  • Red-VCC
  • Black-GND

Specification

  • Support MSP430 LaunchPad
  • Support Xbee/Bluetooth bee
  • Support Bluetooth/APC220
  • Interface:SPI,I2C
  • Size:66x50mm(2.60x1.97")

Documents

  • Wiki Doc
  • Schematic
  • Layout
  • 3.3V Compatible Device List

Shipping List

  • I/O Expansion Shield for LaunchPad x1

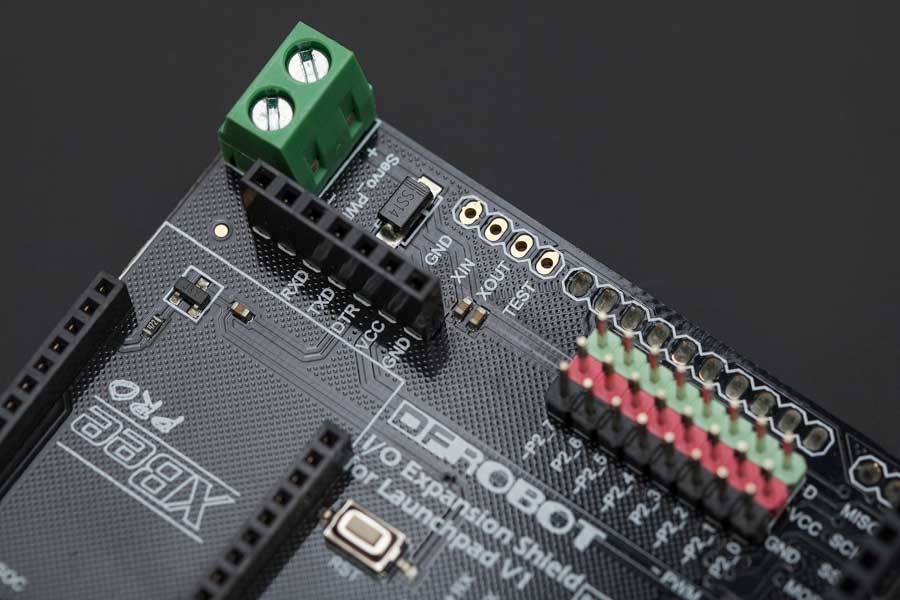

Gravity: IO Expansion Shield for Launchpad [Discontinued] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

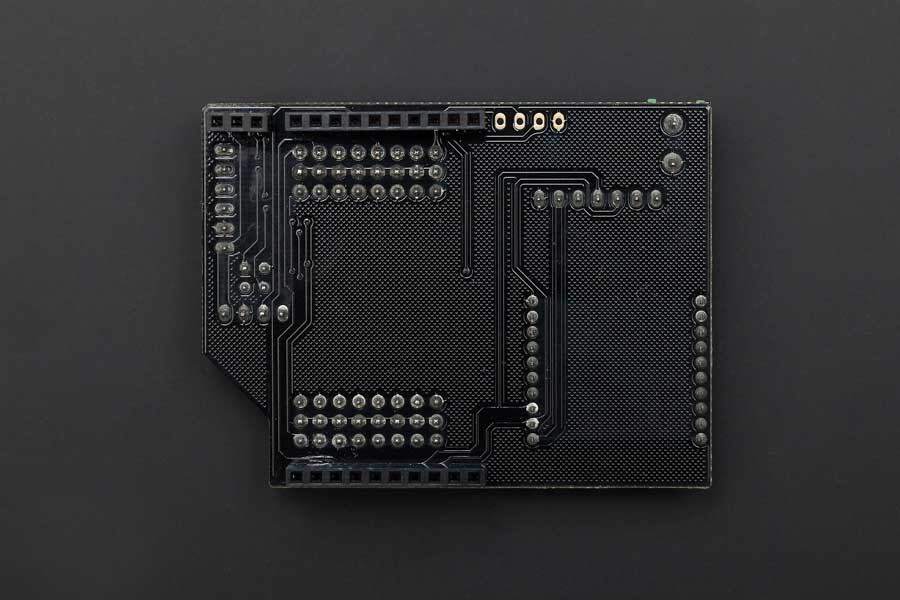

Gravity: IO Expansion Shield for Launchpad [Discontinued] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

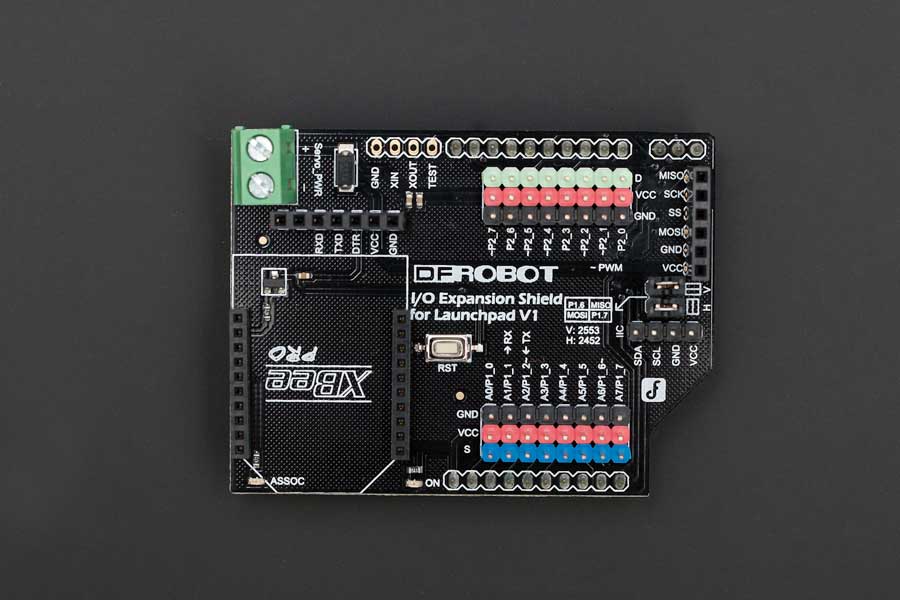

Gravity: IO Expansion Shield for Launchpad [Discontinued] - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

DFRobot proudly presents the I/O expansion shield for Texas Instruments MSP430 LaunchPad. With the I/O expansion shield, your LaunchPad will be able to access more than 100 various sensors, servos and wireless modules from DFRobot.
The Xbee & APC220 socket allows you to start immediatly without additional wireless shield.The SPI & I2C interface enables direct plugging of modules and sensors.A well designed corner cut to make room for the test button on LaunchPad.The colorful standard DFRobot 3 Pinout headers provide additional power for sensors and modules and can be clearly recognized and connected the digital and analog sensors.
Sensor connector :
  • Green-Digital
  • Blue-Analog
  • Red-VCC
  • Black-GND

Specification

  • Support MSP430 LaunchPad
  • Support Xbee/Bluetooth bee
  • Support Bluetooth/APC220
  • Interface:SPI,I2C
  • Size:66x50mm(2.60x1.97")

Documents

  • Wiki Doc
  • Schematic
  • Layout
  • 3.3V Compatible Device List

Shipping List

  • I/O Expansion Shield for LaunchPad x1
