Raspberry Pi DAC+

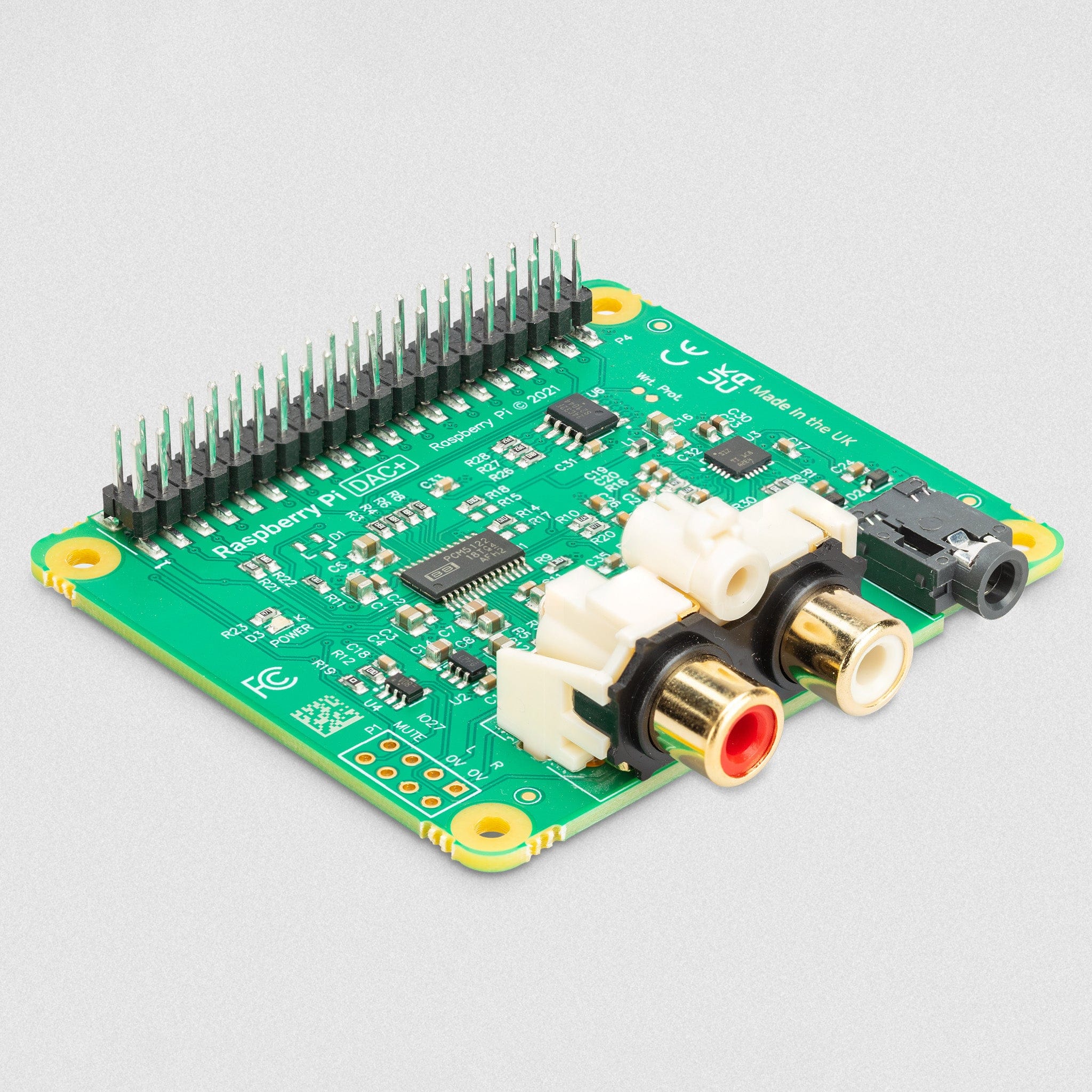

The Raspberry Pi DAC+ is a low-cost audio output HAT for the Raspberry Pi (any 40-pin model), supporting 24‑bit 192kHz high-resolution digital audio. Previously known as the IQaudIO DAC+.

It uses a Texas Instruments PCM5122 DAC to deliver stereo analogue audio to a pair of phono connectors and also provides a dedicated headphone amplifier.

The DAC+ is compatible with any 40-pin Raspberry Pi and requires no soldering.

Those looking for the best possible audio quality should consider the Raspberry Pi DAC Pro which uses a Texas Instruments PCM5242 DAC for an even higher signal-to-noise ratio.

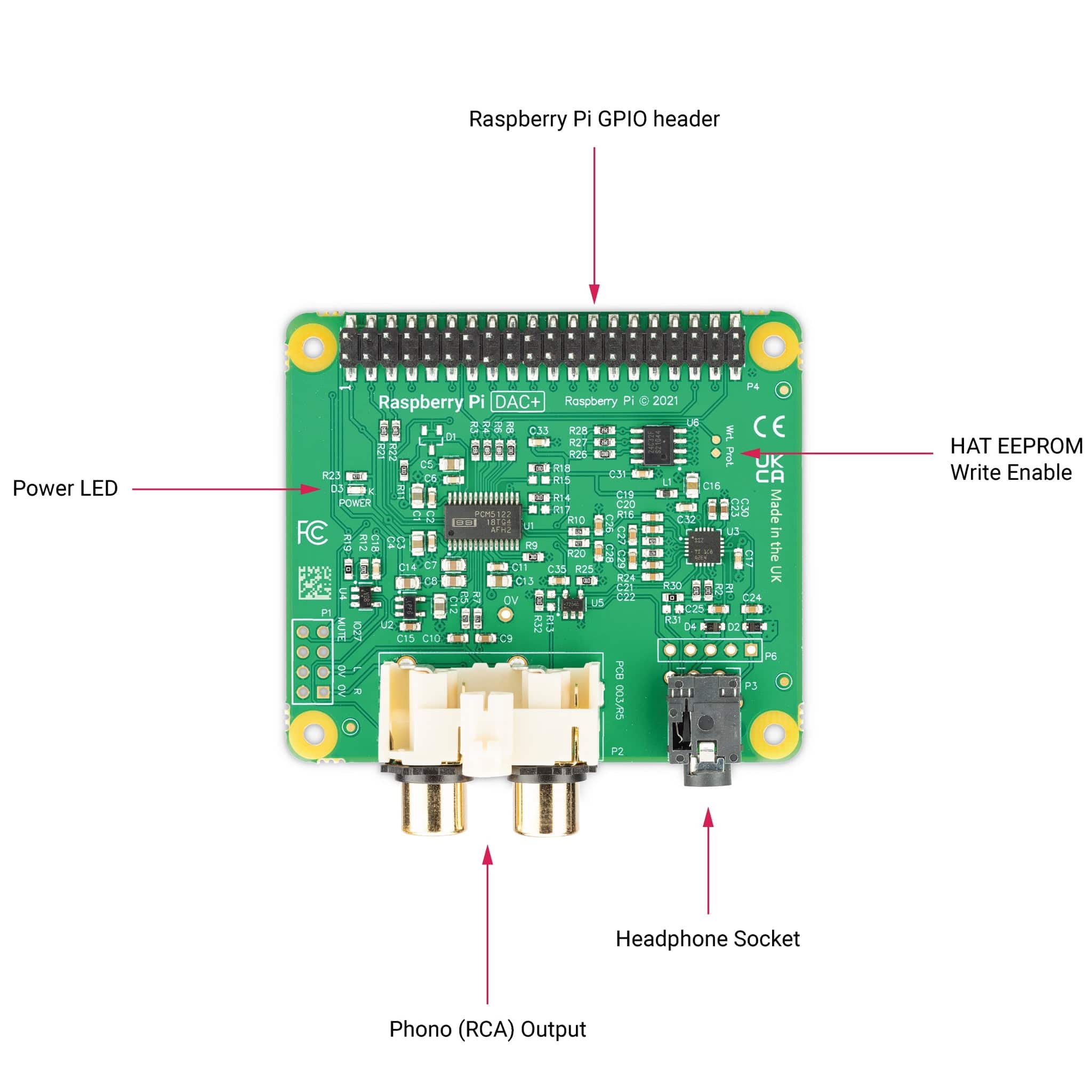

Features

• Standard 40-pin header (compatible with any 40-pin Raspberry Pi)
• PCM5122 DAC
• 24-bit depth 192kHz (Full HD) audio
• Dedicated headphone amplifier
• Phono RCA output
• Powered by the Raspberry Pi PSU
• Onboard EEPROM for auto-configuration
• Power LED
• No soldering required
• Standoffs included

Resources

• Raspberry Pi DAC+ product brief
• Raspberry Pi IQAudio Acquisition Announcement
• Raspberry Pi Audio Documentation
  • Raspberry Pi DAC+ Section
• Product Number: Raspberry Pi SC0930
• EAN: 617588405532
