-70%IR - Infrared Sensor (TSOP58238)—
$1.36
$0.41The Story
An Infrared sensor (IR) module used for receiving TV remote signals. Perfect for the Raspberry Pi as it runs off 3.3V.

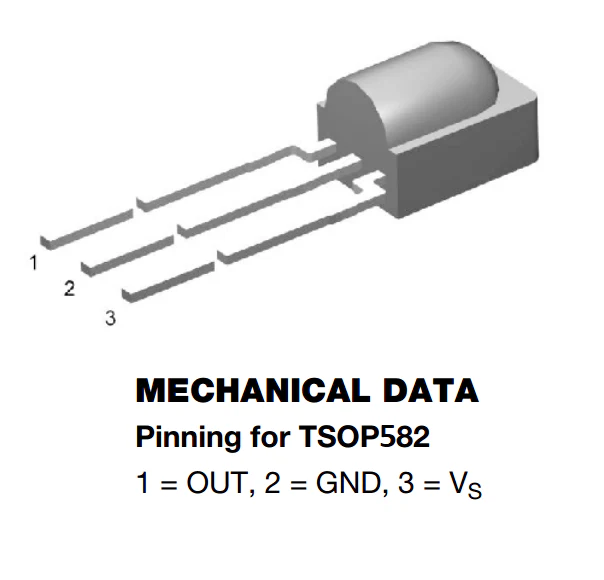

To connect to the Pi (see image for pin numbering):
- Connect Pin 1 to a GPIO port.
- Connect Pin 2 on the sensor to ground (GND) on the Pi.
- Connect Pin 3 on the sensor to 3.3V on the Pi.
Technical Features:
- Carrier Frequency: 38kHz
- Transmission Range: 40m
- Directivity: 45°
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- Supply Current: 700µA
- Opto Case Style: Through Hole
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Manufacturer: VISHAY TSOP58238
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
An Infrared sensor (IR) module used for receiving TV remote signals. Perfect for the Raspberry Pi as it runs off 3.3V.
To connect to the Pi (see image for pin numbering):
- Connect Pin 1 to a GPIO port.
- Connect Pin 2 on the sensor to ground (GND) on the Pi.
- Connect Pin 3 on the sensor to 3.3V on the Pi.
Technical Features:
- Carrier Frequency: 38kHz
- Transmission Range: 40m
- Directivity: 45°
- Supply Voltage Min: 2.5V
- Supply Voltage Max: 5.5V
- Supply Current: 700µA
- Opto Case Style: Through Hole
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Manufacturer: VISHAY TSOP58238
