Tricolour LED Board

The Kitronik TriColour LED board is a pre-built strip board designed for low-power lighting displays, such as edge-lit signs and illustrations. It has been designed such that its power requirement is within the supply rating of a computer USB port (under 100mA).

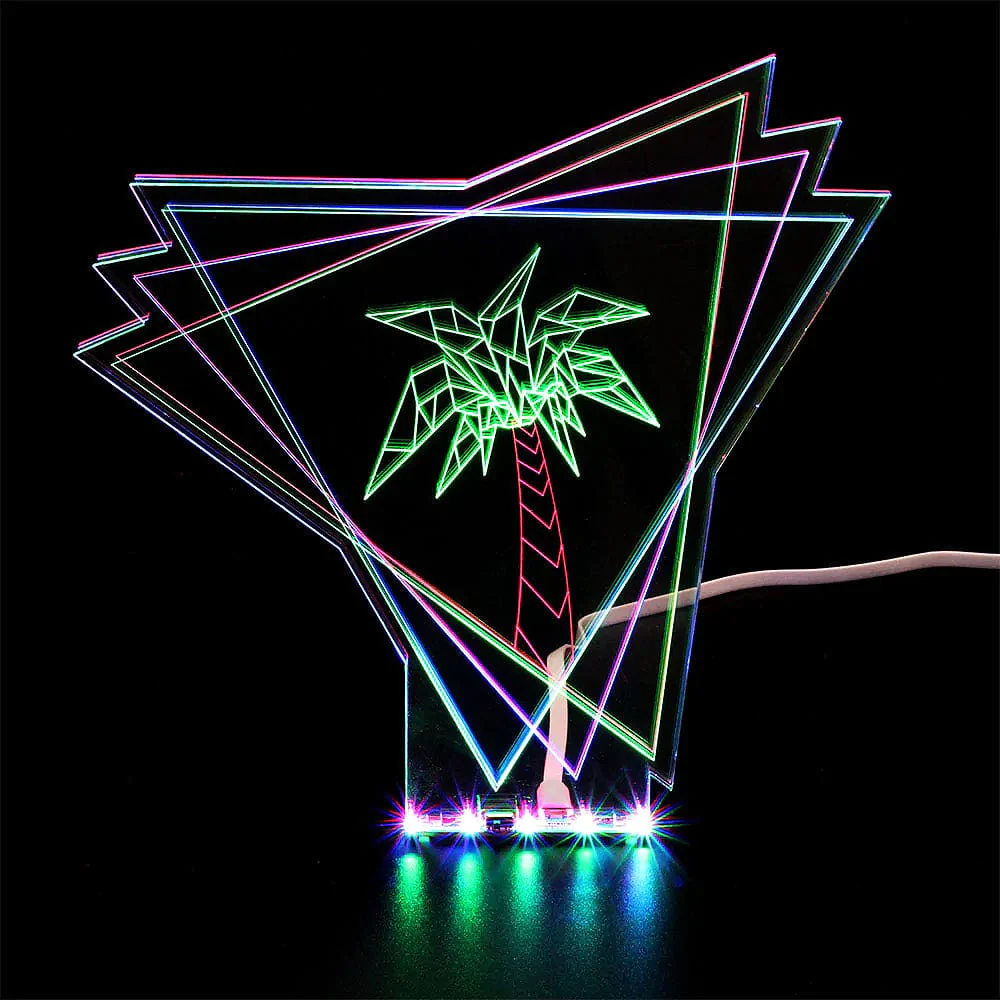

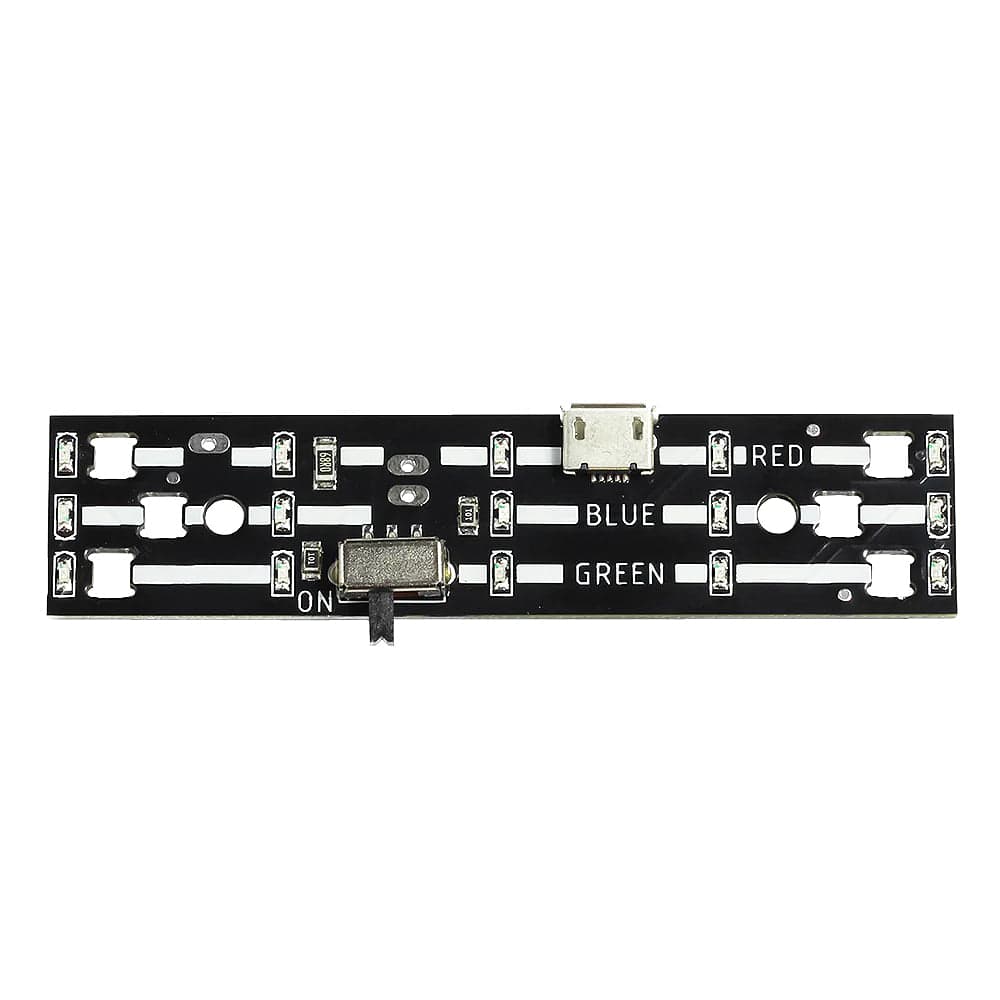

The Tri-Colour board features 15 LEDs; 5 x green, 5 x blue, and 5 x Red running in three colour rows down the length of the board. This allows for edge-lit designs featuring three separately lit acrylic sign parts, making it a great platform for more ambitious and imaginative designs.

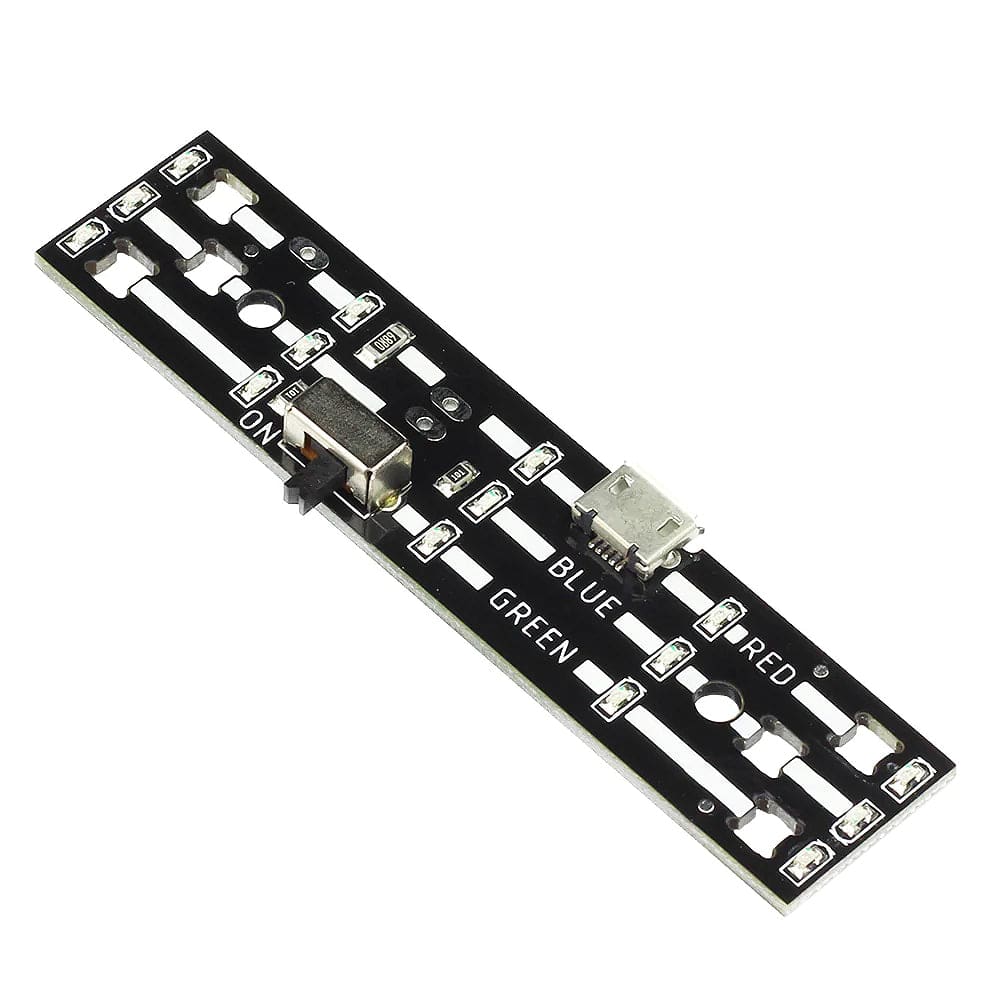

The PCB is approximately 75mm long, 17mm wide, and is provided with a pair of M3 mounting holes, and sets of alignment holes to align 3mm (nominal) acrylic with the LEDs. The side-mounted switch can be used to turn on/off the LEDs. An additional switch can be connected in parallel with the PCB switch to allow remote mounting within an enclosure.

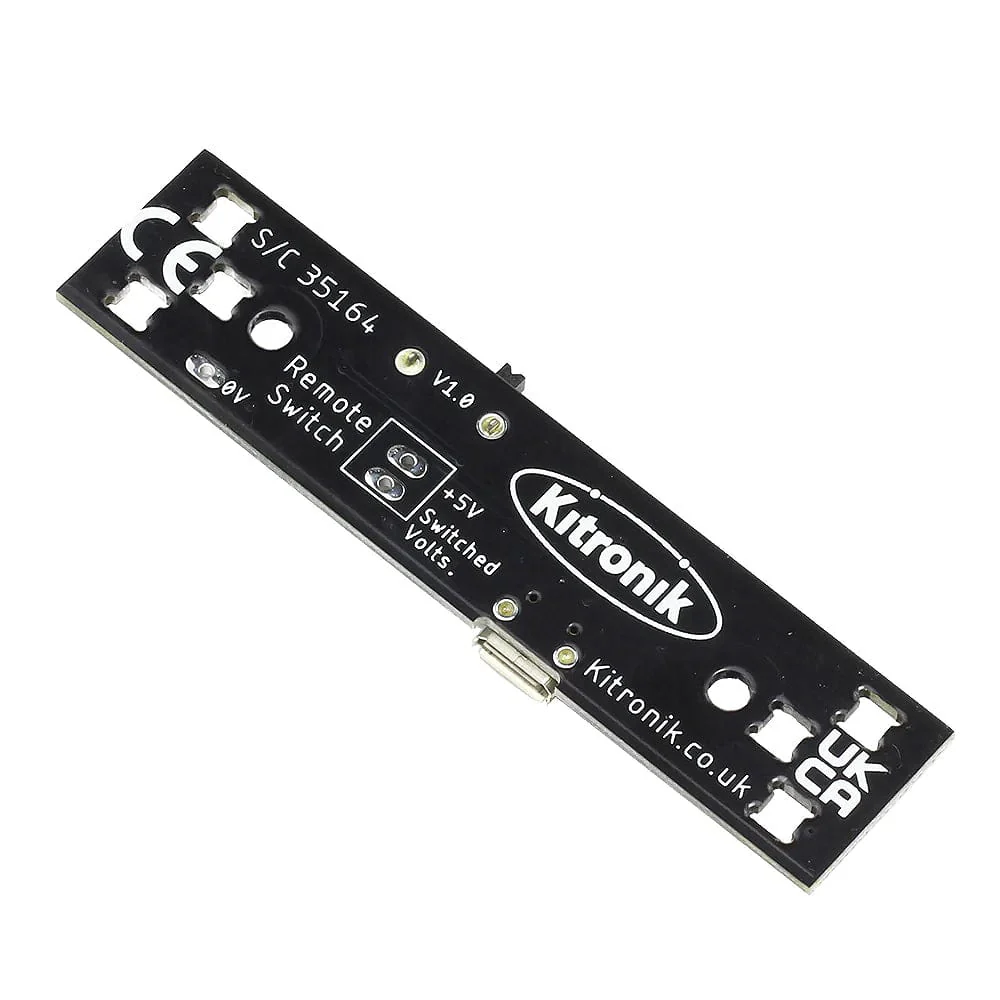

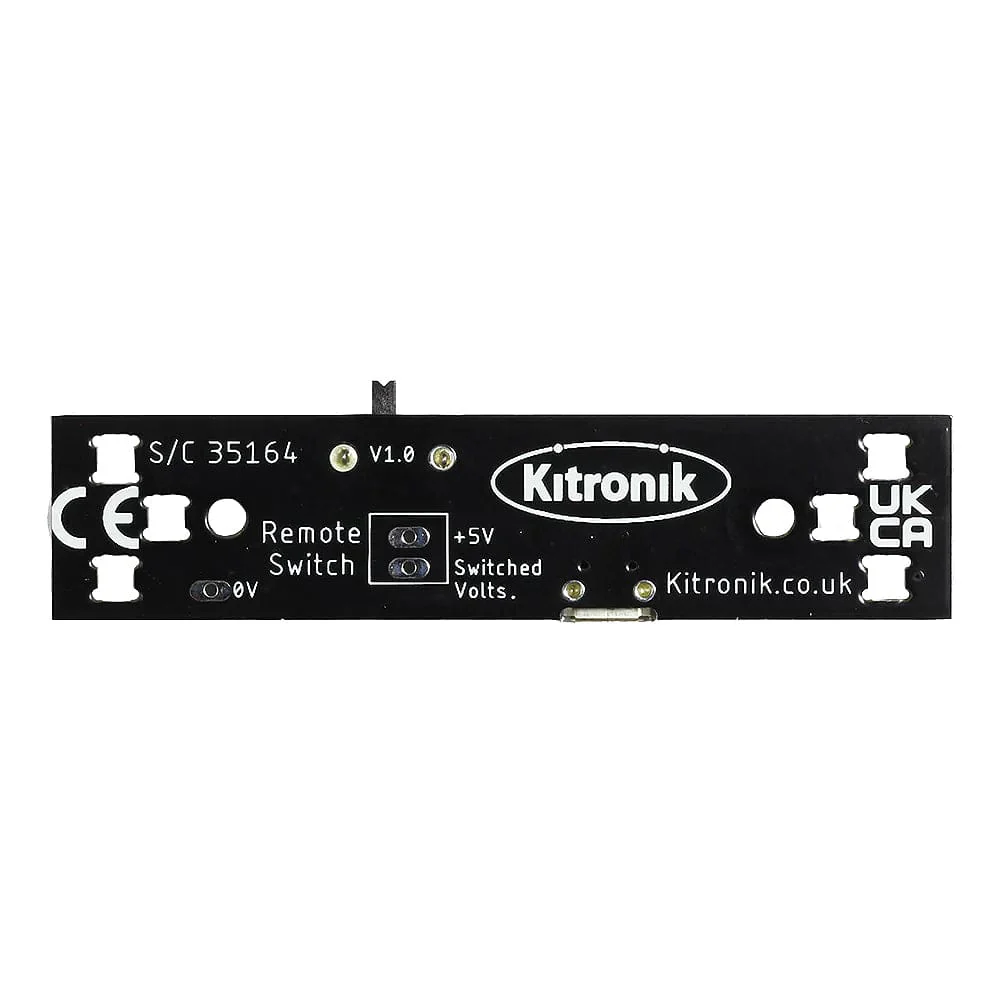

When using a remote switch the PCB-mounted switch should be left switched to ‘Off’. The remote switch is wired across the pads marked +5V and Switched Voltage.

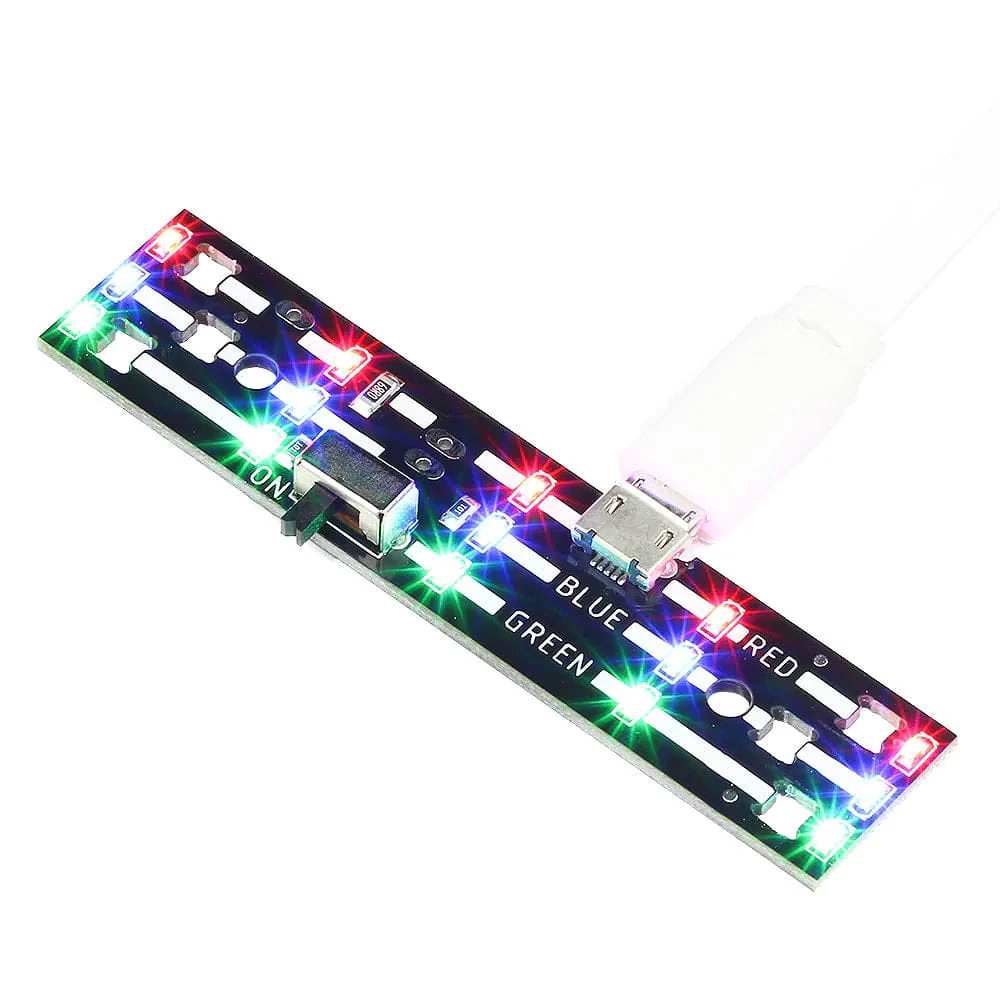

Power is supplied to the tri-colour board via a Micro USB power connector. It is possible to connect a non-USB power supply to the board via the 5V and 0V pads. Caution: voltages over 5.5V may cause damage to the board. Wire to +5V and 0V to use the onboard switch, or wire the 5V to a remote switch and then into the Switched Voltage and 0V pads to use a remote switch.

It is possible to wire one switch to control several boards simultaneously. Caution: voltages over 5V may cause permanent damage to the board.

Features

• Level up your edge-lit signs, static displays, and illustrations with the TriColour LED board
• 5 LEDs; 5 x green, 5 x blue, and 5 x Red running in three colour rows down the length of the board
• It has been designed such that it is within the supply rating of a computer USB port (under 100mA)
• The PCB is approximately 75mm long, 17mm wide
• There are two M3 mounting holes
• The LEDs are controlled by an onboard on/off switch, there are also pads to allow you to connect a remote switch
• Power is supplied to the board via a Micro USB power connector.
• The board also features power pads to allow for powering via a non-USB power source
• One remote on/off switch can be used on multiple boards simultaneously
• Dimensions: L:75mm x W:17mm x H:7mm

Requires

• Either;
  • 1 x USB Power Lead. Or;
  • 1 x USB Power Supply

Specifications

Attribute	Value
Number of LED	3 x 5 each Red, Green, Blue
Operational Supply	5V, via micro USB connector or solder pads
Forward Current	~100mA
Mounting	2 x M3 holes
On/Off switch	Yes

Resources

• Datasheet
• 3mm Perspex/Acrylic edge template
• Make an edge-lit-colour mixing diagram

Package Contents

• 1x TriColour LED board
