The Story

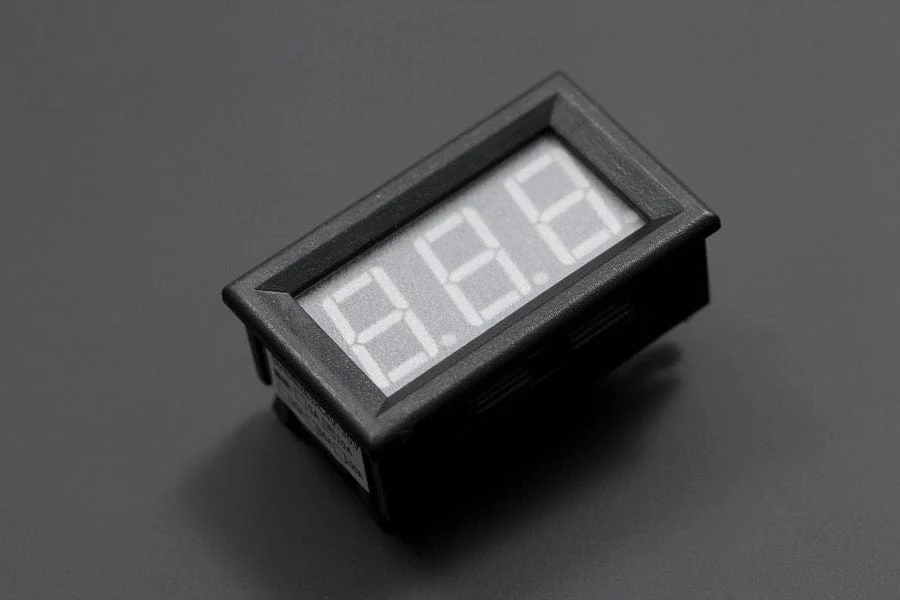

This is a Blue LED Current Meter capable of measuring and displaying current in a circuit up to 10A.

It measures 0-9.99A with 2% accuracy. Just apply four wires to your circuit and it will give you a current reading straight away. Easy to use and a good companion to any robot project.

Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter use a common-ground connection. So, the measurement must be cascaded after loads. It's better to isolate the power supply.

    Specification

    • Measure Current: 0-9.99A DC
    • Power supply voltage: 4-30V DC
    • Display mode: 3-bit 0.56 Led digital tube
    • Accuracy:2%
    • Opening dimension: 45.5mm*26.5mm
    • Dimension: 48mm*29mm*21mm

    Shipping List

    • 1x LED Current Meter 10A (Blue)

    Description

    This is a Blue LED Current Meter capable of measuring and displaying current in a circuit up to 10A.

    It measures 0-9.99A with 2% accuracy. Just apply four wires to your circuit and it will give you a current reading straight away. Easy to use and a good companion to any robot project.

    Please carefully follow the instructions for wiring. The power supply terminal and measurement terminal of this LED Current Meter use a common-ground connection. So, the measurement must be cascaded after loads. It's better to isolate the power supply.

      Specification

      • Measure Current: 0-9.99A DC
      • Power supply voltage: 4-30V DC
      • Display mode: 3-bit 0.56 Led digital tube
      • Accuracy:2%
      • Opening dimension: 45.5mm*26.5mm
      • Dimension: 48mm*29mm*21mm

      Shipping List

      • 1x LED Current Meter 10A (Blue)
