$4.74The Story
If you need to charge LiPo batteries, this simple charger will do just that, and do it fast! The Lithium Battery Charger can charge 3.7V LiPo battery at a rate of 500mA per hour. It is designed to charge single-cell Li-Ion or Li-Polymer batteries. Check the datasheet below to see if it will work with your battery.

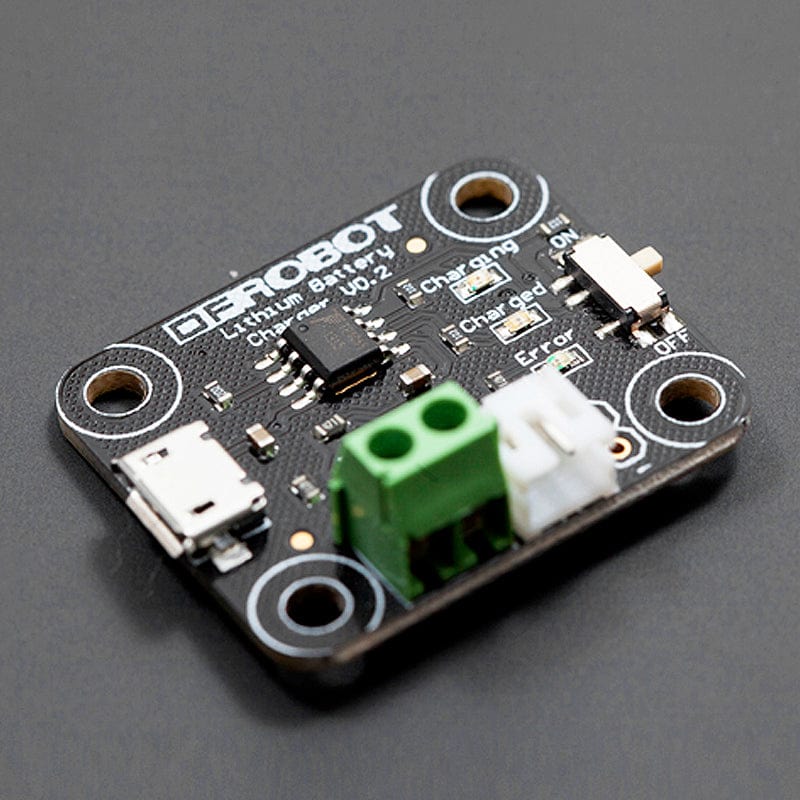

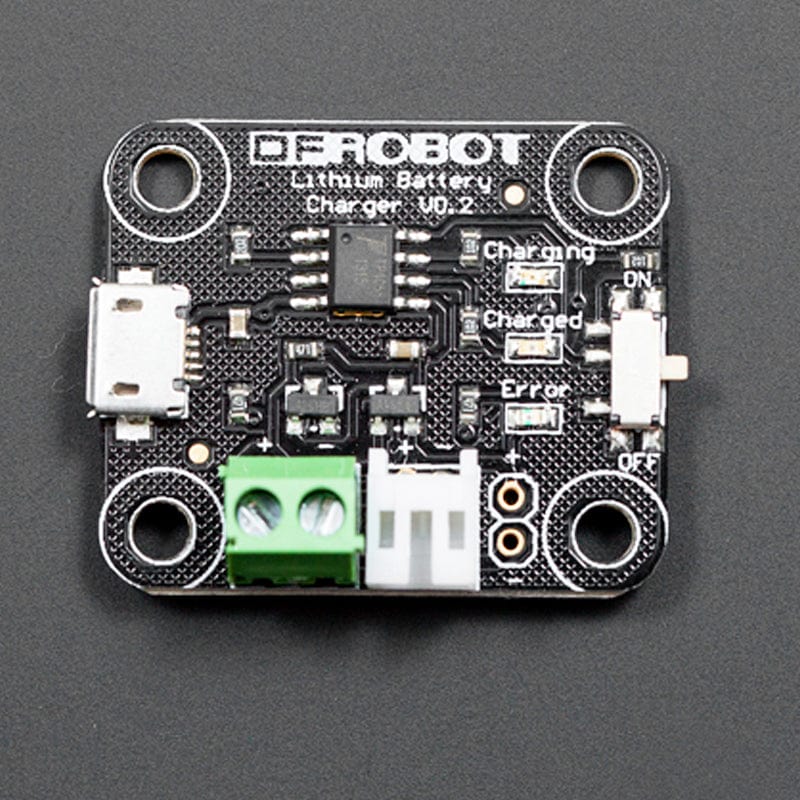

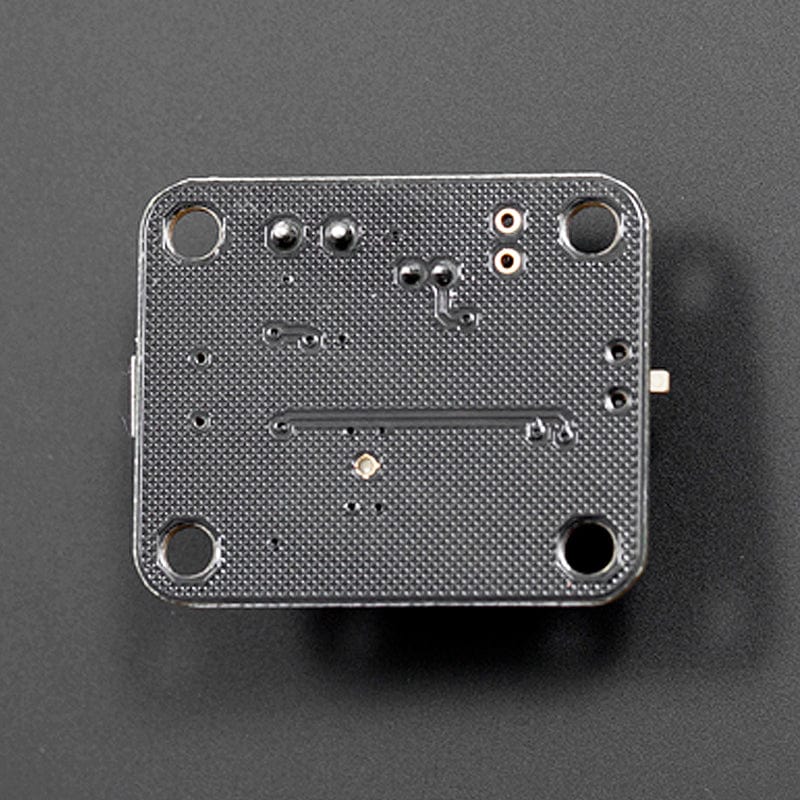

The board incorporates a charging circuit, status LED, connector for your battery (JST-type used in the batteries we carry), and a micro-USB connector. Four small mounting holes allows this charger to be easily embedded into a project.
Specifications
- Programmable Charge Current:Up to 1000mA
- Constant-Current/Constant-Voltage
- Types of battery: Single-cell Li-Ion or Li-Polymer batteries
- Interface
- Charge from Micro USB
- JST-type or terminal connect to battey
- With ON/OFF switch,3 status LEDs
- Accuracy:1.5% @ Preset 4.2V Charge Voltage
- C/10 Charge Termination
- Operating Ambient Temperature：-40°C～85°C
- Size: 3.2 x 2.7 x 1cm
Optional Parts
- Micro USB Cable(FIT0265)
- Flat Noodle Micro USB Cable 1.2m(FIT0351-OE)
Resources
- TP4056 datasheet
- Schematic
Package Contents
- 1x Lithium Battery Charge
