Long-wave IR Thermal Imaging Camera USB-C Module for Raspberry Pi [Discontinued]

This camera module features a long-wave infrared design that has a hybrid technology combining a microbolometer and thermopile pixels. With an 80 x 62 pixel IR array and a 45° field of view, it detects the IR distribution of objects, calculates their surface temperatures, and generates detailed thermal images. Its shutterless design allows for continuous operation and a thermal imaging video stream, providing uninterrupted monitoring and diagnostics. With a USB-C connector, it makes for an easy way to connect to your Raspberry Pi, Android, and PC to power it up.

The camera has impressive sensitivity with a Noise Equivalent Temperature Difference (NETD) of 150mK RMS at a 1Hz refresh rate and can deliver a thermal imaging video stream at up to 25 frames per second for clear results. It is ideal for a wide range of projects, from security surveillance to environmental monitoring.

It comes fully supported with online resources and manuals, including a Python demo for Raspberry Pi and compatibility with Android and Windows host computers, making it a versatile choice for anyone looking to add advanced thermal imaging to their projects.

We also have a 40-pin GPIO header version in the store

Features

• Adopts the hybrid technology of microbolometer and thermopile, 80 x 62 array pixels
• Continuous operation and thermal imaging video stream due to shutterless design
• Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate
• Up to 25FPS (Max) thermal imaging video stream output
• Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)

Specifications

Power Supply	5V
Operating Current	61mA@5V
Wavelength Range	8~14μm
Operating Temperature	-20~85℃
Target Temperature	-20~400℃
Refresh Rate	25 FPS (Max)
FOV	Basic version: 45°(H) x 45°(V)
Noise Equivalent Temperature Difference	150mK
Measuring Accuracy	±2℃ (ambient temp. 10~70℃)

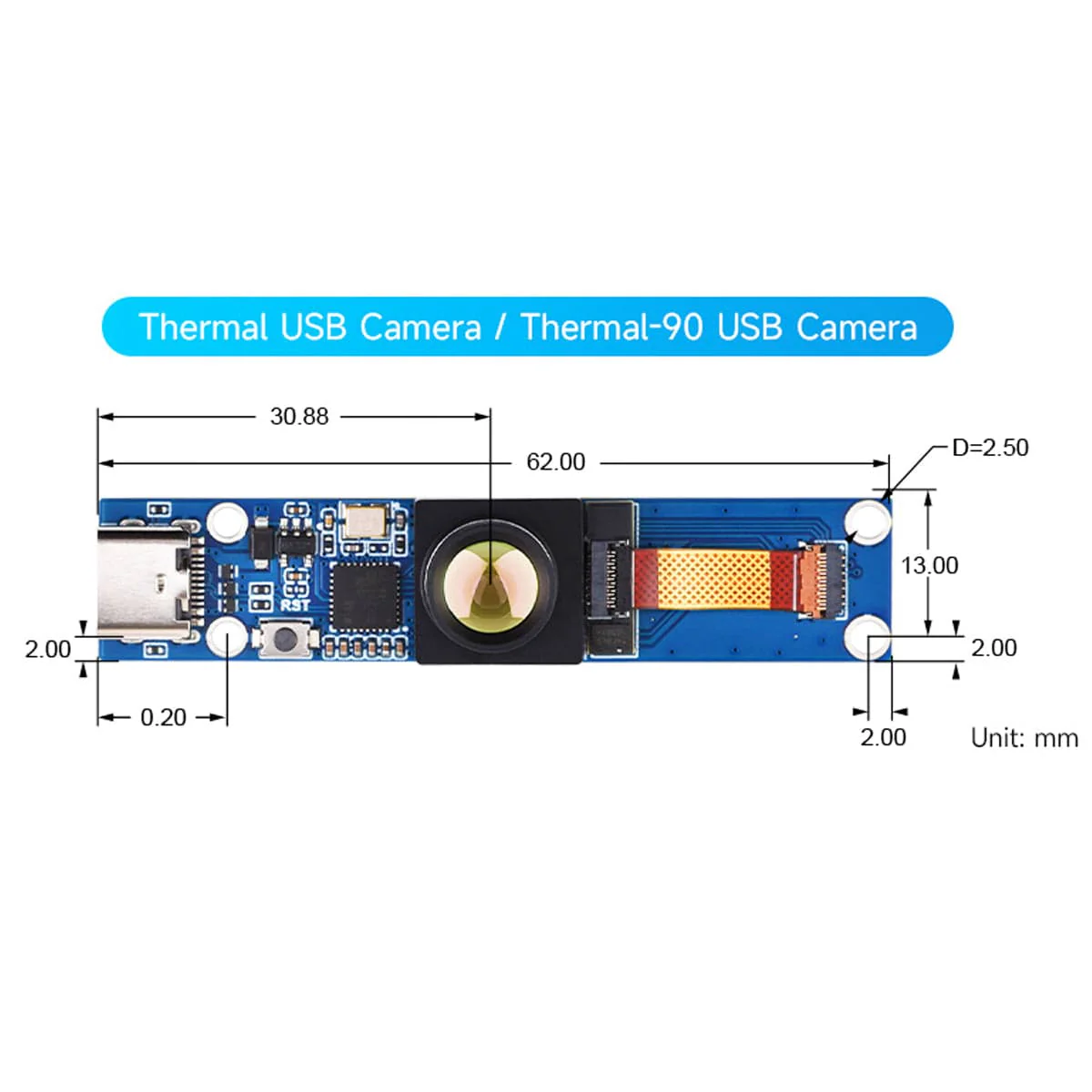

Dimensions	Thermal USB Camera / Thermal-90 USB Camera: 62.0 x 13.0mm

Resources

• Product Wiki
• Schematic

Package Contents

• 1x Thermal USB Camera
• 1x Dual Type-C cable -1m
