-70%Fermion: LSM303 Tilt Compensated Compass (Breakout)—
$20.42
$6.13The Story
The LSM303DLH is a triple axis accelerometer combined with a triple axis magnetic sensor.

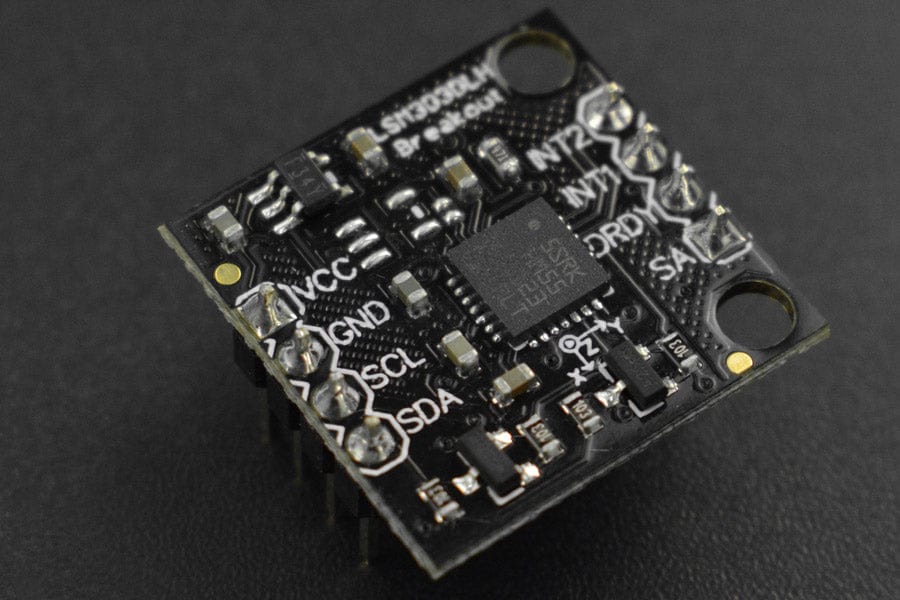

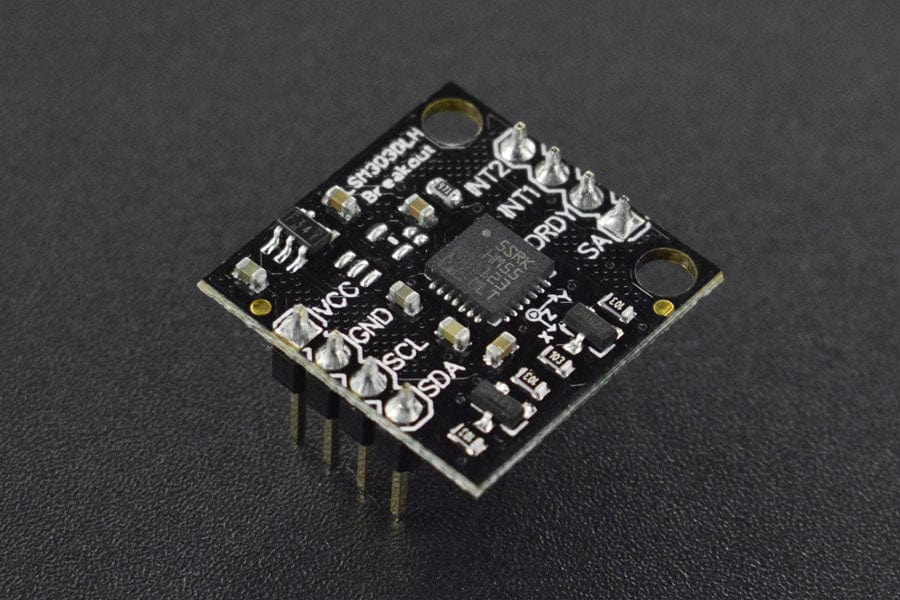

This breakout board uses the LSM303DLH to give you the data you need to feed into a microcontroller and calculate tilt-compensated output.
Applications
- Compensated compassing
- Map rotation
- Position detection
- Motion-activated functions
- Free-fall detection
- Intelligent power-saving for handheld devices
- Display orientation
- Gaming and virtual reality input devices
- Impact recognition and logging
- Vibration monitoring and compensation
Specification
- Power supply: 3.6~8V DC
- Chip: LSM303DLH
- ±1.3 to ±8,1 gauss magnetic field full-scale
- ±2 g/±4 g/±8 g dynamically selectable fullscale
- 16-bit data out
- I2C serial interface
- 2 independent programmable interrupt
- generators for free-fall and motion detection
- Embedded self-test
- Accelerometer sleep-to-wakeup function
- 6D orientation detection

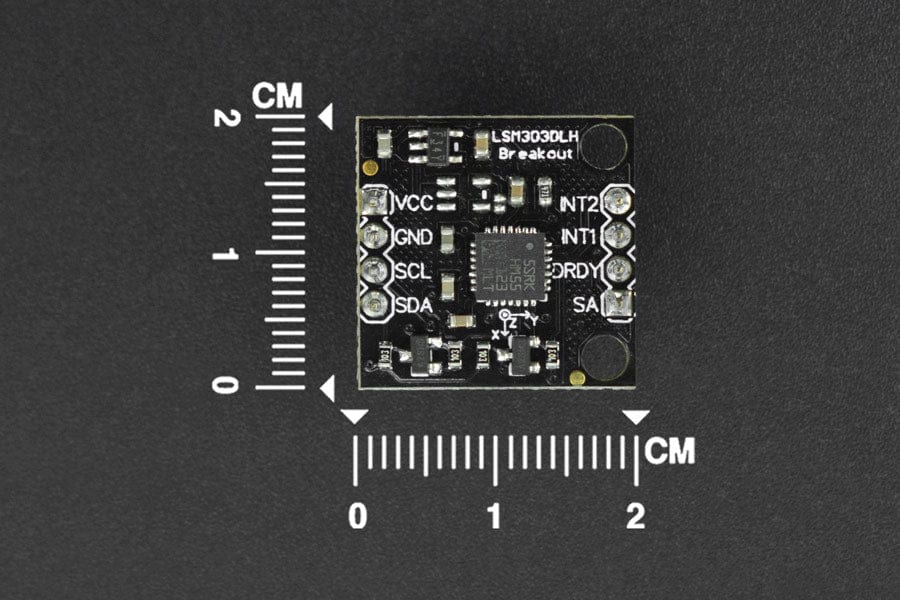

- Dimensions: 20.5mmx20.5mm(0.8x0.8'')
- Weight: 1g
Documents
- Wiki Doc
- Schematics
- Application note
Shipping List
- LSM303 breakout board x1
