The Story

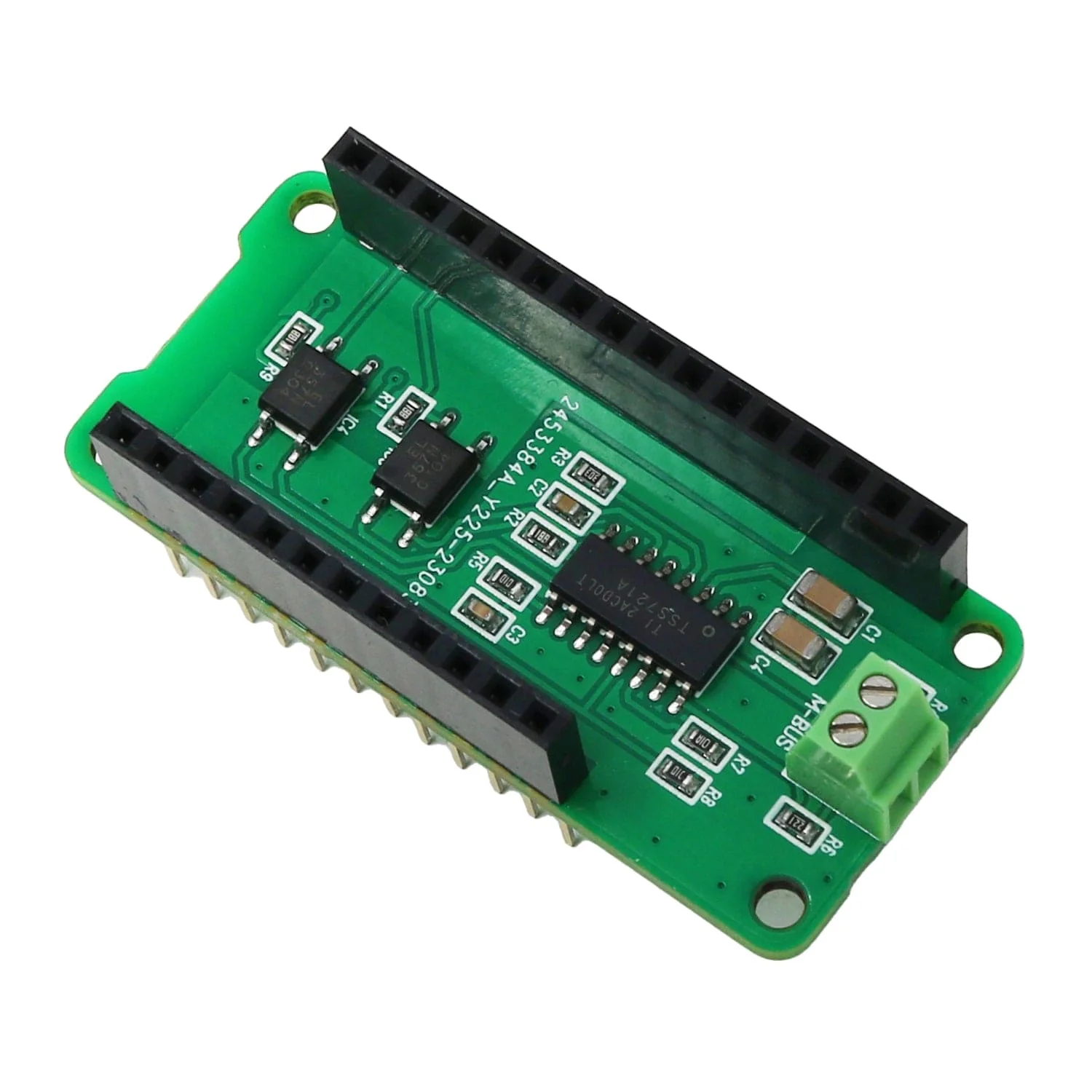

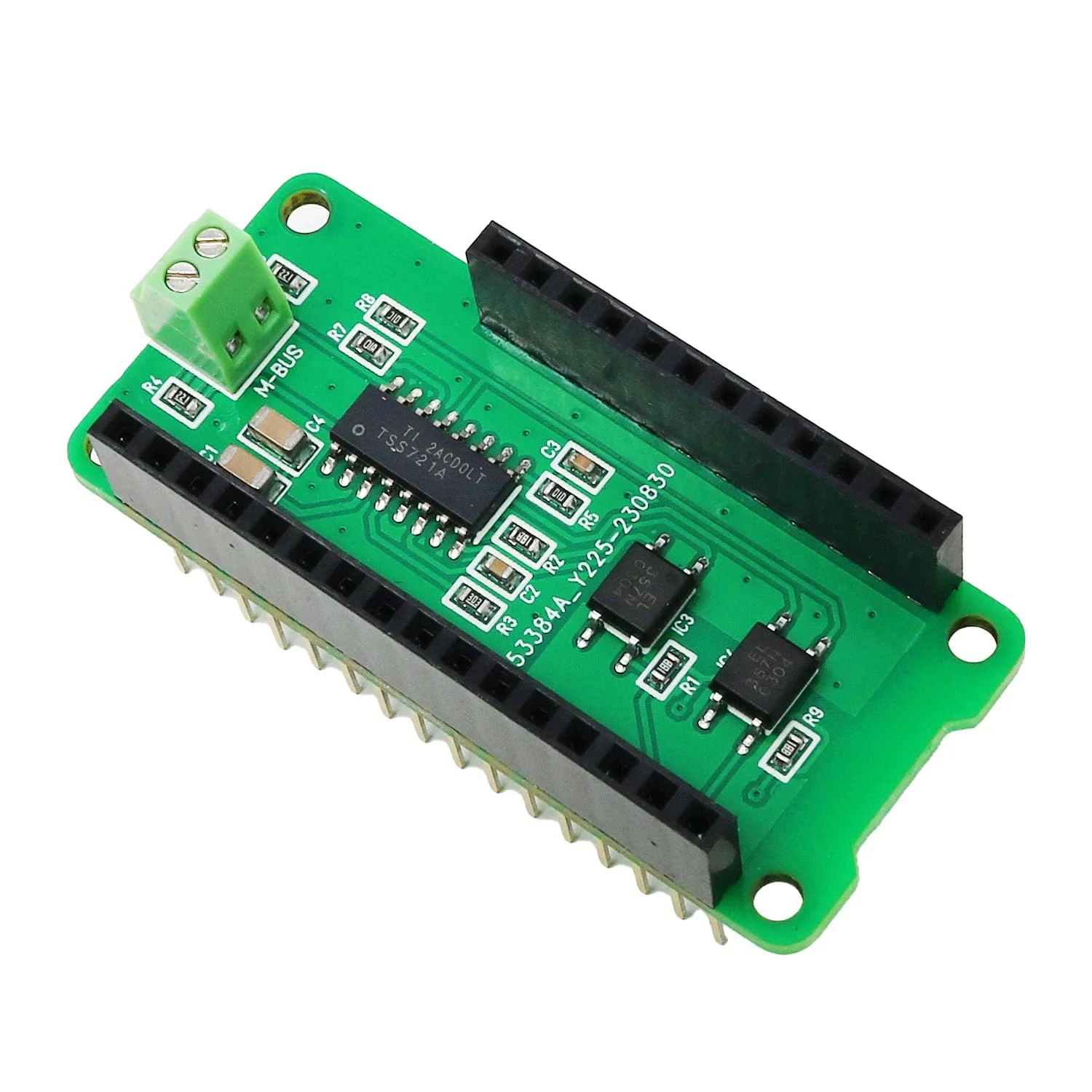

This FeatherWing, serving as an M-Bus Slave Node, is powered by the reliable TSS721 M-Bus Transceiver. The M-Bus FeatherWing features an isolated interface, providing a stable connection for your M-Bus devices.
This FeatherWing is designed to be used with a Feather microcontroller board, transforming it into a powerful tool to read consumption meters and gather essential data.Â
It's the perfect companion for anyone looking to delve into M-Bus communication and create sophisticated smart metering solutions.
Click here to see our M-BusÂ
You can find our Feather boards here
Features
- M-Bus (Meter-Bus) slave node
- Uses the Texas Instruments TSS721A meter bus transceiver IC
- Compatible with European standards EN13757-2 and EN1434-3
- For reading of smart meters with P1 interface
- For constructing your own meters
- Galvanically isolated interface
- Miniature screw terminals for bus connection
- Optional Stacked headers
- For Feather microcontroller boards
Connection Example - M-BUS Master
Resources
- Datasheet
-
Github
- Example code for reading consumption meters with P1 customer interface and DLMS/COSAM protocol
- Arduino M-BUS meter example
Package Contents
- 1x M-Bus Slave Featherwing
